Description
Technical Data Sheet
-
Frequency (Hz)50/60
-
Insulation classI°
-
IP54
-
Max absorbed current (A)1,5
-
Max absorbed power (W)330
-
Motor classB
-
Temperatura esterna max funzionamento (°C)+60
-
Temperatura esterna min funzionamento (°C)-20
-
Voltage (V)200-277
-
Weight (Kg)6
-
Max airflow (m³/h)5630
-
Max pressure (Pa)250
-
RPM1650
-
Sound pressure level at 1m Lp [dB (A)]69
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

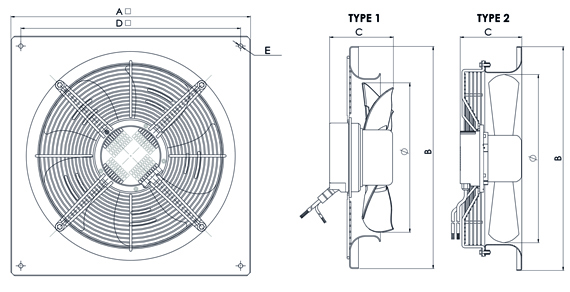

Ø (mm)400
-
Size A (mm)540
-
Size B (mm)540
-
Size C (mm)148,7
-
Size D (mm)490
-
Size E (mm)Ø 10
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
DPU 400 (DISTANZIATORE)
• Spacer for panel installation to reduce unit overhang towards the outside; especially useful in case of gratings, roller shutters, etc.
TRA 400 (TELAIO CON RETE ANTINF.)
• Outlet port protection grille for use when the unit is mounted within reach.
POT
Potentiometer for installation in Standard DIN box. White colour. Resistance 10 kO. Switch rating: 4 A / 250 Vac - 10 A / 12 Vdc. Protection: IP44 (recessed installation), IP54 (wa...
