Description
Technical Data Sheet
-
Frequency (Hz)50/60
-
Insulation classI°
-
IP44
-
Max absorbed current (A)1,4
-
Max absorbed power (W)200
-
Motor classB
-
Temperatura esterna max funzionamento (°C)+60
-
Temperatura esterna min funzionamento (°C)-20
-
Voltage (V)200-277
-
Weight (Kg)4,5
-

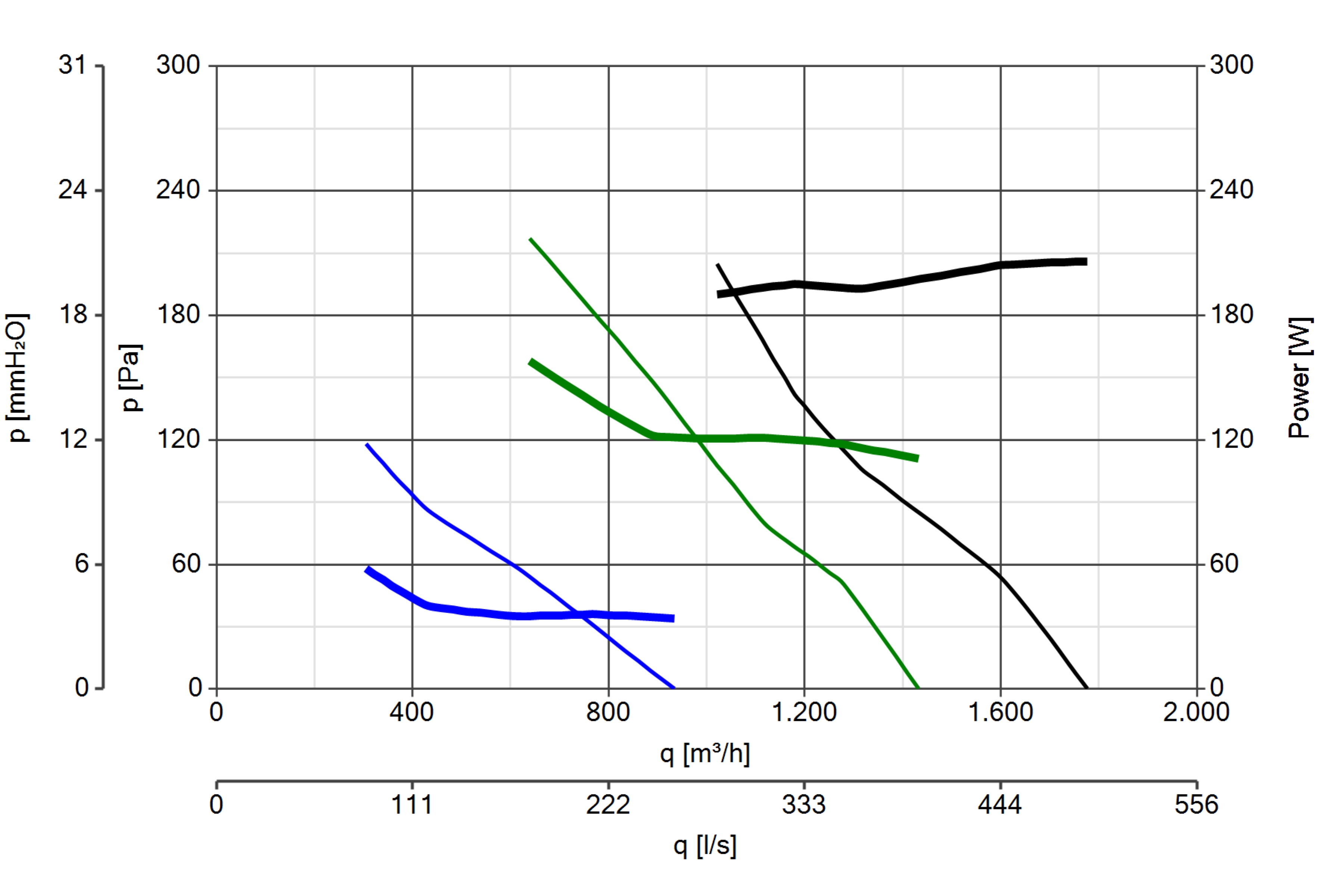

Max airflow (m³/h)1770
-
Max pressure (Pa)205
-
RPM3150
-
Sound pressure level at 1m Lp [dB (A)]69
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Ø (mm)250
-
Size A (mm)370
-
Size B (mm)370
-
Size C (mm)106,2
-
Size D (mm)320
-
Size E (mm)Ø 7
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
PGR 250 (PERSIANA GRAVITA')
Gravity shutter for 160 and 200 mm diameter ventilation ducts.
DPU 250 (DISTANZIATORE)
• Spacer for panel installation to reduce unit overhang towards the outside; especially useful in case of gratings, roller shutters, etc.
TRA 250 (TELAIO CON RETE ANTINF.)
Grille with protection net for ventilation ducts with 160 and 200 mm diameters.
POT
Potentiometer for installation in Standard DIN box. White colour. Resistance 10 kO. Switch rating: 4 A / 250 Vac - 10 A / 12 Vdc. Protection: IP44 (recessed installation), IP54 (wa...
