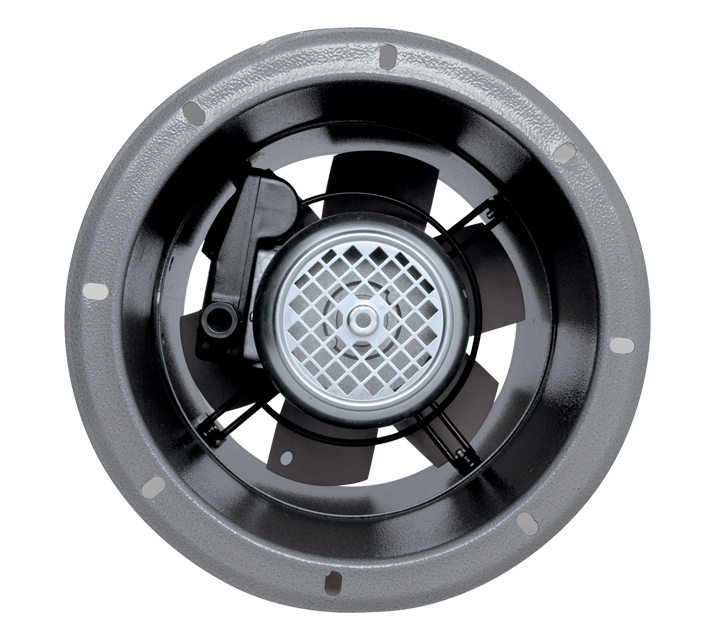

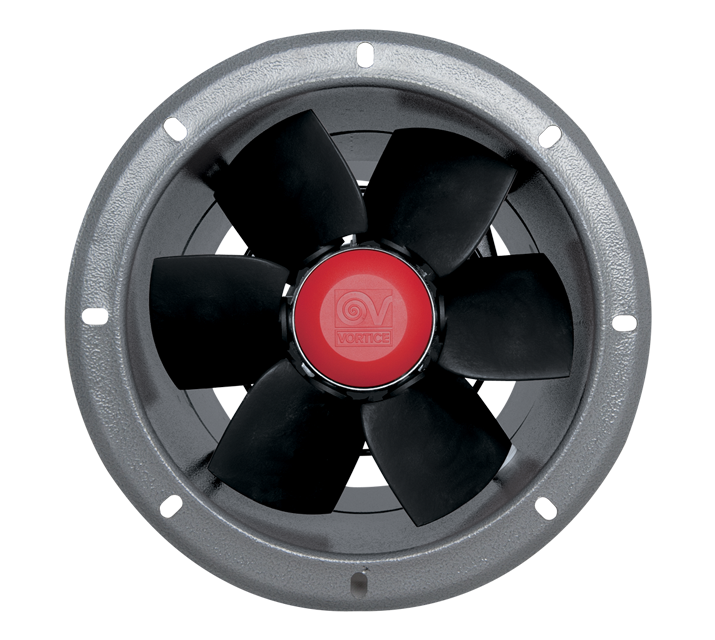

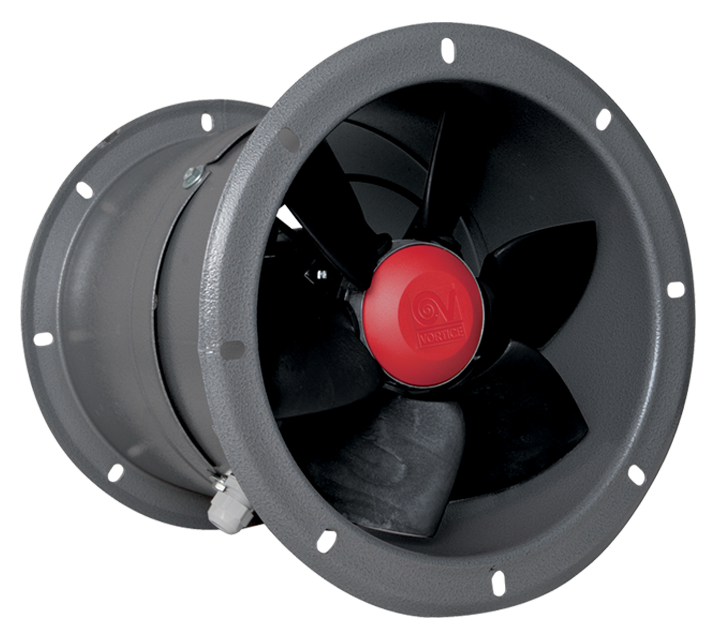

Description

• Nominal diameter 250 mm
• 2 rolled steel flange sections, welded, phosphated and polyester powder coated in practical grey colour with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• 1 speed three-phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 1,210 m3/h.
• Impeller with 6 wing profile blades, dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents, and keyed to a diecast aluminium hub.
• Vortice speed controller.
Read full descriptionClose description

Certifications

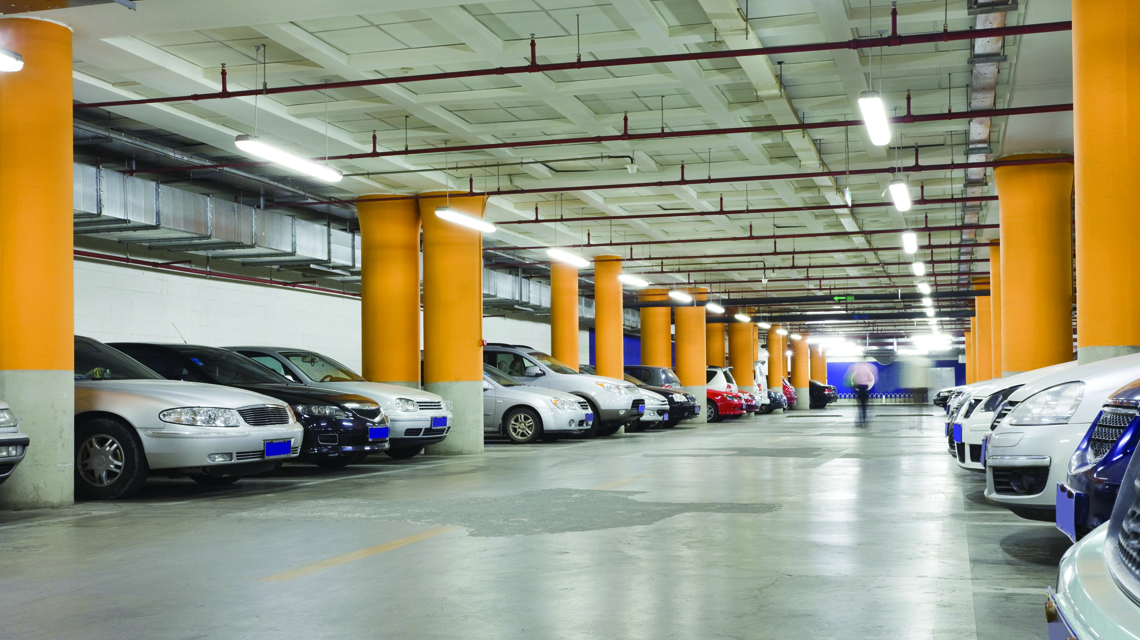

vorticel_mpc_e_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • IP
    X4
  • Max absorbed current (A)
    0,21
  • Max absorbed power (W)
    60
  • Max ambient temperature for continuous operation (°C)
    70
  • Min continuous operation room temperature (°C)
    -25
  • Motor protection IP
    55
  • Nominal diameter (mm)
    250
  • Number of phases (Ph)
    3
  • Number of poles
    4
  • Voltage (V)
    380-415
  • Weight (Kg)
    8,2
  • Max airflow (l/s)
    336
  • Max airflow (m³/h)
    1210
  • Max pressure (mmH2O)
    8,2
  • Max pressure (Pa)
    80
  • RPM
    1460
  • Sound power Lw [dB(A)]
    45,8
  • Sound pressure Lp [dB (A)] at 3 m
    25,3

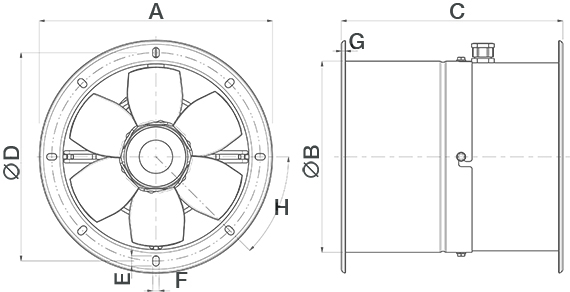

  • Size A (mm)
    ø 319
  • Size B (mm)
    ø 264
  • Size C (mm)
    300
  • Size D (mm)
    ø 292
  • Size E (mm)
    14
  • Size F (mm)
    9
  • Size G (mm)
    4
  • Size H (mm)
    45°
quota
Curva_JPG_42359-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.

Accessories

Discover accessories related to the product

IRT 15
IRT 15
• Three-phase speed controller
IRET 6
IRET 6
• Three-phase electronic speed controller
MPC BO 250 (BOCCAGLIO)
MPC BO 250 (BOCCAGLIO)
Intake nozzle for fixing to the intake side to optimize intake and reduce noise level.
MPC RA 250 (RACCORDO FLESSIBILE)
MPC RA 250 (RACCORDO FLESSIBILE)
Flexible fitting for making a non-rigid connection to compensate for distance or for reducing vibration.
MPC SU 250 (SUPPORTO)
MPC SU 250 (SUPPORTO)
Mounting feet.
MPC FL 250 (FLANGIA)
MPC FL 250 (FLANGIA)
Flange fitting to replace the one supplied with the unit, for reducing the unit’s size and permitting normal anchoring to the duct.
MPC RP 250 (RETE DI PROTEZIONE)
MPC RP 250 (RETE DI PROTEZIONE)
Protection grille for use when the unit is mounted within reach.
