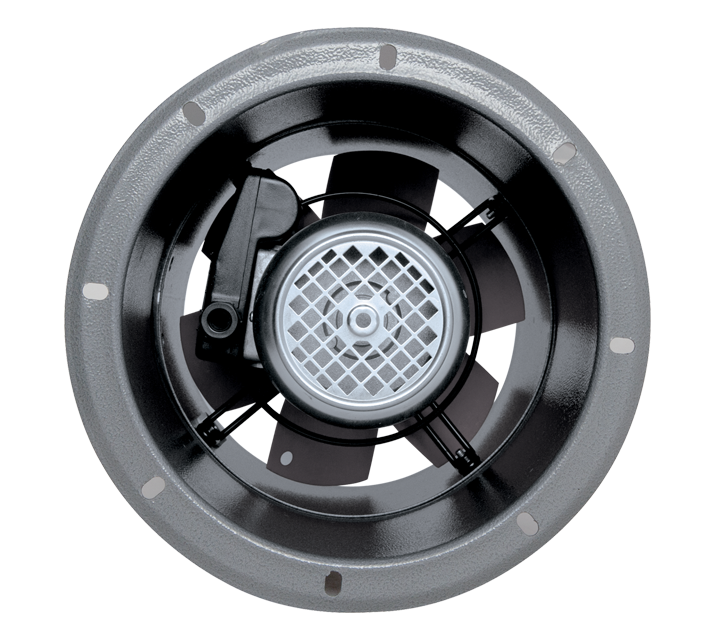

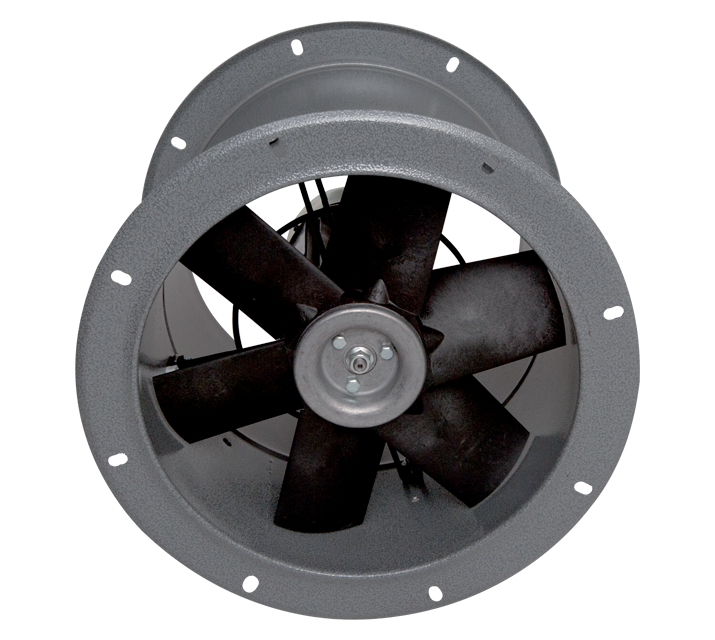

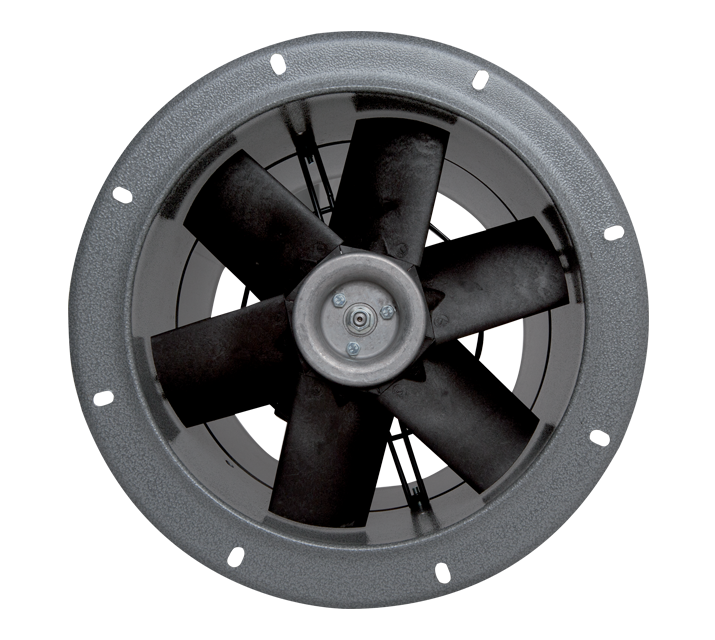

Description
• Nominal diameter 400 mm
• 2 rolled steel flange sections, welded, phosphated and polyester powder coated in practical grey colour with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• 1 speed single phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 5.000 m3/h.
• Impeller with 6 wing profile blades, dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents, and keyed to a diecast aluminium hub.
• Vortice speed controller.
• 2 rolled steel flange sections, welded, phosphated and polyester powder coated in practical grey colour with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• 1 speed single phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 5.000 m3/h.
• Impeller with 6 wing profile blades, dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents, and keyed to a diecast aluminium hub.
• Vortice speed controller.
Certifications
-
Download
CE
-
EAC
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
IPX4
-
Max absorbed current (A)1,30
-
Max absorbed power (W)272
-
Max ambient temperature for continuous operation (°C)70
-
Min continuous operation room temperature (°C)-25
-
Nominal diameter (mm)400
-
Number of phases (Ph)1
-
Number of poles4
-
Voltage (V)220-240
-
Weight (Kg)14,0
-
Max airflow (l/s)1333
-
Max airflow (m³/h)4800
-
Max pressure (mmH2O)18.7
-
Max pressure (Pa)183
-
RPM1440
-
Sound power Lw [dB(A)]68.6
-
Sound pressure Lp [dB (A)] at 3 m48.1
-

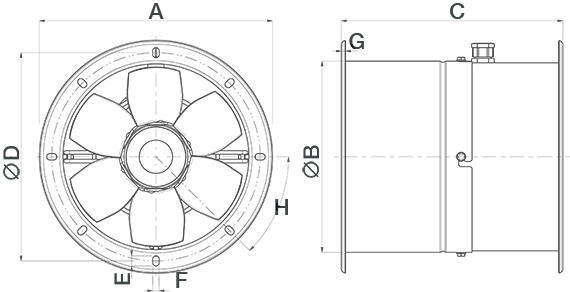

Size A (mm)ø 475
-
Size B (mm)ø 418
-
Size C (mm)330
-
Size D (mm)ø 448
-
Size E (mm)14
-
Size F (mm)9
-
Size G (mm)4
-
Size H (mm)45°
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
MPC BO 400 (BOCCAGLIO)
• Intake nozzle for fixing to the intake side to optimize intake and reduce noise level.
MPC RA 400 (RACCORDO FLESSIBILE)
• Flexible fitting for making a non-rigid connection to compensate for distance or for reducing vibration.
MPC FL 400 (FLANGIA)
• Flange fitting to replace the one supplied with the unit, for reducing the unit’s size and permitting normal anchoring to the duct.
MPC RP 400 (RETE DI PROTEZIONE)
• Protection grille for use when the unit is mounted within reach.
