Code 70014

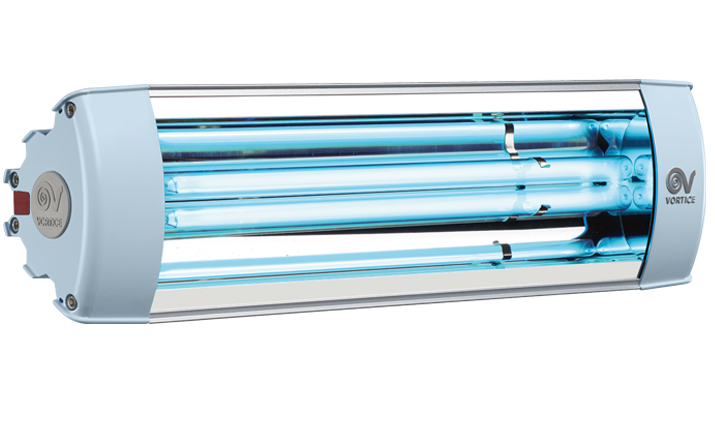

UVLOGIKA SYSTEM

Lampada UV-C per la sanificazione di superfici e compatibile con LOGIKO SYSTEM

Description

Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,2
  • Absorbed Power max (W)
    36
  • Angolo di emissione (°)
    110
  • Attacco lampada
    2G11
  • Frequency (Hz)
    50-60
  • Insulation Class
  • IP
    24
  • Lunghezza d’onda (nm)
    253,7
  • Max ambient temperature for continuous operation (°C)
    45
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,3
  • Durata lampada (h)
    9000
  • Emissione di ozono
    assente
  • Irradianza effettiva (d=1m) µW/ cm2 (2,2 W/m2)
    220
  • Potenza radiante UVC (W)
    8,4
  • Potenza UVC (W)
    12

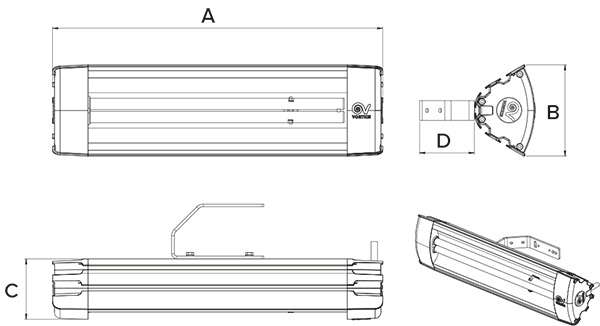

  • Size A (mm)
    502
  • Size B (mm)
    138
  • Size C (mm)
    92
  • Size D (mm)
    83
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

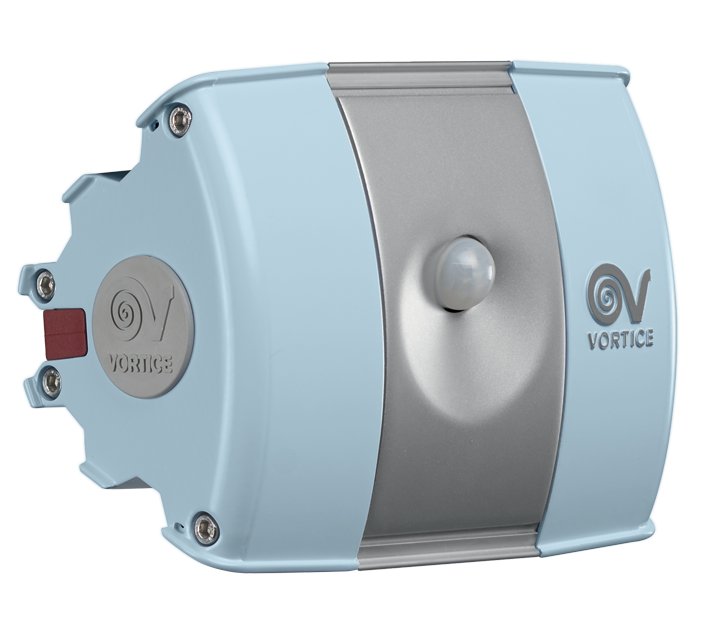

PIR SYSTEM
