Code 70907

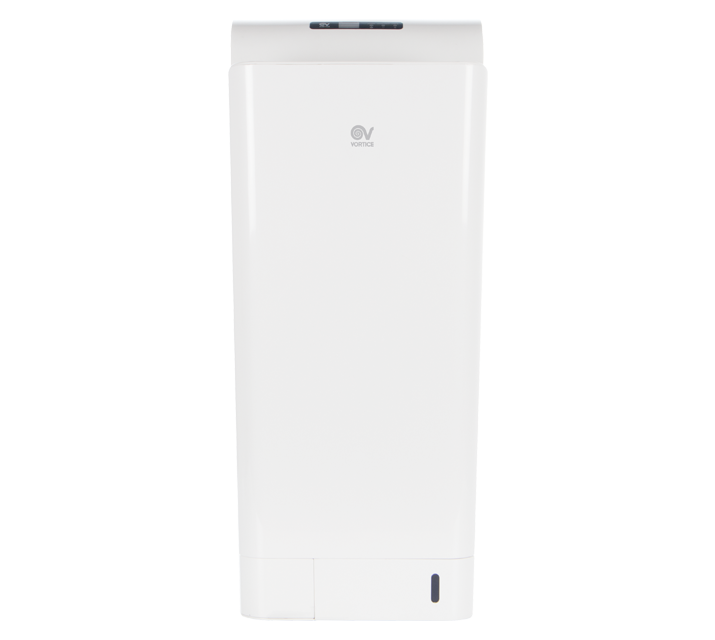

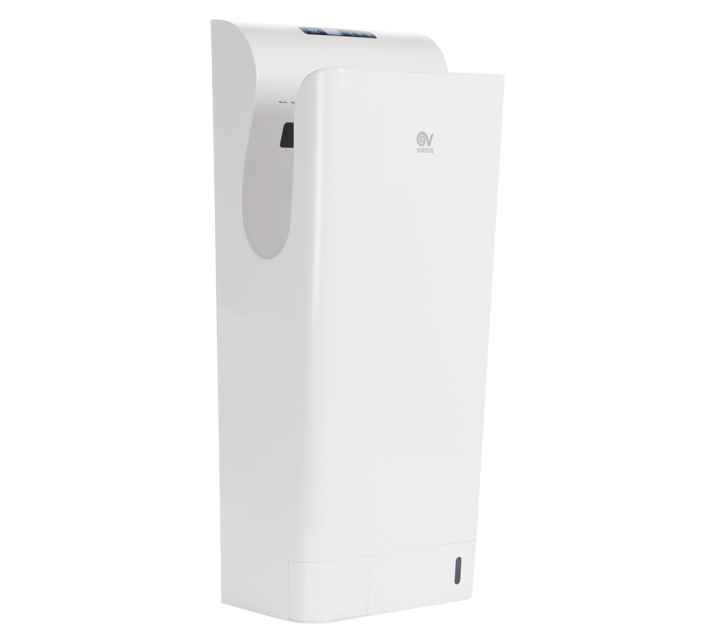

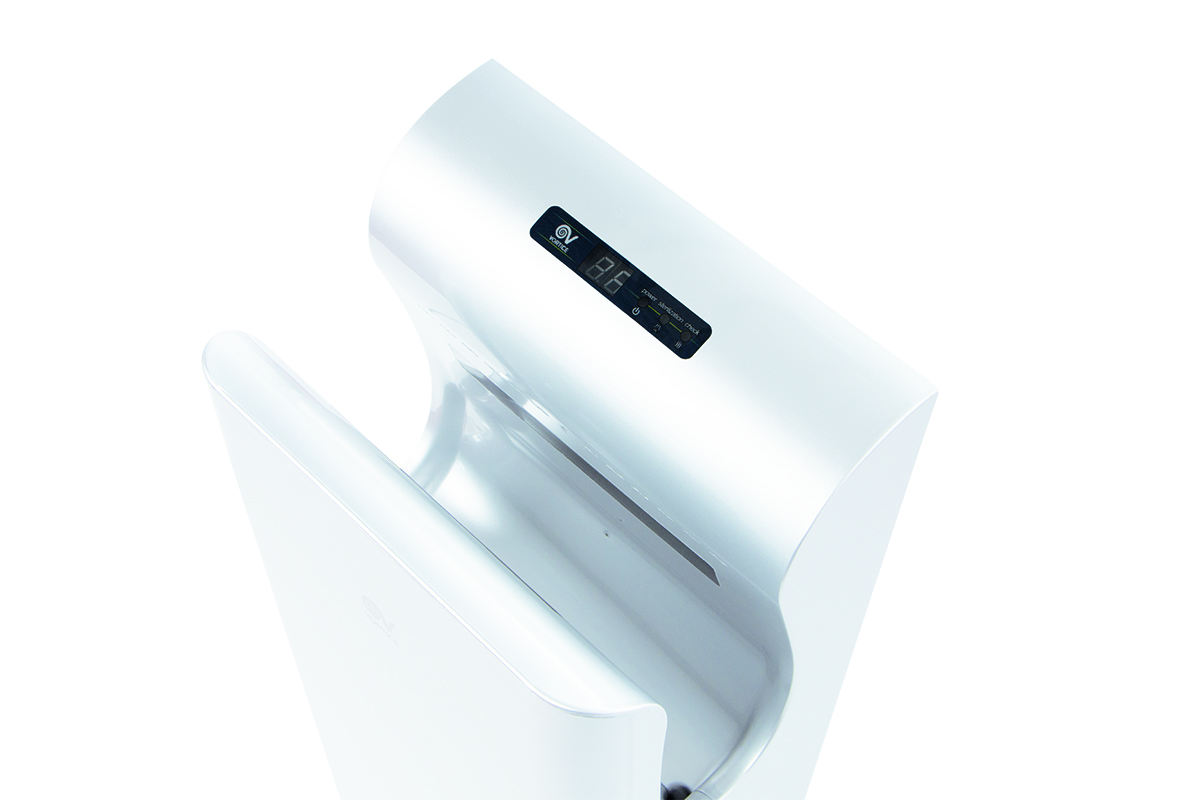

VORT SUPER DRY UV B

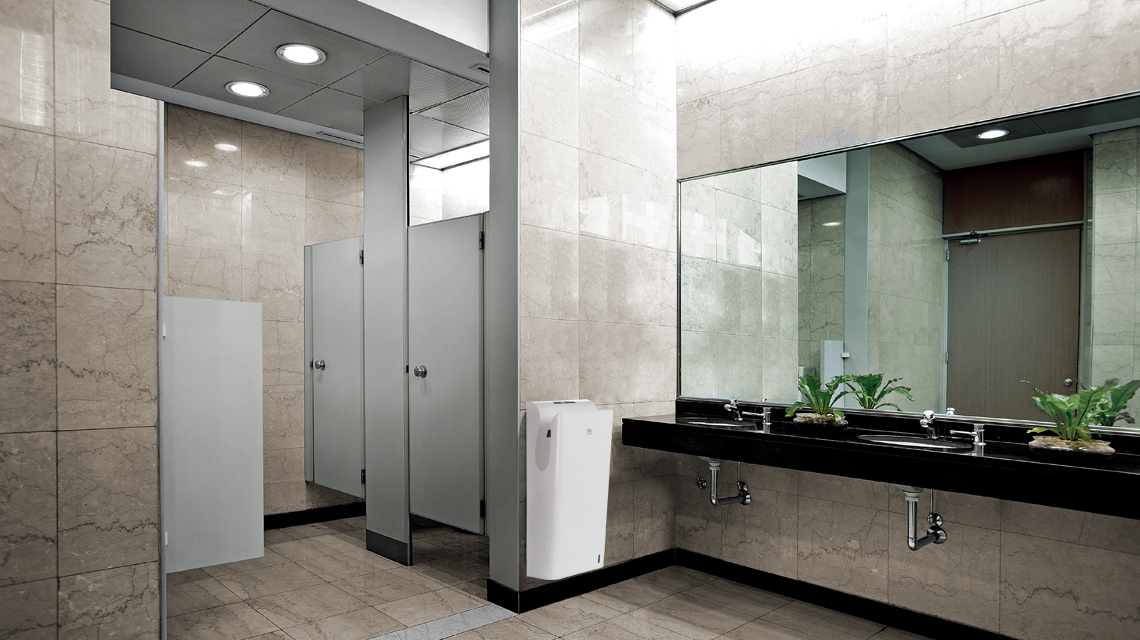

Airblade hand dryers designed for installation in commercial and public areas

Description

• Cabinet moulded in self-extinguishing ABS, colour white.
• Steel wall-mounting flange.
• EC brushless motor with thermal overload protection and shaft turning in ball bearings.
• Heating element ON/OFF: when high ambient temperatures render the use of hot air unnecessary, a switch on the left hand side of the cabinet can be operated to deactivate the heating element and save energy.
• Germical capability thanks to UV lamp.
• Dryer stops immediately when hands are withdrawn.
• Protection against vandalism: the appliance shuts off automatically following 25 seconds of operation uninterrupted.
• Protection against overheating, overload and short-circuit.

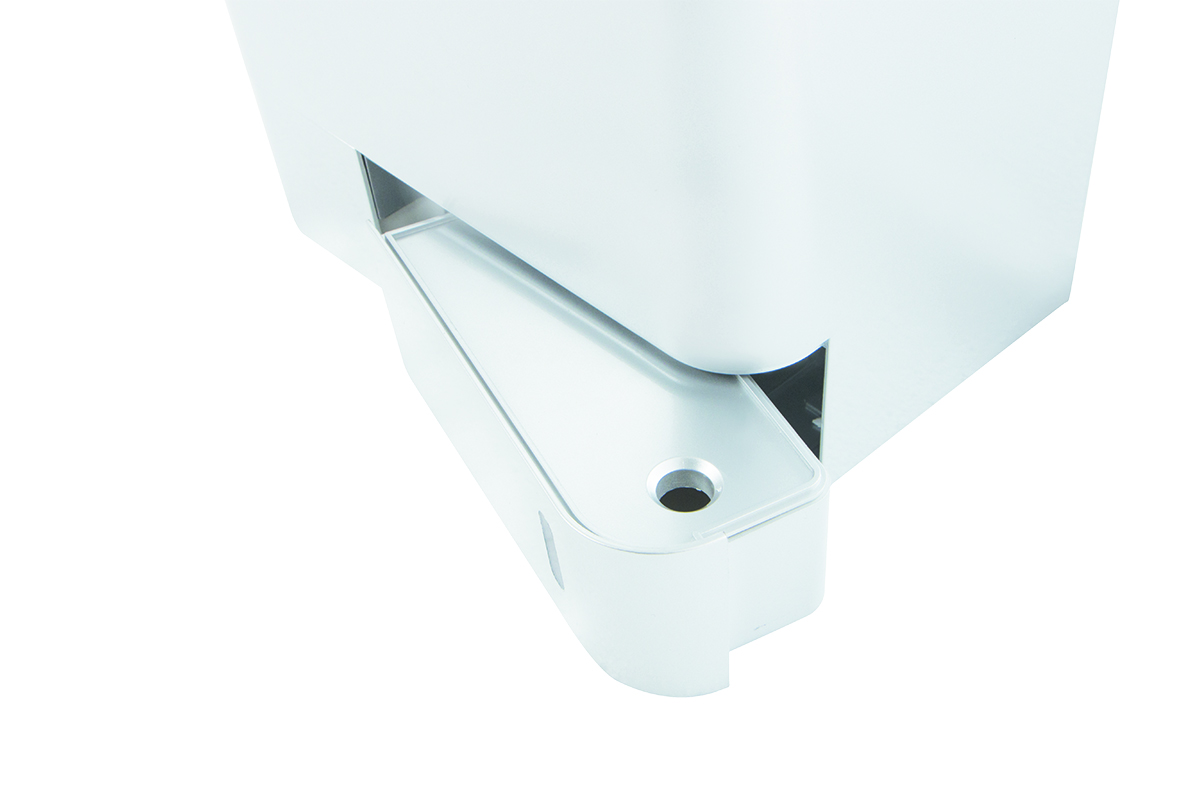

• Drip collection tank
• HEPA filter.
Read full descriptionClose description

Certifications

  • CE CE

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation Class
  • IP
    X4
  • Motor Power (W)
    700
  • Operating Temperature (°C)
    40
  • Voltage (V)
    220-240
  • Weight (Kg)
    11
  • Power setting 1 (W)
    1650
  • Power setting 2 (W)
    2050
  • Sound pressure level Lp [dB (A)] 1m
    76

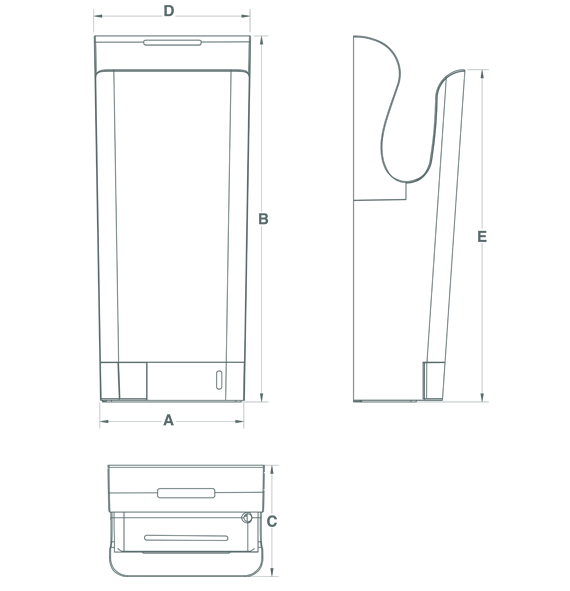

  • Size A (mm)
    278
  • Size B (mm)
    705
  • Size C (mm)
    215
  • Size D (mm)
    300
  • Size E (mm)
    638
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
