Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IP24
-
Max absorbed current (A)3
-
Max absorbed power (W)700
-
Motor power (W)33
-
Voltage (V)220-240
-
Weight (Kg)1,8
-
Max delivery of side outlet at max speed (m³/h)102
-
Max delivery of side outlet at min speed (m³/h)47
-
Max flow speed (m/s)18,4
-
Min flow speed (m/s)8,0
-
Sound pressure at 1m at Max speed Lp [dB (A)]70
-
Sound pressure at 1m at Min speed Lp [dB (A)]60
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

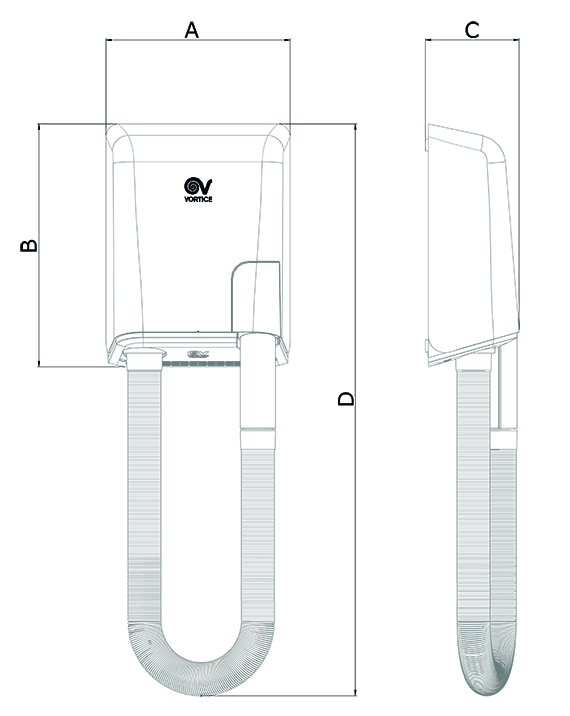

Size A (mm)220
-
Size B (mm)290
-
Size C (mm)112
-
Size D (mm)580
