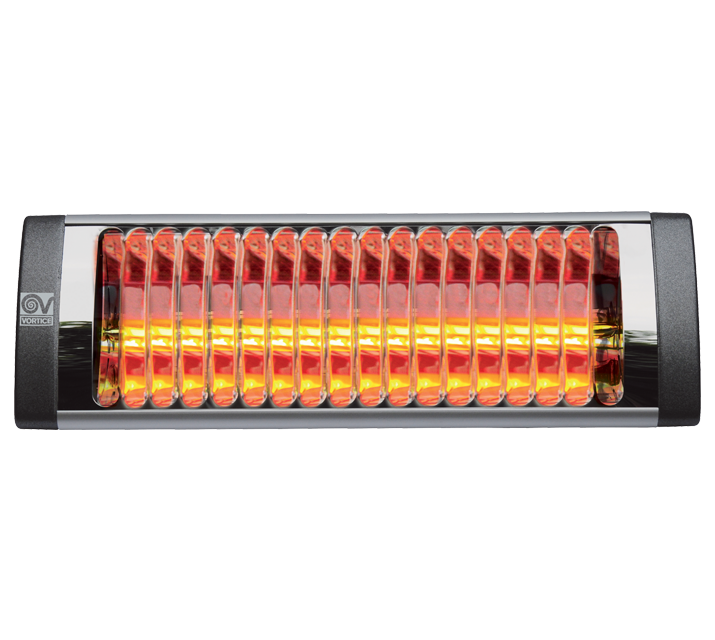

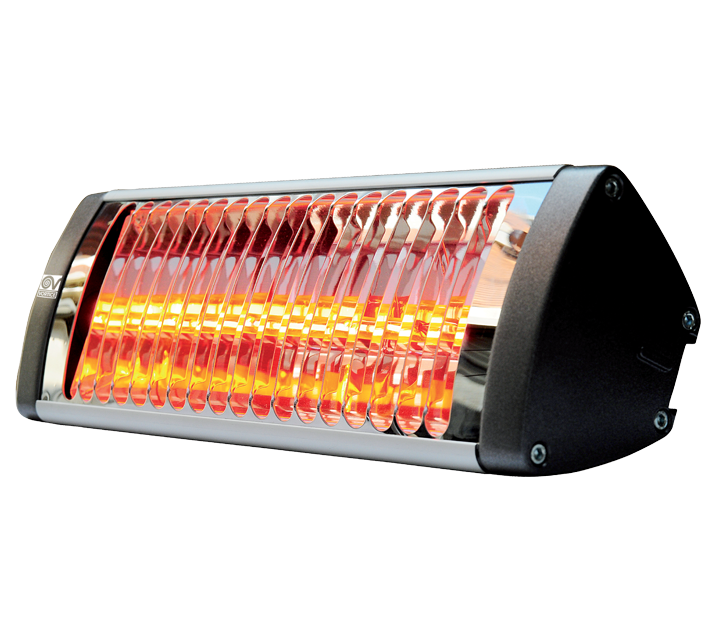

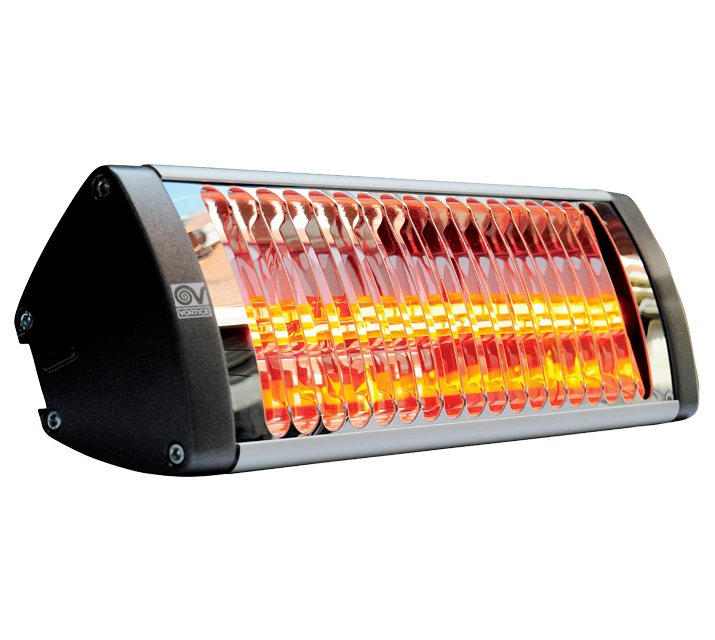

Description

• For wall or ceiling installation, horizontally or
vertically, particularly suited in all cases where strong
heating is required in localised areas.
• Aluminium made front grille.
• Side covers in die-casted aluminium.
• Casing in extruded aluminium epoxy polyester painted.
• Metal bracket for wall mounting(supplied as standard).
• Lamp (bulb).
• Based on Halogen HeLen technology, the bulb fitted in the Thermologika Soleil Plus is guaranteed to behighly efficient, long lasting (5000 h in an open environment) and suitable for operation down to -20° C.
• Strong and lightweight.
• High protection grade (IPX5) which makes the product particularly suited to outdoor use.
• The principle of radiation (like the sun itself) assures
the efficient transmission of heat to the areas to be
heated with no air dispersion.
• Immediate heat delivery (more than 90% of the heat is generated in around 1 second, compared to the 30 seconds needed on average to
complete the standard ON/OFF cycle of a conventional quartz bulb).
• Heat concentrated in specifically targeted areas.
• No combustion, no risk of odours or polluting agents.
• Irradiated heat distribution not affected by air currents.
• High radiating efficiency, offering significant energy savings.
• Safe use (the quartz bulb guarantees high resistance
to thermal shock).
• Reduced maintenance and high reliability.
Read full descriptionClose description

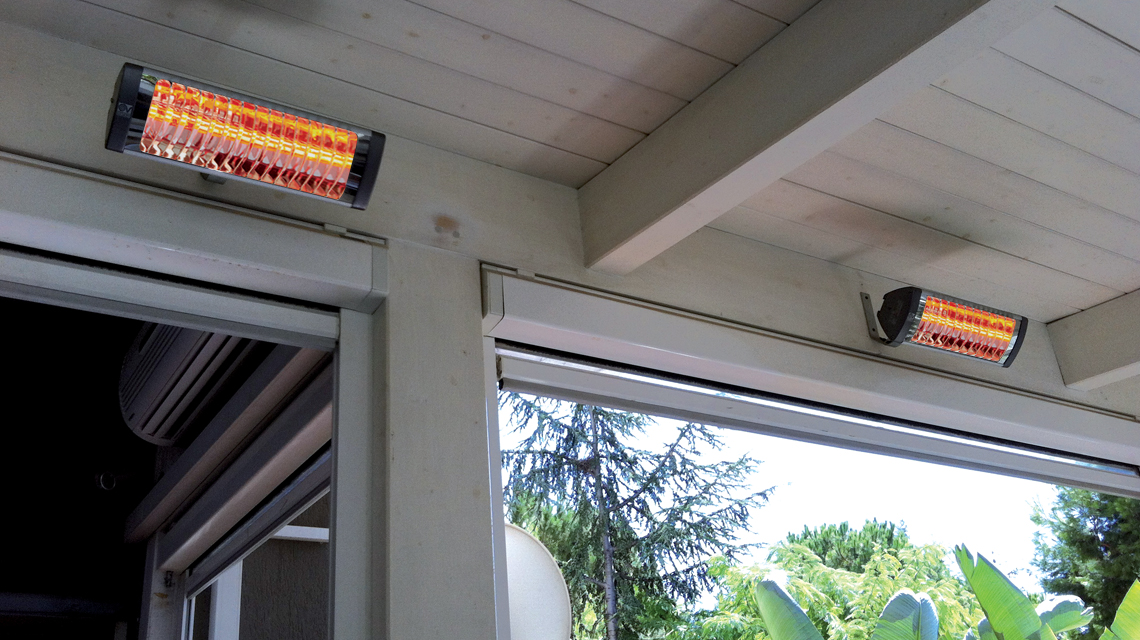

thermologika_soleil_plus_ambiente03

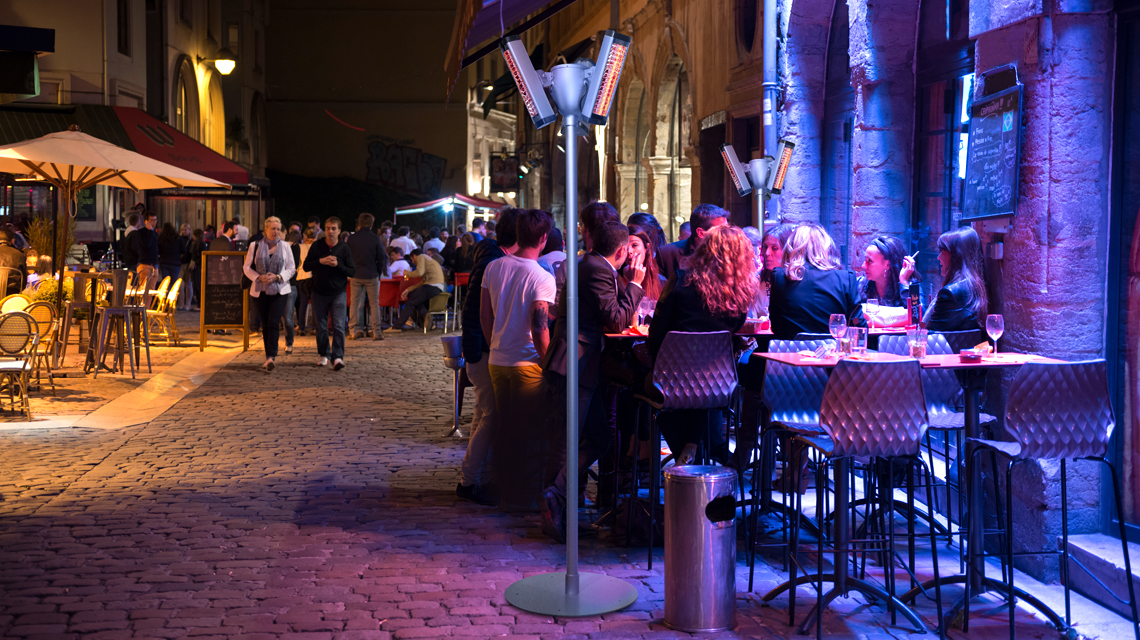

thermologika_soleil_plus_ambiente02

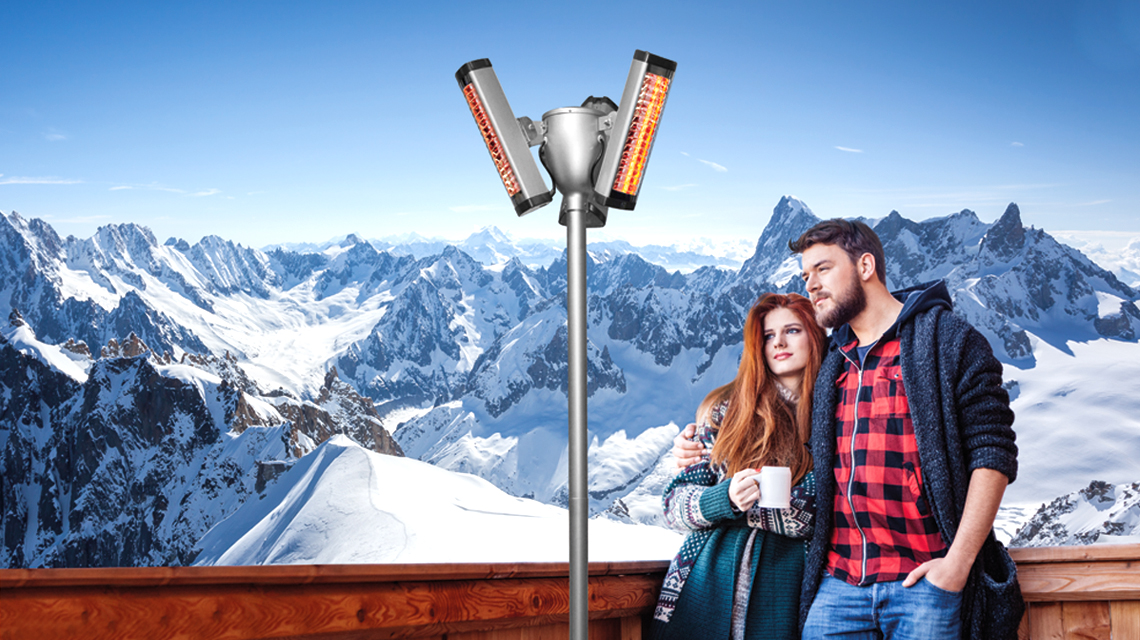

thermologika_soleil_plus_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • IP
    X5
  • Max absorbed current (A)
    6,5
  • Max absorbed power (W)
    1500
  • Voltage (V)
    230
  • Weight (Kg)
    1,5
  • Adaptive starting control
    NO
  • Appliances with stand-by mode
    no
  • Auxiliary electricity consumption at Min heating output - elmin (kW)
    0
  • Auxiliary electricity consumption at nominal heating output - elmax (kW)
    0
  • Auxiliary electricity consumption in stand-by - elSB (kW)
    0
  • Continuous thermal power - Pmax, C (kW)
    1,5
  • Control with black globe thermometer
    NO
  • Control with operating time limitation
    NO
  • Control with remote option
    SI
  • Min thermal power - PMin (kW)
    1,5
  • Nominal thermal power - Pnom (kW)
    1,5
  • Pilot flame storage appliances
    no
  • Room temperature control with open window detection
    NO
  • Room temperature control with presence detection
    SI
  • Seasonal energy efficiency (%)
    35
  • Single phase heating output without room temperature control
    NO
  • Thermal power with electronic control of the room temperature
    SI
  • Thermal power with electronic control of the room temperature and daily timer
    NO
  • Thermal power with electronic control of the room temperature and weekly timer
    NO
  • Thermal power with room temperature control by mechanical thermostat
    NO
  • Thermal power with two or more manual phases without room temperature control
    NO

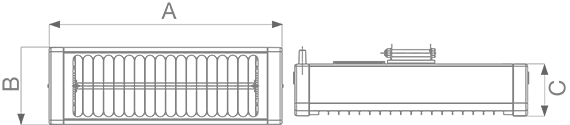

  • Size A (mm)
    395
  • Size B (mm)
    130
  • Size C (mm)
    120
quota
