Code 65313

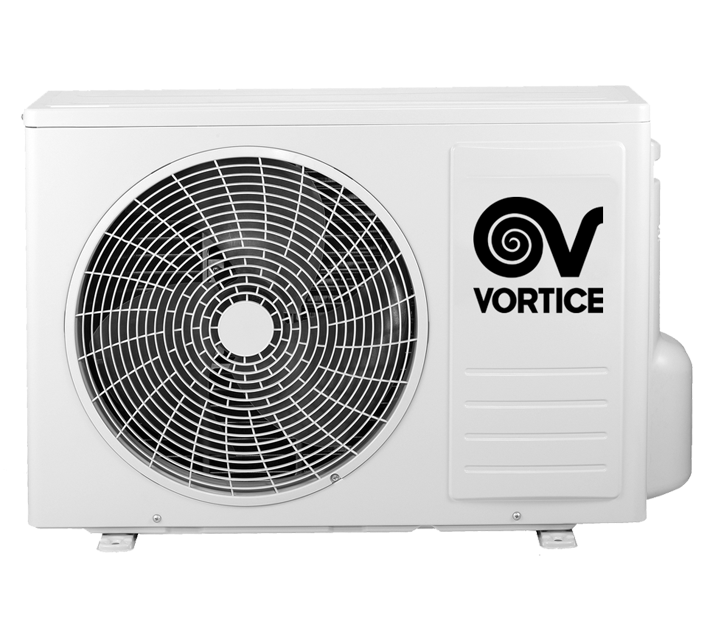

VORT ARTIK 12 UE

vort_artik_01

Description

Read full descriptionClose description

Technical Data Sheet

  • Absorbed power - Cooling mode (W)
    1085
  • Absorbed power - Heating mode (W)
    985
  • Additional refrigerant charge (g/m)
    20
  • Compressor type
    Rotativo
  • Condensate draining pipe Ø (mm)
    15,6
  • Energy class in cooling mode
    A++
  • Energy class in heating mode
    A+
  • Frequency (Hz)
    50
  • Insulation class
    I°
  • Max height difference (m)
    10
  • Max lenght of cooling pipes (m) - I.U.
    20
  • Max lenght of cooling pipes with standard charge of refrigerant
    5
  • Max pipe lenght (m)
    20
  • Nominal current - Cooling mode (A)
    6,92
  • Nominal current - Heating mode (A)
    7,32
  • Number of phases (Ph)
    1
  • Refrigerant pipe Ø (inch)
    1/4"-3/8"
  • Refrigerant type
    R410A
  • Standard refrigerant charge (g)
    900
  • Voltage (V)
    220-240
  • Weight (Kg)
    30
  • Cooling capacity (BTU/h)
    11.942
  • Cooling capacity (W)
    3.500
  • COP (Coefficient of Performance)
    3,7
  • Heating capacity (BTU/h)
    12.454
  • Heating capacity (W)
    3.650
  • Indoor operation temperature (cooling/heating) (°C)
    -15~52/-15~24
  • Outdoor operation temperature (cooling/heating) (°C)
    16~31
  • Sound power Lw [dB(A)]
    62

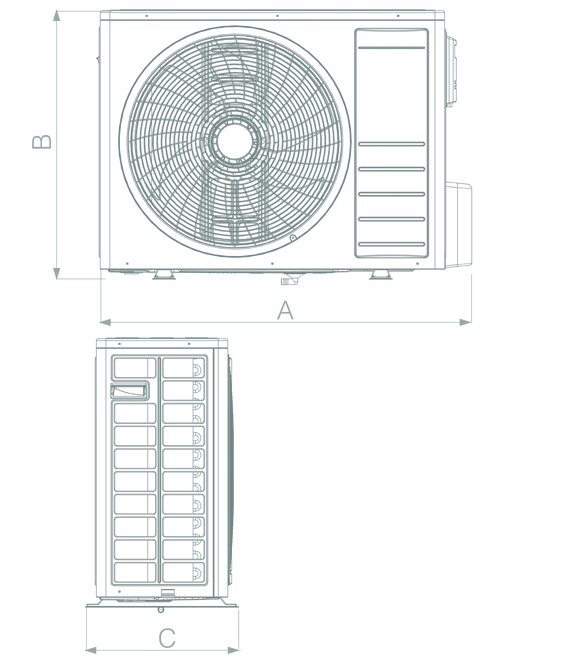

  • Size A (mm)
    829
  • Size B (mm)
    541
  • Size C (mm)
    326
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
