Description

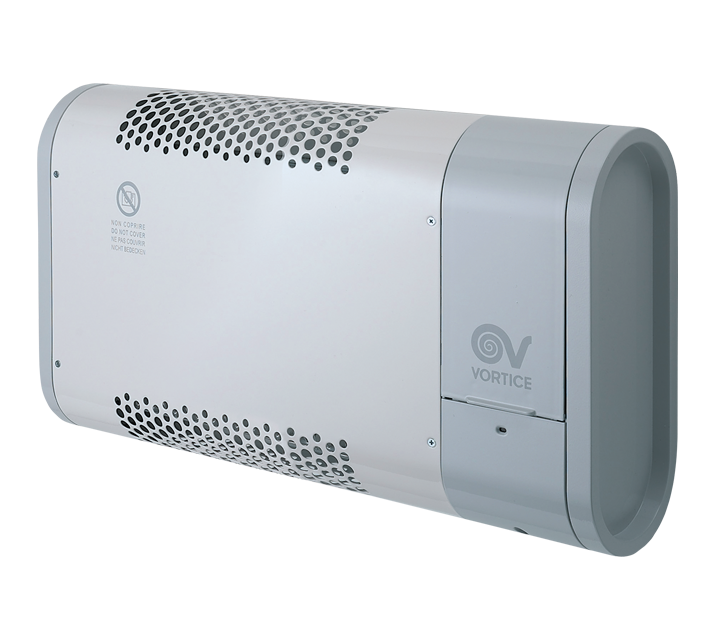

• Front and rear panels, top and bottom grilles made of steel with scratch-resistant paint finish, colour grey.
• Ends and section housing controls made of self-extinguishing plastic rated V0, colour grey.
• Metal-clad heating element with aluminium heat sink; 2 heat output settings: 300/600 W.
• Thermal overload cutout with manual reset.
• Luminous switches for on/off control and selection of heat output settings.
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• The product can be connected to an external programmable thermostat
• IMQ safety certification.
• Ends and section housing controls made of self-extinguishing plastic rated V0, colour grey.
• Metal-clad heating element with aluminium heat sink; 2 heat output settings: 300/600 W.
• Thermal overload cutout with manual reset.
• Luminous switches for on/off control and selection of heat output settings.
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• The product can be connected to an external programmable thermostat
• IMQ safety certification.
Certifications
-
IMQ
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
IPX4
-
Max absorbed current (A)2,6
-
Max absorbed power (W)600
-
Voltage (V)230
-
Weight (Kg)2,9
-
Size A (mm)463
-
Size B (mm)258
-
Size C (mm)109
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
