Description

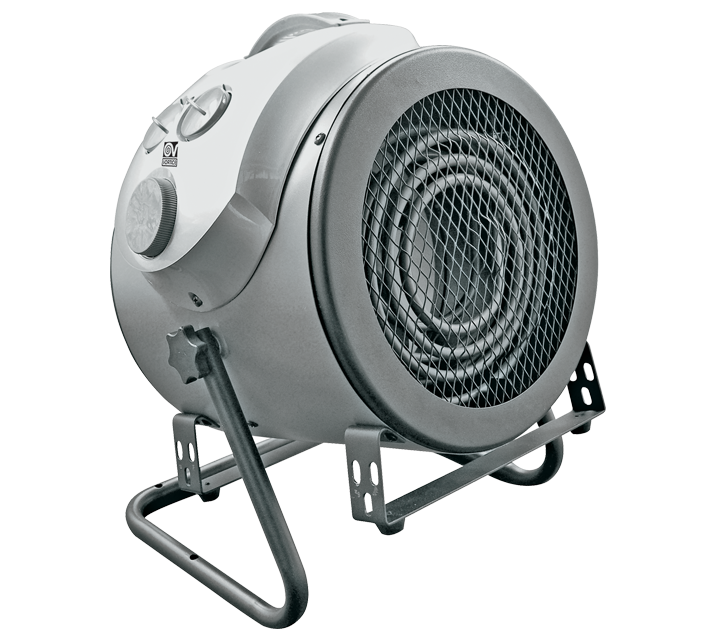

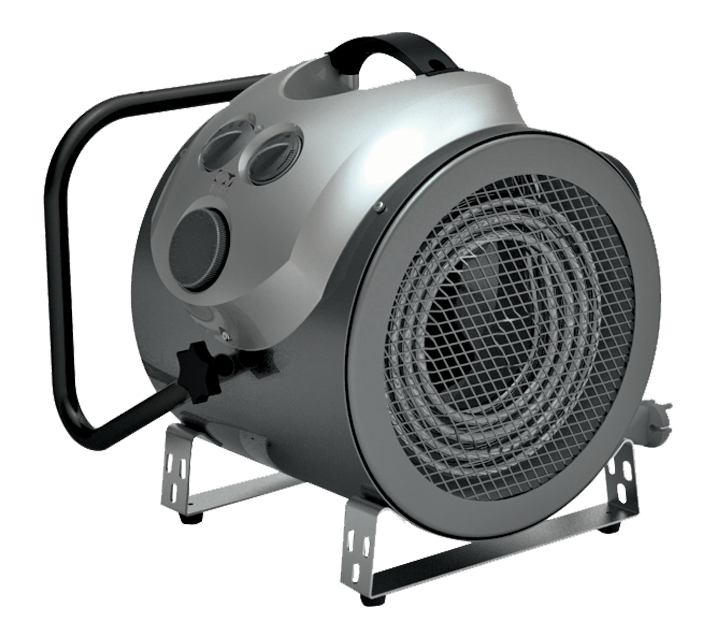

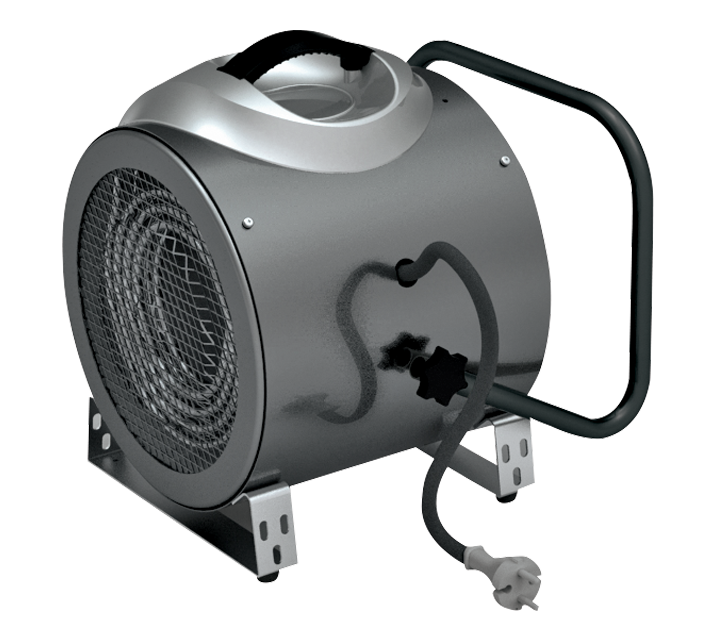

• Cylindrical steel structure enclosed at the ends by air inlet and outlet grilles.
• Steel grilles with vertical ribs.
• Fan unit with single speed three-phase motor and 5-blade aluminium rotor keyed directly onto the motor shaft.
• Tubular heating element rated 3000 W.

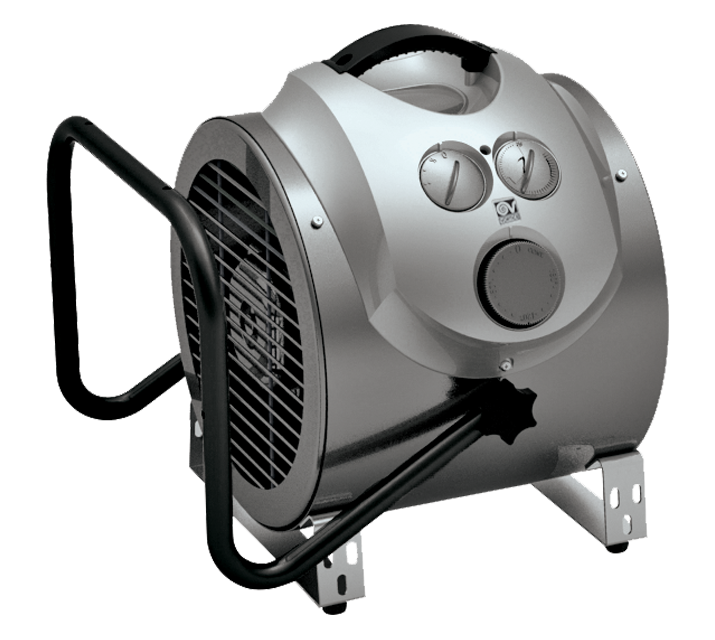

• Control panel located on top of the main cylindrical casing, made of self-extinguishing ABS plastic rated V0, with painted finish and built-in carrying/positioning handle.
• Mechanical timer, 180 minutes max, allowing delayed shutdown.
• Rotary heat output selector with three settings: off, half-power, full power and fan only.
• Auto-reset safety device, operating as thermal overload protective cutout mounted to the heating element.
• Bent and painted steel feet, with antivibration mounts.
• Power cord complete with industrial grade five pin safety plug, length 1800 mm.
• Bulb type room thermostat, able to guarantee greater reading accuracy.
• IMQ safety certification.
• Steel grilles with vertical ribs.
• Fan unit with single speed three-phase motor and 5-blade aluminium rotor keyed directly onto the motor shaft.
• Tubular heating element rated 3000 W.
• Control panel located on top of the main cylindrical casing, made of self-extinguishing ABS plastic rated V0, with painted finish and built-in carrying/positioning handle.
• Mechanical timer, 180 minutes max, allowing delayed shutdown.
• Rotary heat output selector with three settings: off, half-power, full power and fan only.
• Auto-reset safety device, operating as thermal overload protective cutout mounted to the heating element.
• Bent and painted steel feet, with antivibration mounts.
• Power cord complete with industrial grade five pin safety plug, length 1800 mm.
• Bulb type room thermostat, able to guarantee greater reading accuracy.
• IMQ safety certification.
Certifications
-
IMQ
-
Download
CE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
IPX4
-
Max absorbed current (A)4,3
-
Max absorbed power (W)3000
-
Voltage (V)400
-
Weight (Kg)5,4
-
Adaptive starting controlNO
-
Appliances with stand-by modeno
-
Auxiliary electricity consumption at Min heating output - elmin (kW)0,03
-
Auxiliary electricity consumption at nominal heating output - elmax (kW)0,03
-
Auxiliary electricity consumption in stand-by - elSB (kW)0,03
-
Continuous thermal power - Pmax, C (kW)3
-
Control with black globe thermometerNO
-
Control with operating time limitationNO
-
Control with remote optionNO
-
Min thermal power - PMin (kW)3
-
Nominal thermal power - Pnom (kW)3
-
Pilot flame storage appliancesno
-
Room temperature control with open window detectionNO
-
Room temperature control with presence detectionNO
-
Seasonal energy efficiency (%)36
-
Single phase heating output without room temperature controlNO
-
Thermal power with electronic control of the room temperatureNO
-
Thermal power with electronic control of the room temperature and daily timerNO
-
Thermal power with electronic control of the room temperature and weekly timerNO
-
Thermal power with room temperature control by mechanical thermostatSI
-
Thermal power with two or more manual phases without room temperature controlNO
-
Size A (mm)250
-
Size B (mm)330
-
Size C (mm)340
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
