Description

• Front casing moulded in self-extinguishing ABS thermoplastic resin rated V0, white painted finish;

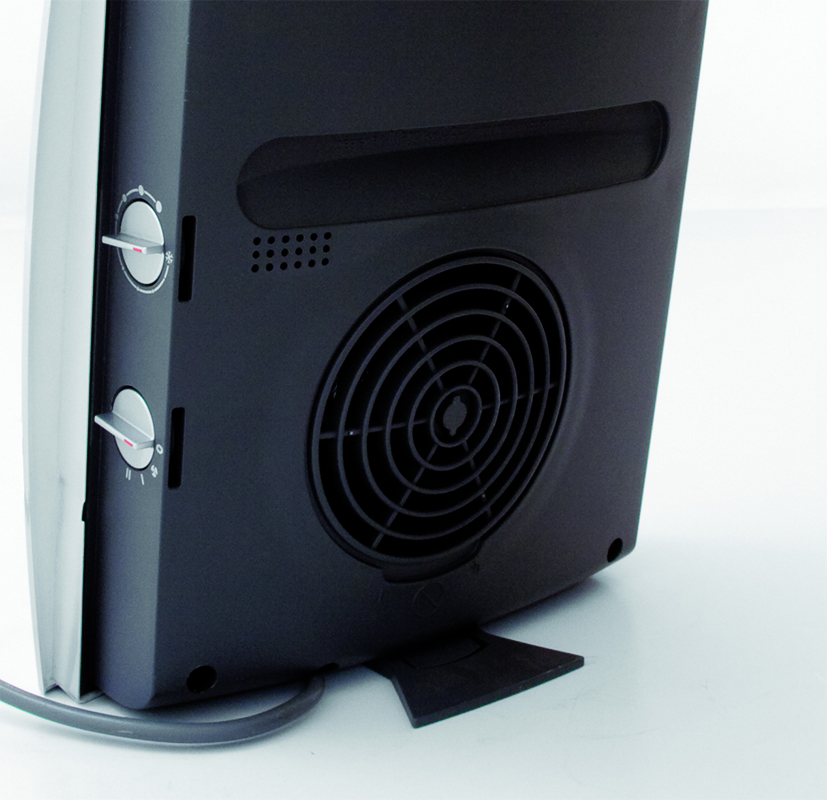

• Rear casing moulded in self-extinguishing polypropylene rated V0, incorporating the air inlet grille.
• Air outlet grille made of polypropylene, located on the front of the casing.
• Shaded pole induction motor with shaft turning in self-lubricating bushings, coupled to a centrifugal impeller fashioned from glass-fibre reinforced nylon.
• Heating element with two pre-selectable output settings (1000 / 2000 W), protected by manually resettable thermal overload limiter.

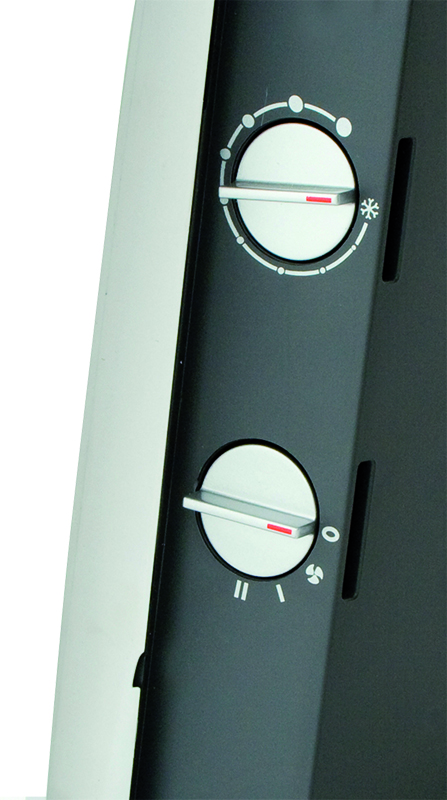

• Rotary switch with 3 positions: OFF/1000/2000 W
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• Power cord with moulded Schuko euro plug.
• Built-in recoil cord winder.

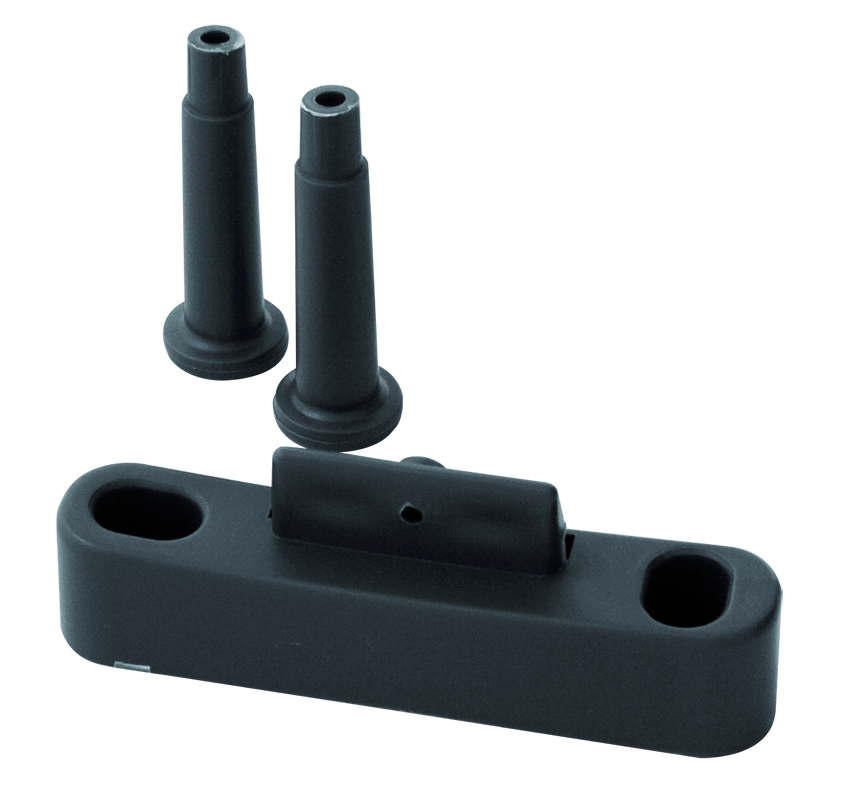

• Positionable vertically for floor-standing operation or on a tabletop, using the foot on the rear casing.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X1
  • Max absorbed current (A)
    8,7
  • Max absorbed power (W)
    2000
  • Voltage (V)
    230
  • Weight (Kg)
    1,850
  • Adaptive starting control
    NO
  • Appliances with stand-by mode
    no
  • Auxiliary electricity consumption at Min heating output - elmin (kW)
    0,03
  • Auxiliary electricity consumption at nominal heating output - elmax (kW)
    0,03
  • Auxiliary electricity consumption in stand-by - elSB (kW)
    0,03
  • Continuous thermal power - Pmax, C (kW)
    2
  • Control with black globe thermometer
    NO
  • Control with operating time limitation
    NO
  • Control with remote option
    NO
  • Min thermal power - PMin (kW)
    1
  • Nominal thermal power - Pnom (kW)
    2
  • Pilot flame storage appliances
    no
  • Room temperature control with open window detection
    NO
  • Room temperature control with presence detection
    NO
  • Seasonal energy efficiency (%)
    36
  • Single phase heating output without room temperature control
    NO
  • Thermal power with electronic control of the room temperature
    NO
  • Thermal power with electronic control of the room temperature and daily timer
    NO
  • Thermal power with electronic control of the room temperature and weekly timer
    NO
  • Thermal power with room temperature control by mechanical thermostat
    SI
  • Thermal power with two or more manual phases without room temperature control
    NO
