Description

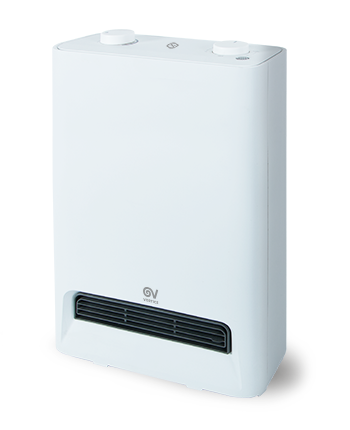

• Casing made of white plastic material (ABS).
• Air outlet grille, located on the front cover, in grey plastic material (ABS), which offers the possibility to adjust the hot air flow upwards or downwards.
• Two rotary switches, both located on the upper portion, respectively a thermostat for setting and maintaining the desired room temperature within which the product automatically activates/deactivates and a rotary selector for choosing the operating mode:
• OFF,
• Heating with 900W power (LOW),
• Heating with 1.800W power (HI).
A white LED, when the appliance is activated, shows its operating status.
• Rear casing, integrating an opening for power cable storage and a removable grille for immediate access to the underlying dust filter useful for retaining impurities transported by the suction flow.
• Electric induction motor.
• Tangential impeller, which guarantees low noise emissions and uniform distribution of the generated air flow.
• Ceramic type electrical resistance (PTC).
• Thermal protection to prevent damage and risks due to overheating; the product is equipped with a safety device that interrupts the power supply in case of overheating.
• Overturning protection device: if the fan heater is accidentally overturned, a safety switch, integrated into the product, immediately stops its operation, thus preventing the risk of fire or overheating.
• Power cable, 160 cm long, complete with Schuko plug.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    20
  • Max absorbed current (A)
    8
  • Max absorbed power (W)
    1800
  • Potenza assorbita min (W)
    900
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,96


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

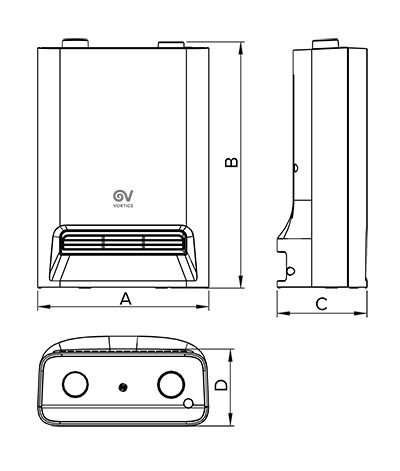

  • Size A (mm)
    270
  • Size B (mm)
    389
  • Size C (mm)
    138
  • Size D (mm)
    115
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
