Description
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classI°
-
IP20
-
Max absorbed current (A)8,7
-
Max absorbed power (W)2000
-
Potenza assorbita med(W)1200
-
Potenza assorbita min (W)800
-
Voltage (V)220-240
-
Weight (Kg)5,17
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

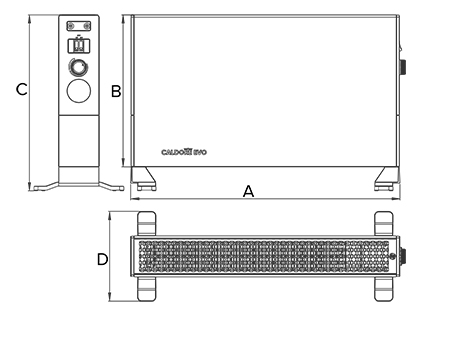

Size A (mm)660
-
Size B (mm)372
-
Size C (mm)431
-
Size D (mm)220
-
Size E (mm)626
-
Size F (mm)674
-
Size G (mm)20
-
Size H (mm)100
-
Size I (mm)25
-
Size L (mm)25
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
