Description

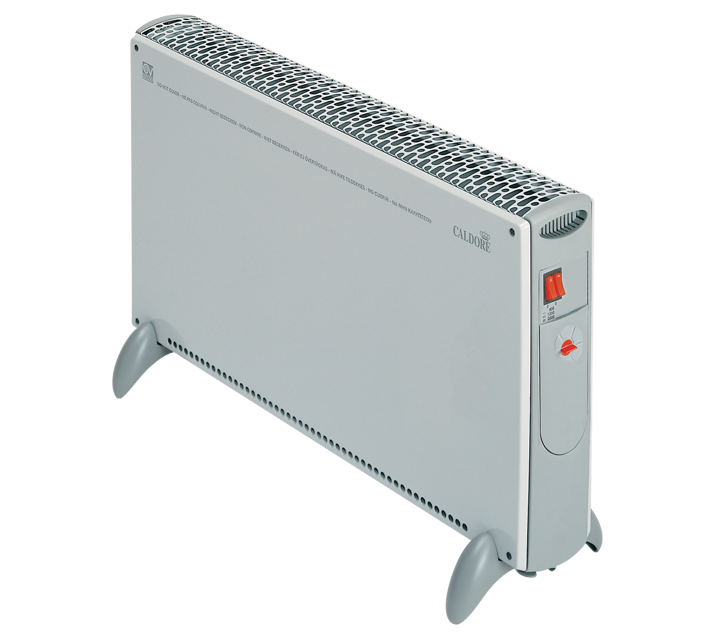

• Front and rear panels, top and bottom grilles made of steel with scratch-resistant paint finish, colour grey.
• Flanks made of self-extinguishing plastic rated V0, colour grey.
• Heating element protected by limiter with PTC sensor, manual reset.

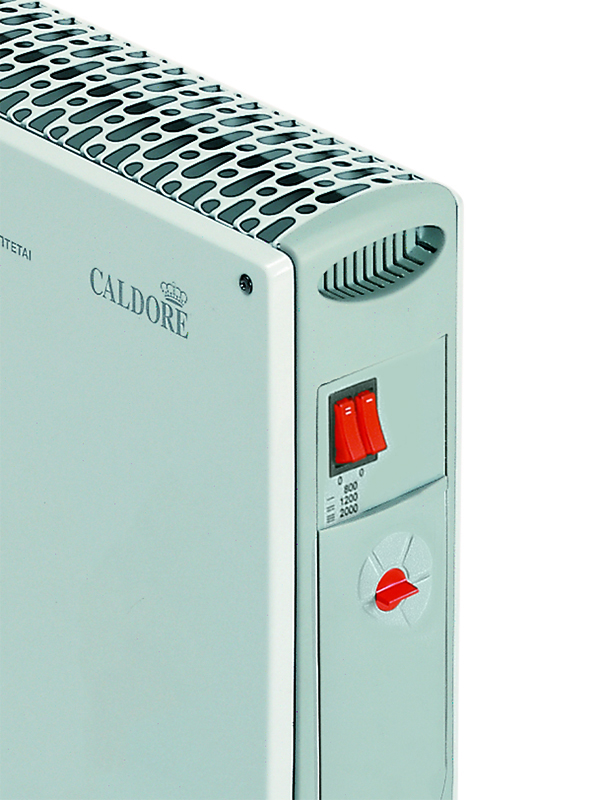

• Luminous switches for on/off control and selection of the 3 heat output settings (800/1200/2000 W).
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• PVC power cord with moulded plug.
• Built-in recoil cord winder.
• 4 stabilizer feet with special non-slip rubber pads.
• IMQ safety certification.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • Max absorbed current (A)
    8,7
  • Max absorbed power (W)
    2000
  • Max absorbed power at Max speed (W)
    2000
  • Voltage (V)
    230
  • Weight (Kg)
    3,9
  • Adaptive starting control
    NO
  • Appliances with stand-by mode
    no
  • Auxiliary electricity consumption at Min heating output - elmin (kW)
    0
  • Auxiliary electricity consumption at nominal heating output - elmax (kW)
    0
  • Auxiliary electricity consumption in stand-by - elSB (kW)
    0
  • Continuous thermal power - Pmax, C (kW)
    2
  • Control with black globe thermometer
    NO
  • Control with operating time limitation
    NO
  • Control with remote option
    NO
  • Min thermal power - PMin (kW)
    0,8
  • Nominal thermal power - Pnom (kW)
    2
  • Pilot flame storage appliances
    no
  • Room temperature control with open window detection
    NO
  • Room temperature control with presence detection
    NO
  • Seasonal energy efficiency (%)
    36
  • Single phase heating output without room temperature control
    NO
  • Thermal power with electronic control of the room temperature
    NO
  • Thermal power with electronic control of the room temperature and daily timer
    NO
  • Thermal power with electronic control of the room temperature and weekly timer
    NO
  • Thermal power with room temperature control by mechanical thermostat
    SI
  • Thermal power with two or more manual phases without room temperature control
    NO
  • Size A (mm)
    580
  • Size B (mm)
    415
  • Size C (mm)
    200
  • Size D (mm)
    100
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
