Description
• Die-cast aluminium end sections with painted finish, colour black.
• Casing sections: pressed steel with painted finish, colour grey.
• Grille fashioned with stainless steel rods
• Pressed steel mounting bracket with painted finish.

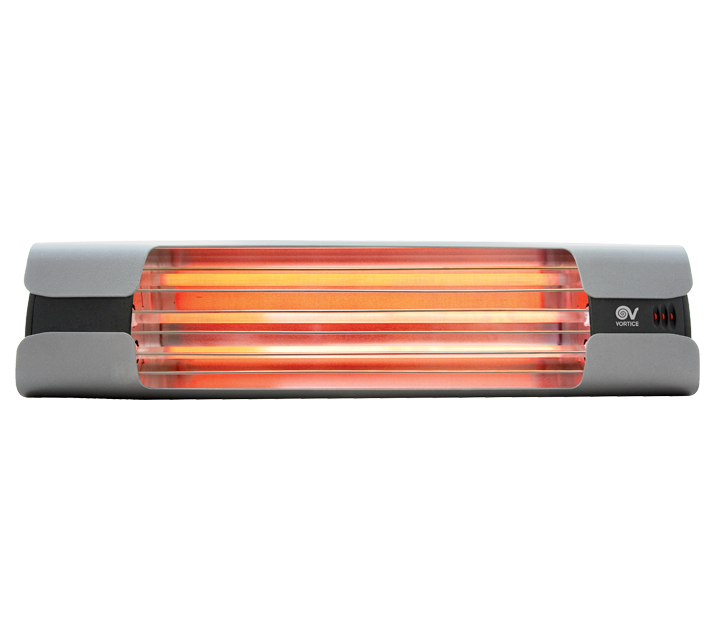

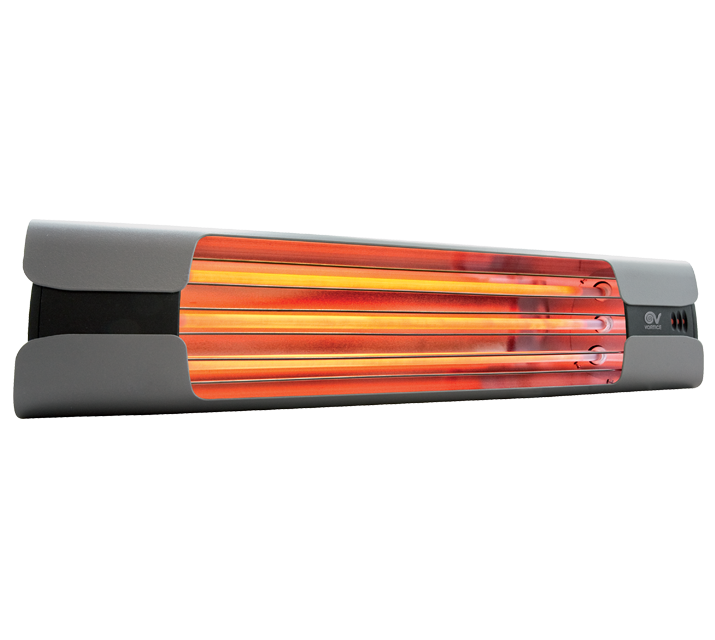

• 3 x infrared bar, each rated 600 W. The single bars can be controlled from remote switches, by-passing the internal selector and making the necessary connections to the terminals provided.
• Pull cord switches for on/off control and selection of the 3 heat output settings (600/1200/1800 W).

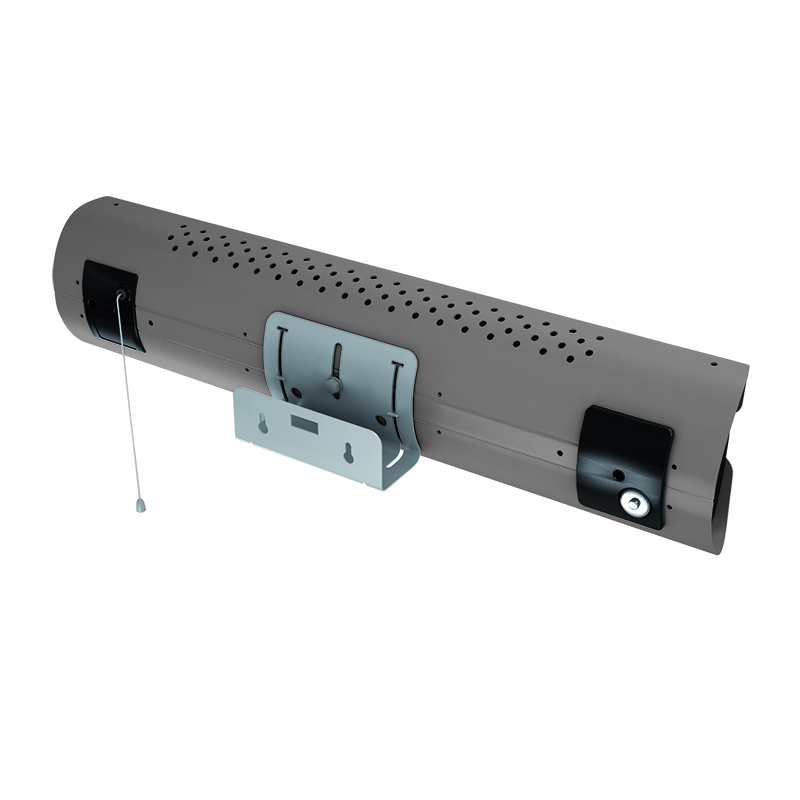

• Wall-mounted installation using bracket provided as standard and adjustable through 20° so that the infrared rays can be directed at the point where heat is required; the fixture is made secure with a safety screw.
• Facility of connecting two bars in series or in parallel by means of a special kit comprising brackets and junction box (optional, code 22496)
• Casing sections: pressed steel with painted finish, colour grey.
• Grille fashioned with stainless steel rods
• Pressed steel mounting bracket with painted finish.
• 3 x infrared bar, each rated 600 W. The single bars can be controlled from remote switches, by-passing the internal selector and making the necessary connections to the terminals provided.
• Pull cord switches for on/off control and selection of the 3 heat output settings (600/1200/1800 W).
• Wall-mounted installation using bracket provided as standard and adjustable through 20° so that the infrared rays can be directed at the point where heat is required; the fixture is made secure with a safety screw.
• Facility of connecting two bars in series or in parallel by means of a special kit comprising brackets and junction box (optional, code 22496)
Certifications
-
IMQ
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classI°
-
IPX4
-
Max absorbed current (A)7,8
-
Max absorbed power (W)1800
-
Voltage (V)230
-
Weight (Kg)2,4
-
Adaptive starting controlNO
-
Appliances with stand-by modeno
-
Auxiliary electricity consumption at Min heating output - elmin (kW)0
-
Auxiliary electricity consumption at nominal heating output - elmax (kW)0
-
Auxiliary electricity consumption in stand-by - elSB (kW)0
-
Continuous thermal power - Pmax, C (kW)1,8
-
Control with black globe thermometerNO
-
Control with operating time limitationNO
-
Control with remote optionSI
-
Min thermal power - PMin (kW)0,6
-
Nominal thermal power - Pnom (kW)1,8
-
Pilot flame storage appliancesno
-
Power setting 1 (W)600
-
Power setting 2 (W)1200
-
Power setting 3 (W)1800
-
Room temperature control with open window detectionNO
-
Room temperature control with presence detectionSI
-
Seasonal energy efficiency (%)35
-
Single phase heating output without room temperature controlNO
-
Thermal power with electronic control of the room temperatureNO
-
Thermal power with electronic control of the room temperature and daily timerNO
-
Thermal power with electronic control of the room temperature and weekly timerNO
-
Thermal power with room temperature control by mechanical thermostatNO
-
Thermal power with two or more manual phases without room temperature controlSI
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

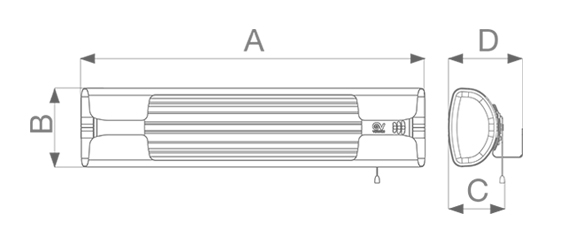

Size A (mm)570
-
Size B (mm)132
-
Size C (mm)84
-
Size D (mm)124
