Description

• Front and rear panels, top and bottom grilles made of steel with scratch-resistant paint finish, colour grey.
• Ends and section housing controls made of self-extinguishing plastic rated V0, colour grey.
• Tangential fan unit.
• Metal-clad heating element with aluminium heat sink, rated 500/1000/1500 W.
• Thermal overload cutout with manual reset.
• Luminous switches for on/off control and selection of heat output settings.
• Adjustable digital daily/weekly timer for programming on and off periods
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• The product can be connected to an external programmable thermostat
• IMQ safety certification.
Read full descriptionClose description

Certifications

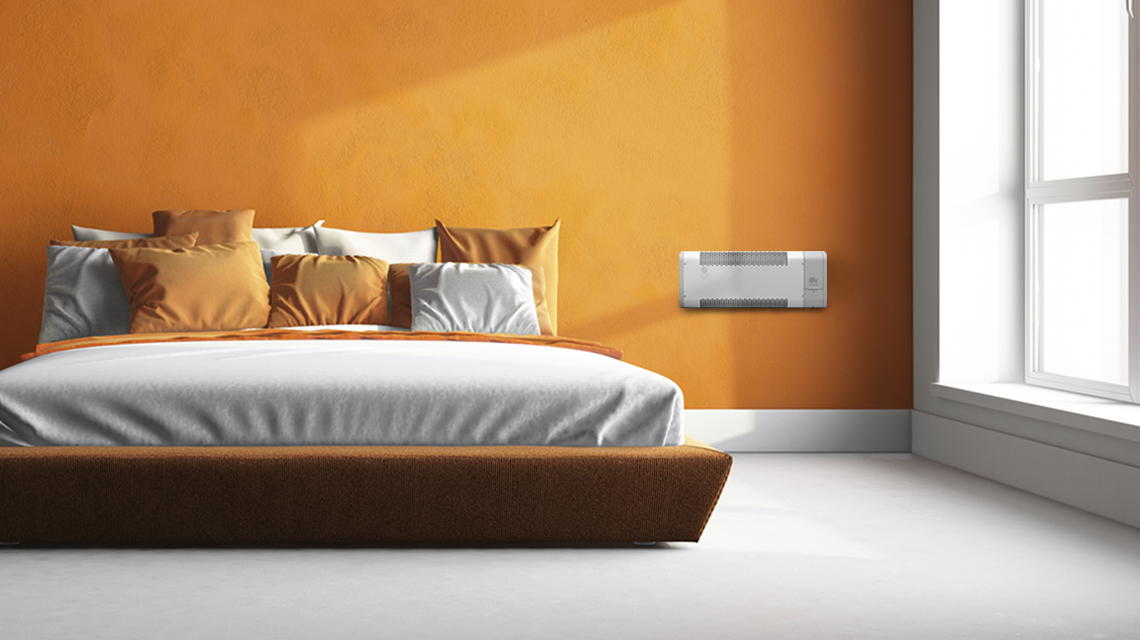

microrapid_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • IP
    X4
  • Max absorbed current (A)
    6,5
  • Max absorbed power (W)
    1500
  • Voltage (V)
    230
  • Weight (Kg)
    3,8
  • Size A (mm)
    573
  • Size B (mm)
    258
  • Size C (mm)
    109
quota
