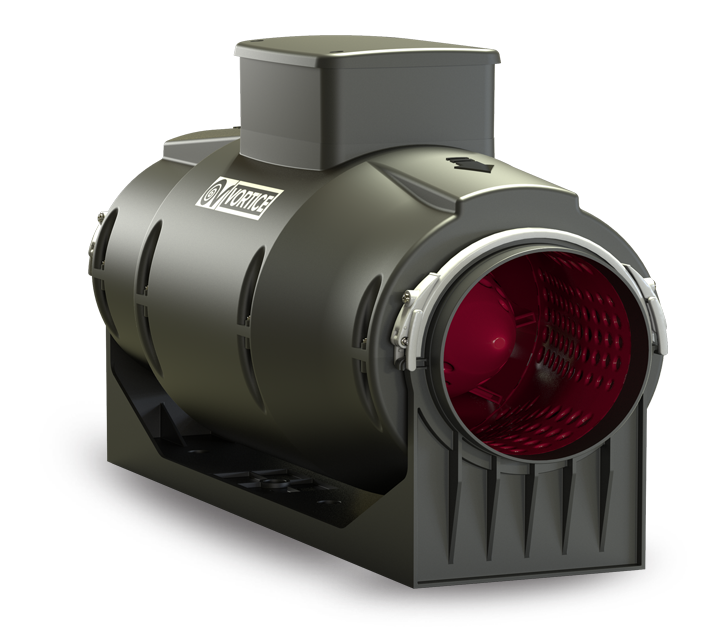

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 100 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• Equipped with an electronic timer for automatic operation at maximum speed, which can be set in the 3-20' range at the installation (default setting 3').
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,10
  • Max absorbed current at Max speed (A)
    0,13
  • Max absorbed current at Max speed at 60 Hz (A)
    0,13
  • Max absorbed current at Mid speed (A)
    0,11
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,11
  • Max absorbed current at Min speed (A)
    0,09
  • Max absorbed power at Max speed (W)
    27
  • Max absorbed power at Max speed at 60 Hz (W)
    27
  • Max absorbed power at Mid speed (W)
    24
  • Max absorbed power at Mid speed at 60 Hz (W)
    23
  • Max absorbed power at Min speed at 60 Hz (W)
    13
  • Max ambient temperature for continuous operation (°C)
    45
  • Max room temperature for continuous operation at 60 Hz (°C)
    45
  • Nominal diameter (mm)
    100
  • Power absorbed at 1st speed (W)
    11
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,8
  • Airflow at 1st speed (l/s)
    41,7
  • Airflow at 1st speed (m³/h)
    150
  • Breakout sound power LWA at Max speed [dB (A)]
    48,9
  • Breakout sound power LWA at Mid speed [dB (A)]
    44
  • Breakout sound power LWA at Min speed [dB (A)]
    36,5
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    28,4
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    23,5
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    16

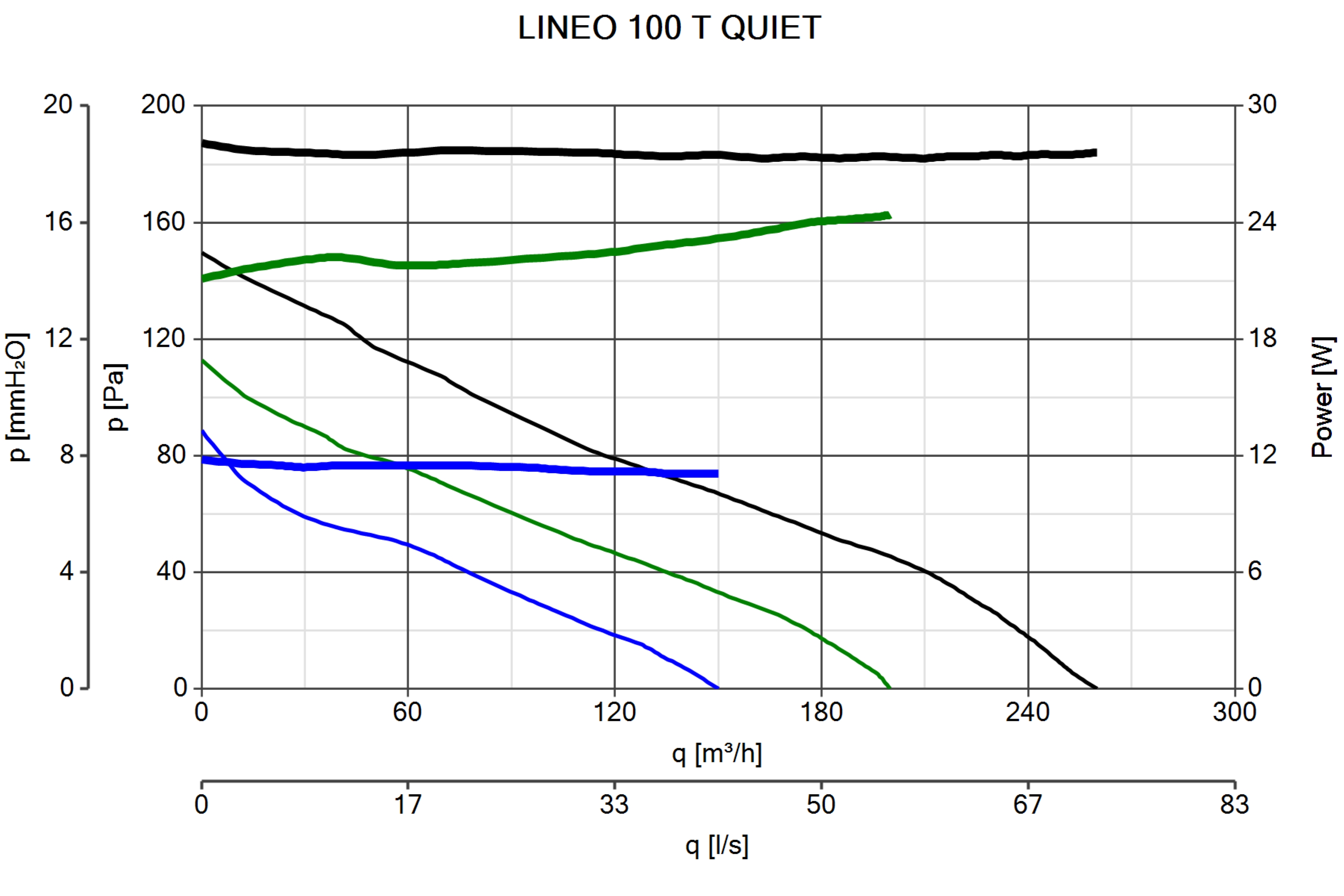

  • Max airflow at Max speed (l/s)
    72,2
  • Max airflow at Max speed (m³/h)
    260
  • Max airflow at Max speed at 60 Hz (l/s)
    63,9
  • Max airflow at Max speed at 60 Hz (m³/h)
    230
  • Max airflow at Mid speed (m³/h)
    200
  • Max airflow at Mid speed at 60 Hz (l/s)
    52,8
  • Max airflow at Mid speed at 60 Hz (m³/h)
    190
  • Max airflow at Min speed (l/s)
    55,6
  • Max airflow at Min speed at 60 Hz (l/s)
    43,1
  • Max airflow at Min speed at 60 Hz (m³/h)
    155
  • Max pressure at 60 Hz (mmH2O)
    14,4
  • Max pressure at Max speed (mmH20)
    15
  • Max pressure at Max speed (Pa)
    147,1
  • Max pressure at Max speed at 60Hz (Pa)
    141,2
  • Max pressure at Mid speed (mmH2O)
    11,5
  • Max pressure at Mid speed (Pa)
    112,8
  • Max pressure at Mid speed at 60Hz (mmH2O)
    11,2
  • Max pressure at Mid speed at 60Hz (Pa)
    109,8
  • Max pressure at Min speed at 60Hz (mmH2O)
    7,6
  • Max pressure at Min speed at 60Hz (Pa)
    74,5
  • Max RPM
    2260
  • Max speed at 60 Hz (Rpm)
    2100
  • Mid speed at 60 Hz (Rpm)
    1795
  • Min RPM
    1455
  • Min speed at 60 Hz (Rpm)
    1445
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    40
  • Pressure at 1st speed (mmH20)
    9
  • Pressure at 1st speed (Pa)
    88,3
  • RPM at Mid speed
    1880
  • Sound power at extract side at Max speed LWA [dB (A)]
    52,8
  • Sound power at extract side at Mid speed LWA [dB (A)]
    48,3
  • Sound power at extract side at Min speed LWA [dB (A)]
    40,3
  • Sound power at supply side at Max speed LWA [dB (A)]
    52,6
  • Sound power at supply side at Mid speed LWA [dB (A)]
    47,8
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    35,3
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    30,8
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    22,8
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    35,1
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    30,3
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    22,5

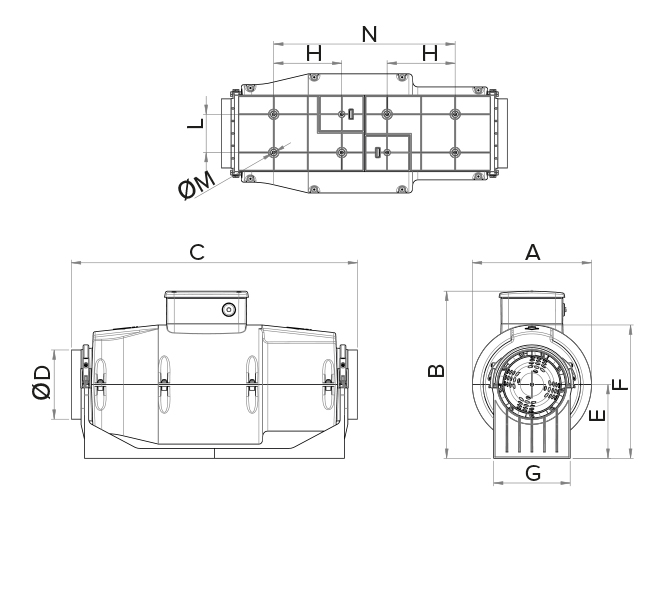

  • Size A (mm)
    210
  • Size B (mm)
    294,5
  • Size C (mm)
    639
  • Size D (mm)
    Ø 97
  • Size E (mm)
    130
  • Size F (mm)
    235
  • Size G (mm)
    135
  • Size H (mm)
    120
  • Size L (mm)
    67,5
  • Size M (mm)
    Ø 5,5
  • Size N (mm)
    320
