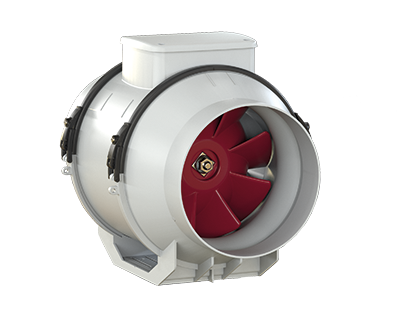

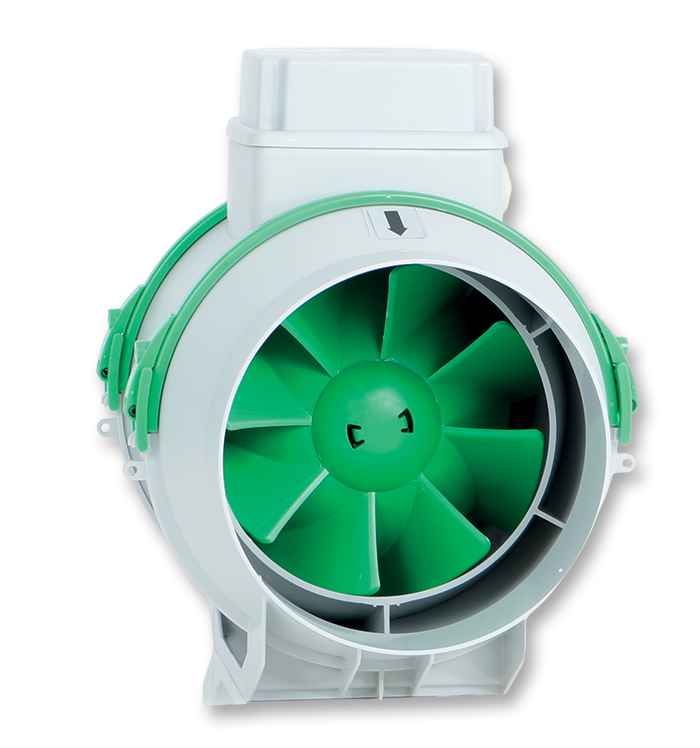

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 160 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    0,55
  • Max absorbed current at 4V (A)
    0,11
  • Max absorbed current at 6V (A)
    0,17
  • Max absorbed current at 8V (A)
    0,33
  • Max absorbed power at 10V (W)
    60
  • Max absorbed power at 4V (W)
    12
  • Max absorbed power at 6V (W)
    19
  • Max absorbed power at 8V (W)
    37
  • Max ambient temperature for continuous operation (°C)
    60
  • Nominal diameter (mm)
    160
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,7
  • Breakout sound power at 10V Lw [dB (A)]
    62,3
  • Breakout sound power at 4V Lw [dB (A)]
    42,4
  • Breakout sound power at 6V Lw [dB (A)]
    49,4
  • Breakout sound power at 8V Lw [dB (A)]
    57
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    41,8
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    21,9
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    28,9
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    36,5

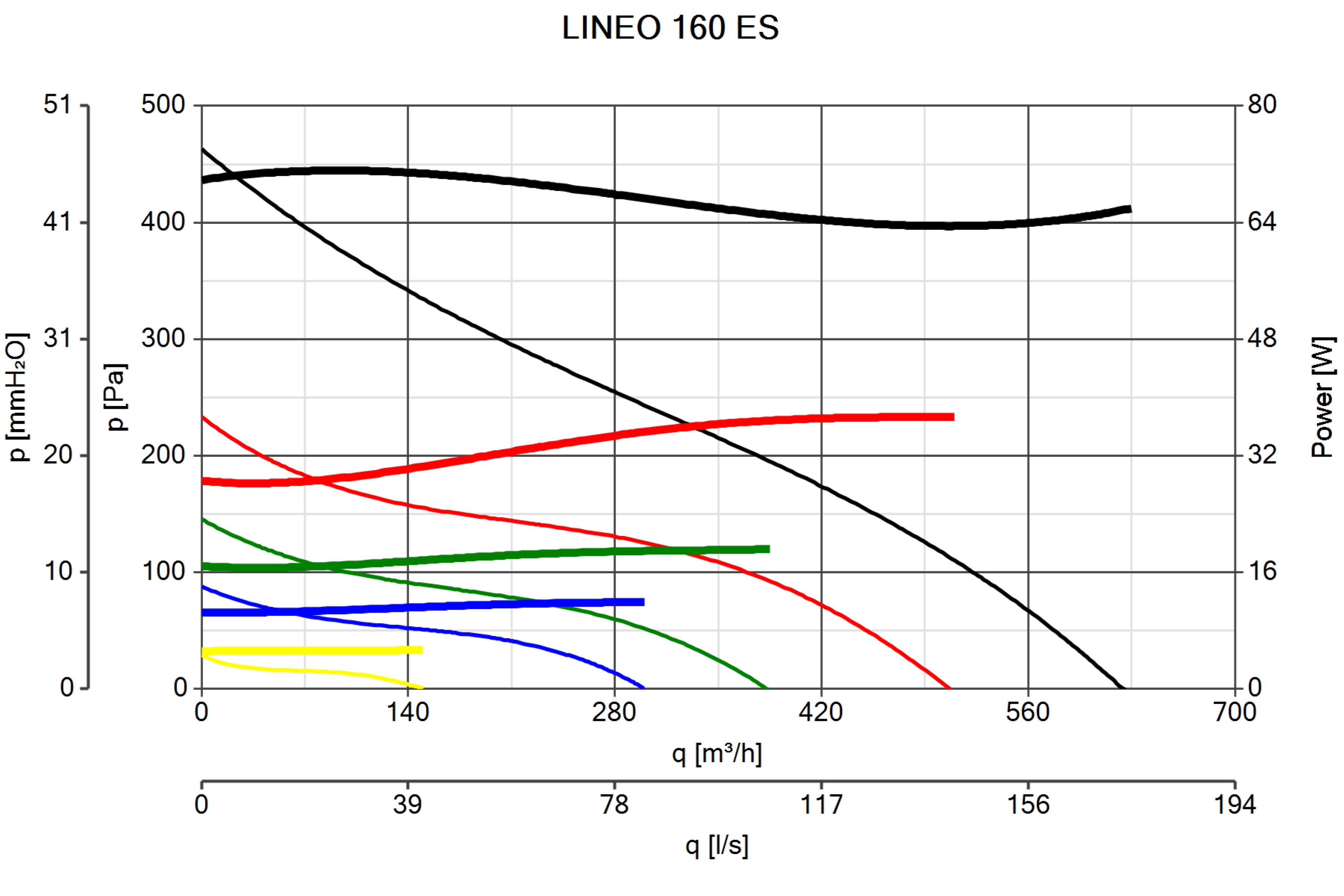

  • Max airflow at 10V (l/s)
    175
  • Max airflow at 10V (m³/h)
    630
  • Max airflow at 4V (l/s)
    83,3
  • Max airflow at 4V (m³/h)
    300
  • Max airflow at 6V (l/s)
    106,9
  • Max airflow at 6V (m³/h)
    385
  • Max airflow at 8V (l/s)
    141,7
  • Max airflow at 8V (m³/h)
    510
  • Max pressure at 10V (Pa)
    462,9
  • Max pressure at 4V (Pa)
    88,3
  • Max pressure at 6V (Pa)
    145.1
  • Max pressure at 10V (mmH2O)
    47,2
  • Max pressure at 4V (mmH2O)
    9
  • Max pressure at 6V (mmH2O)
    14,8
  • Max pressure at 8V (mmH2O)
    23,5
  • Max pressure at 8V (Pa)
    230,5
  • RPM at 10V
    2625
  • RPM at 4V
    1305
  • RPM at 6V
    1645
  • RPM at 8V
    2165
  • Sound power at extract side at 10V speed LWA [dB (A)]
    87,5
  • Sound power at extract side at 4V speed LWA [dB (A)]
    68.4
  • Sound power at extract side at 6V speed LWA [dB (A)]
    76,4
  • Sound power at extract side at 8V speed LWA [dB (A)]
    83,1
  • Sound power at supply side at 10V speed LWA [dB (A)]
    86,9
  • Sound power at supply side at 4V speed LWA [dB (A)]
    69,1
  • Sound power at supply side at 6V speed LWA [dB (A)]
    76
  • Sound power at supply side at 8V speed LWA [dB (A)]
    82,8
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    70
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    50,9
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    58,9
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    65,6
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    69,3
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    51,5
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    58,5
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    65,3

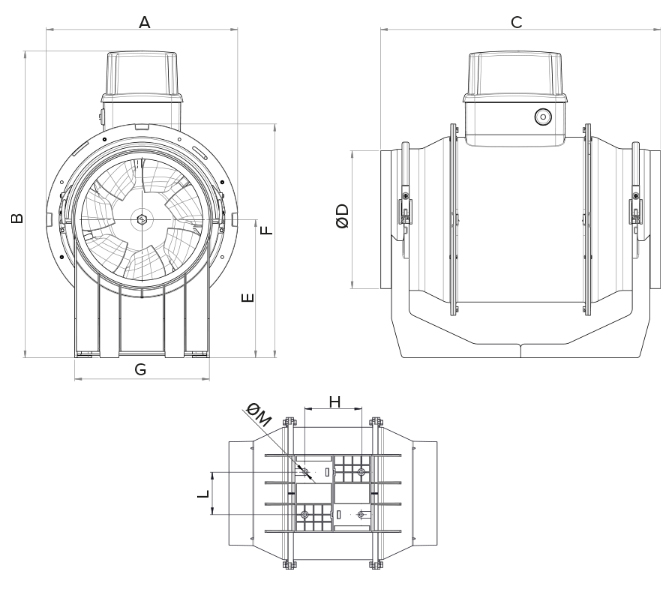

  • Size A (mm)
    214,5
  • Size B (mm)
    265
  • Size C (mm)
    272,5
  • Size D (mm)
    156
  • Size E (mm)
    112,5
  • Size F (mm)
    212
  • Size G (mm)
    110
  • Size H (mm)
    80
  • Size L (mm)
    60
  • Size M (mm)
    5,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
