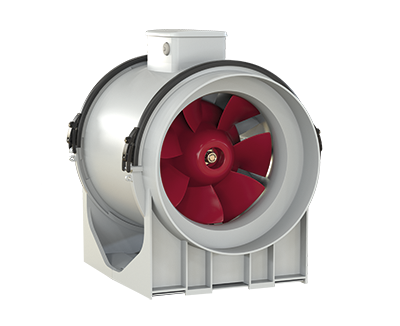

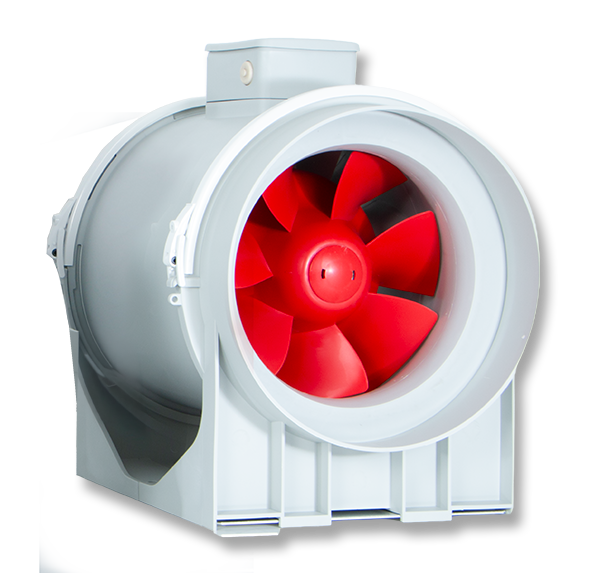

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 315 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    X5
  • Max absorbed current at maMinx speed at 60 Hz (A)
    1,10
  • Max absorbed current at Max speed (A)
    1,55
  • Max absorbed current at Max speed at 60 Hz (A)
    2,30
  • Max absorbed current at Mid speed (A)
    1,15
  • Max absorbed current at Mid speed at 60 Hz (A)
    1,60
  • Max absorbed current at Min speed (A)
    0,95
  • Max absorbed power at Max speed (W)
    360
  • Max absorbed power at Max speed at 60 Hz (W)
    520
  • Max absorbed power at Mid speed (W)
    270
  • Max absorbed power at Mid speed at 60 Hz (W)
    360
  • Max absorbed power at Min speed at 60 Hz (W)
    250
  • Max ambient temperature for continuous operation (°C)
    50
  • Max room temperature for continuous operation at 60 Hz (°C)
    50
  • Nominal diameter (mm)
    315
  • Power absorbed at 1st speed (W)
    210
  • Voltage (V)
    220-240
  • Weight (Kg)
    9,5
  • Airflow at 1st speed (l/s)
    512,5
  • Airflow at 1st speed (m³/h)
    1845
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    73,8
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    68,5
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    60,5
  • Breakout sound power LWA at Max speed [dB (A)]
    72,1
  • Breakout sound power LWA at Mid speed [dB (A)]
    68,2
  • Breakout sound power LWA at Min speed [dB (A)]
    63,4
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    53,3
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    51,6
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    48
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    47,6
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    40
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    42,9
  • Max airflow at Max speed (l/s)
    761,1
  • Max airflow at Max speed (m³/h)
    2740
  • Max airflow at Max speed at 60 Hz (l/s)
    838,9
  • Max airflow at Max speed at 60 Hz (m³/h)
    3020
  • Max airflow at Mid speed (m³/h)
    2330
  • Max airflow at Mid speed at 60 Hz (l/s)
    611,1
  • Max airflow at Mid speed at 60 Hz (m³/h)
    2200
  • Max airflow at Min speed (l/s)
    647,2
  • Max airflow at Min speed at 60 Hz (l/s)
    454,2
  • Max airflow at Min speed at 60 Hz (m³/h)
    1635
  • Max pressure at 60 Hz (mmH2O)
    66,9
  • Max pressure at Max speed (mmH20)
    57
  • Max pressure at Max speed (Pa)
    559
  • Max pressure at Max speed at 60Hz (Pa)
    656,1
  • Max pressure at Mid speed (mmH2O)
    44,4
  • Max pressure at Mid speed (Pa)
    435.4
  • Max pressure at Mid speed at 60Hz (mmH2O)
    41,5
  • Max pressure at Mid speed at 60Hz (Pa)
    407
  • Max pressure at Min speed at 60Hz (mmH2O)
    24,3
  • Max pressure at Min speed at 60Hz (Pa)
    238,3
  • Max RPM
    2710
  • Max speed at 60 Hz (Rpm)
    3000
  • Mid speed at 60 Hz (Rpm)
    2290
  • Min RPM
    1900
  • Min speed at 60 Hz (Rpm)
    1680
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    86,4
  • Pressure at 1st speed (mmH20)
    29,9
  • Pressure at 1st speed (Pa)
    293,2
  • RPM at Mid speed
    2370
  • Sound power at extract side at Max speed LWA [dB (A)]
    95,4
  • Sound power at extract side at Mid speed LWA [dB (A)]
    91,6
  • Sound power at extract side at Min speed LWA [dB (A)]
    86,4
  • Sound power at supply side at Max speed LWA [dB (A)]
    95,1
  • Sound power at supply side at Mid speed LWA [dB (A)]
    91,3
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    97,4
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    90,5
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    83,1
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    97,2
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    90,1
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    83,1
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    79,9
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    77,9
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    72,6
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    74
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    65,6
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    68,9
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    77,6
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    73,8
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    68,9
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    79,7
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    73
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    65,6

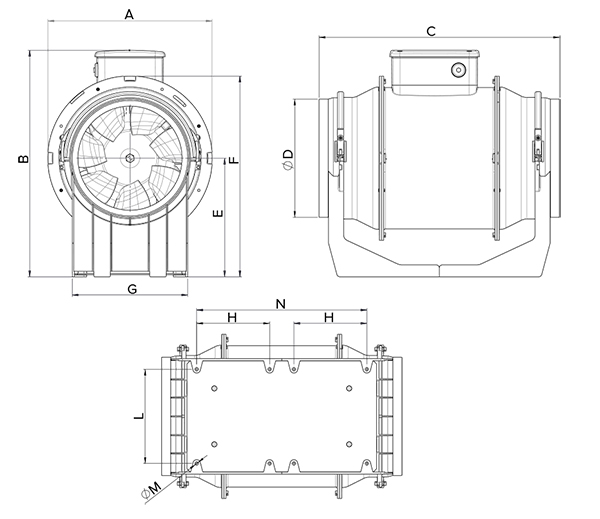

  • Size A (mm)
    373
  • Size B (mm)
    446
  • Size C (mm)
    420
  • Size D (mm)
    Ø 307
  • Size E (mm)
    224
  • Size F (mm)
    398
  • Size G (mm)
    309
  • Size H (mm)
    110
  • Size L (mm)
    255
  • Size M (mm)
    Ø 8,5
  • Size N (mm)
    259,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

TRIO-LINEO 503
TRIO-LINEO 503
C 2.5 (COMANDO EL. 2.5 A)
C 2.5 (COMANDO EL. 2.5 A)
• Electronic speed controller.
• Maximum load 2.5 A.
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
POT-IT
POT-IT
Potentiometer equipped with On/Off switch, for installation in 503 Standard Box.
POT
POT
Potentiometer for installation in Standard DIN box.
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
