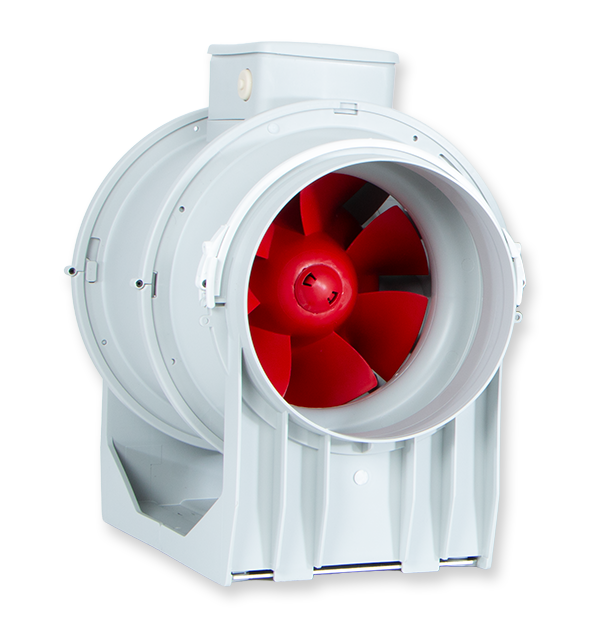

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 200 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    X5
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,35
  • Max absorbed current at Max speed (A)
    0,49
  • Max absorbed current at Max speed at 60 Hz (A)
    0,70
  • Max absorbed current at Mid speed (A)
    0,42
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,50
  • Max absorbed current at Min speed (A)
    0,34
  • Max absorbed power at Max speed (W)
    110
  • Max absorbed power at Max speed at 60 Hz (W)
    155
  • Max absorbed power at Mid speed (W)
    95
  • Max absorbed power at Mid speed at 60 Hz (W)
    115
  • Max absorbed power at Min speed at 60 Hz (W)
    85
  • Max ambient temperature for continuous operation (°C)
    50
  • Max continuous operation room temperature at 60 Hz (°C)
    45
  • Nominal diameter (mm)
    200
  • Power absorbed at 1st speed (W)
    80
  • Voltage (V)
    220-240
  • Weight (Kg)
    4,9
  • Airflow at 1st speed (l/s)
    226,4
  • Airflow at 1st speed (m³/h)
    815
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    65,9
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    59,2
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    52,1
  • Breakout sound power LWA at Max speed [dB (A)]
    67,5
  • Breakout sound power LWA at Mid speed [dB (A)]
    63,7
  • Breakout sound power LWA at Min speed [dB (A)]
    57,4
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    45,4
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    46,9
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    38,7
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    43,1
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    31,6
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    36,9
  • Max airflow at Max speed (l/s)
    315,3
  • Max airflow at Max speed (m³/h)
    1135
  • Max airflow at Max speed at 60 Hz (l/s)
    325
  • Max airflow at Max speed at 60 Hz (m³/h)
    1170
  • Max airflow at Mid speed (m³/h)
    1025
  • Max airflow at Mid speed at 60 Hz (l/s)
    243,1
  • Max airflow at Mid speed at 60 Hz (m³/h)
    875
  • Max airflow at Min speed (l/s)
    284,7
  • Max airflow at Min speed at 60 Hz (l/s)
    37,2
  • Max airflow at Min speed at 60 Hz (m³/h)
    640
  • Max pressure at 60 Hz (mmH2O)
    37,2
  • Max pressure at Max speed (mmH20)
    30
  • Max pressure at Max speed (Pa)
    294,2
  • Max pressure at Max speed at 60Hz (Pa)
    364,8
  • Max pressure at Mid speed (mmH2O)
    27,3
  • Max pressure at Mid speed (Pa)
    267,7
  • Max pressure at Mid speed at 60Hz (mmH2O)
    25,2
  • Max pressure at Mid speed at 60Hz (Pa)
    247,1
  • Max pressure at Min speed at 60Hz (mmH2O)
    14,4
  • Max pressure at Min speed at 60Hz (Pa)
    141,2
  • Max RPM
    2710
  • Max speed at 60 Hz (Rpm)
    2780
  • Mid speed at 60 Hz (Rpm)
    2080
  • Min RPM
    1925
  • Min speed at 60 Hz (Rpm)
    1540
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    78,6
  • Pressure at 1st speed (mmH20)
    21,5
  • Pressure at 1st speed (Pa)
    210,9
  • RPM at Mid speed
    2450
  • Sound power at extract side at Max speed LWA [dB (A)]
    89,5
  • Sound power at extract side at Mid speed LWA [dB (A)]
    86,4
  • Sound power at extract side at Min speed LWA [dB (A)]
    80
  • Sound power at supply side at Max speed LWA [dB (A)]
    88,2
  • Sound power at supply side at Mid speed LWA [dB (A)]
    84,9
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    89,9
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    82,6
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    74,9
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    88,9
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    81,7
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    73,5
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    72,4
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    72
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    64,2
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    68,8
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    57,3
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    62,5
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    70,7
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    67,4
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    61,1
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    71,4
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    65,1
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    55,9

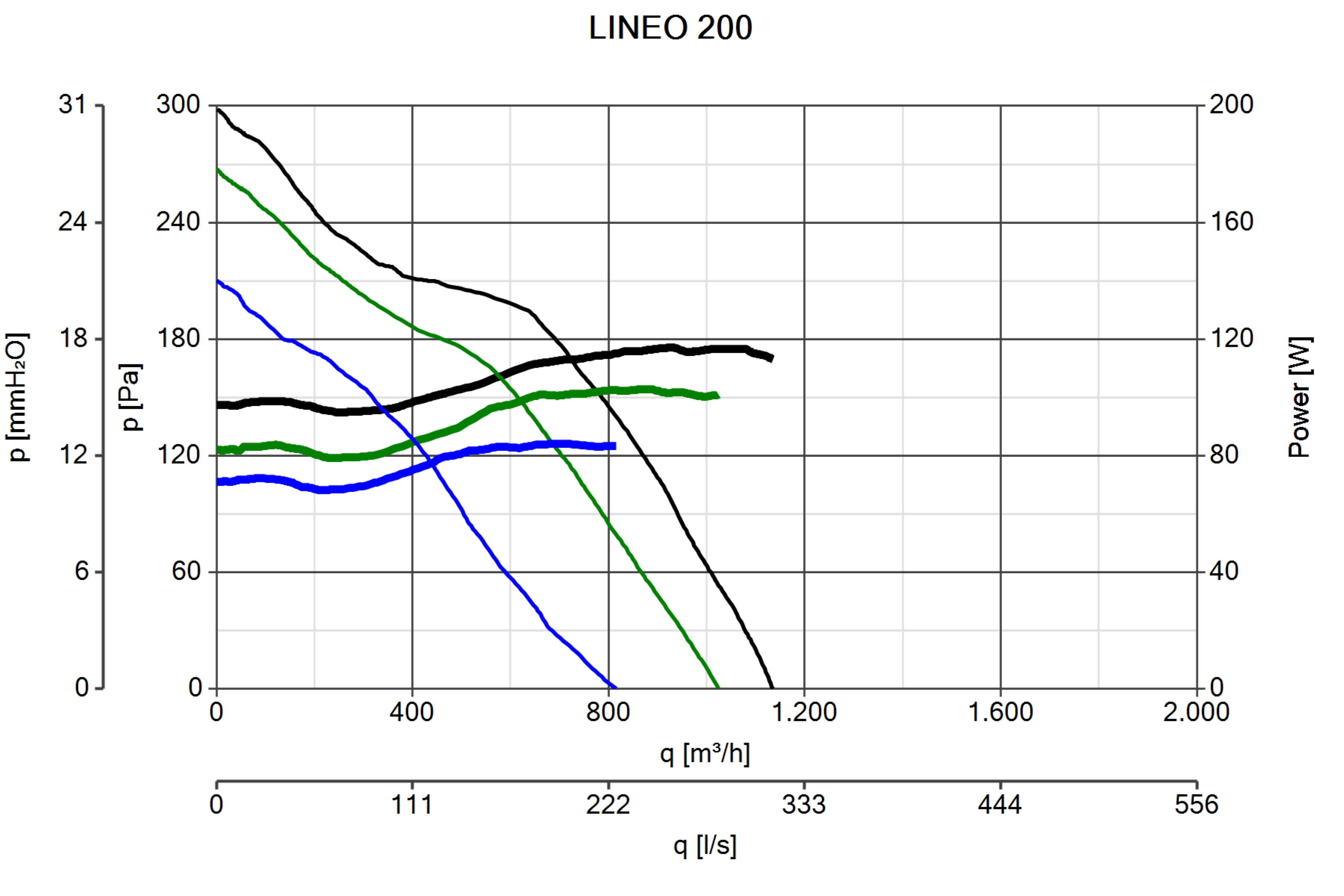

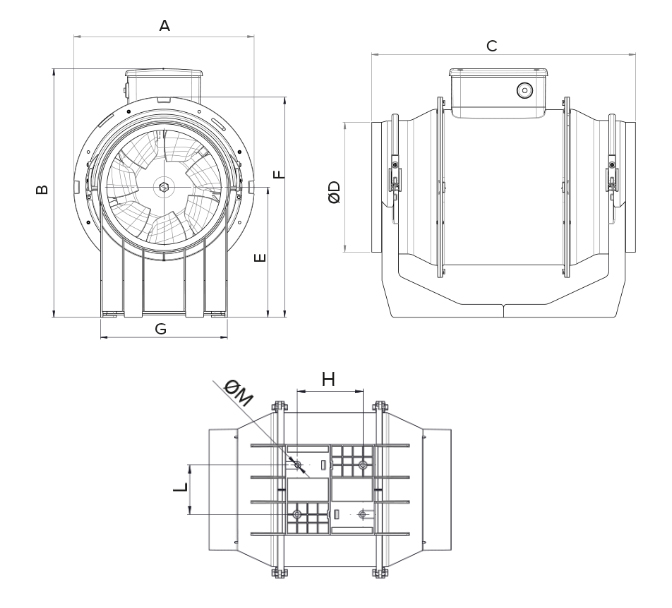

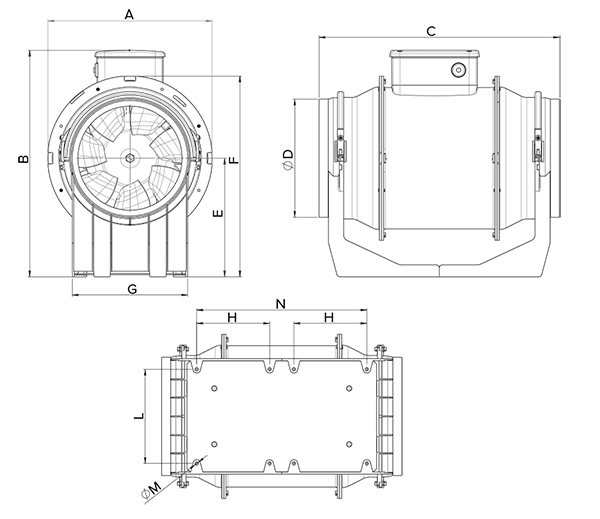

  • Size A (mm)
    270
  • Size B (mm)
    373
  • Size C (mm)
    396
  • Size D (mm)
    Ø 194,5
  • Size E (mm)
    195
  • Size F (mm)
    330
  • Size G (mm)
    190
  • Size H (mm)
    120
  • Size L (mm)
    155
  • Size M (mm)
    Ø 5,5
  • Size N (mm)
    280
