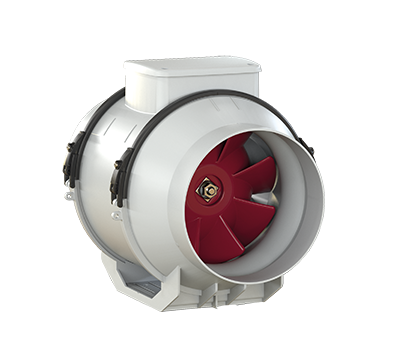

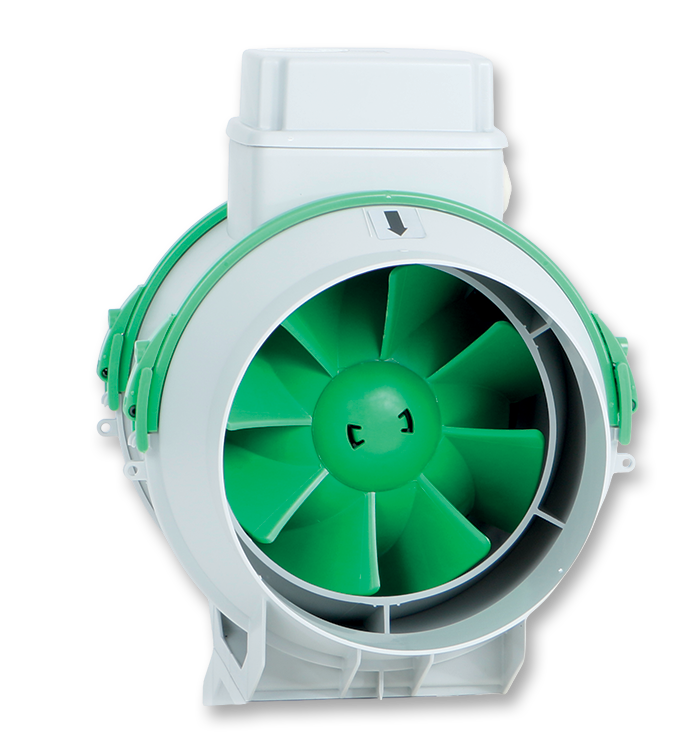

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 150 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    0,50
  • Max absorbed current at 4V (A)
    0,10
  • Max absorbed current at 6V (A)
    0,16
  • Max absorbed current at 8V (A)
    0,30
  • Max absorbed power at 10V (W)
    55
  • Max absorbed power at 4V (W)
    11
  • Max absorbed power at 6V (W)
    17
  • Max absorbed power at 8V (W)
    34
  • Max ambient temperature for continuous operation (°C)
    60
  • Nominal diameter (mm)
    150
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,6
  • Breakout sound power at 10V Lw [dB (A)]
    62,5
  • Breakout sound power at 4V Lw [dB (A)]
    41,5
  • Breakout sound power at 6V Lw [dB (A)]
    47,8
  • Breakout sound power at 8V Lw [dB (A)]
    56,1
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    41,9
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    21
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    27,2
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    35,5
  • Max airflow at 10V (l/s)
    163,9
  • Max airflow at 10V (m³/h)
    590
  • Max airflow at 4V (l/s)
    80,6
  • Max airflow at 4V (m³/h)
    290
  • Max airflow at 6V (l/s)
    102,8
  • Max airflow at 6V (m³/h)
    370
  • Max airflow at 8V (l/s)
    138,9
  • Max airflow at 8V (m³/h)
    500
  • Max pressure at 10V (Pa)
    433,5
  • Max pressure at 4V (Pa)
    83,4
  • Max pressure at 6V (Pa)
    135,3
  • Max pressure at 10V (mmH2O)
    44,2
  • Max pressure at 4V (mmH2O)
    8,5
  • Max pressure at 6V (mmH2O)
    13,8
  • Max pressure at 8V (mmH2O)
    22,7
  • Max pressure at 8V (Pa)
    222,6
  • RPM at 10V
    2480
  • RPM at 4V
    1260
  • RPM at 6V
    1595
  • RPM at 8V
    2125
  • Sound power at extract side at 10V speed LWA [dB (A)]
    87,9
  • Sound power at extract side at 4V speed LWA [dB (A)]
    67,9
  • Sound power at extract side at 6V speed LWA [dB (A)]
    74,6
  • Sound power at extract side at 8V speed LWA [dB (A)]
    82,1
  • Sound power at supply side at 10V speed LWA [dB (A)]
    86,4
  • Sound power at supply side at 4V speed LWA [dB (A)]
    69,6
  • Sound power at supply side at 6V speed LWA [dB (A)]
    75,2
  • Sound power at supply side at 8V speed LWA [dB (A)]
    82,1
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    70,3
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    50,4
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    57,1
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    64,6
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    68,9
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    52,1
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    57,7
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    64,5


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

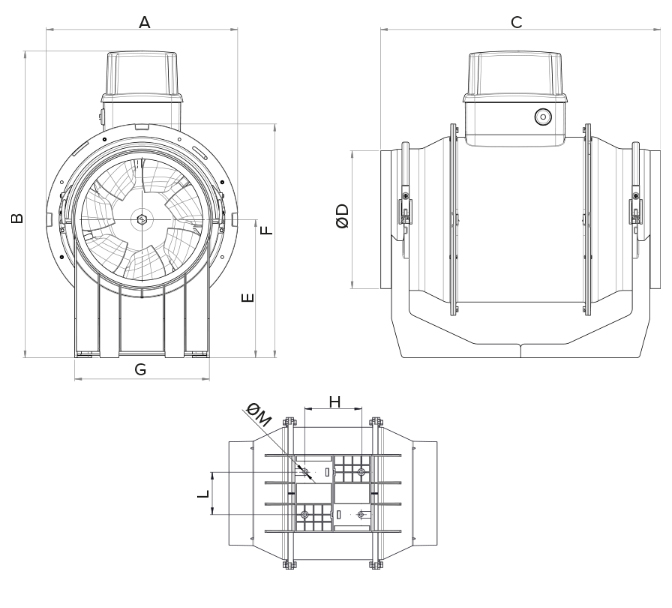

  • Size A (mm)
    214,5
  • Size B (mm)
    265
  • Size C (mm)
    294
  • Size D (mm)
    146
  • Size E (mm)
    112,5
  • Size F (mm)
    212
  • Size G (mm)
    110
  • Size H (mm)
    80
  • Size L (mm)
    60
  • Size M (mm)
    5,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

POT-IT
POT-IT
Potentiometer equipped with On/Off switch, for installation in 503 Standard Box.
POT
POT
Potentiometer for installation in Standard DIN box.
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
LINEO-G 150
LINEO-G 150
Protection grille.
