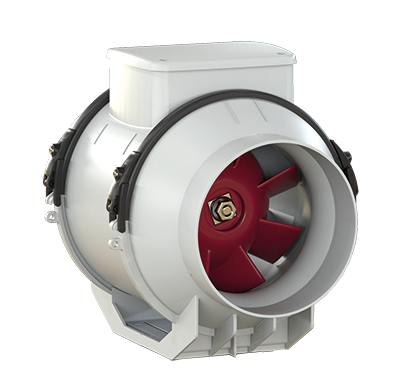

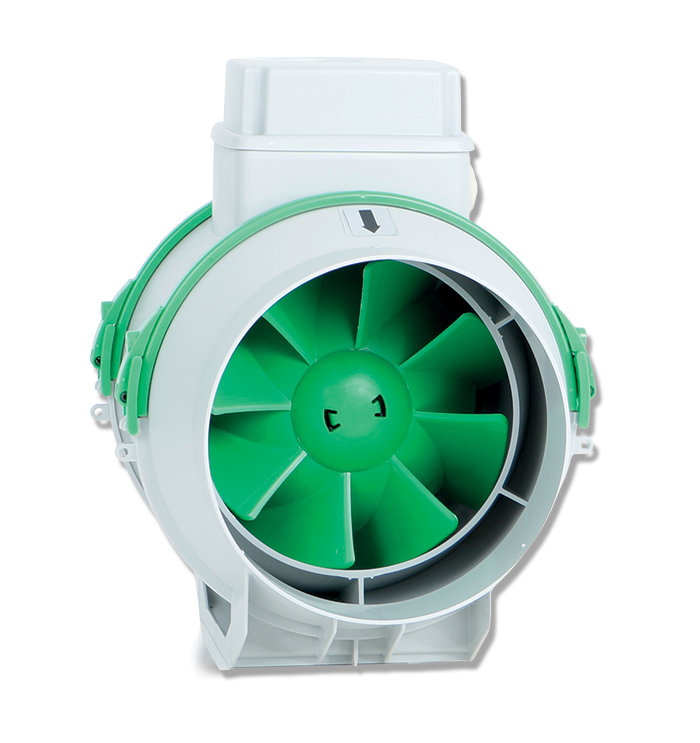

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 125 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    0,25
  • Max absorbed current at 4V (A)
    0,07
  • Max absorbed current at 6V (A)
    0,10
  • Max absorbed current at 8V (A)
    0,17
  • Max absorbed power at 10V (W)
    25
  • Max absorbed power at 4V (W)
    7
  • Max absorbed power at 6V (W)
    10
  • Max absorbed power at 8V (W)
    18
  • Max ambient temperature for continuous operation (°C)
    60
  • Nominal diameter (mm)
    125
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,2
  • Breakout sound power at 10V Lw [dB (A)]
    52,2
  • Breakout sound power at 4V Lw [dB (A)]
    36,8
  • Breakout sound power at 6V Lw [dB (A)]
    40,5
  • Breakout sound power at 8V Lw [dB (A)]
    48,8
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    31,6
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    16,2
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    20
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    28,3

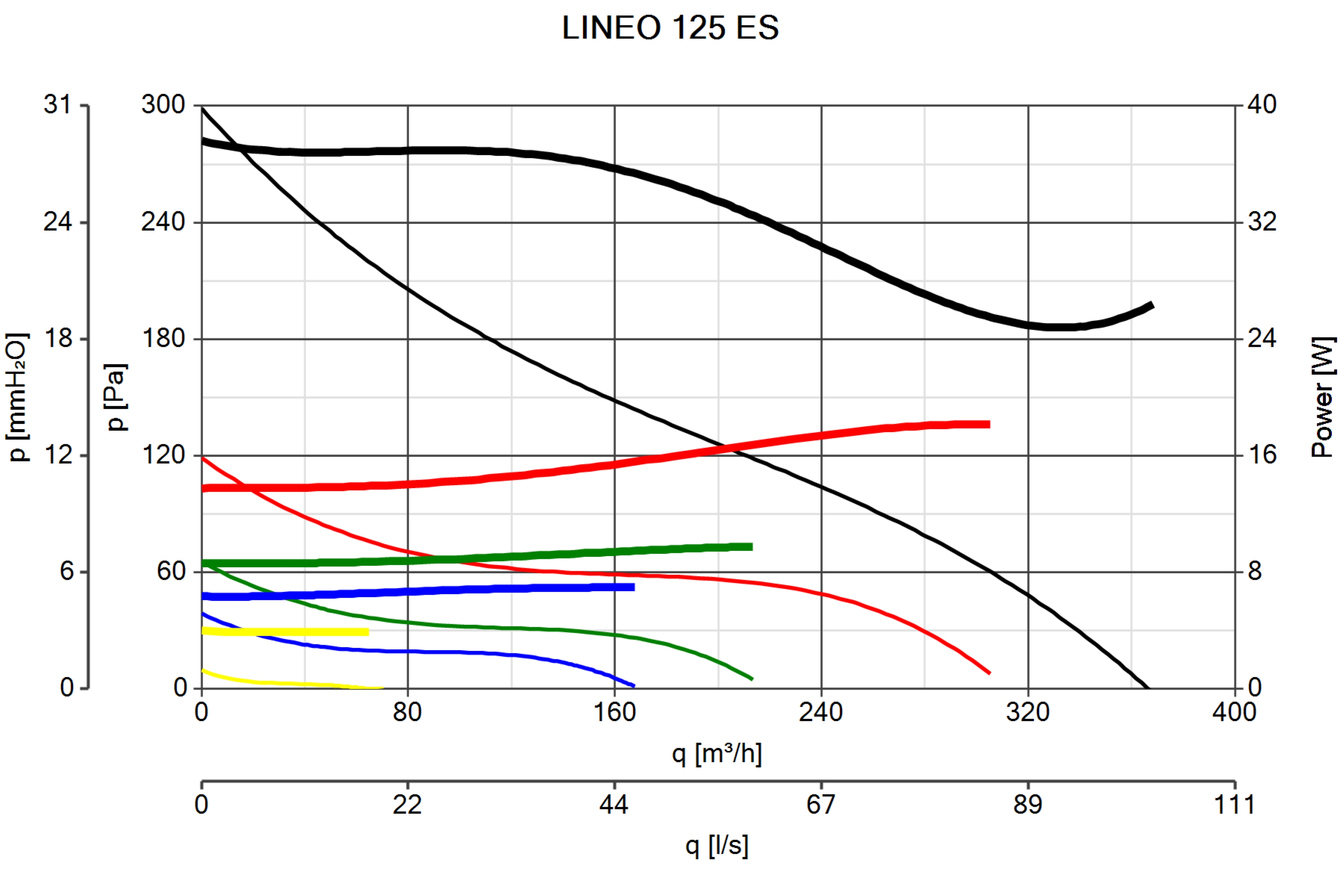

  • Max airflow at 10V (l/s)
    102,8
  • Max airflow at 10V (m³/h)
    370
  • Max airflow at 4V (l/s)
    47,2
  • Max airflow at 4V (m³/h)
    170
  • Max airflow at 6V (l/s)
    61,1
  • Max airflow at 6V (m³/h)
    220
  • Max airflow at 8V (l/s)
    87,5
  • Max airflow at 8V (m³/h)
    315
  • Max pressure at 10V (Pa)
    296,2
  • Max pressure at 4V (Pa)
    37,3
  • Max pressure at 6V (Pa)
    63,7
  • Max pressure at 10V (mmH2O)
    30,2
  • Max pressure at 4V (mmH2O)
    3,8
  • Max pressure at 6V (mmH2O)
    6,5
  • Max pressure at 8V (mmH2O)
    11,8
  • Max pressure at 8V (Pa)
    115,7
  • RPM at 10V
    2270
  • RPM at 4V
    1090
  • RPM at 6V
    1395
  • RPM at 8V
    1940
  • Sound power at extract side at 10V speed LWA [dB (A)]
    81,4
  • Sound power at extract side at 4V speed LWA [dB (A)]
    64,1
  • Sound power at extract side at 6V speed LWA [dB (A)]
    68,2
  • Sound power at extract side at 8V speed LWA [dB (A)]
    76,7
  • Sound power at supply side at 10V speed LWA [dB (A)]
    81,5
  • Sound power at supply side at 4V speed LWA [dB (A)]
    63,6
  • Sound power at supply side at 6V speed LWA [dB (A)]
    68,6
  • Sound power at supply side at 8V speed LWA [dB (A)]
    77,5
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    63,9
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    46,6
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    50,6
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    59,1
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    64
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    46
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    51,1
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    60

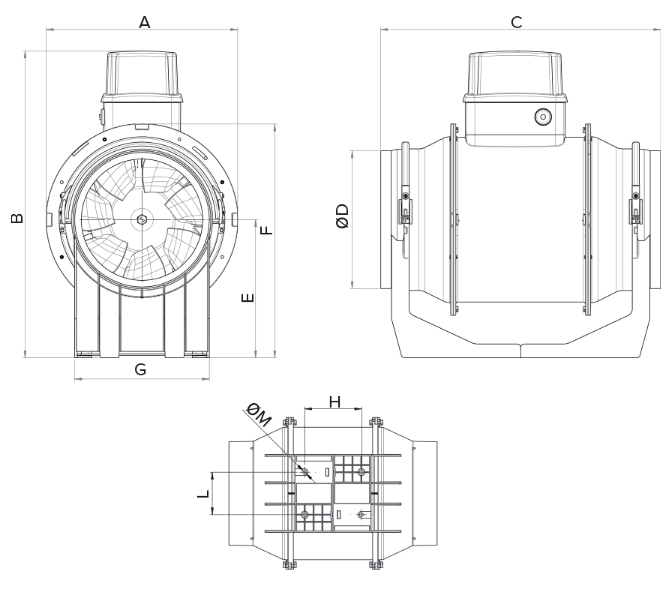

  • Size A (mm)
    188,5
  • Size B (mm)
    240
  • Size C (mm)
    258
  • Size D (mm)
    122
  • Size E (mm)
    101,5
  • Size F (mm)
    189
  • Size G (mm)
    90
  • Size H (mm)
    80
  • Size L (mm)
    60
  • Size M (mm)
    5,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
