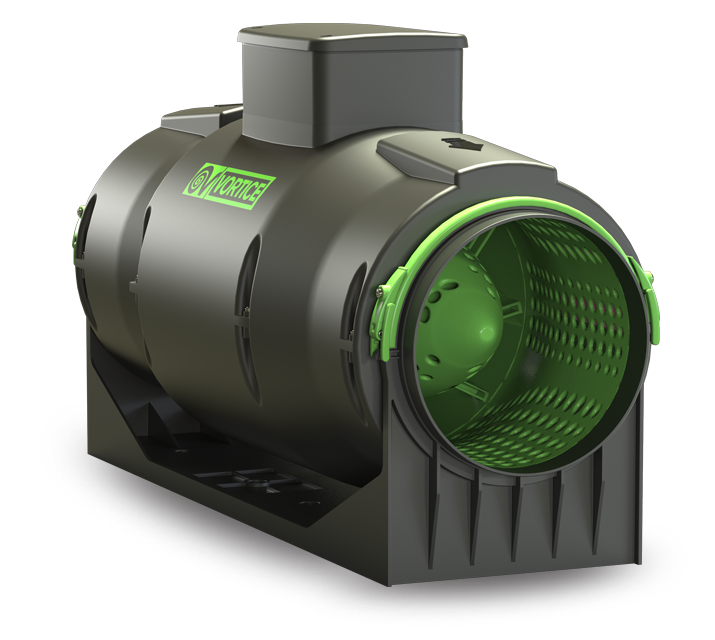

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 315 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Technical Data Sheet

  • Corrente max assorbita a 2V (A)
    0,13
  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    1,52
  • Max absorbed current at 4V (A)
    0,31
  • Max absorbed current at 6V (A)
    0,51
  • Max absorbed current at 8V (A)
    1,10
  • Max absorbed power at 10V (W)
    220
  • Max absorbed power at 4V (W)
    42
  • Max absorbed power at 6V (W)
    72
  • Max absorbed power at 8V (W)
    155
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    315
  • Potenza max assorbita a 2V (W)
    14
  • Voltage (V)
    220-240
  • Weight (Kg)
    28,3
  • Breakout sound power at 10V Lw [dB (A)]
    68,8
  • Breakout sound power at 2V LWA [dB (A)]
    42,4
  • Breakout sound power at 4V Lw [dB (A)]
    54
  • Breakout sound power at 6V Lw [dB (A)]
    56,3
  • Breakout sound power at 8V Lw [dB (A)]
    65,1
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    48,3
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    33,5
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    35,8
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    44,6
  • Max airflow at 10V (l/s)
    730,6
  • Max airflow at 10V (m³/h)
    2630
  • Max airflow at 4V (l/s)
    388,9
  • Max airflow at 4V (m³/h)
    1400
  • Max airflow at 6V (l/s)
    480,6
  • Max airflow at 6V (m³/h)
    1730
  • Max airflow at 8V (l/s)
    638,9
  • Max airflow at 8V (m³/h)
    2300
  • Max pressure at 10V (Pa)
    379,5
  • Max pressure at 4V (Pa)
    126,5
  • Max pressure at 6V (Pa)
    191,2
  • Max pressure at 10V (mmH2O)
    38,7
  • Max pressure at 4V (mmH2O)
    12,9
  • Max pressure at 6V (mmH2O)
    19,5
  • Max pressure at 8V (mmH2O)
    33,8
  • Max pressure at 8V (Pa)
    331,5
  • Portata max a 2V (l/s)
    213,9
  • Portata max a 2V (m3/h)
    770
  • Potenza sonora Lw [dB (A)] IN ASPIRAZIONE - a 2V
    67,7
  • Potenza sonora Lw [dB (A)] IN MANDATA - a 2V
    72,2
  • Pressione max a 2V (mmH2O)
    4,2
  • Pressione max a 2V (Pa)
    41,2
  • Pressione sonora Lp [dB (A)] 3m IN ASPIRAZIONE - a 2V
    50,1
  • Pressione sonora Lp [dB (A)] 3m IN MANDATA - a 2V
    54,6
  • Pressione sonora Lp [dB (A)] 3m IRRADIATO - a 2V
    21,9
  • RPM 2V
    720
  • RPM at 10V
    2350
  • RPM at 4V
    1260
  • RPM at 6V
    1560
  • RPM at 8V
    2070
  • Sound power at extract side at 10V speed LWA [dB (A)]
    74
  • Sound power at extract side at 4V speed LWA [dB (A)]
    61,9
  • Sound power at extract side at 6V speed LWA [dB (A)]
    66,2
  • Sound power at extract side at 8V speed LWA [dB (A)]
    71,8
  • Sound power at supply side at 10V speed LWA [dB (A)]
    72
  • Sound power at supply side at 4V speed LWA [dB (A)]
    58,7
  • Sound power at supply side at 6V speed LWA [dB (A)]
    63,4
  • Sound power at supply side at 8V speed LWA [dB (A)]
    69,4
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    56,5
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    44,4
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    48,7
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    54,3
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    54,5
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    41,2
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    45,9
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    51,9


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

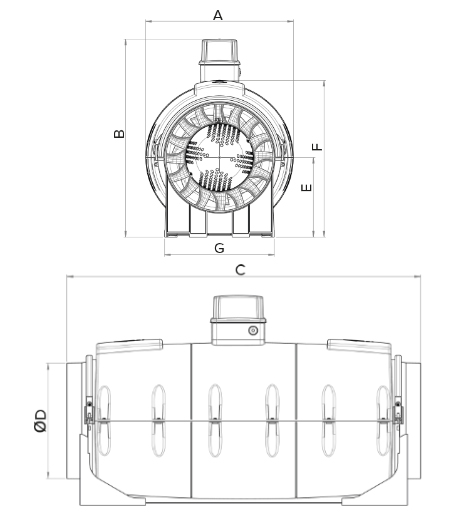

  • Size A (mm)
    415,5
  • Size B (mm)
    557,8
  • Size C (mm)
    940
  • Size D (mm)
    Ø 307
  • Size E (mm)
    234
  • Size F (mm)
    441
  • Size G (mm)
    309
  • Size H (mm)
    110
  • Size L (mm)
    255
  • Size M (mm)
    Ø 8,5
  • Size N (mm)
    780
quota

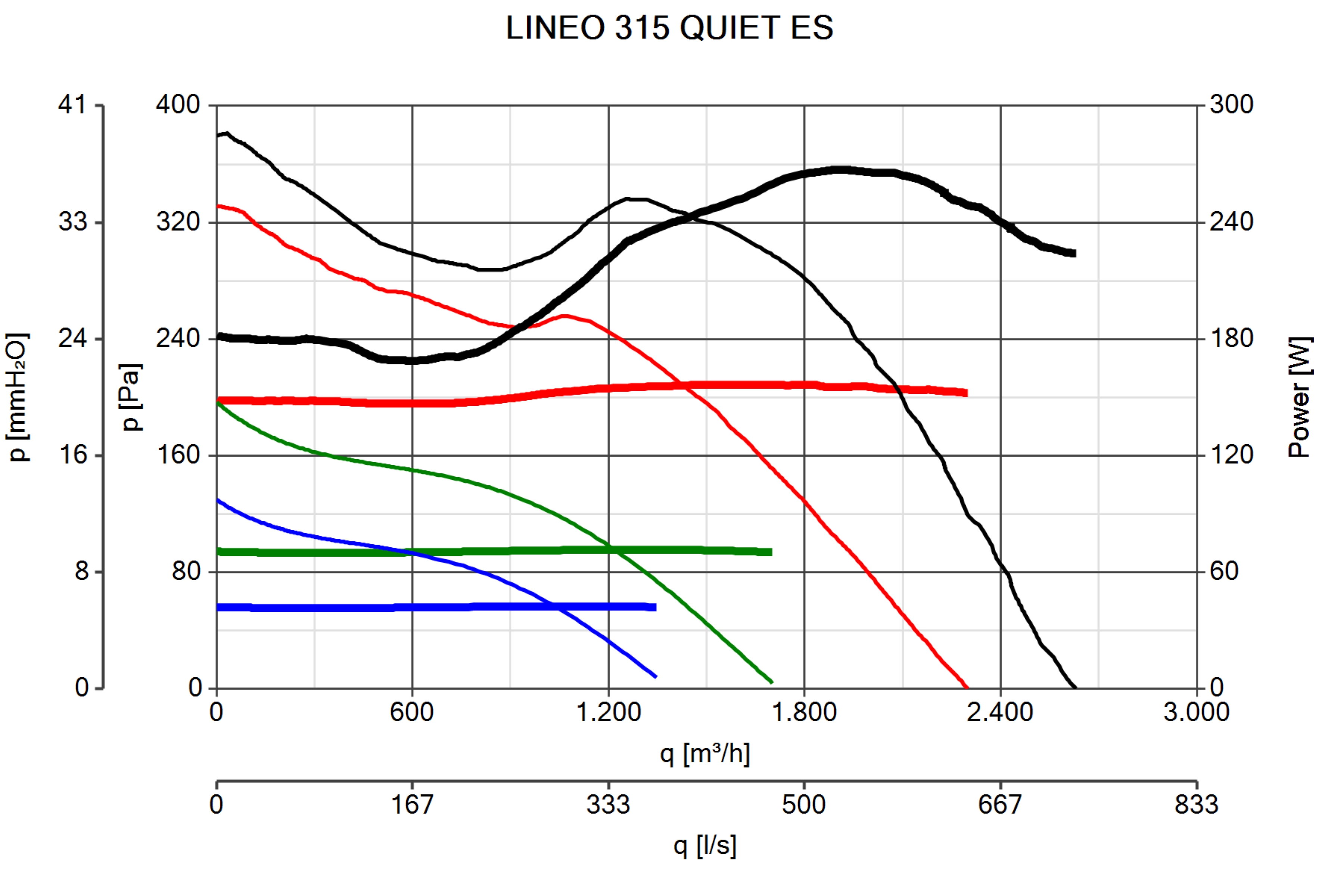

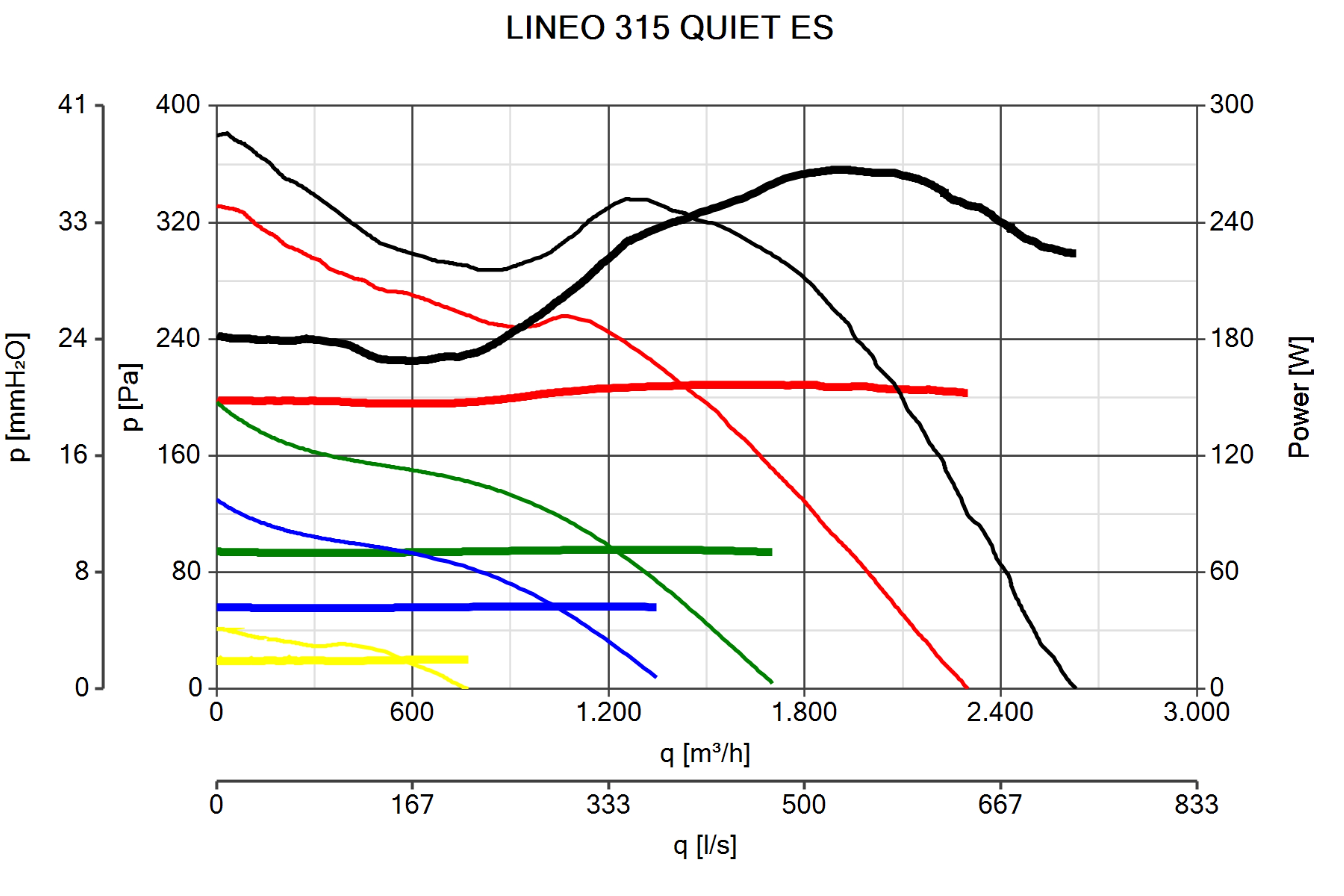

Curva_JPG_17176-Curve_per_Catalogo
