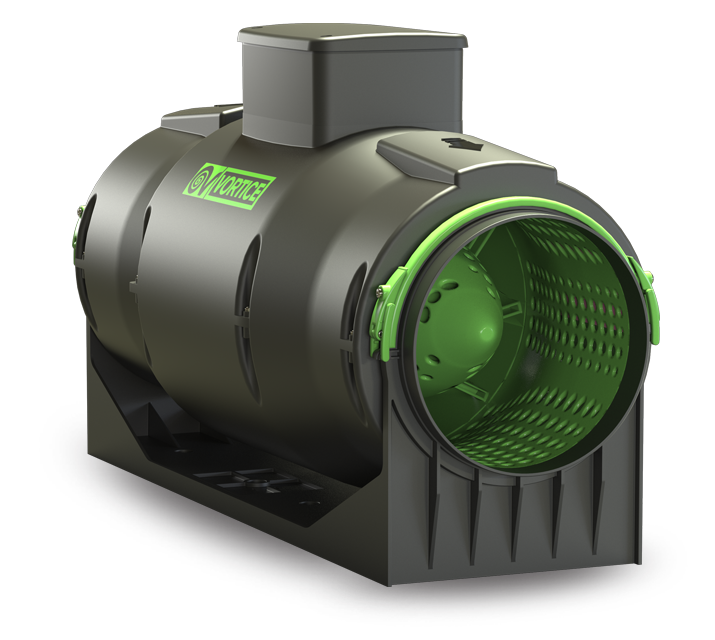

LINEO 160 QUIET ES

Sound-proof energy saving mixed flow extractor fans

Lineo_QuietES_01

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 160 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications

Technical Data Sheet

  • Corrente max assorbita a 2V (A)
    0,09
  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    0,34
  • Max absorbed current at 4V (A)
    0,11
  • Max absorbed current at 6V (A)
    0,14
  • Max absorbed current at 8V (A)
    0,23
  • Max absorbed power at 10V (W)
    31
  • Max absorbed power at 4V (W)
    7,7
  • Max absorbed power at 6V (W)
    10,6
  • Max absorbed power at 8V (W)
    19,7
  • Max ambient temperature for continuous operation (°C)
    60
  • Nominal diameter (mm)
    160
  • Potenza max assorbita a 2V (W)
    4,2
  • Voltage (V)
    220-240
  • Weight (Kg)
    5,2
  • Breakout sound power at 10V Lw [dB (A)]
    49,7
  • Breakout sound power at 2V LWA [dB (A)]
    28,9
  • Breakout sound power at 4V Lw [dB (A)]
    33
  • Breakout sound power at 6V Lw [dB (A)]
    37,9
  • Breakout sound power at 8V Lw [dB (A)]
    45,2
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    29,2
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    12,5
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    17,4
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    24,7
  • Max airflow at 10V (l/s)
    145,8
  • Max airflow at 10V (m³/h)
    525
  • Max airflow at 4V (l/s)
    69,4
  • Max airflow at 4V (m³/h)
    250
  • Max airflow at 6V (l/s)
    87,5
  • Max airflow at 6V (m³/h)
    315
  • Max airflow at 8V (l/s)
    120,8
  • Max airflow at 8V (m³/h)
    435
  • Max pressure at 10V (Pa)
    234,4
  • Max pressure at 4V (Pa)
    44,1
  • Max pressure at 6V (Pa)
    73,6
  • Max pressure at 10V (mmH2O)
    23,9
  • Max pressure at 4V (mmH2O)
    4,5
  • Max pressure at 6V (mmH2O)
    7,5
  • Max pressure at 8V (mmH2O)
    14,4
  • Max pressure at 8V (Pa)
    141,2
  • Portata max a 2V (l/s)
    34,7
  • Portata max a 2V (m3/h)
    125
  • Potenza sonora Lw [dB (A)] IN ASPIRAZIONE - a 2V
    45,7
  • Potenza sonora Lw [dB (A)] IN MANDATA - a 2V
    44,8
  • Pressione max a 2V (mmH2O)
    1
  • Pressione max a 2V (Pa)
    9,8
  • Pressione sonora Lp [dB (A)] 3m IN ASPIRAZIONE - a 2V
    28,2
  • Pressione sonora Lp [dB (A)] 3m IN MANDATA - a 2V
    27,3
  • Pressione sonora Lp [dB (A)] 3m IRRADIATO - a 2V
    8,4
  • RPM 2V
    505
  • RPM at 10V
    2035
  • RPM at 4V
    1010
  • RPM at 6V
    1245
  • RPM at 8V
    1685
  • Sound power at extract side at 10V speed LWA [dB (A)]
    59,5
  • Sound power at extract side at 4V speed LWA [dB (A)]
    40,6
  • Sound power at extract side at 6V speed LWA [dB (A)]
    45,7
  • Sound power at extract side at 8V speed LWA [dB (A)]
    54,1
  • Sound power at supply side at 10V speed LWA [dB (A)]
    58,8
  • Sound power at supply side at 4V speed LWA [dB (A)]
    41,1
  • Sound power at supply side at 6V speed LWA [dB (A)]
    46,3
  • Sound power at supply side at 8V speed LWA [dB (A)]
    54
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    42
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    23,1
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    28,2
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    36,6
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    41,3
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    23,6
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    28,8
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    36,5


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

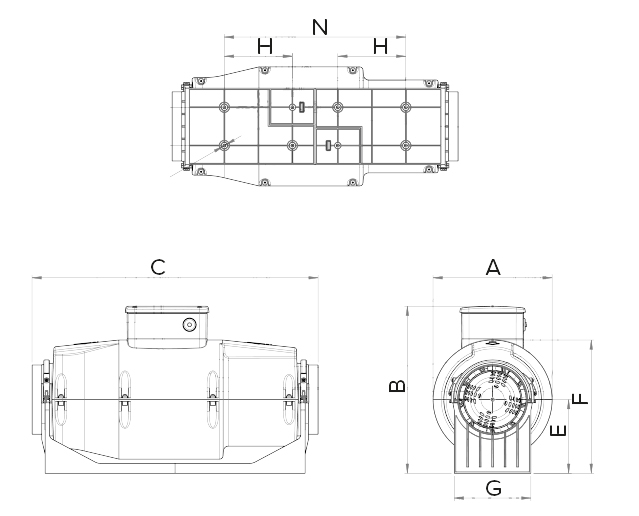

  • Size A (mm)
    232
  • Size B (mm)
    320,6
  • Size C (mm)
    570
  • Size D (mm)
    Ø 156,5
  • Size E (mm)
    145
  • Size F (mm)
    261,5
  • Size G (mm)
    170
  • Size H (mm)
    135
  • Size L (mm)
    85
  • Size M (mm)
    Ø 5,5
  • Size N (mm)
    360
quota

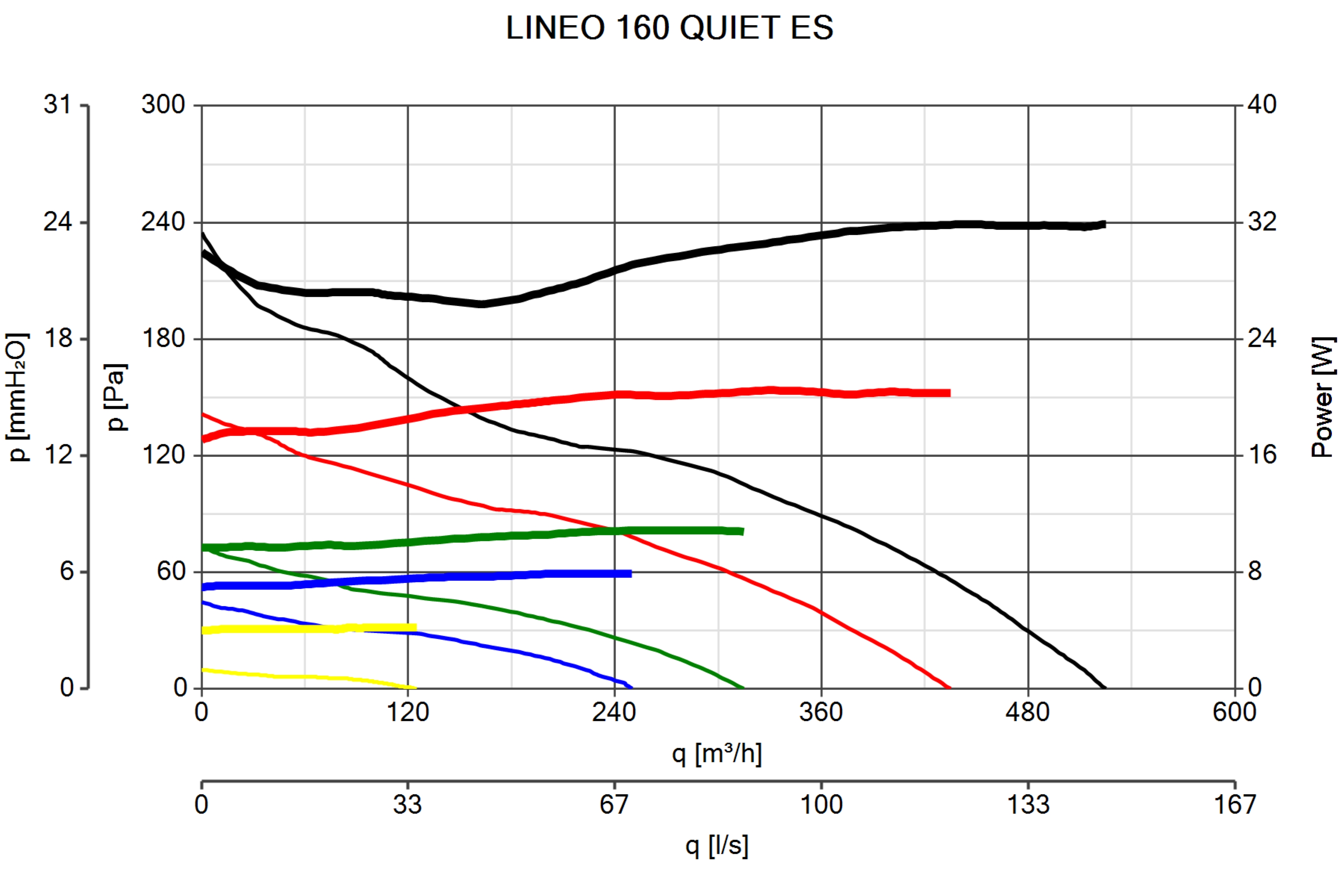

Curva_JPG_17173-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C TEMP
C TEMP
Environmental sensor for temperature control.
Go to data sheet

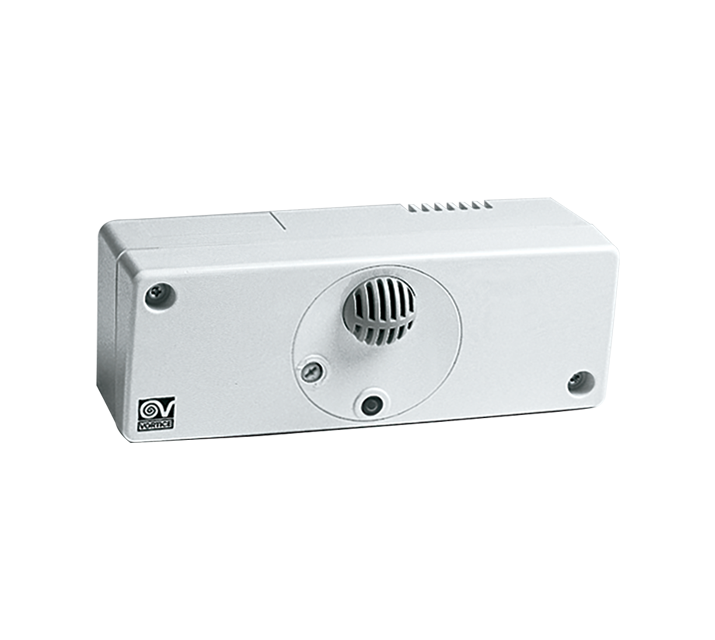

C SMOKE
C SMOKE
Environmental sensor for air quality.
Go to data sheet

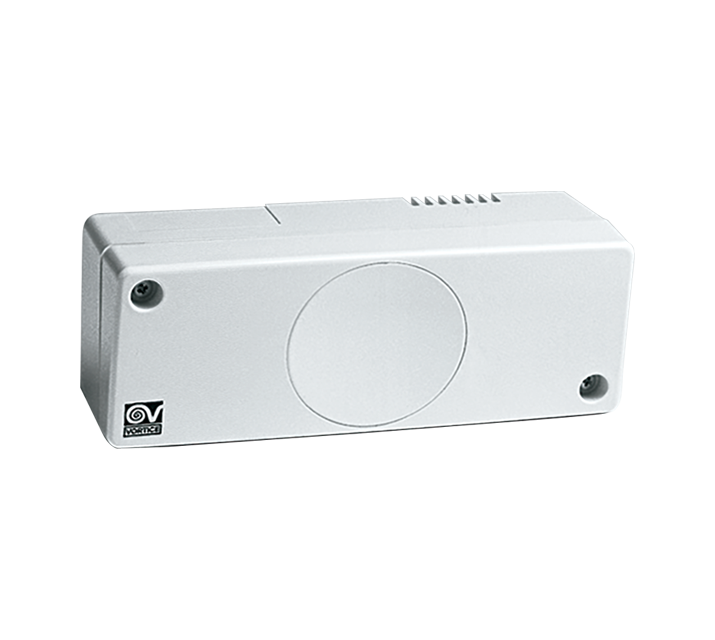

C HCS
C HCS
Environmental sensor for relative humidity control.
Go to data sheet

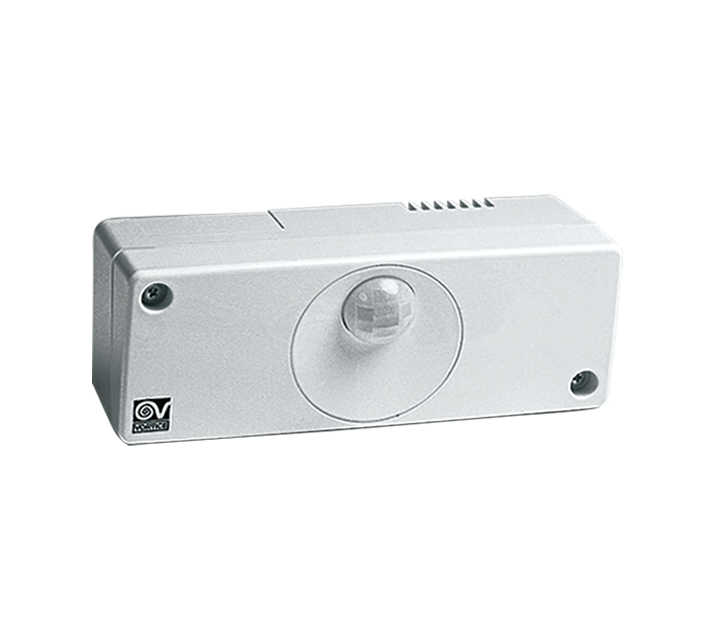

C PIR
C PIR
• Passive infrared sensor.
Go to data sheet
C TIMER
C TIMER
• Adjustable over-run timer.
Go to data sheet
POT-IT
POT-IT
Potentiometer equipped with On/Off switch, for installation in 503 Standard Box.
Go to data sheet
POT
POT
Potentiometer for installation in Standard DIN box. White colour. Resistance 10 kO. Switch rating: 4 A / 250 Vac - 10 A / 12 Vdc. Protection: IP44 (recessed installation), IP54 (wa...
Go to data sheet
