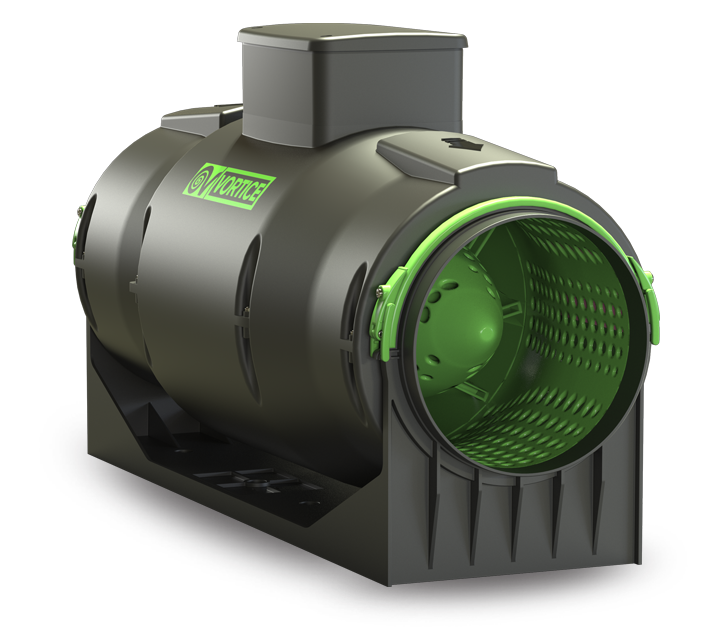

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 125 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Corrente max assorbita a 2V (A)
    0,08
  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    0,26
  • Max absorbed current at 4V (A)
    0,10
  • Max absorbed current at 6V (A)
    0,12
  • Max absorbed current at 8V (A)
    0,18
  • Max absorbed power at 10V (W)
    24
  • Max absorbed power at 4V (W)
    6,6
  • Max absorbed power at 6V (W)
    8,8
  • Max absorbed power at 8V (W)
    16
  • Max ambient temperature for continuous operation (°C)
    60
  • Nominal diameter (mm)
    125
  • Potenza max assorbita a 2V (W)
    3,9
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,6
  • Breakout sound power at 10V Lw [dB (A)]
    49,2
  • Breakout sound power at 2V LWA [dB (A)]
    30,7
  • Breakout sound power at 4V Lw [dB (A)]
    31,8
  • Breakout sound power at 6V Lw [dB (A)]
    36,9
  • Breakout sound power at 8V Lw [dB (A)]
    45,6
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    28,7
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    11,3
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    16,4
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    25,1
  • Max airflow at 10V (l/s)
    105,6
  • Max airflow at 10V (m³/h)
    380
  • Max airflow at 4V (l/s)
    50
  • Max airflow at 4V (m³/h)
    180
  • Max airflow at 6V (l/s)
    62,5
  • Max airflow at 6V (m³/h)
    225
  • Max airflow at 8V (l/s)
    88,9
  • Max airflow at 8V (m³/h)
    320
  • Max pressure at 10V (Pa)
    232,4
  • Max pressure at 4V (Pa)
    32,4
  • Max pressure at 6V (Pa)
    54,9
  • Max pressure at 10V (mmH2O)
    23,7
  • Max pressure at 4V (mmH2O)
    3,3
  • Max pressure at 6V (mmH2O)
    5,6
  • Max pressure at 8V (mmH2O)
    11
  • Max pressure at 8V (Pa)
    107,9
  • Portata max a 2V (l/s)
    19,2
  • Portata max a 2V (m3/h)
    69
  • Potenza sonora Lw [dB (A)] IN ASPIRAZIONE - a 2V
    47,9
  • Potenza sonora Lw [dB (A)] IN MANDATA - a 2V
    44,3
  • Pressione max a 2V (mmH2O)
    0,5
  • Pressione max a 2V (Pa)
    4,9
  • Pressione sonora Lp [dB (A)] 3m IN ASPIRAZIONE - a 2V
    30,3
  • Pressione sonora Lp [dB (A)] 3m IN MANDATA - a 2V
    26,8
  • Pressione sonora Lp [dB (A)] 3m IRRADIATO - a 2V
    10,2
  • RPM 2V
    460
  • RPM at 10V
    2210
  • RPM at 4V
    1080
  • RPM at 6V
    1340
  • RPM at 8V
    1865
  • Sound power at extract side at 10V speed LWA [dB (A)]
    55
  • Sound power at extract side at 4V speed LWA [dB (A)]
    37,9
  • Sound power at extract side at 6V speed LWA [dB (A)]
    41,8
  • Sound power at extract side at 8V speed LWA [dB (A)]
    52
  • Sound power at supply side at 10V speed LWA [dB (A)]
    57,5
  • Sound power at supply side at 4V speed LWA [dB (A)]
    38,5
  • Sound power at supply side at 6V speed LWA [dB (A)]
    43,1
  • Sound power at supply side at 8V speed LWA [dB (A)]
    53,9
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    37,5
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    20,4
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    24,3
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    34,5
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    40
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    21
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    25,6
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    36,4


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

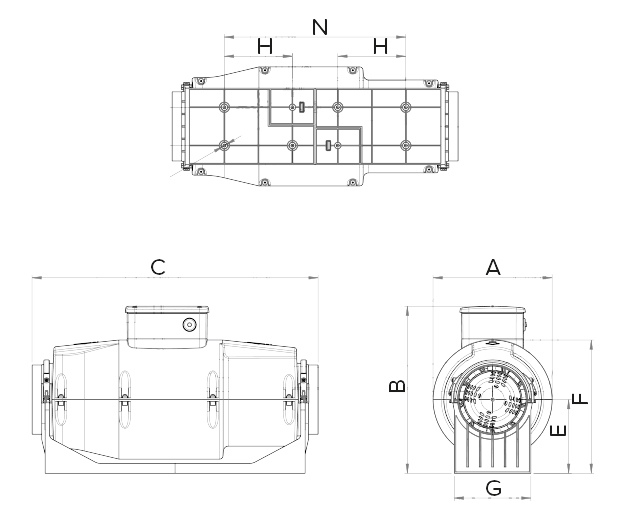

  • Size A (mm)
    210
  • Size B (mm)
    294,6
  • Size C (mm)
    504,5
  • Size D (mm)
    Ø 122
  • Size E (mm)
    130
  • Size F (mm)
    235
  • Size G (mm)
    135
  • Size H (mm)
    120
  • Size L (mm)
    67,5
  • Size M (mm)
    Ø 5,5
  • Size N (mm)
    320
quota

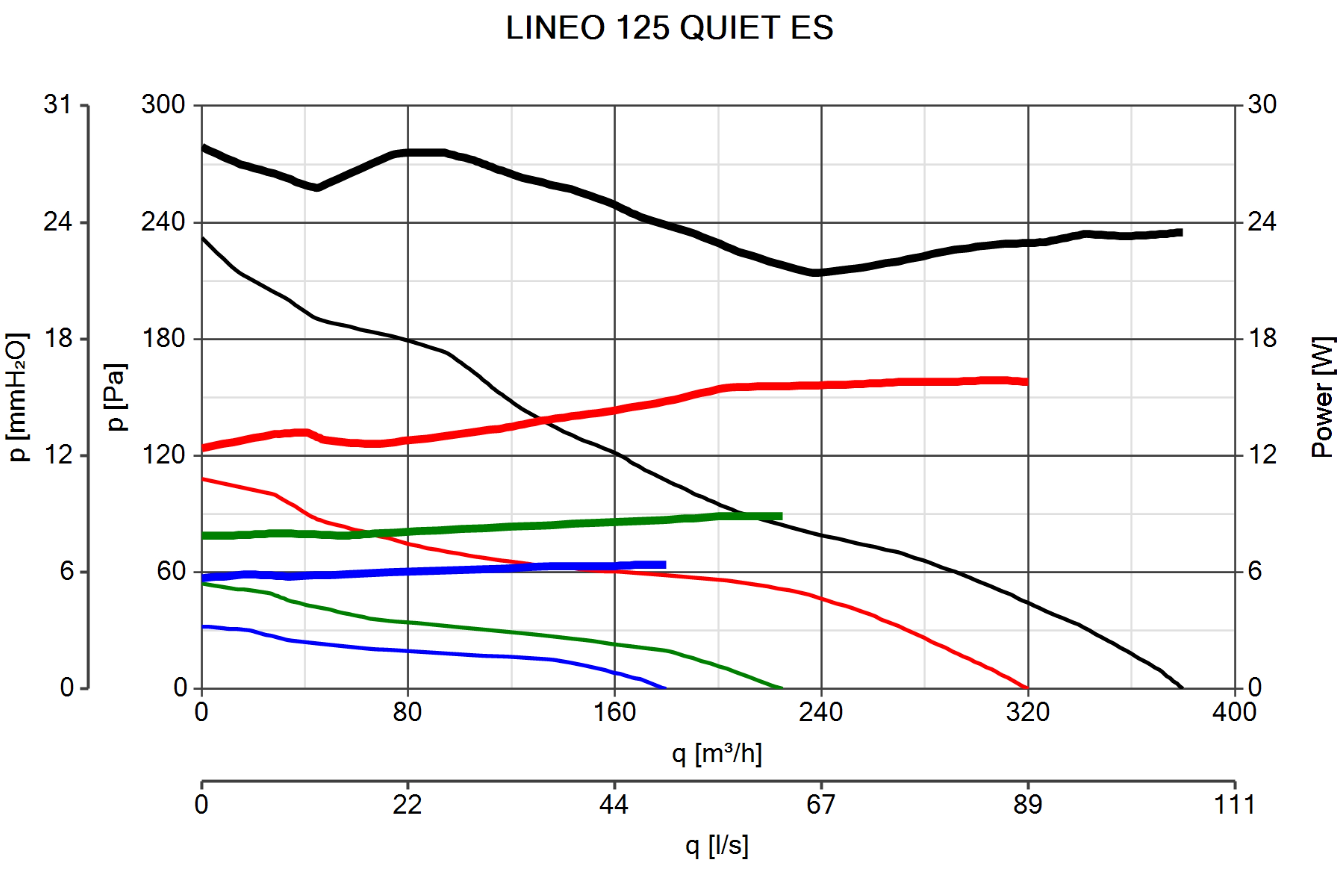

Curva_JPG_17171-Curve_per_Catalogo

Accessories

Discover accessories related to the product

C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
POT-IT
POT-IT
Potentiometer equipped with On/Off switch, for installation in 503 Standard Box.
POT
POT
Potentiometer for installation in Standard DIN box. White colour. Resistance 10 kO. Switch rating: 4 A / 250 Vac - 10 A / 12 Vdc. Protection: IP44 (recessed installation), IP54 (wa...
