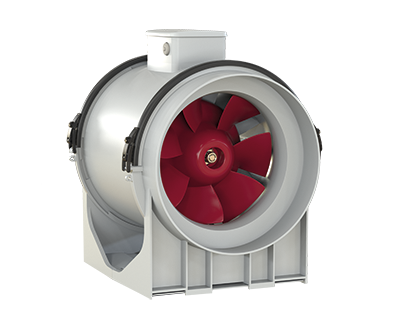

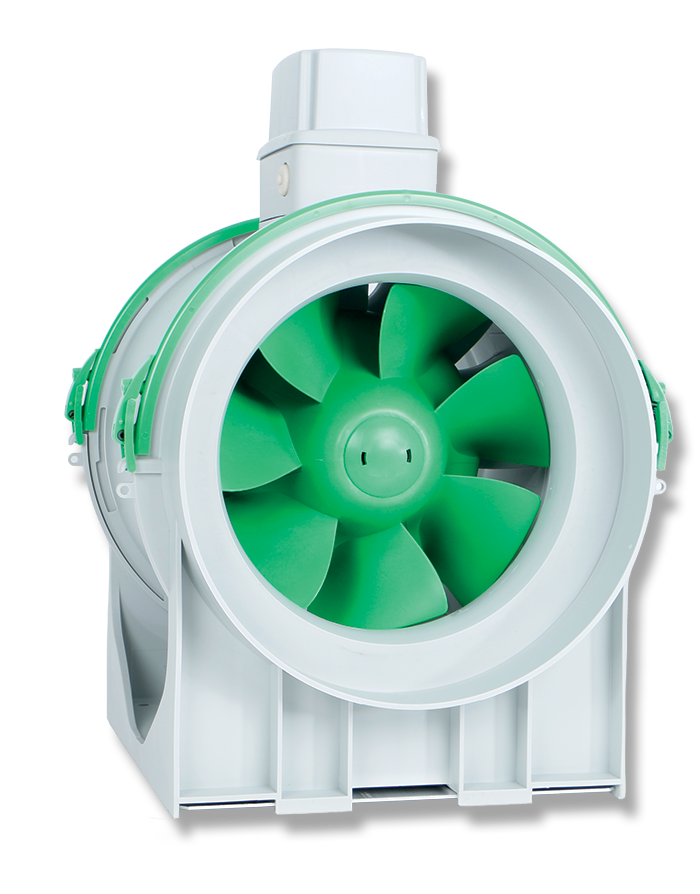

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 315 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Corrente max assorbita a 2V (A)
    0,13
  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    1,75
  • Max absorbed current at 4V (A)
    0,37
  • Max absorbed current at 6V (A)
    0,63
  • Max absorbed current at 8V (A)
    1,32
  • Max absorbed power at 10V (W)
    230
  • Max absorbed power at 4V (W)
    45
  • Max absorbed power at 6V (W)
    77
  • Max absorbed power at 8V (W)
    170
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    315
  • Ø Discharge hole (mm)
    300
  • Potenza max assorbita a 2V (W)
    15
  • Voltage (V)
    220-240
  • Weight (Kg)
    9,2
  • Breakout sound power at 10V Lw [dB (A)]
    68,1
  • Breakout sound power at 2V LWA [dB (A)]
    46,8
  • Breakout sound power at 4V Lw [dB (A)]
    63
  • Breakout sound power at 6V Lw [dB (A)]
    64,6
  • Breakout sound power at 8V Lw [dB (A)]
    65,3
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    47,5
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    42,5
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    44
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    44,8
  • Max airflow at 10V (l/s)
    729,2
  • Max airflow at 10V (m³/h)
    2625
  • Max airflow at 4V (l/s)
    393,1
  • Max airflow at 4V (m³/h)
    1415
  • Max airflow at 6V (l/s)
    483,3
  • Max airflow at 6V (m³/h)
    1740
  • Max airflow at 8V (l/s)
    644,4
  • Max airflow at 8V (m³/h)
    2320
  • Max pressure at 10V (Pa)
    421,7
  • Max pressure at 4V (Pa)
    143,2
  • Max pressure at 6V (Pa)
    214,8
  • Max pressure at 10V (mmH2O)
    43
  • Max pressure at 4V (mmH2O)
    14,6
  • Max pressure at 6V (mmH2O)
    21,9
  • Max pressure at 8V (mmH2O)
    38,6
  • Max pressure at 8V (Pa)
    378,6
  • Portata max a 2V (l/s)
    222,2
  • Portata max a 2V (m3/h)
    800
  • Potenza sonora Lw [dB (A)] IN ASPIRAZIONE - a 2V
    66,5
  • Potenza sonora Lw [dB (A)] IN MANDATA - a 2V
    67,5
  • Pressione max a 2V (mmH2O)
    5,1
  • Pressione max a 2V (Pa)
    50
  • Pressione sonora Lp [dB (A)] 3m IN ASPIRAZIONE - a 2V
    48,9
  • Pressione sonora Lp [dB (A)] 3m IN MANDATA - a 2V
    50
  • Pressione sonora Lp [dB (A)] 3m IRRADIATO - a 2V
    26,3
  • RPM 2V
    790
  • RPM at 10V
    2370
  • RPM at 4V
    1300
  • RPM at 6V
    1600
  • RPM at 8V
    2130
  • Sound power at extract side at 10V speed LWA [dB (A)]
    92,8
  • Sound power at extract side at 4V speed LWA [dB (A)]
    83,1
  • Sound power at extract side at 6V speed LWA [dB (A)]
    88
  • Sound power at extract side at 8V speed LWA [dB (A)]
    90,7
  • Sound power at supply side at 10V speed LWA [dB (A)]
    90
  • Sound power at supply side at 4V speed LWA [dB (A)]
    80,8
  • Sound power at supply side at 6V speed LWA [dB (A)]
    88,2
  • Sound power at supply side at 8V speed LWA [dB (A)]
    88,8
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    75,3
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    65,6
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    70,4
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    73,2
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    72,4
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    63,3
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    70,6
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    71,2


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

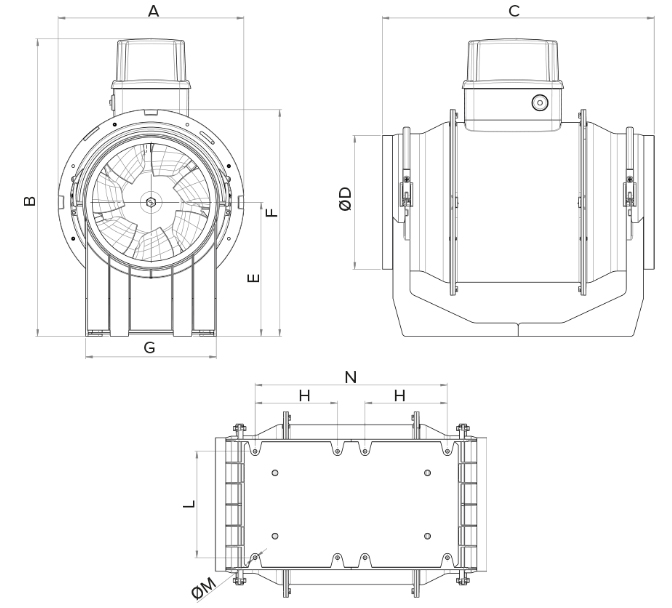

  • Size A (mm)
    373
  • Size B (mm)
    506
  • Size C (mm)
    420
  • Size D (mm)
    Ø 307
  • Size E (mm)
    224
  • Size F (mm)
    398
  • Size G (mm)
    309
  • Size H (mm)
    110
  • Size L (mm)
    255
  • Size M (mm)
    Ø 8,5
  • Size N (mm)
    259,5
quota

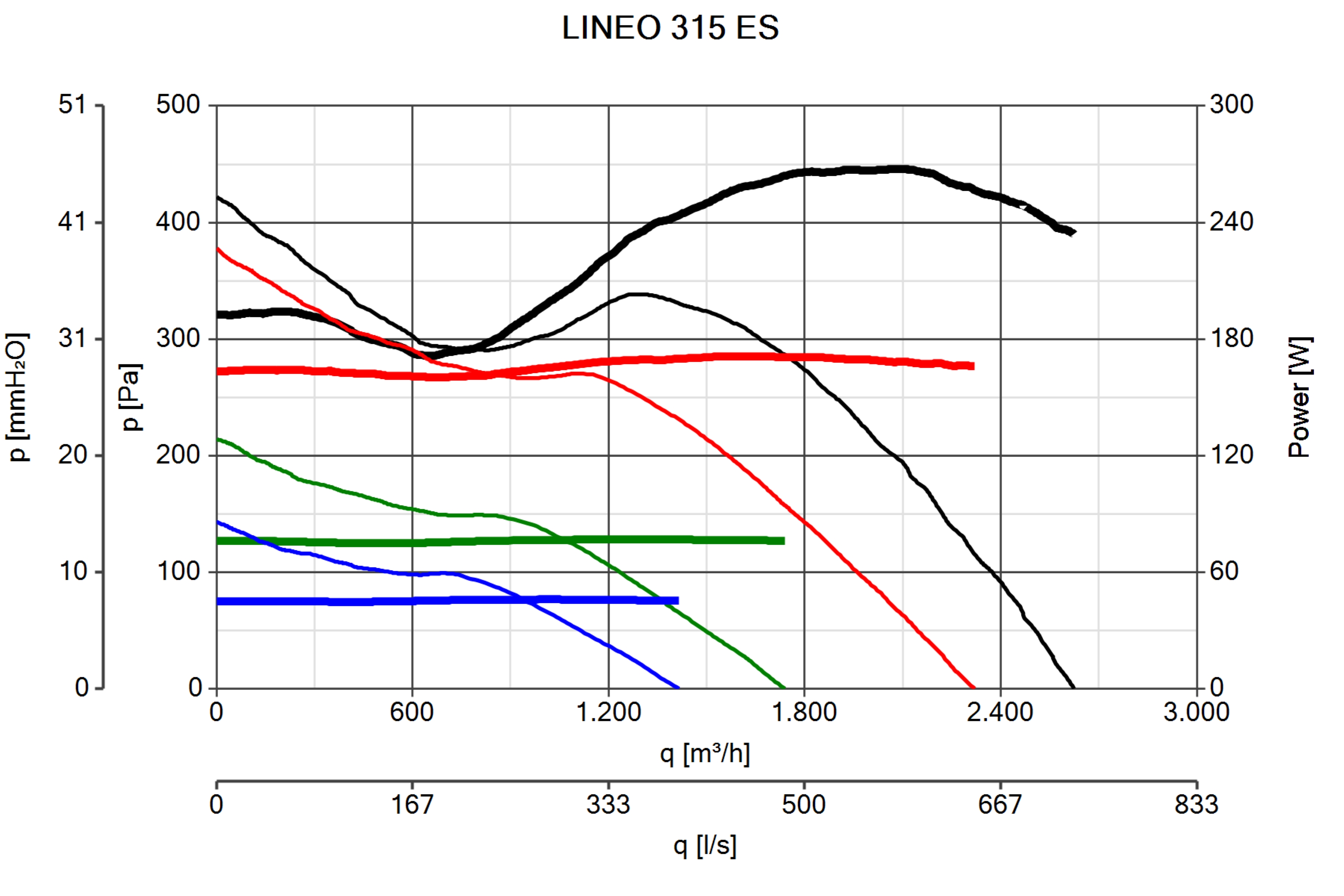

Curva_JPG_17169-Curve_per_Catalogo
