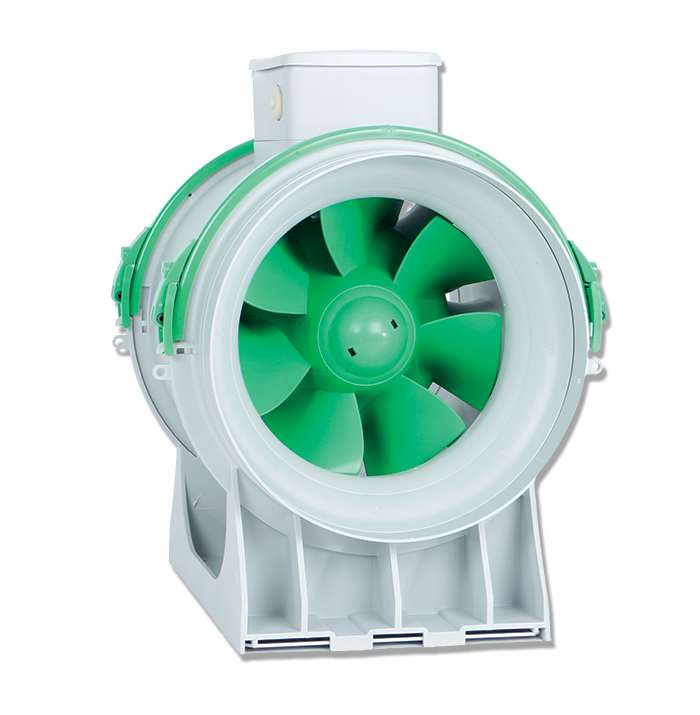

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 250 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller. • High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Corrente max assorbita a 2V (A)
    0,09
  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    1,00
  • Max absorbed current at 4V (A)
    0,17
  • Max absorbed current at 6V (A)
    0,28
  • Max absorbed current at 8V (A)
    0,61
  • Max absorbed power at 10V (W)
    126
  • Max absorbed power at 4V (W)
    20
  • Max absorbed power at 6V (W)
    35
  • Max absorbed power at 8V (W)
    75
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    250
  • Ø Discharge hole (mm)
    250
  • Potenza max assorbita a 2V (W)
    7
  • Voltage (V)
    220-240
  • Weight (Kg)
    5
  • Breakout sound power at 10V Lw [dB (A)]
    64,5
  • Breakout sound power at 2V LWA [dB (A)]
    41,2
  • Breakout sound power at 4V Lw [dB (A)]
    48,9
  • Breakout sound power at 6V Lw [dB (A)]
    53,7
  • Breakout sound power at 8V Lw [dB (A)]
    60,4
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    44
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    28,4
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    33,1
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    39,9
  • Max airflow at 10V (l/s)
    409,7
  • Max airflow at 10V (m³/h)
    1475
  • Max airflow at 4V (l/s)
    209,7
  • Max airflow at 4V (m³/h)
    755
  • Max airflow at 6V (l/s)
    259,7
  • Max airflow at 6V (m³/h)
    935
  • Max airflow at 8V (l/s)
    343,1
  • Max airflow at 8V (m³/h)
    1235
  • Max pressure at 10V (Pa)
    396,2
  • Max pressure at 4V (Pa)
    107,9
  • Max pressure at 6V (Pa)
    165,7
  • Max pressure at 10V (mmH2O)
    40,4
  • Max pressure at 4V (mmH2O)
    11,0
  • Max pressure at 6V (mmH2O)
    16,9
  • Max pressure at 8V (mmH2O)
    28,9
  • Max pressure at 8V (Pa)
    283,4
  • Portata max a 2V (l/s)
    120,8
  • Portata max a 2V (m3/h)
    435
  • Potenza sonora Lw [dB (A)] IN ASPIRAZIONE - a 2V
    62
  • Potenza sonora Lw [dB (A)] IN MANDATA - a 2V
    61
  • Pressione max a 2V (mmH2O)
    3,9
  • Pressione max a 2V (Pa)
    38,2
  • Pressione sonora Lp [dB (A)] 3m IN ASPIRAZIONE - a 2V
    44,4
  • Pressione sonora Lp [dB (A)] 3m IN MANDATA - a 2V
    43,5
  • Pressione sonora Lp [dB (A)] 3m IRRADIATO - a 2V
    20,7
  • RPM 2V
    840
  • RPM at 10V
    2690
  • RPM at 4V
    1390
  • RPM at 6V
    1720
  • RPM at 8V
    2250
  • Sound power at extract side at 10V speed LWA [dB (A)]
    88,9
  • Sound power at extract side at 4V speed LWA [dB (A)]
    72,3
  • Sound power at extract side at 6V speed LWA [dB (A)]
    77,9
  • Sound power at extract side at 8V speed LWA [dB (A)]
    84,8
  • Sound power at supply side at 10V speed LWA [dB (A)]
    88,3
  • Sound power at supply side at 4V speed LWA [dB (A)]
    71,6
  • Sound power at supply side at 6V speed LWA [dB (A)]
    77,3
  • Sound power at supply side at 8V speed LWA [dB (A)]
    84,2
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    71,3
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    54,8
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    60,3
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    67,2
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    70,8
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    54,1
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    59,8
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    66,7


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

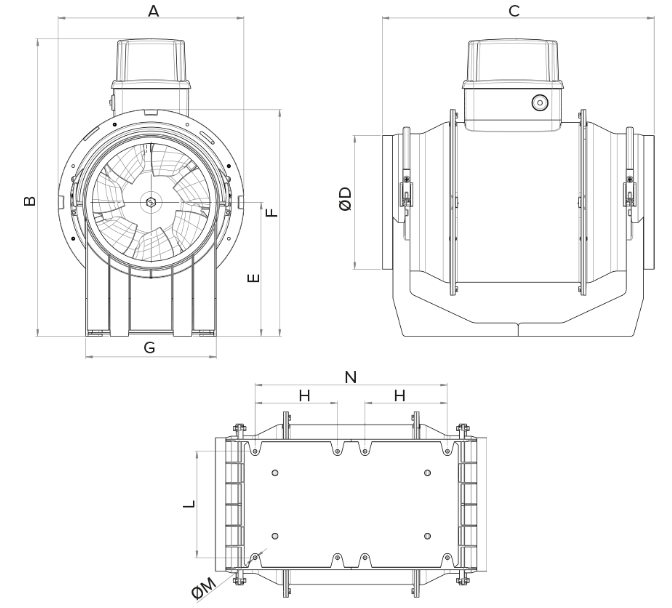

  • Size A (mm)
    300
  • Size B (mm)
    377,5
  • Size C (mm)
    322
  • Size D (mm)
    Ø 243
  • Size E (mm)
    190
  • Size F (mm)
    329
  • Size G (mm)
    200
  • Size H (mm)
    70
  • Size L (mm)
    170
  • Size M (mm)
    Ø 6,5
  • Size N (mm)
    174,5
quota
Curva_JPG_17168-Curve_per_Catalogo

Accessories

Discover accessories related to the product

C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
POT-IT
POT-IT
Potentiometer equipped with On/Off switch, for installation in 503 Standard Box.
POT
POT
Potentiometer for installation in Standard DIN box. White colour. Resistance 10 kO. Switch rating: 4 A / 250 Vac - 10 A / 12 Vdc. Protection: IP44 (recessed installation), IP54 (wa...
