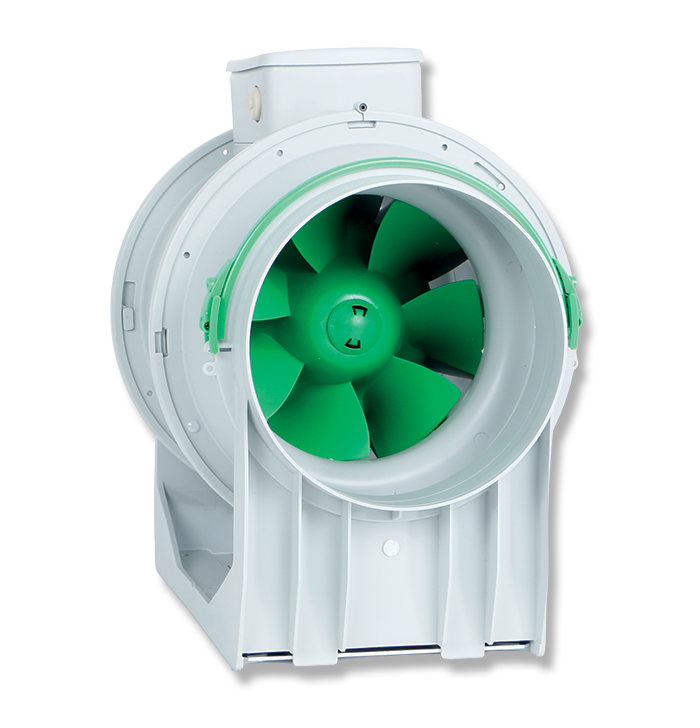

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 200 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Corrente max assorbita a 2V (A)
    0,09
  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    0,80
  • Max absorbed current at 4V (A)
    0,19
  • Max absorbed current at 6V (A)
    0,28
  • Max absorbed current at 8V (A)
    0,53
  • Max absorbed power at 10V (W)
    90
  • Max absorbed power at 4V (W)
    15,8
  • Max absorbed power at 6V (W)
    25,7
  • Max absorbed power at 8V (W)
    52,8
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    200
  • Ø Discharge hole (mm)
    200
  • Potenza max assorbita a 2V (W)
    6,3
  • Voltage (V)
    220-240
  • Weight (Kg)
    4,6
  • Breakout sound power at 10V Lw [dB (A)]
    65
  • Breakout sound power at 2V LWA [dB (A)]
    37,5
  • Breakout sound power at 4V Lw [dB (A)]
    55,6
  • Breakout sound power at 6V Lw [dB (A)]
    60,4
  • Breakout sound power at 8V Lw [dB (A)]
    62,8
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    44,5
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    35,1
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    39,9
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    42,3
  • Max airflow at 10V (l/s)
    305,6
  • Max airflow at 10V (m³/h)
    1100
  • Max airflow at 4V (l/s)
    155,6
  • Max airflow at 4V (m³/h)
    560
  • Max airflow at 6V (l/s)
    194,4
  • Max airflow at 6V (m³/h)
    700
  • Max airflow at 8V (l/s)
    255,6
  • Max airflow at 8V (m³/h)
    920
  • Max pressure at 10V (Pa)
    342,3
  • Max pressure at 4V (Pa)
    90,2
  • Max pressure at 6V (Pa)
    141,2
  • Max pressure at 10V (mmH2O)
    34,9
  • Max pressure at 4V (mmH2O)
    9,2
  • Max pressure at 6V (mmH2O)
    14,4
  • Max pressure at 8V (mmH2O)
    24
  • Max pressure at 8V (Pa)
    235,4
  • Portata max a 2V (l/s)
    86,1
  • Portata max a 2V (m3/h)
    310
  • Potenza sonora Lw [dB (A)] IN ASPIRAZIONE - a 2V
    59,1
  • Potenza sonora Lw [dB (A)] IN MANDATA - a 2V
    58,2
  • Pressione max a 2V (mmH2O)
    3
  • Pressione max a 2V (Pa)
    29,4
  • Pressione sonora Lp [dB (A)] 3m IN ASPIRAZIONE - a 2V
    41,6
  • Pressione sonora Lp [dB (A)] 3m IN MANDATA - a 2V
    40,6
  • Pressione sonora Lp [dB (A)] 3m IRRADIATO - a 2V
    16,9
  • RPM 2V
    760
  • RPM at 10V
    2680
  • RPM at 4V
    1380
  • RPM at 6V
    1700
  • RPM at 8V
    2220
  • Sound power at extract side at 10V speed LWA [dB (A)]
    89,4
  • Sound power at extract side at 4V speed LWA [dB (A)]
    78,5
  • Sound power at extract side at 6V speed LWA [dB (A)]
    83,9
  • Sound power at extract side at 8V speed LWA [dB (A)]
    86,9
  • Sound power at supply side at 10V speed LWA [dB (A)]
    88,4
  • Sound power at supply side at 4V speed LWA [dB (A)]
    77,5
  • Sound power at supply side at 6V speed LWA [dB (A)]
    82,9
  • Sound power at supply side at 8V speed LWA [dB (A)]
    85,4
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    71,9
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    60,9
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    66,4
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    69,4
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    70,8
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    60
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    65,3
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    67,9


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

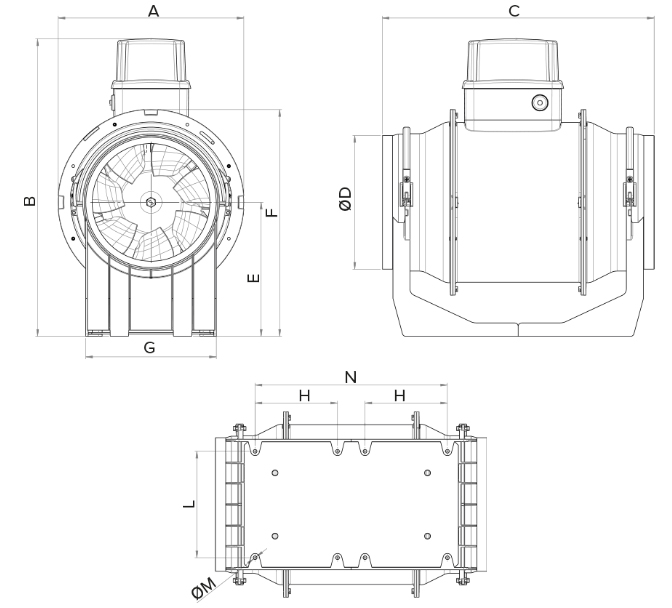

  • Size A (mm)
    270
  • Size B (mm)
    372,5
  • Size C (mm)
    396
  • Size D (mm)
    Ø 194,5
  • Size E (mm)
    195
  • Size F (mm)
    330
  • Size G (mm)
    190
  • Size H (mm)
    120
  • Size L (mm)
    155
  • Size M (mm)
    Ø 5,5
  • Size N (mm)
    280
quota

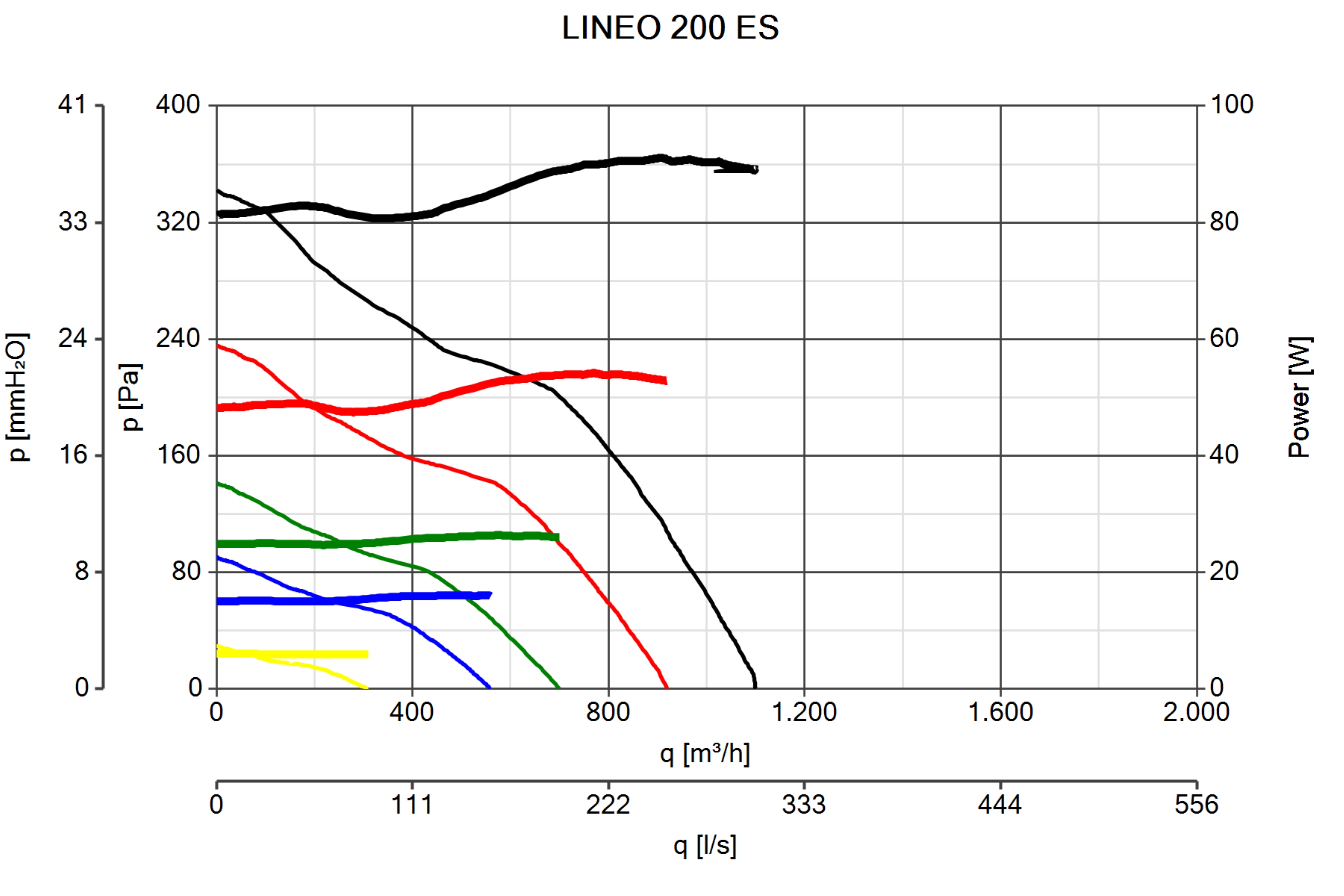

Curva_JPG_17167-Curve_per_Catalogo
