Description

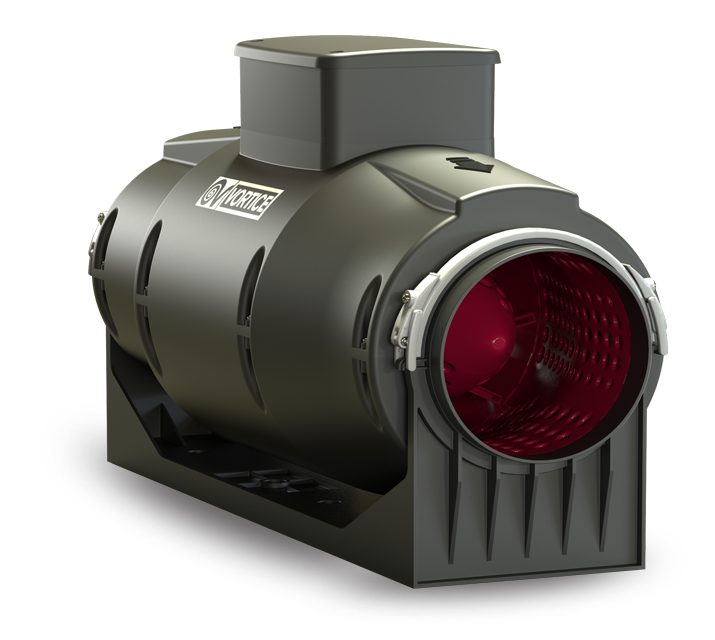

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 315 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    X5
  • Max absorbed current at maMinx speed at 60 Hz (A)
    1,10
  • Max absorbed current at Max speed (A)
    1,55
  • Max absorbed current at Max speed at 60 Hz (A)
    2,25
  • Max absorbed current at Mid speed (A)
    1,15
  • Max absorbed current at Mid speed at 60 Hz (A)
    1,55
  • Max absorbed current at Min speed (A)
    0,95
  • Max absorbed power at Max speed (W)
    360
  • Max absorbed power at Max speed at 60 Hz (W)
    500
  • Max absorbed power at Mid speed (W)
    270
  • Max absorbed power at Mid speed at 60 Hz (W)
    350
  • Max absorbed power at Min speed at 60 Hz (W)
    250
  • Max ambient temperature for continuous operation (°C)
    50
  • Max continuous operation room temperature at 60 Hz (°C)
    50
  • Nominal diameter (mm)
    315
  • Power absorbed at 1st speed (W)
    215
  • Voltage (V)
    220-240
  • Weight (Kg)
    28,3
  • Airflow at 1st speed (l/s)
    575
  • Airflow at 1st speed (m³/h)
    2070
  • Breakout sound power LWA at Max speed [dB (A)]
    67,5
  • Breakout sound power LWA at Mid speed [dB (A)]
    64,4
  • Breakout sound power LWA at Min speed [dB (A)]
    60
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    47
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    43,9
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    39,5
  • Max airflow at Max speed (l/s)
    802,8
  • Max airflow at Max speed (m³/h)
    2890
  • Max airflow at Max speed at 60 Hz (l/s)
    883,3
  • Max airflow at Max speed at 60 Hz (m³/h)
    3180
  • Max airflow at Mid speed (m³/h)
    2530
  • Max airflow at Mid speed at 60 Hz (l/s)
    683,3
  • Max airflow at Mid speed at 60 Hz (m³/h)
    2460
  • Max airflow at Min speed (l/s)
    702,8
  • Max airflow at Min speed at 60 Hz (l/s)
    505,6
  • Max airflow at Min speed at 60 Hz (m³/h)
    1820
  • Max pressure at 60 Hz (mmH2O)
    66,9
  • Max pressure at Max speed (mmH20)
    53,6
  • Max pressure at Max speed (Pa)
    525,7
  • Max pressure at Max speed at 60Hz (Pa)
    656,1
  • Max pressure at Mid speed (mmH2O)
    43,3
  • Max pressure at Mid speed (Pa)
    424,6
  • Max pressure at Mid speed at 60Hz (mmH2O)
    42,2
  • Max pressure at Mid speed at 60Hz (Pa)
    413,9
  • Max pressure at Min speed at 60Hz (mmH2O)
    25,1
  • Max pressure at Min speed at 60Hz (Pa)
    246,2
  • Max RPM
    2705
  • Max speed at 60 Hz (Rpm)
    2980
  • Mid speed at 60 Hz (Rpm)
    2285
  • Min RPM
    1930
  • Min speed at 60 Hz (Rpm)
    1700
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    68
  • Pressure at 1st speed (mmH20)
    30,6
  • Pressure at 1st speed (Pa)
    300,1
  • RPM at Mid speed
    2360
  • Sound power at extract side at Max speed LWA [dB (A)]
    75,9
  • Sound power at extract side at Mid speed LWA [dB (A)]
    73,3
  • Sound power at extract side at Min speed LWA [dB (A)]
    69,3
  • Sound power at supply side at Max speed LWA [dB (A)]
    74,9
  • Sound power at supply side at Mid speed LWA [dB (A)]
    72,1
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    58,4
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    55,8
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    51,8
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    57,4
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    54,6
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    50,5

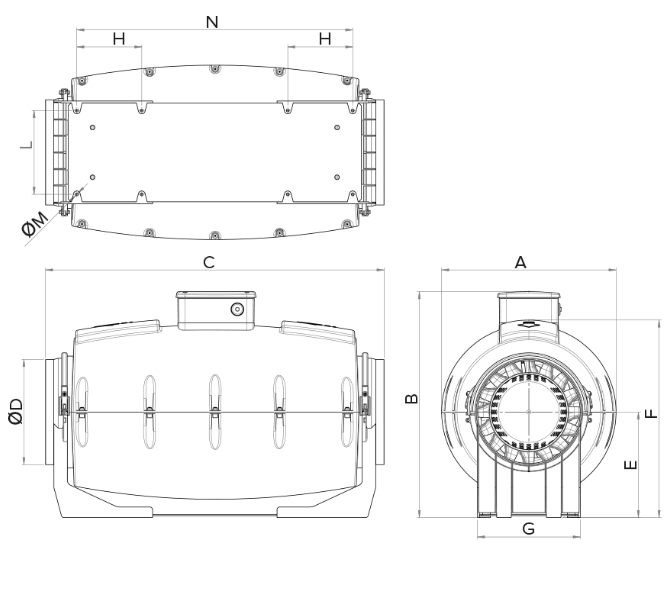

  • Size A (mm)
    415,5
  • Size B (mm)
    496,5
  • Size C (mm)
    940
  • Size D (mm)
    Ø 307
  • Size E (mm)
    244
  • Size F (mm)
    441
  • Size G (mm)
    309
  • Size H (mm)
    110
  • Size L (mm)
    255
  • Size M (mm)
    Ø 8,5
  • Size N (mm)
    780
