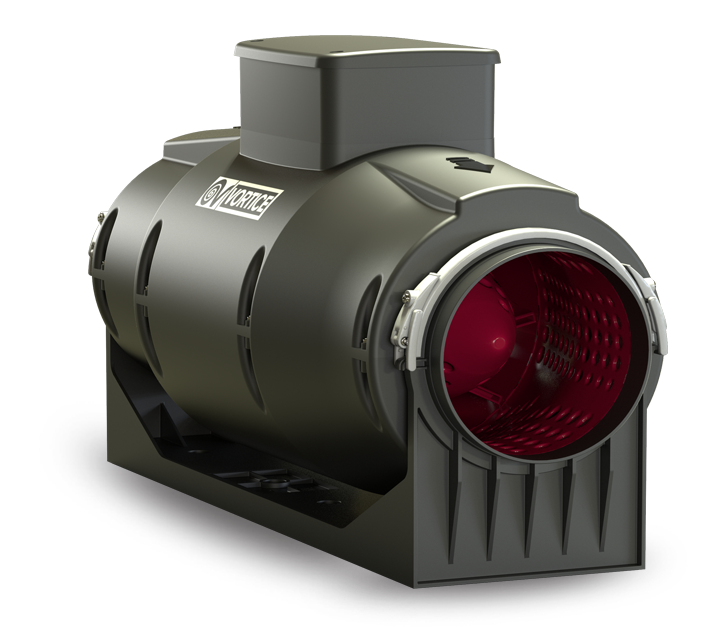

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 250 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    X5
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,45
  • Max absorbed current at Max speed (A)
    0,65
  • Max absorbed current at Max speed at 60 Hz (A)
    0,95
  • Max absorbed current at Mid speed (A)
    0,55
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,70
  • Max absorbed current at Min speed (A)
    0,42
  • Max absorbed power at Max speed (W)
    150
  • Max absorbed power at Max speed at 60 Hz (W)
    215
  • Max absorbed power at Mid speed (W)
    125
  • Max absorbed power at Mid speed at 60 Hz (W)
    160
  • Max absorbed power at Min speed at 60 Hz (W)
    100
  • Max ambient temperature for continuous operation (°C)
    50
  • Max continuous operation room temperature at 60 Hz (°C)
    40
  • Nominal diameter (mm)
    250
  • Power absorbed at 1st speed (W)
    95
  • Voltage (V)
    220-240
  • Weight (Kg)
    13,4
  • Airflow at 1st speed (l/s)
    266,7
  • Airflow at 1st speed (m³/h)
    960
  • Breakout sound power LWA at Max speed [dB (A)]
    62,4
  • Breakout sound power LWA at Mid speed [dB (A)]
    59
  • Breakout sound power LWA at Min speed [dB (A)]
    52,7
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    41,9
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    38,5
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    32,2
  • Max airflow at Max speed (l/s)
    430,6
  • Max airflow at Max speed (m³/h)
    1550
  • Max airflow at Max speed at 60 Hz (l/s)
    477,8
  • Max airflow at Max speed at 60 Hz (m³/h)
    1720
  • Max airflow at Mid speed (m³/h)
    1340
  • Max airflow at Mid speed at 60 Hz (l/s)
    315,3
  • Max airflow at Mid speed at 60 Hz (m³/h)
    1135
  • Max airflow at Min speed (l/s)
    372,2
  • Max airflow at Min speed at 60 Hz (l/s)
    198,6
  • Max airflow at Min speed at 60 Hz (m³/h)
    715
  • Max pressure at 60 Hz (mmH2O)
    46,6
  • Max pressure at Max speed (mmH20)
    34,6
  • Max pressure at Max speed (Pa)
    339,3
  • Max pressure at Max speed at 60Hz (Pa)
    457
  • Max pressure at Mid speed (mmH2O)
    30,3
  • Max pressure at Mid speed (Pa)
    297,2
  • Max pressure at Mid speed at 60Hz (mmH2O)
    28,7
  • Max pressure at Mid speed at 60Hz (Pa)
    281,5
  • Max pressure at Min speed at 60Hz (mmH2O)
    12,9
  • Max pressure at Min speed at 60Hz (Pa)
    126,5
  • Max RPM
    2750
  • Max speed at 60 Hz (Rpm)
    3050
  • Mid speed at 60 Hz (Rpm)
    1965
  • Min RPM
    1640
  • Min speed at 60 Hz (Rpm)
    1310
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    61,2
  • Pressure at 1st speed (mmH20)
    20,2
  • Pressure at 1st speed (Pa)
    198,1
  • RPM at Mid speed
    2320
  • Sound power at extract side at Max speed LWA [dB (A)]
    70,9
  • Sound power at extract side at Mid speed LWA [dB (A)]
    67,6
  • Sound power at extract side at Min speed LWA [dB (A)]
    61,1
  • Sound power at supply side at Max speed LWA [dB (A)]
    71,2
  • Sound power at supply side at Mid speed LWA [dB (A)]
    67,9
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    53,4
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    50,1
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    43,6
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    53,7
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    50,4
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    43,7

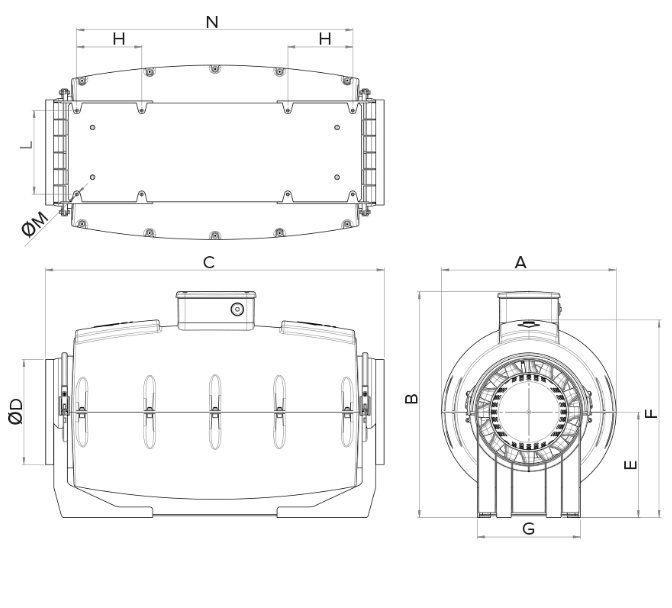

  • Size A (mm)
    318
  • Size B (mm)
    412
  • Size C (mm)
    751,5
  • Size D (mm)
    Ø 243
  • Size E (mm)
    189,5
  • Size F (mm)
    363,5
  • Size G (mm)
    200
  • Size H (mm)
    70
  • Size L (mm)
    170
  • Size M (mm)
    Ø 6,5
  • Size N (mm)
    604,5
