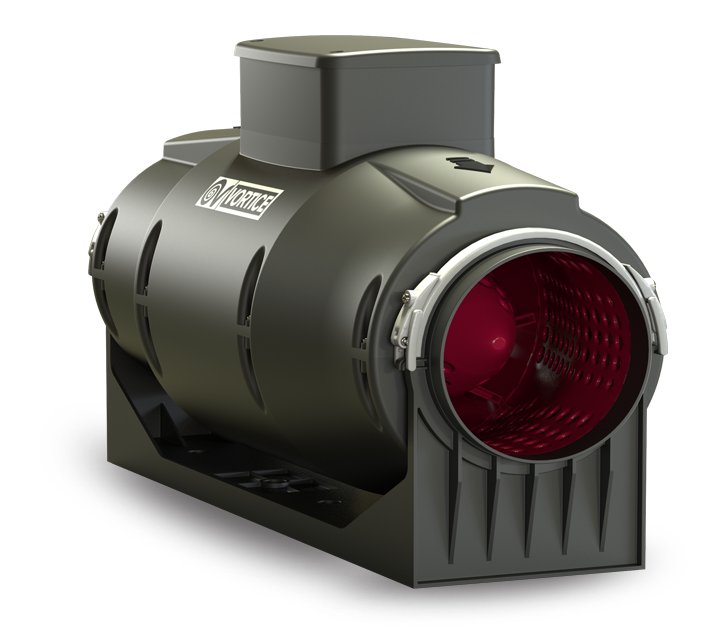

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 200 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    X5
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,35
  • Max absorbed current at Max speed (A)
    0,49
  • Max absorbed current at Max speed at 60 Hz (A)
    0,70
  • Max absorbed current at Mid speed (A)
    0,42
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,50
  • Max absorbed current at Min speed (A)
    0,34
  • Max absorbed power at Max speed (W)
    110
  • Max absorbed power at Max speed at 60 Hz (W)
    155
  • Max absorbed power at Mid speed (W)
    95
  • Max absorbed power at Mid speed at 60 Hz (W)
    115
  • Max absorbed power at Min speed at 60 Hz (W)
    85
  • Max ambient temperature for continuous operation (°C)
    50
  • Max continuous operation room temperature at 60 Hz (°C)
    50
  • Nominal diameter (mm)
    200
  • Power absorbed at 1st speed (W)
    80
  • Voltage (V)
    220-240
  • Weight (Kg)
    8,6
  • Airflow at 1st speed (l/s)
    223,6
  • Airflow at 1st speed (m³/h)
    805
  • Breakout sound power LWA at Max speed [dB (A)]
    56
  • Breakout sound power LWA at Mid speed [dB (A)]
    53,4
  • Breakout sound power LWA at Min speed [dB (A)]
    48
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    35,5
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    32,9
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    27,5
  • Max airflow at Max speed (l/s)
    322,2
  • Max airflow at Max speed (m³/h)
    1160
  • Max airflow at Max speed at 60 Hz (l/s)
    336,1
  • Max airflow at Max speed at 60 Hz (m³/h)
    1210
  • Max airflow at Mid speed (m³/h)
    1045
  • Max airflow at Mid speed at 60 Hz (l/s)
    255,6
  • Max airflow at Mid speed at 60 Hz (m³/h)
    920
  • Max airflow at Min speed (l/s)
    290,3
  • Max airflow at Min speed at 60 Hz (l/s)
    188,9
  • Max airflow at Min speed at 60 Hz (m³/h)
    680
  • Max pressure at 60 Hz (mmH2O)
    37,5
  • Max pressure at Max speed (mmH20)
    29
  • Max pressure at Max speed (Pa)
    284,4
  • Max pressure at Max speed at 60Hz (Pa)
    367,8
  • Max pressure at Mid speed (mmH2O)
    26,3
  • Max pressure at Mid speed (Pa)
    257,9
  • Max pressure at Mid speed at 60Hz (mmH2O)
    26,9
  • Max pressure at Mid speed at 60Hz (Pa)
    263,8
  • Max pressure at Min speed at 60Hz (mmH2O)
    15,6
  • Max pressure at Min speed at 60Hz (Pa)
    153
  • Max RPM
    2690
  • Max speed at 60 Hz (Rpm)
    2795
  • Mid speed at 60 Hz (Rpm)
    2130
  • Min RPM
    1880
  • Min speed at 60 Hz (Rpm)
    1580
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    56,2
  • Pressure at 1st speed (mmH20)
    20,6
  • Pressure at 1st speed (Pa)
    202
  • RPM at Mid speed
    2380
  • Sound power at extract side at Max speed LWA [dB (A)]
    65,5
  • Sound power at extract side at Mid speed LWA [dB (A)]
    62,8
  • Sound power at extract side at Min speed LWA [dB (A)]
    57,2
  • Sound power at supply side at Max speed LWA [dB (A)]
    64,8
  • Sound power at supply side at Mid speed LWA [dB (A)]
    62
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    48
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    45,3
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    39,7
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    47,3
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    44,5
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    38,7

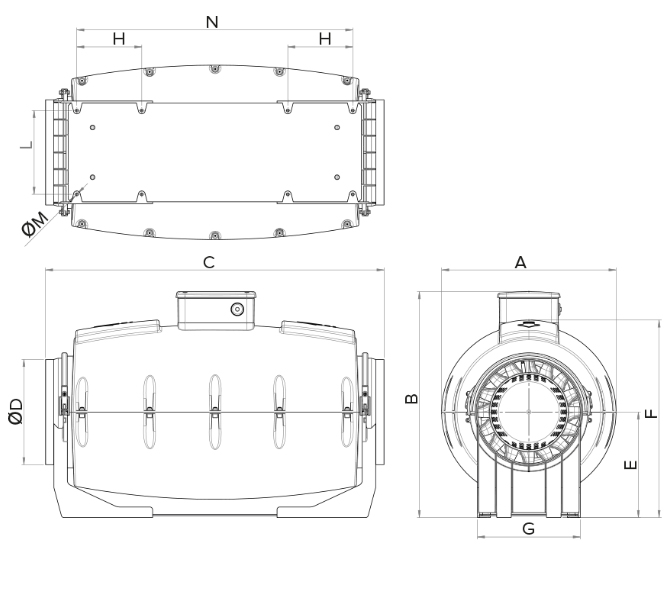

  • Size A (mm)
    322,5
  • Size B (mm)
    417,5
  • Size C (mm)
    625,5
  • Size D (mm)
    Ø 194,5
  • Size E (mm)
    195
  • Size F (mm)
    363,5
  • Size G (mm)
    190
  • Size H (mm)
    120
  • Size L (mm)
    155
  • Size M (mm)
    Ø 5,5
  • Size N (mm)
    510
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
TRIO-LINEO 503
TRIO-LINEO 503

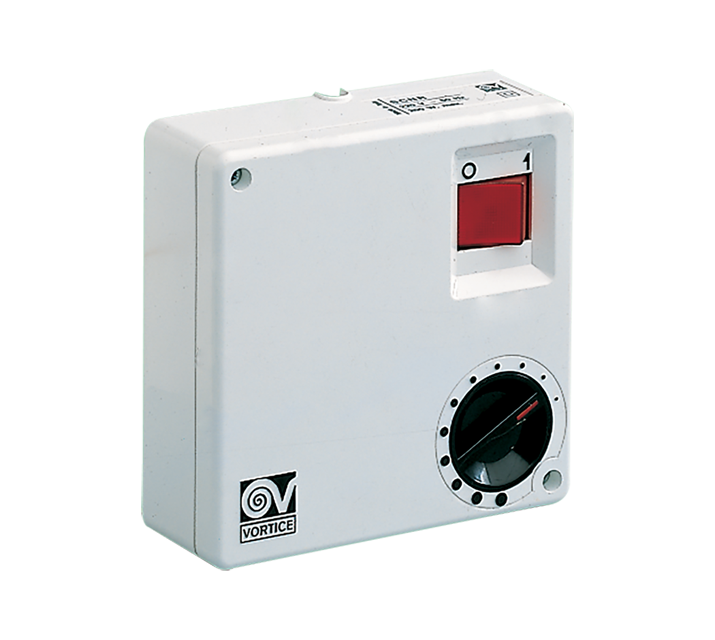

C 1.5 (COMANDO EL. 1.5 A)
