Description

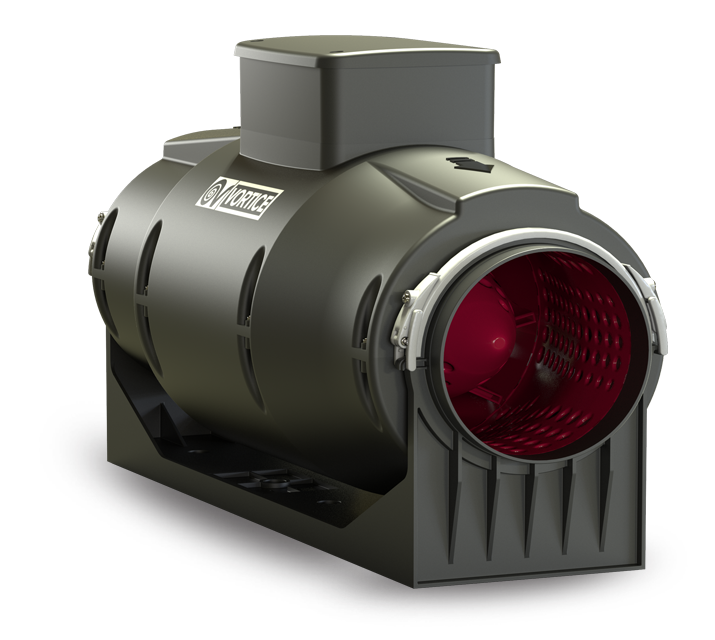

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 160 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Read full descriptionClose description

Certifications


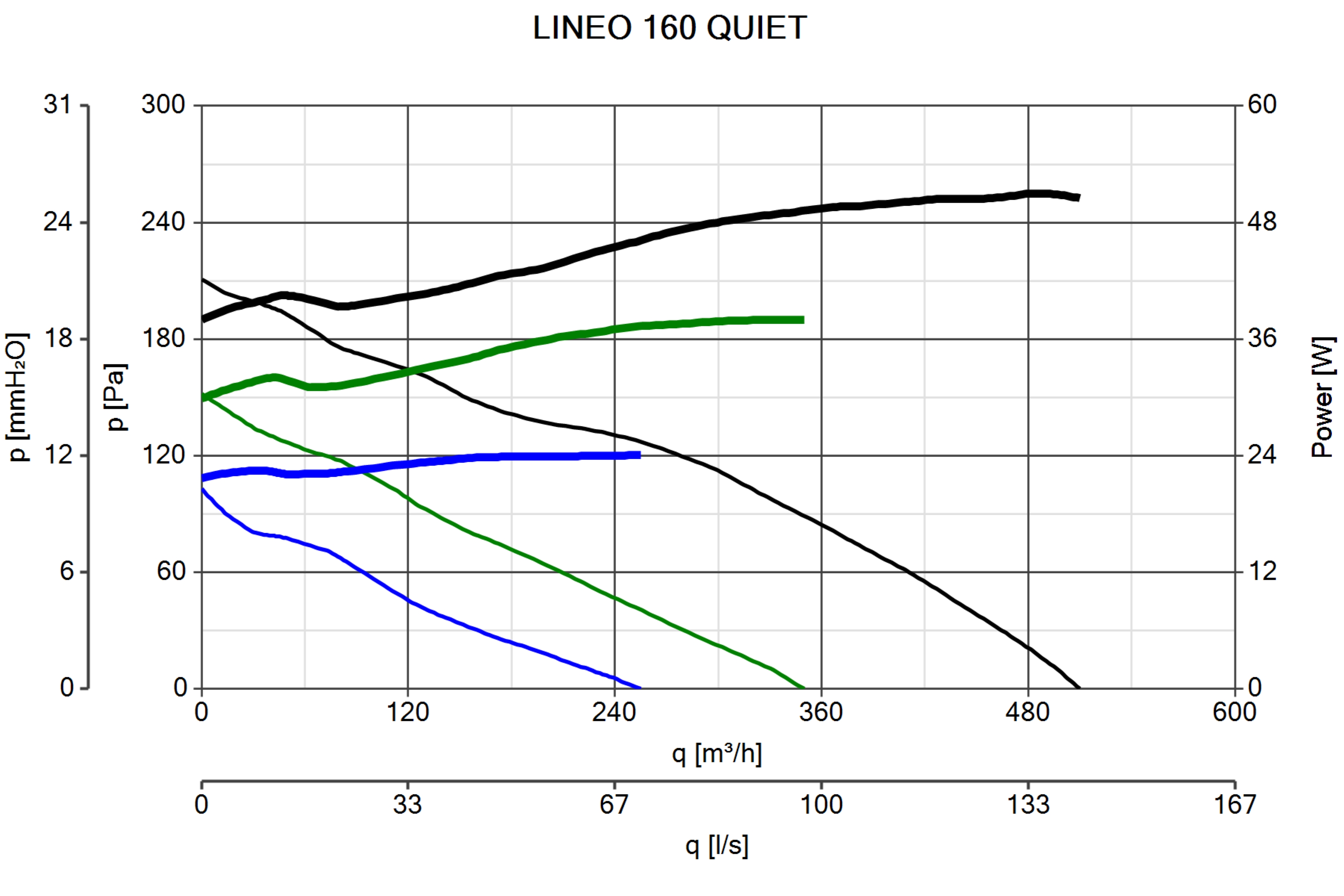

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,14
  • Max absorbed current at Max speed (A)
    0,22
  • Max absorbed current at Max speed at 60 Hz (A)
    0,24
  • Max absorbed current at Mid speed (A)
    0,17
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,18
  • Max absorbed current at Min speed (A)
    0,14
  • Max absorbed power at Max speed (W)
    50
  • Max absorbed power at Max speed at 60 Hz (W)
    58
  • Max absorbed power at Mid speed (W)
    37
  • Max absorbed power at Mid speed at 60 Hz (W)
    38
  • Max absorbed power at Min speed at 60 Hz (W)
    23
  • Max ambient temperature for continuous operation (°C)
    55
  • Max continuous operation room temperature at 60 Hz (°C)
    50
  • Nominal diameter (mm)
    150
  • Power absorbed at 1st speed (W)
    24
  • Voltage (V)
    220-240
  • Weight (Kg)
    5,4
  • Airflow at 1st speed (l/s)
    70,8
  • Airflow at 1st speed (m³/h)
    255
  • Breakout sound power LWA at Max speed [dB (A)]
    50,7
  • Breakout sound power LWA at Mid speed [dB (A)]
    43
  • Breakout sound power LWA at Min speed [dB (A)]
    34,6
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    30,2
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    22,5
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    14,1
  • Max airflow at Max speed (l/s)
    141,7
  • Max airflow at Max speed (m³/h)
    510
  • Max airflow at Max speed at 60 Hz (l/s)
    134,7
  • Max airflow at Max speed at 60 Hz (m³/h)
    485
  • Max airflow at Mid speed (m³/h)
    350
  • Max airflow at Mid speed at 60 Hz (l/s)
    90,3
  • Max airflow at Mid speed at 60 Hz (m³/h)
    325
  • Max airflow at Min speed (l/s)
    97,2
  • Max airflow at Min speed at 60 Hz (l/s)
    66,7
  • Max airflow at Min speed at 60 Hz (m³/h)
    240
  • Max pressure at 60 Hz (mmH2O)
    24,5
  • Max pressure at Max speed (mmH20)
    21,5
  • Max pressure at Max speed (Pa)
    210,9
  • Max pressure at Max speed at 60Hz (Pa)
    240,3
  • Max pressure at Mid speed (mmH2O)
    15,5
  • Max pressure at Mid speed (Pa)
    152
  • Max pressure at Mid speed at 60Hz (mmH2O)
    15,3
  • Max pressure at Mid speed at 60Hz (Pa)
    150
  • Max pressure at Min speed at 60Hz (mmH2O)
    8,6
  • Max pressure at Min speed at 60Hz (Pa)
    84,3
  • Max RPM
    2030
  • Max speed at 60 Hz (Rpm)
    1935
  • Mid speed at 60 Hz (Rpm)
    1285
  • Min RPM
    1040
  • Min speed at 60 Hz (Rpm)
    980
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    42,1
  • Pressure at 1st speed (mmH20)
    10,5
  • Pressure at 1st speed (Pa)
    103
  • RPM at Mid speed
    1430
  • Sound power at extract side at Max speed LWA [dB (A)]
    60,4
  • Sound power at extract side at Mid speed LWA [dB (A)]
    50
  • Sound power at extract side at Min speed LWA [dB (A)]
    41,6
  • Sound power at supply side at Max speed LWA [dB (A)]
    59,5
  • Sound power at supply side at Mid speed LWA [dB (A)]
    49,4
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    42,9
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    32,5
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    24,1
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    42
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    31,9
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    24,6

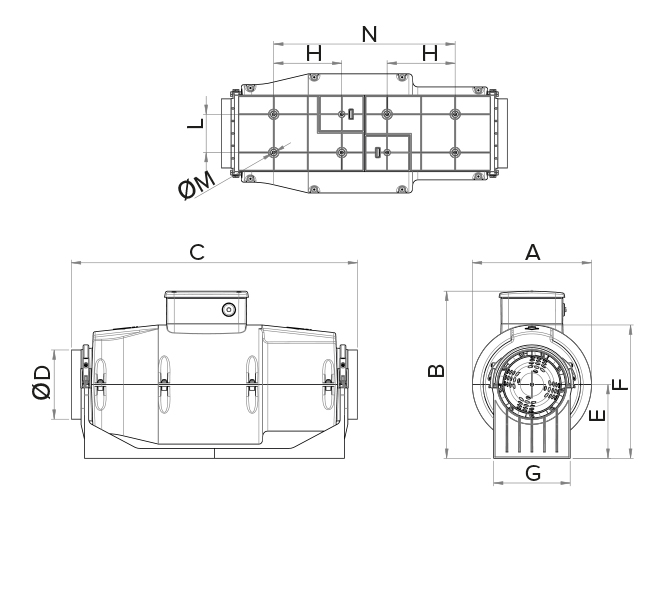

  • Size A (mm)
    232
  • Size B (mm)
    320,5
  • Size C (mm)
    570
  • Size D (mm)
    Ø 156,5
  • Size E (mm)
    145
  • Size F (mm)
    261,5
  • Size G (mm)
    170
  • Size H (mm)
    135
  • Size L (mm)
    85
  • Size M (mm)
    Ø 5,5
  • Size N (mm)
    360
