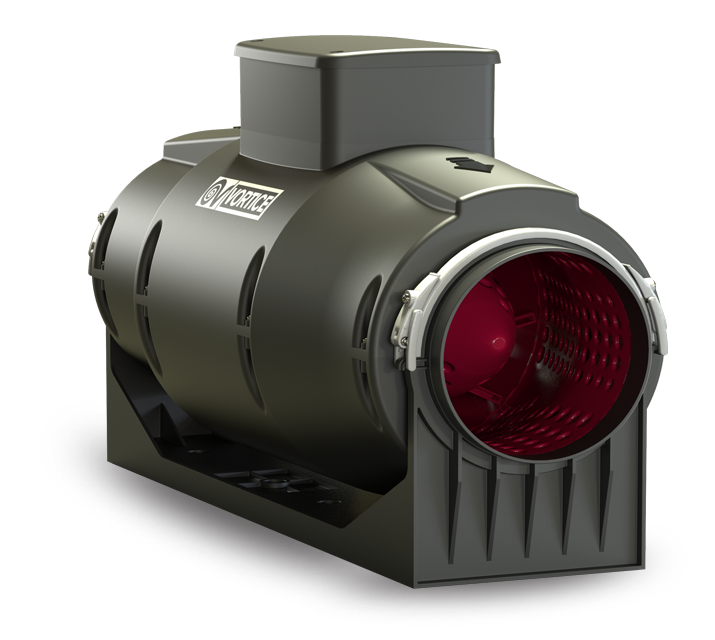

LINEO 125 QUIET

Sound-proof mixed flow extractor fans

Description
Certifications
Technical Data Sheet
Accessories

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 125 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.

Read full descriptionClose description

Certifications

CE
Download
UKCA
CB TEST CERTIFICATE

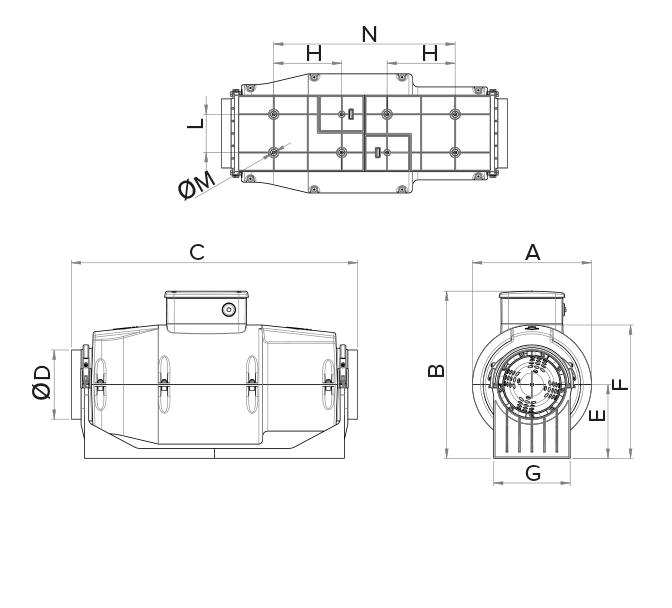

Technical Data Sheet

Frequency (Hz)

50-60
Insulation class

II°
IP

45
Max absorbed current at maMinx speed at 60 Hz (A)

0,10
Max absorbed current at Max speed (A)

0,13
Max absorbed current at Max speed at 60 Hz (A)

0,14
Max absorbed current at Mid speed (A)

0,11
Max absorbed current at Mid speed at 60 Hz (A)

0,12
Max absorbed current at Min speed (A)

0,09
Max absorbed power at Max speed (W)

27
Max absorbed power at Max speed at 60 Hz (W)

28
Max absorbed power at Mid speed (W)

24
Max absorbed power at Mid speed at 60 Hz (W)

24
Max absorbed power at Min speed at 60 Hz (W)

13
Max ambient temperature for continuous operation (°C)

45
Max continuous operation room temperature at 60 Hz (°C)

45
Nominal diameter (mm)

125
Power absorbed at 1st speed (W)

11
Voltage (V)

220-240
Weight (Kg)

3,6
Airflow at 1st speed (l/s)

52,8
Airflow at 1st speed (m³/h)

190
Breakout sound power LWA at Max speed [dB (A)]

47,4
Breakout sound power LWA at Mid speed [dB (A)]

40,9
Breakout sound power LWA at Min speed [dB (A)]

32,8
Breakout sound pressure at 3m at Max speed Lp [dB (A)]

26,9
Breakout sound pressure at 3m at Mid speed Lp [dB (A)]

20,4
Breakout sound pressure at 3m at Min speed Lp [dB (A)]

12,3
Max airflow at Max speed (l/s)

88,9
Max airflow at Max speed (m³/h)

320
Max airflow at Max speed at 60 Hz (l/s)

80,6
Max airflow at Max speed at 60 Hz (m³/h)

290
Max airflow at Mid speed (m³/h)

250
Max airflow at Mid speed at 60 Hz (l/s)

65,3

Max airflow at Mid speed at 60 Hz (m³/h)

235
Max airflow at Min speed (l/s)

69,4
Max airflow at Min speed at 60 Hz (l/s)

52,8
Max airflow at Min speed at 60 Hz (m³/h)

190

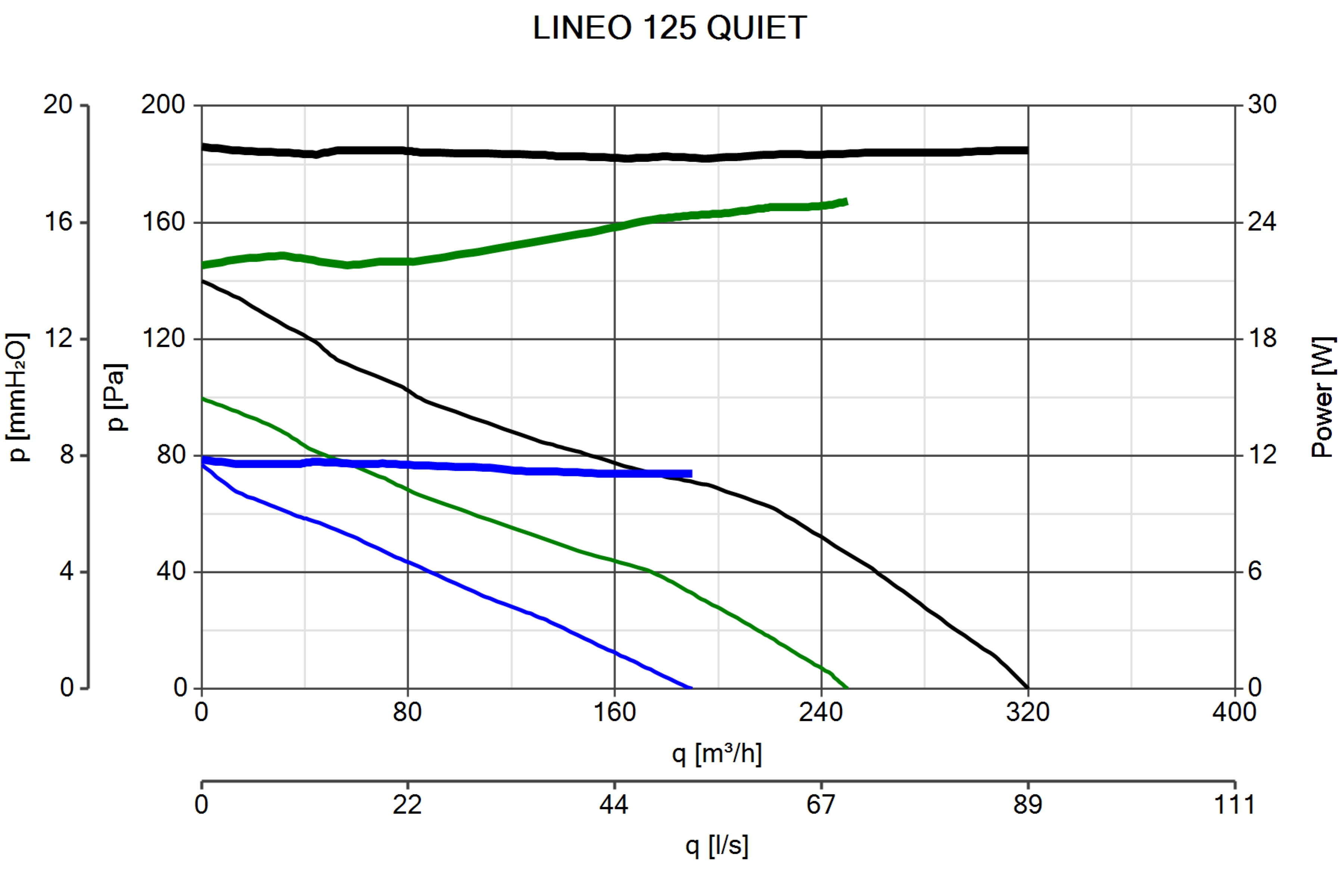

Max pressure at 60 Hz (mmH2O)

13,5
Max pressure at Max speed (mmH20)

14
Max pressure at Max speed (Pa)

137,3
Max pressure at Max speed at 60Hz (Pa)

132,4
Max pressure at Mid speed (mmH2O)

10
Max pressure at Mid speed (Pa)

98,1
Max pressure at Mid speed at 60Hz (mmH2O)

11
Max pressure at Mid speed at 60Hz (Pa)

103
Max pressure at Min speed at 60Hz (mmH2O)

7,1
Max pressure at Min speed at 60Hz (Pa)

69,6
Max RPM

1880
Max speed at 60 Hz (Rpm)

1725
Mid speed at 60 Hz (Rpm)

1435
Min RPM

1125
Min speed at 60 Hz (Rpm)

1180
Potenza sonora at supply side at Min speed LWA [dB (A)]

38,6
Pressure at 1st speed (mmH20)

8
Pressure at 1st speed (Pa)

78,5
RPM at Mid speed

1475
Sound power at extract side at Max speed LWA [dB (A)]

52,2
Sound power at extract side at Mid speed LWA [dB (A)]

44,1
Sound power at extract side at Min speed LWA [dB (A)]

39,2
Sound power at supply side at Max speed LWA [dB (A)]

52,5
Sound power at supply side at Mid speed LWA [dB (A)]

44,6
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]

34,7
Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]

26,6
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]

21,7
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]

35
Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]

27,1
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]

21,1

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
