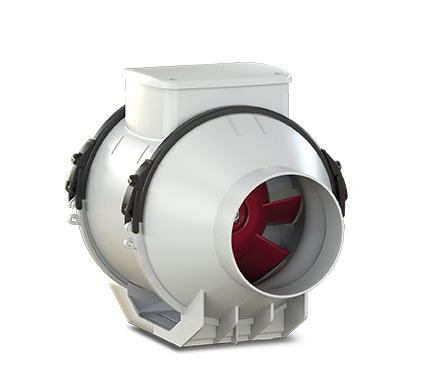

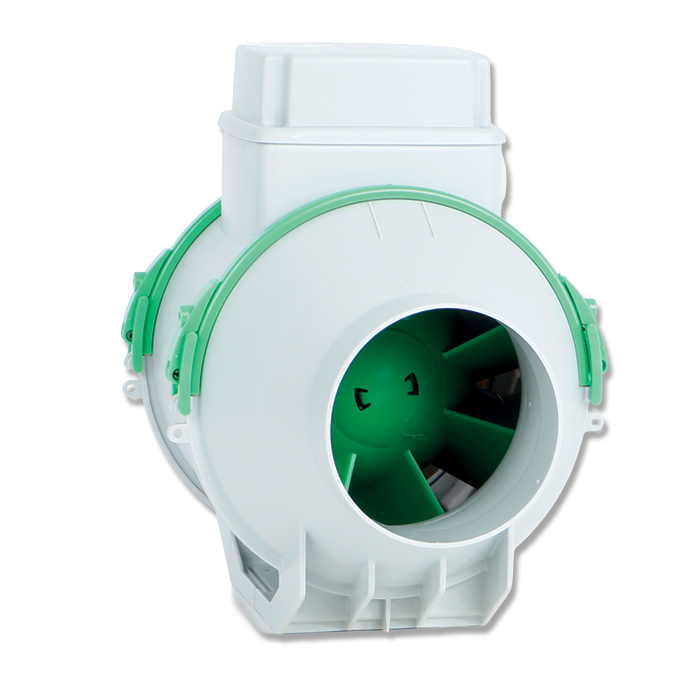

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 100 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    0,20
  • Max absorbed current at 4V (A)
    0,07
  • Max absorbed current at 6V (A)
    0,09
  • Max absorbed current at 8V (A)
    0,15
  • Max absorbed power at 10V (W)
    20
  • Max absorbed power at 4V (W)
    6,5
  • Max absorbed power at 6V (W)
    8,7
  • Max absorbed power at 8V (W)
    16
  • Max ambient temperature for continuous operation (°C)
    60
  • Nominal diameter (mm)
    100
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,3
  • Breakout sound power at 10V Lw [dB (A)]
    52,3
  • Breakout sound power at 4V Lw [dB (A)]
    35,5
  • Breakout sound power at 6V Lw [dB (A)]
    39,5
  • Breakout sound power at 8V Lw [dB (A)]
    47,8
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    31,8
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    15
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    18,9
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    27,2
  • Max airflow at 10V (l/s)
    84,7
  • Max airflow at 10V (m³/h)
    305
  • Max airflow at 4V (l/s)
    38,9
  • Max airflow at 4V (m³/h)
    140
  • Max airflow at 6V (l/s)
    48,6
  • Max airflow at 6V (m³/h)
    175
  • Max airflow at 8V (l/s)
    69,4
  • Max airflow at 8V (m³/h)
    250

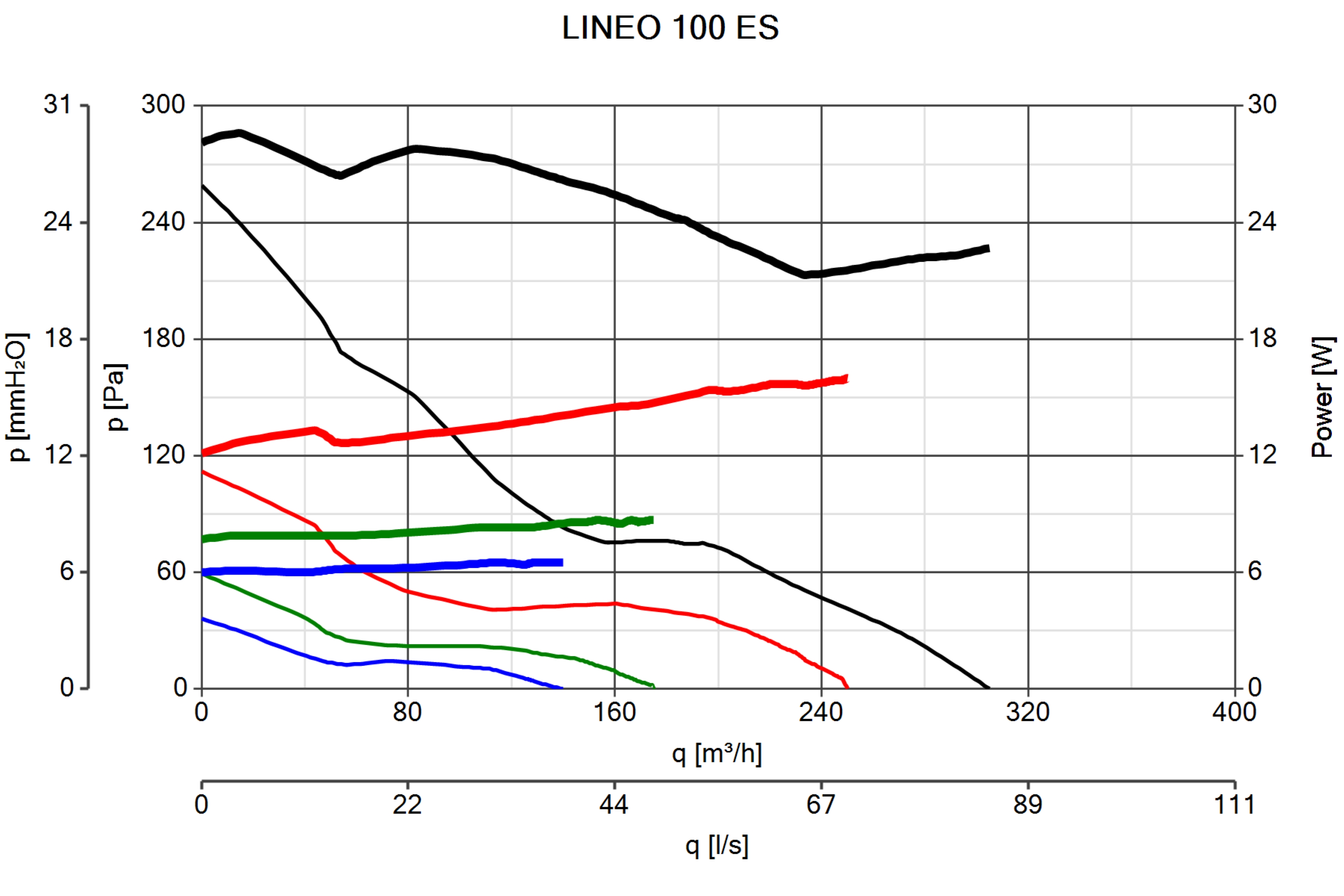

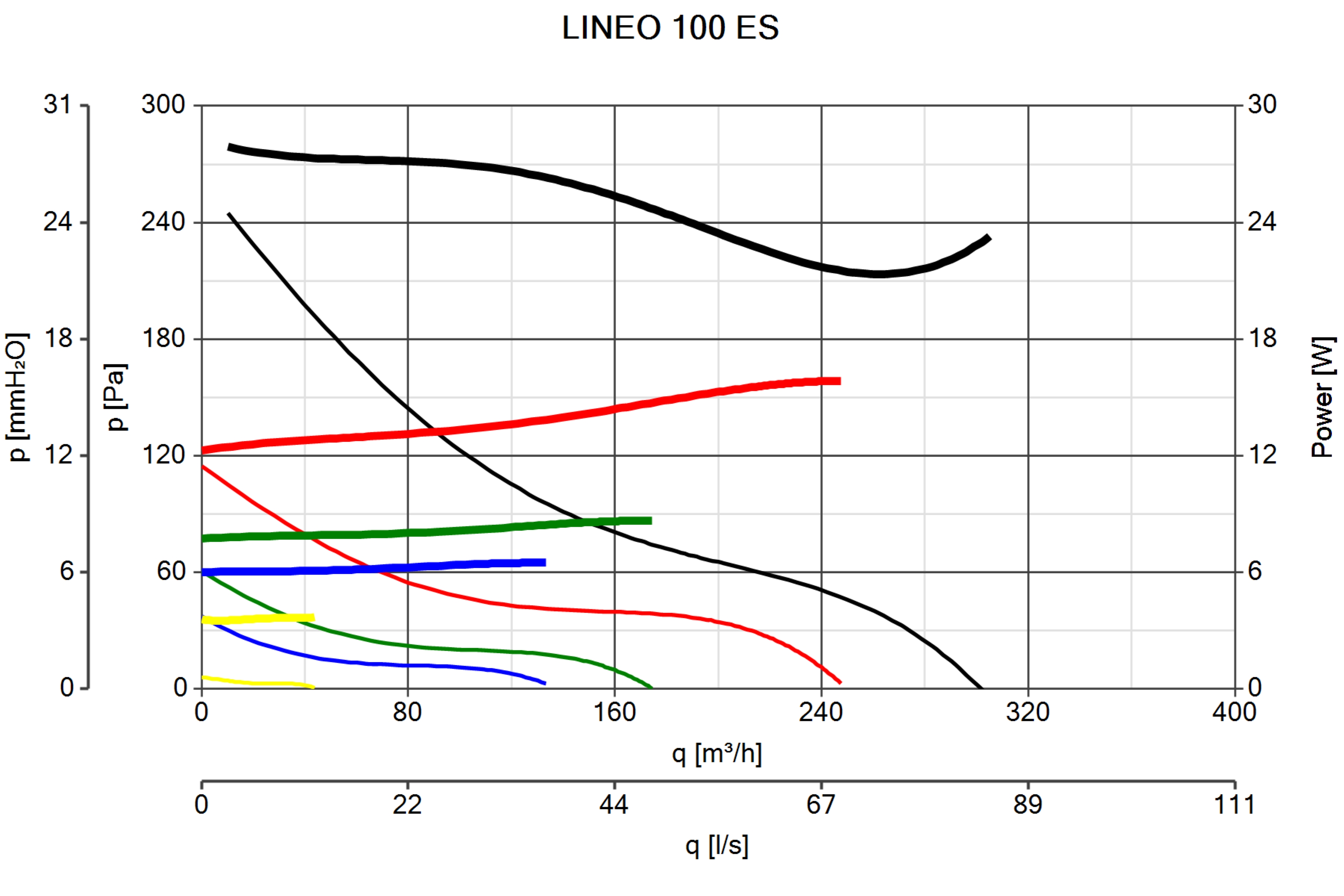

  • Max pressure at 10V (Pa)
    258,9
  • Max pressure at 4V (Pa)
    36,3
  • Max pressure at 6V (Pa)
    59,8
  • Max pressure at 10V (mmH2O)
    26,4
  • Max pressure at 4V (mmH2O)
    3,7
  • Max pressure at 6V (mmH2O)
    6,1
  • Max pressure at 8V (mmH2O)
    11,4
  • Max pressure at 8V (Pa)
    111,8
  • RPM at 10V
    2220
  • RPM at 4V
    1070
  • RPM at 6V
    1345
  • RPM at 8V
    1900
  • Sound power at extract side at 10V speed LWA [dB (A)]
    82,6
  • Sound power at extract side at 4V speed LWA [dB (A)]
    63,3
  • Sound power at extract side at 6V speed LWA [dB (A)]
    69,4
  • Sound power at extract side at 8V speed LWA [dB (A)]
    78,2
  • Sound power at supply side at 10V speed LWA [dB (A)]
    82
  • Sound power at supply side at 4V speed LWA [dB (A)]
    62,1
  • Sound power at supply side at 6V speed LWA [dB (A)]
    68,4
  • Sound power at supply side at 8V speed LWA [dB (A)]
    77,5
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    65,1
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    45,8
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    51,9
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    60,7
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    64,4
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    44,6
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    50,9
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    59,9

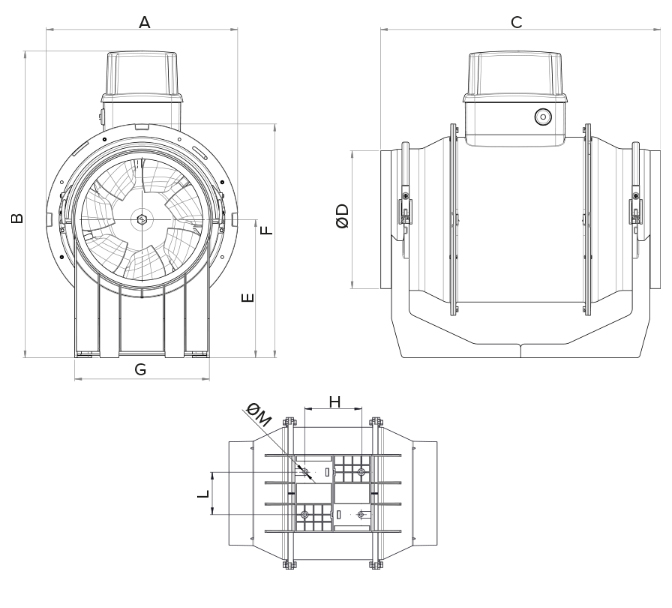

  • Size A (mm)
    188,5
  • Size B (mm)
    240
  • Size C (mm)
    303
  • Size D (mm)
    96
  • Size E (mm)
    101,5
  • Size F (mm)
    189
  • Size G (mm)
    90
  • Size H (mm)
    80
  • Size L (mm)
    60
  • Size M (mm)
    5,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

LINEO-G 100
LINEO-G 100
Protection grille.
LINEO-C 100
LINEO-C 100
Coupling for series application.
LINEO-PF 100
LINEO-PF 100
Kit for parallel application.
POT-IT
POT-IT
Potentiometer equipped with On/Off switch, for installation in 503 Standard Box.
LINEO-SF 500
LINEO-SF 500
Bracket for series application.
IREM D
IREM D
Electronic speed controller for installation in Standard DIN box. Maximum load: 1.0 A.
POT
POT
Potentiometer for installation in Standard DIN box.
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
