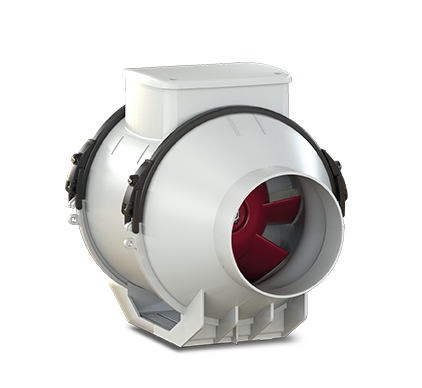

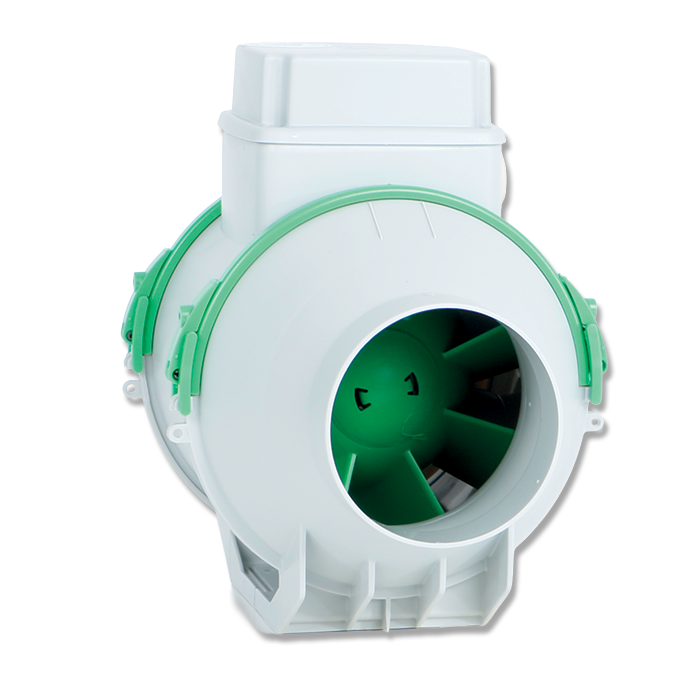

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 100 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at 10V (A)
    0,18
  • Max absorbed current at 4V (A)
    0,05
  • Max absorbed current at 6V (A)
    0,06
  • Max absorbed current at 8V (A)
    0,09
  • Max absorbed power at 10V (W)
    19
  • Max absorbed power at 4V (W)
    4,5
  • Max absorbed power at 6V (W)
    5,5
  • Max absorbed power at 8V (W)
    9
  • Max ambient temperature for continuous operation (°C)
    60
  • Nominal diameter (mm)
    100
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,8
  • Breakout sound power at 10V Lw [dB (A)]
    56,7
  • Breakout sound power at 4V Lw [dB (A)]
    32,9
  • Breakout sound power at 6V Lw [dB (A)]
    37,8
  • Breakout sound power at 8V Lw [dB (A)]
    46,7
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    36,1
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    12,3
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    17,2
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    26,2

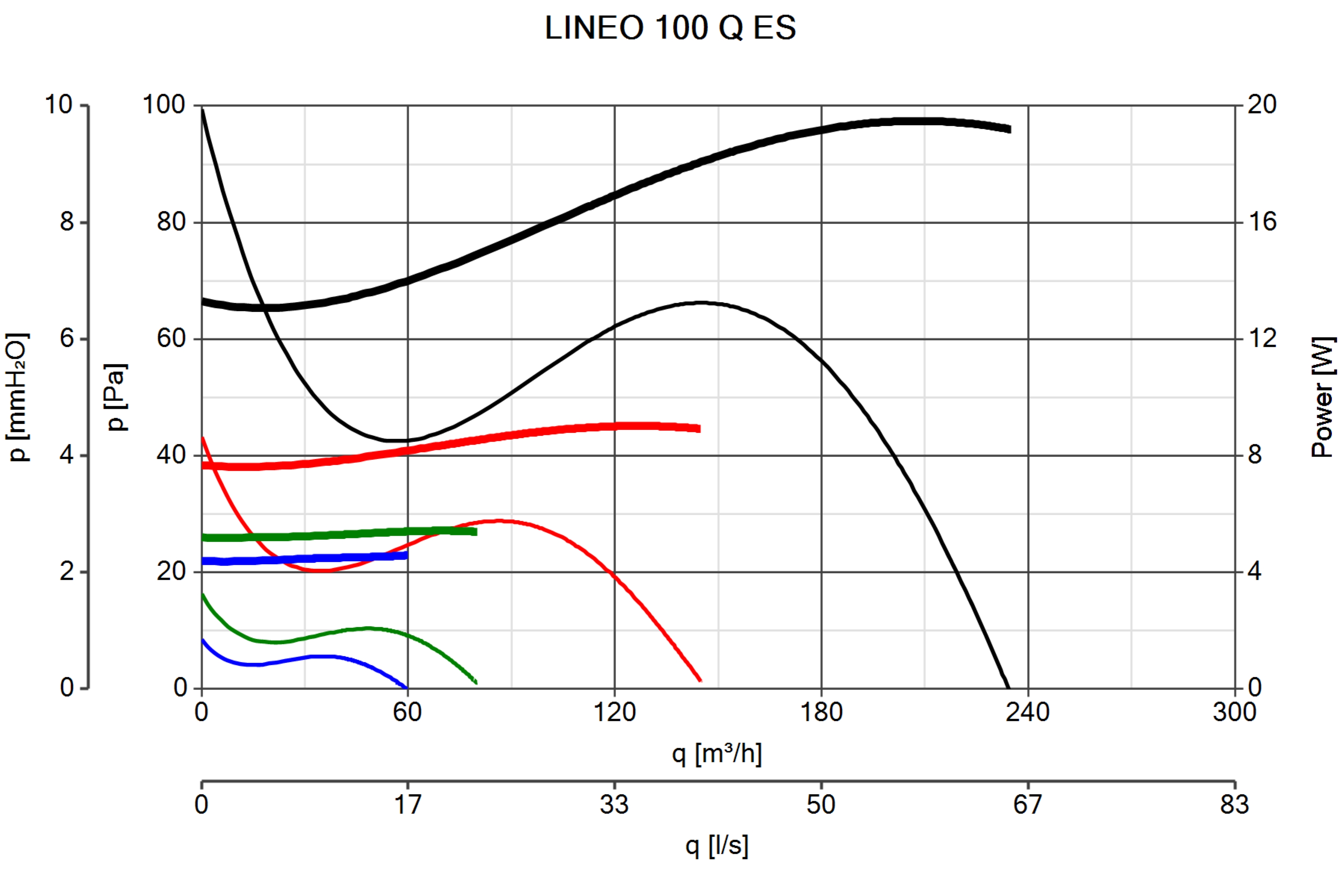

  • Max airflow at 10V (l/s)
    65,3
  • Max airflow at 10V (m³/h)
    235
  • Max airflow at 4V (l/s)
    16,7
  • Max airflow at 4V (m³/h)
    60
  • Max airflow at 6V (l/s)
    22,2
  • Max airflow at 6V (m³/h)
    80
  • Max airflow at 8V (l/s)
    40,3
  • Max airflow at 8V (m³/h)
    145
  • Max pressure at 10V (Pa)
    96,1
  • Max pressure at 4V (Pa)
    8,8
  • Max pressure at 6V (Pa)
    16,7
  • Max pressure at 10V (mmH2O)
    9,8
  • Max pressure at 4V (mmH2O)
    0,9
  • Max pressure at 6V (mmH2O)
    1,7
  • Max pressure at 8V (mmH2O)
    4,3
  • Max pressure at 8V (Pa)
    42,2
  • RPM at 10V
    3230
  • RPM at 4V
    900
  • RPM at 6V
    1235
  • RPM at 8V
    2070
  • Sound power at extract side at 10V speed LWA [dB (A)]
    84
  • Sound power at extract side at 4V speed LWA [dB (A)]
    57,1
  • Sound power at extract side at 6V speed LWA [dB (A)]
    65,7
  • Sound power at extract side at 8V speed LWA [dB (A)]
    74,2
  • Sound power at supply side at 10V speed LWA [dB (A)]
    86,8
  • Sound power at supply side at 4V speed LWA [dB (A)]
    55,6
  • Sound power at supply side at 6V speed LWA [dB (A)]
    65,4
  • Sound power at supply side at 8V speed LWA [dB (A)]
    74,8
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    66,5
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    39,6
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    48,2
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    56,7
  • Sound pressure at suply side at 3m at 10V Lp [dB (A)]
    69,3
  • Sound pressure at suply side at 3m at 4V Lp [dB (A)]
    38,1
  • Sound pressure at suply side at 3m at 6V Lp [dB (A)]
    47,8
  • Sound pressure at suply side at 3m at 8V Lp [dB (A)]
    57,3

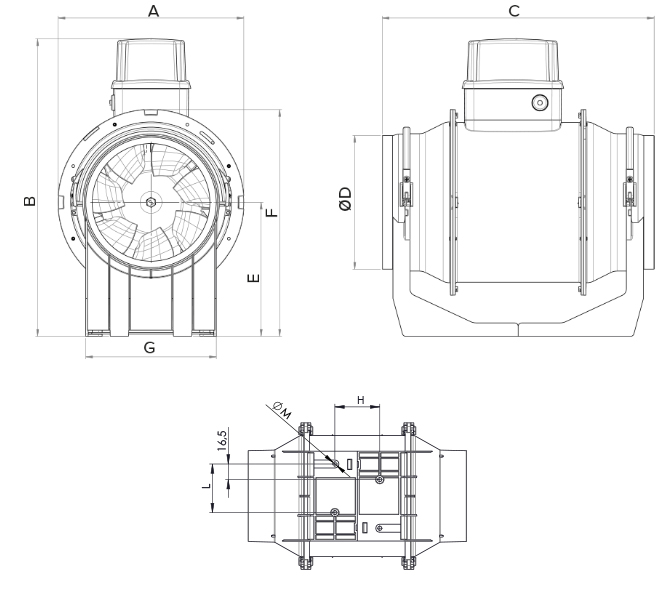

  • Size A (mm)
    156
  • Size B (mm)
    205
  • Size C (mm)
    231
  • Size D (mm)
    Ø 96
  • Size E (mm)
    82
  • Size F (mm)
    152
  • Size G (mm)
    95
  • Size H (mm)
    47,5
  • Size L (mm)
    51,5
  • Size M (mm)
    Ø 4.5
