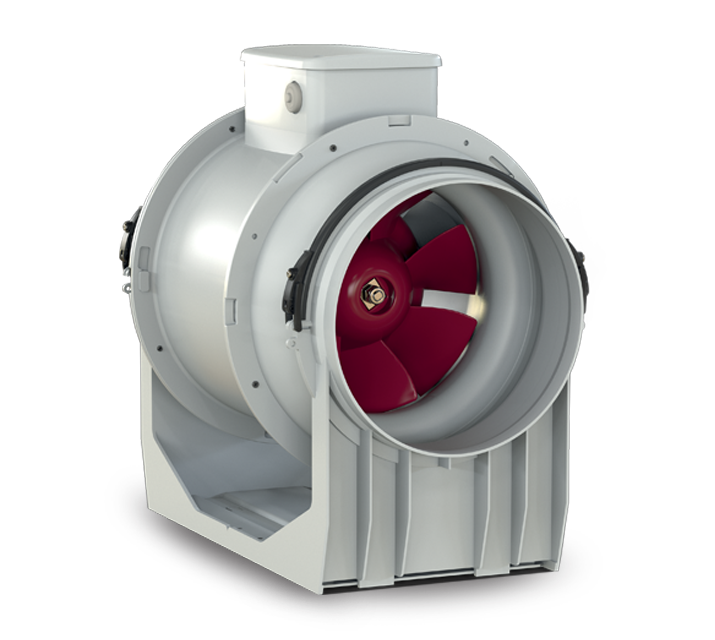

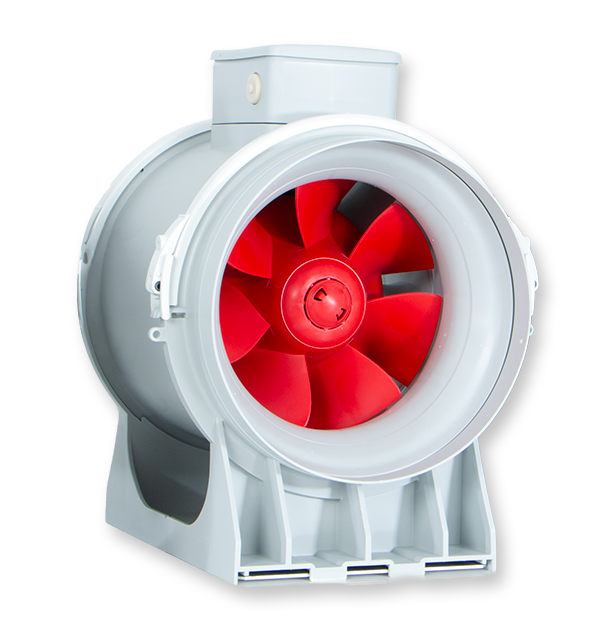

Description
• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 250 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
• Nominal diameter 250 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Certifications
-
Download
CE
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50/60
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,50
-
Max absorbed current at Min speed (A)0,40
-
Max absorbed Power at 60 Hz (W)140
-
Max absorbed power at Max speed (W)110
-
Max ambient temperature for continuous operation (°C)60
-
Power absorbed at 1st speed (W)85
-
Voltage (V)220-240
-
Weight (Kg)5,9
-
Airflow at 1st speed (l/s)200
-
Airflow at 1st speed (m³/h)720
-
Breakout sound power LWA at Max speed [dB (A)]63,1
-
Breakout sound power LWA at Min speed [dB (A)]53,1
-
Breakout sound pressure at 3m at Max speed Lp [dB (A)]42,6
-
Breakout sound pressure at 3m at Min speed Lp [dB (A)]32,6
-

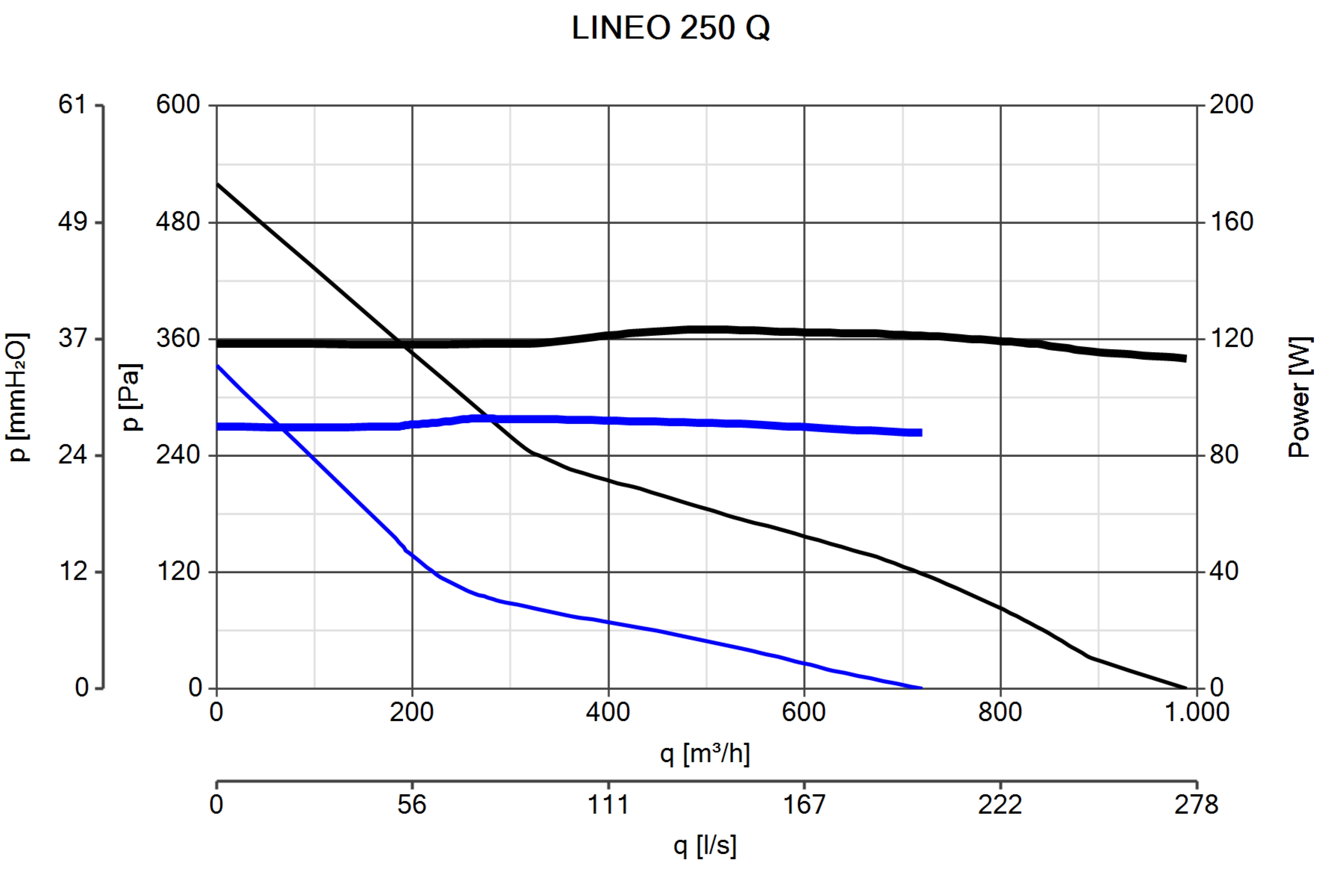

Max airflow at Max speed (l/s)275
-
Max airflow at Max speed (m³/h)990
-
Max pressure at Max speed (mmH20)53
-
Max pressure at Max speed (Pa)519,9
-
Max RPM2550
-
Min RPM1850
-
Potenza sonora at supply side at Min speed LWA [dB (A)]62,6
-
Pressure at 1st speed (mmH20)34
-
Pressure at 1st speed (Pa)333,5
-
Sound power at extract side at Max speed LWA [dB (A)]76,7
-
Sound power at extract side at Min speed LWA [dB (A)]63,2
-
Sound power at supply side at Max speed LWA [dB (A)]77,2
-
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]59,2
-
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]45,7
-
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]59,7
-
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]45,1
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

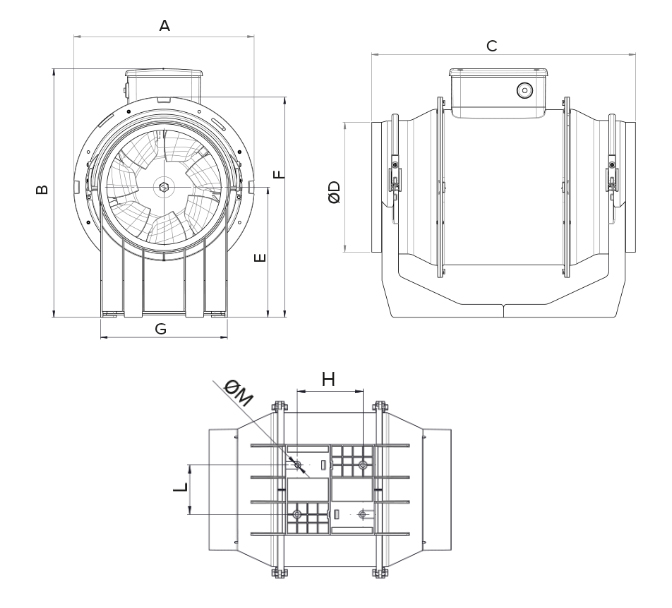

Size A (mm)300
-
Size B (mm)322
-
Size C (mm)385
-
Size D (mm)247
-
Size E (mm)152,5
-
Size F (mm)292
-
Size G (mm)176,5
-
Size H (mm)145
-
Size L (mm)140
-
Size M (mm)5,5
