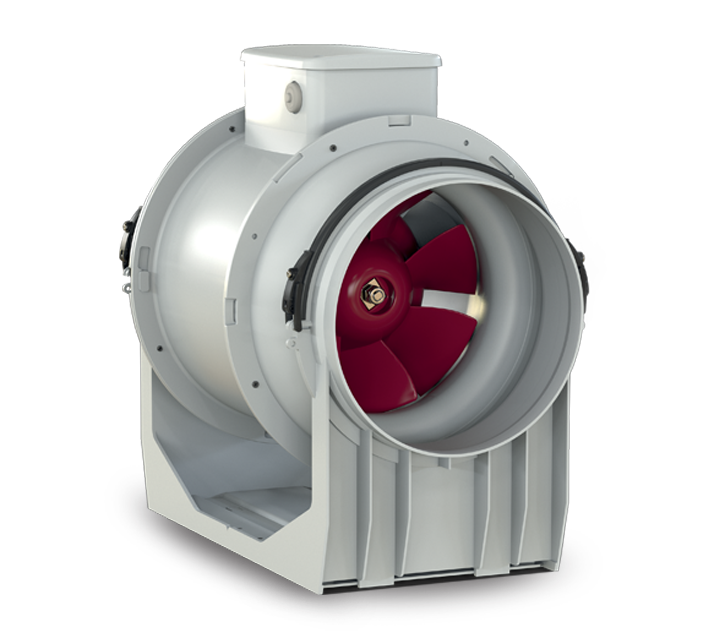

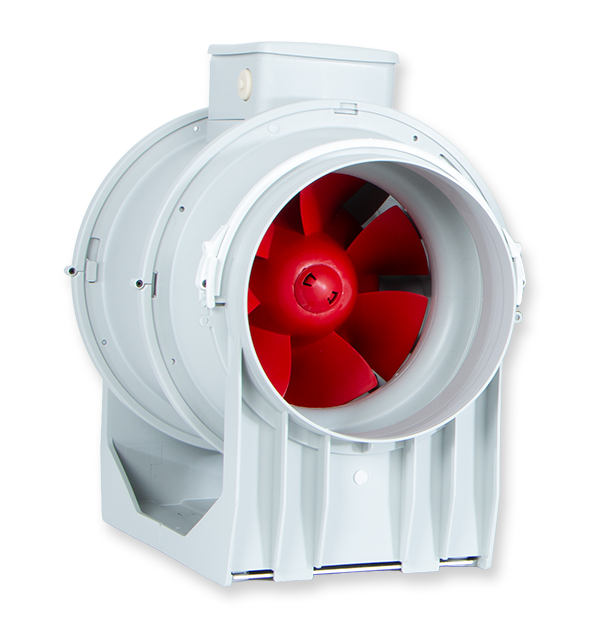

Description
• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 200 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
• Nominal diameter 200 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Certifications
-
Download
CE
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50/60
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,37
-
Max absorbed current at Min speed (A)0,22
-
Max absorbed Power at 60 Hz (W)90
-
Max absorbed power at Max speed (W)75
-
Max ambient temperature for continuous operation (°C)60
-
Nominal diameter (mm)200
-
Power absorbed at 1st speed (W)45
-
Voltage (V)220-240
-
Weight (Kg)4,3
-
Airflow at 1st speed (l/s)194,4
-
Airflow at 1st speed (m³/h)700
-
Breakout sound power LWA at Max speed [dB (A)]57,4
-
Breakout sound power LWA at Min speed [dB (A)]47,1
-
Breakout sound pressure at 3m at Max speed Lp [dB (A)]36,9
-
Breakout sound pressure at 3m at Min speed Lp [dB (A)]26,6
-

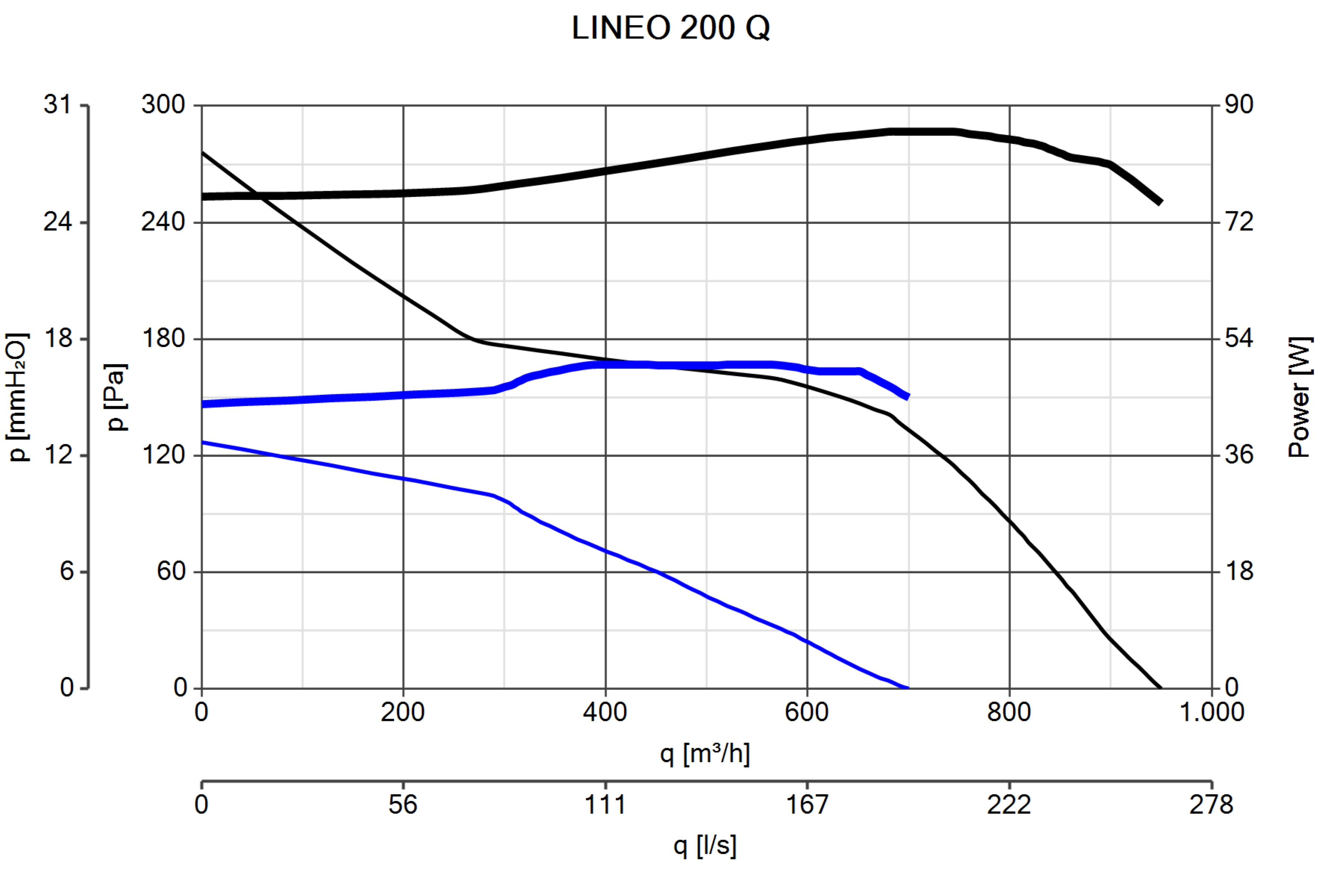

Max airflow at Max speed (l/s)263,9
-
Max airflow at Max speed (m³/h)950
-
Max pressure at Max speed (mmH20)29
-
Max pressure at Max speed (Pa)284,5
-
Max RPM2740
-
Min RPM1780
-
Potenza sonora at supply side at Min speed LWA [dB (A)]59,5
-
Pressure at 1st speed (mmH20)13
-
Pressure at 1st speed (Pa)127,5
-
Sound power at extract side at Max speed LWA [dB (A)]68,0
-
Sound power at extract side at Min speed LWA [dB (A)]61,9
-
Sound power at supply side at Max speed LWA [dB (A)]68,3
-
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]50,4
-
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]44,4
-
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]50,7
-
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]42,0
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

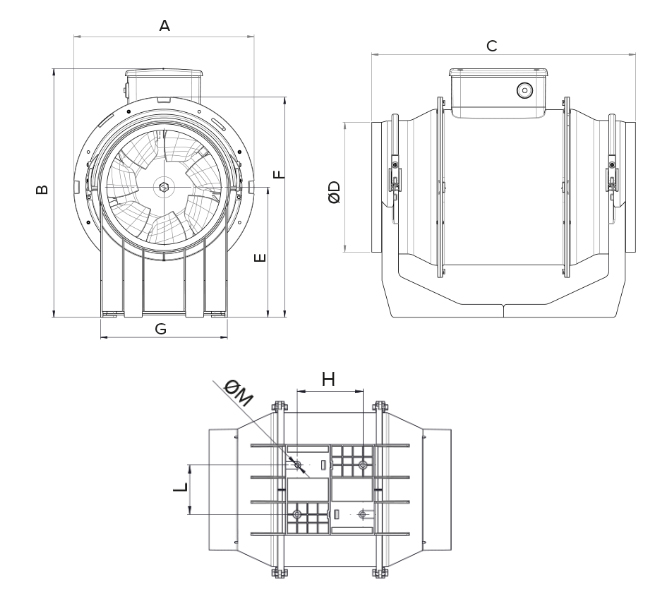

Size A (mm)234,5
-
Size B (mm)266
-
Size C (mm)300
-
Size D (mm)196
-
Size E (mm)125,5
-
Size F (mm)235
-
Size G (mm)140
-
Size H (mm)100
-
Size L (mm)94
-
Size M (mm)5,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
IREM D
Electronic speed controller for installation in Standard DIN box. Maximum load: 1.0 A.
IN-LINE-S 200
Galvanized steel sheet backdraught shutter with aluminium fins and return springs to prevent air back-draughts or penetration of rain when the unit is turned off.
