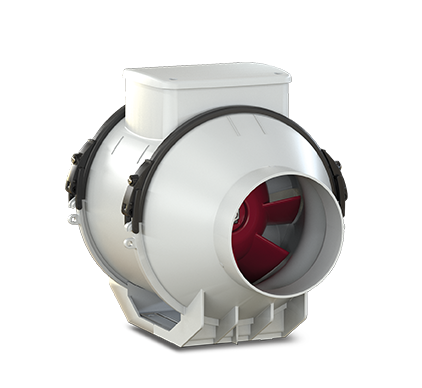

Description
• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 100 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
• Nominal diameter 100 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Certifications
-
Download
CE
-
CCC
-
G-Mark
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50/60
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,11
-
Max absorbed current at Min speed (A)0,09
-
Max absorbed Power at 60 Hz (W)22
-
Max absorbed power at Max speed (W)23
-
Max ambient temperature for continuous operation (°C)60
-
Nominal diameter (mm)100
-
Power absorbed at 1st speed (W)20
-
Voltage (V)220-240
-
Weight (Kg)2
-
Airflow at 1st speed (l/s)50
-
Airflow at 1st speed (m³/h)180
-
Breakout sound power LWA at Max speed [dB (A)]50,0
-
Breakout sound power LWA at Min speed [dB (A)]41,6
-
Breakout sound pressure at 3m at Max speed Lp [dB (A)]29,5
-
Breakout sound pressure at 3m at Min speed Lp [dB (A)]21,2
-
Max airflow at Max speed (l/s)70,8
-
Max airflow at Max speed (m³/h)255
-
Max pressure at Max speed (mmH20)16,5
-
Max pressure at Max speed (Pa)161,9
-
Max RPM2030
-
Min RPM1520
-
Potenza sonora at supply side at Min speed LWA [dB (A)]45,6
-
Pressure at 1st speed (mmH20)13
-
Pressure at 1st speed (Pa)127,5
-
Sound power at extract side at Max speed LWA [dB (A)]56,6
-
Sound power at extract side at Min speed LWA [dB (A)]49,5
-
Sound power at supply side at Max speed LWA [dB (A)]53,6
-
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]39,0
-
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]31,9
-
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]36,1
-
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]28,0
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

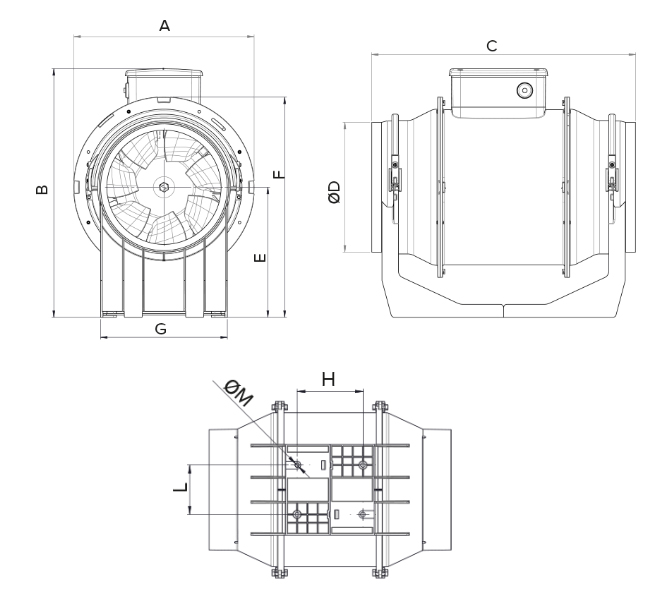

Size A (mm)188,5
-
Size B (mm)211
-
Size C (mm)303
-
Size D (mm)96
-
Size E (mm)101,5
-
Size F (mm)189
-
Size G (mm)90
-
Size H (mm)80
-
Size L (mm)60
-
Size M (mm)5,5
