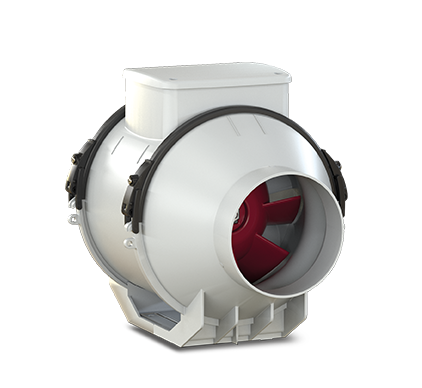

Description
• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 100 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
• Nominal diameter 100 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Certifications
-
Download
CE
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50/60
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,07
-
Max absorbed current at Min speed (A)0,05
-
Max absorbed power (W)15
-
Max absorbed Power at 60 Hz (W)20
-
Max ambient temperature for continuous operation (°C)60
-
Nominal diameter (mm)100
-
Power absorbed at 1st speed (W)12
-
Voltage (V)220-240
-
Weight (Kg)1,25
-
Airflow at 1st speed (l/s)43,1
-
Airflow at 1st speed (m³/h)155
-
Breakout sound power LWA at Max speed [dB (A)]51,7
-
Breakout sound power LWA at Min speed [dB (A)]43,8
-
Breakout sound pressure at 3m at Max speed Lp [dB (A)]31,2
-
Breakout sound pressure at 3m at Min speed Lp [dB (A)]23,3
-
Max airflow at Max speed (l/s)55,6
-
Max airflow at Max speed (m³/h)200
-
Max pressure at Max speed (mmH20)7,5
-
Max pressure at Max speed (Pa)73,6
-
Max RPM2450
-
Min RPM1860
-
Potenza sonora at supply side at Min speed LWA [dB (A)]56,0
-
Pressure at 1st speed (mmH20)6,5
-
Pressure at 1st speed (Pa)63,8
-
Sound power at extract side at Max speed LWA [dB (A)]62,5
-
Sound power at extract side at Min speed LWA [dB (A)]55,5
-
Sound power at supply side at Max speed LWA [dB (A)]61,0
-
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]45,0
-
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]37,9
-
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]43,5
-
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]38,5
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

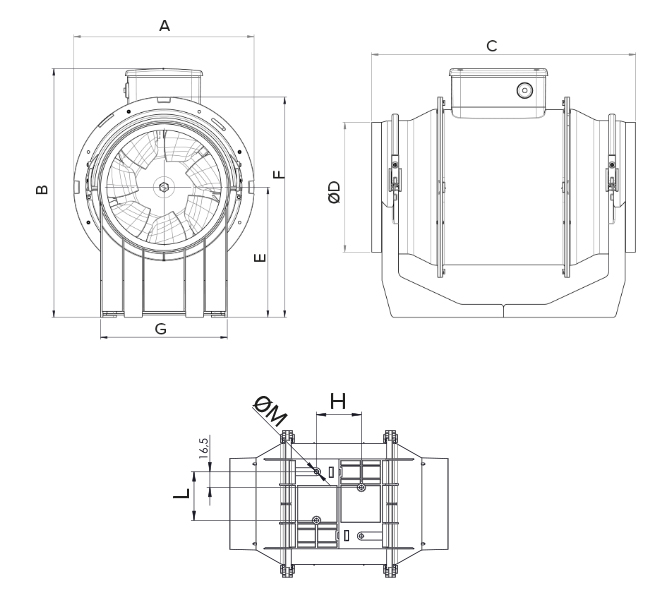

Size A (mm)156
-
Size B (mm)174
-
Size C (mm)231
-
Size D (mm)Ø 96
-
Size E (mm)82
-
Size F (mm)152
-
Size G (mm)95
-
Size H (mm)47,5
-
Size L (mm)51,5
-
Size M (mm)4,5
