Code 16254

CA IL 150

Compact flat in-line centrifugal fans

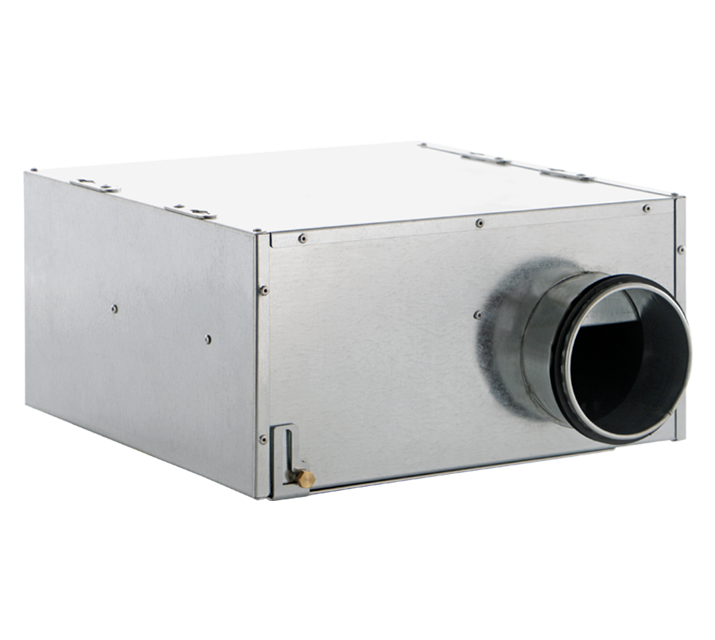

ca_il_01

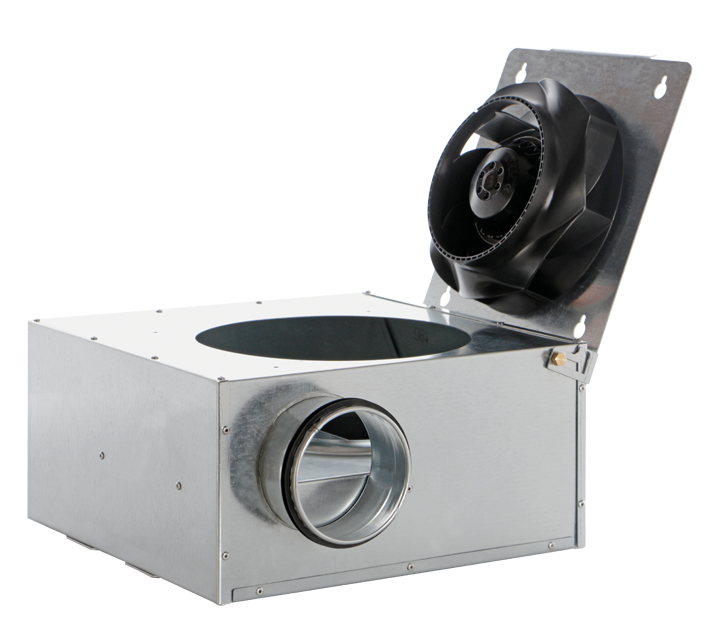

ca_il_02

Description

• Casing and motor-support made of galvanized sheet steel; lined internally with PE sound-proof panel (thickness 10 mm).
• Circular spigots for connection to standard tubes, equipped with double lip rubber seal for perfect air tightness.
• Nominal diameter: 150 mm.
• External rotor AC motorfan, with shaft turning in ball bearings, coupled to a backward curved centrifugal impeller.
• Galvanized steel sheet brackets, directly coupled to casing.
• Electric connection box accomodating capacitors, molded with shock-proof plastic resin resistant against aggressive agents, integrating cable cages and cable glands to ensure high protection (IP55) against dust and water.
• 3 alternative installation: wall, ceiling and false-ceiling.

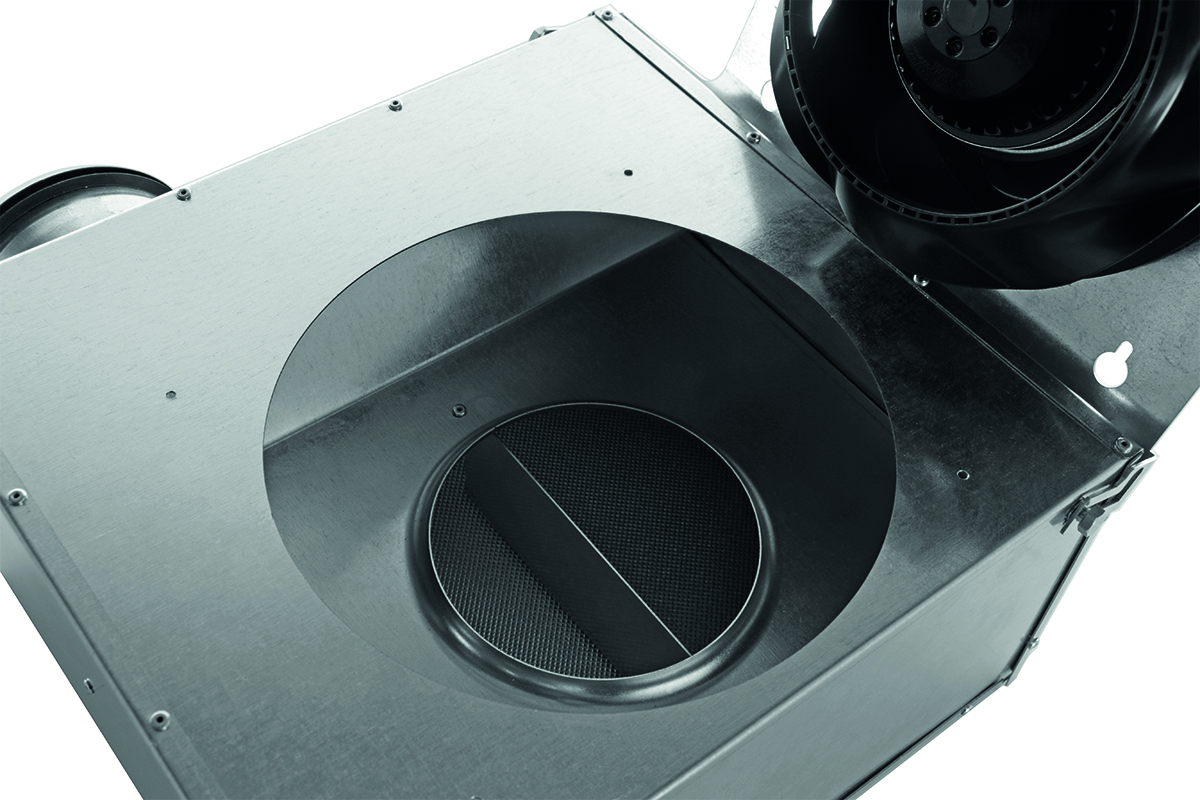

• Easy maintenance: motor is directly fixed to the cover, in turn hinged to the casing, allowing easy external rotation and motorfan direct access.
• Protection against dust and water: IP44.
• Electric insulation class: I (grounding is required).
Read full descriptionClose description

Certifications

ca_il_ambiente01
ca_il_ambiente02

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    I°
  • Max ambient temperature for continuous operation (°C)
    40
  • Motor ATEX marking
    44
  • Motor class
    F
  • Nominal current at Max speed (A)
    0,44
  • Nominal current at Min speed (A)
    0,41
  • Nominal diameter (mm)
    150
  • Nominal power at Max speed (W)
    100
  • Nominal power at Min speed (W)
    49
  • Number of speeds
    3
  • Voltage (V)
    230
  • Weight (Kg)
    6,2
  • Breakout sound power LWA [dB(A)]
    57
  • Max airflow (l/s)
    128
  • Max airflow (m³/h)
    460
  • Max pressure (mmH2O)
    44,1
  • Max pressure (Pa)
    435
  • Sound power at exhaust inlet LWA [dB(A)]
    67
  • Sound power at supply outlet LWA [dB(A)]
    70
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Nominal NRVU airflow (m3/s)
    0,1225
  • ([m3/s)
    0,1225
  • Real absorbed electric power (KW)
    0,100
  • Effective electic power input [kW]
    0,100
  • AEC annual electric energy consuption (kWh of primary energy/y)
    771,93
  • SFPint (W/m3/s)
    771,93
  • Face velocity at nominal airflow (m/s)
    6,9320
  • Face velocity at nominal flowrate (m/s)
    6,9320
  • Nominal external pressure (Pa)
    16
  • Nominal external pressure (Pa)
    16
  • Inner pressure drop of ventilation components (Pa)
    278
  • Internal pressure drop of ventilation components (Pa)
    278
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    36,0
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    36,0
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning:
    NA
  • Description of visual filter warning
    NA
  • Casing sound power level LWA [dB(A)]
    57
  • Casing sound power level (LWA) [dB(A)]
    57

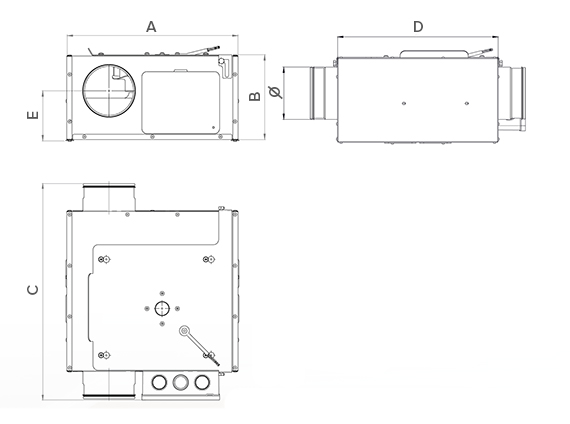

  • Ø (mm)
    150
  • Size A (mm)
    342
  • Size B (mm)
    198
  • Size C (mm)
    412
  • Size D (mm)
    307
  • Size E (mm)
    103
quota

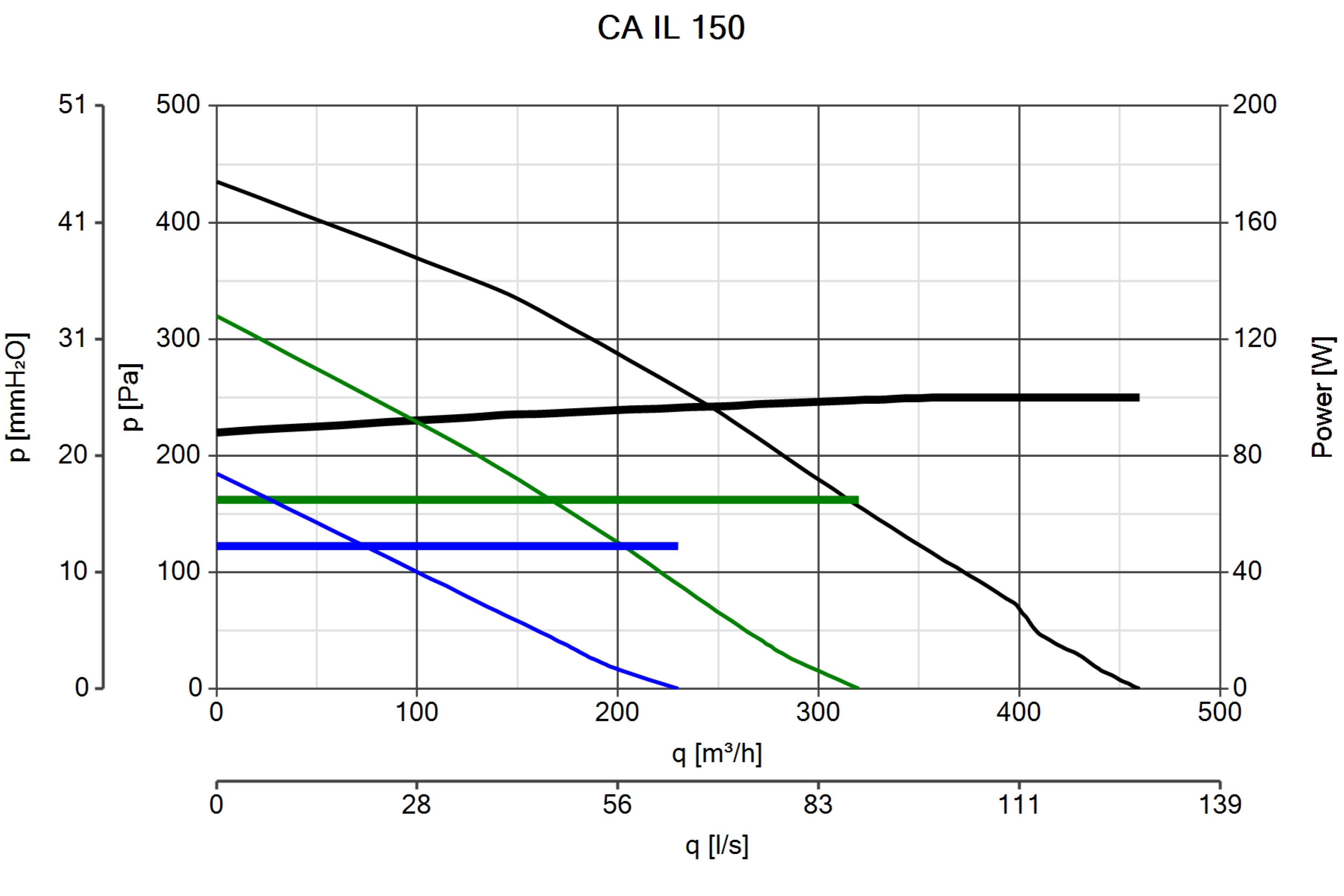

Curva_JPG_16254-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
Go to data sheet
GR 150
GR 150
Protection metal grill, directly coupled to the product, diam. 150 mm.
Go to data sheet
FS 150
FS 150
Flexible sleeve complete with hose clamps for pipe fixing, diam. 150 mm.
Go to data sheet
TRIO D
TRIO D
3 speed dipswitch for installation in Standard DIN box.
Go to data sheet
IREM D
IREM D
Electronic speed controller for installation in Standard DIN box. Maximum load: 1.0 A.
Go to data sheet
