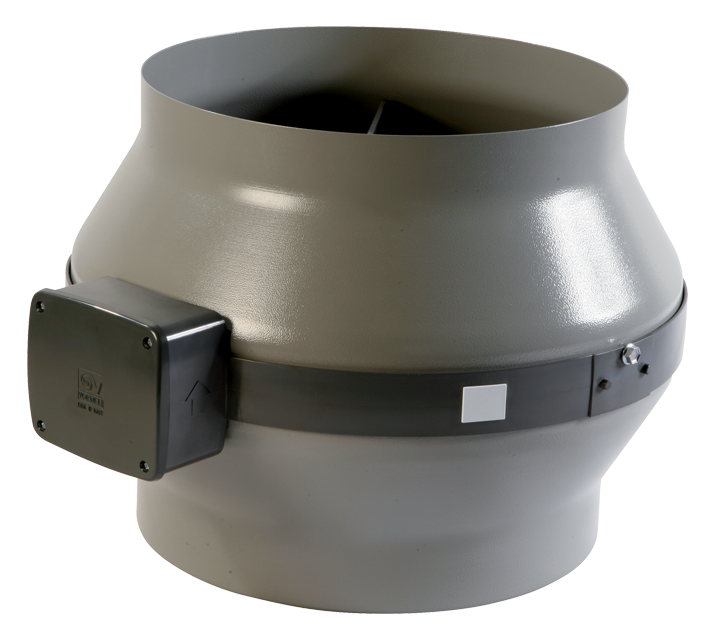

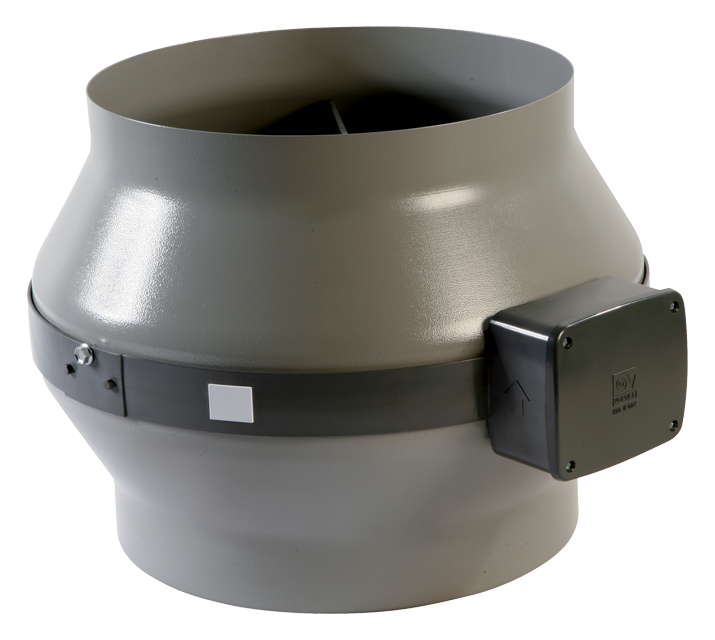

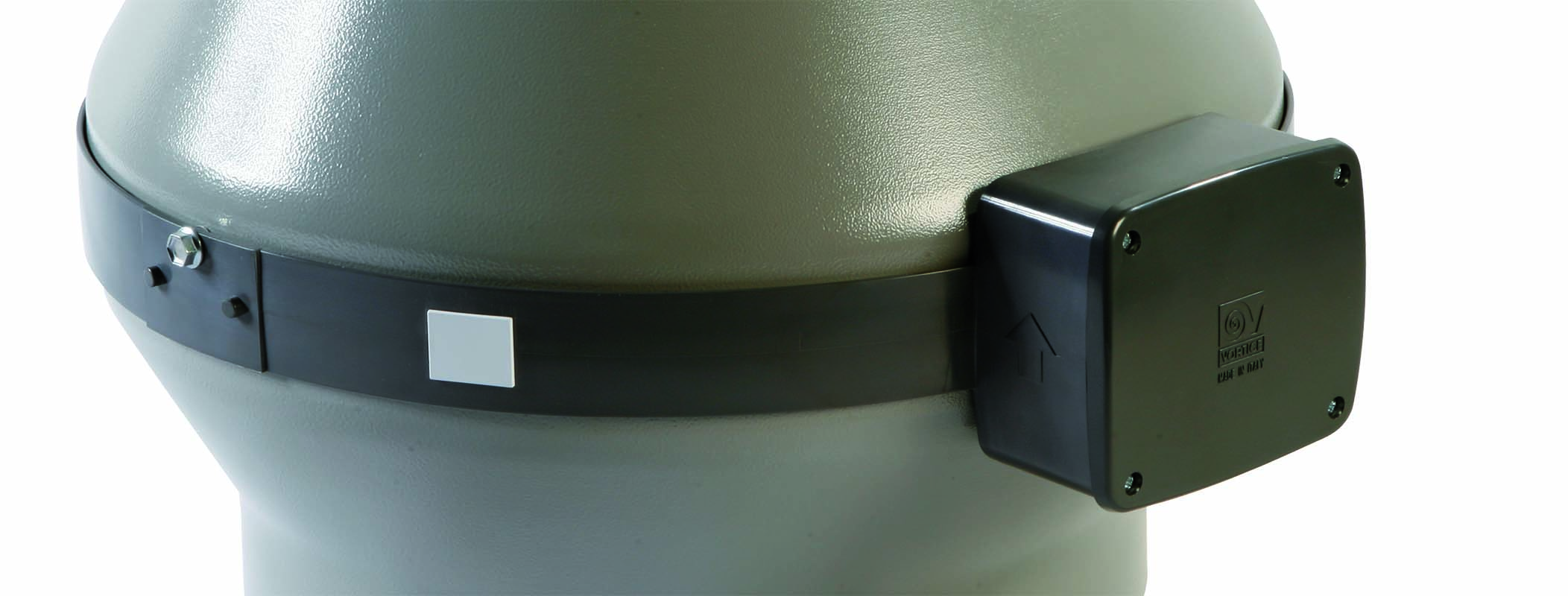

Description
• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 315 mm.
• 3 speed fan consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,

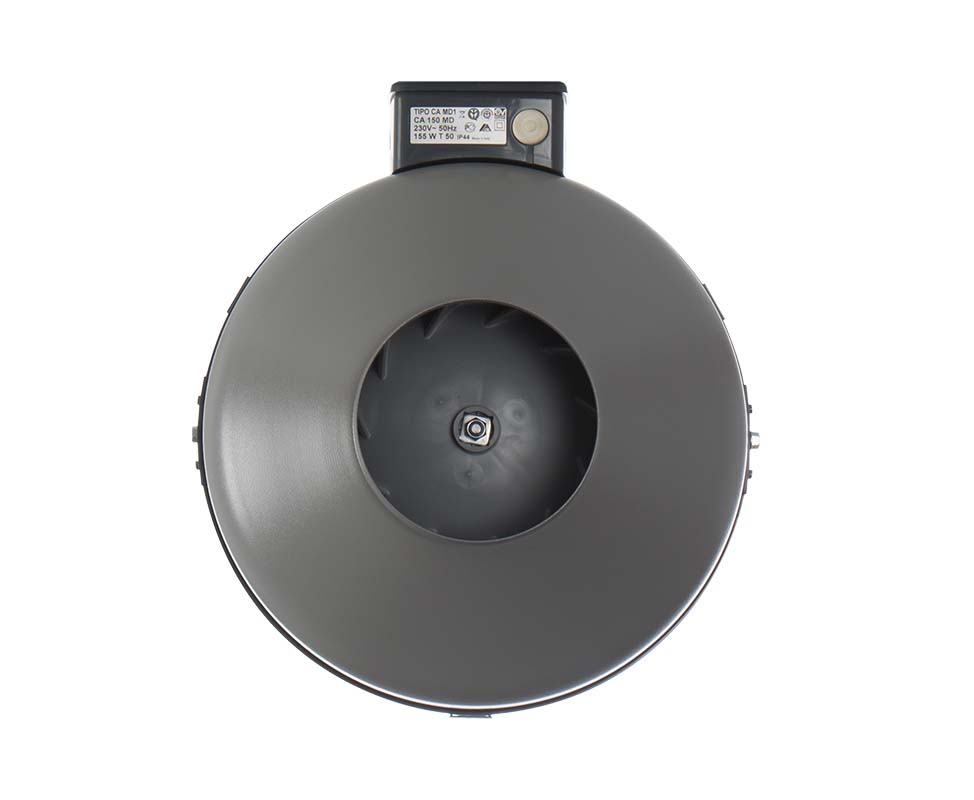

• backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• Nominal diameter 315 mm.
• 3 speed fan consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
Certifications
-
Download
CE
-
EAC
-
G-Mark
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,53
-
Max absorbed current at Min speed (A)0,51
-
Max absorbed Power at 60 Hz (W)175
-
Max absorbed power at Max speed (W)125
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)315
-
Power absorbed at 1st speed (W)58
-
Voltage (V)220-240
-
Weight (Kg)11
-
Airflow at 1st speed (l/s)172
-
Airflow at 1st speed (m³/h)620
-
Max airflow at Max speed (l/s)300
-
Max airflow at Max speed (m³/h)1080
-
Max pressure at Max speed (mmH20)58
-
Max pressure at Max speed (Pa)569
-
Max RPM2660
-
Min RPM1560
-
Pressure at 1st speed (mmH20)43
-
Pressure at 1st speed (Pa)422
-
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed41,8
-
Sound pressure at 3m at Max speed Lp [dB (A)]52,3
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Type of heat recovery system HRSnessuno
-
Drive typea velocità multiple: VM
-
Declared typeUVNR-U
-
Supplier's name or trade mark:Vortice
-
SFPint (W/m3/s)385,03
-
Heat recovery nominal efficiency (%)NA
-
([m3/s)0,2791
-
Real absorbed electric power (KW)0,123
-
Face velocity at nominal airflow (m/s)3,5822
-
Nominal external pressure (Pa)18
-
Inner pressure drop of ventilation components (Pa)122
-
Inner pressure drop of components not related to ventilation (Pa)0
-
Fan static efficiency according to 327/2011/UE regulation (%)31,8
-
Declared maximum internal leakage rate of the ventilation unit casing (%)NA
-
Declared maximum external leakage rate of the ventilation unit casing (%)2,2
-
Filter energy performance or classificationNA
-
Description of visual filter warning:NA
-
Casing sound power level LWA [dB(A)]73
-

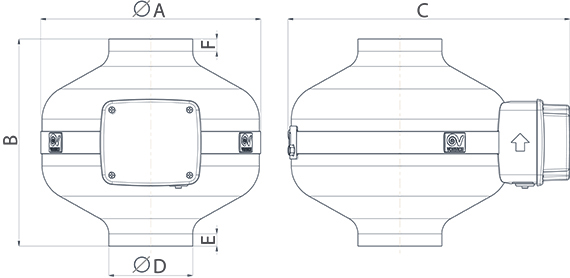

Size A (mm)406
-
Size B (mm)306
-
Size C (mm)488
-
Size D (mm)312
-
Size E (mm)21
-
Size F (mm)30
