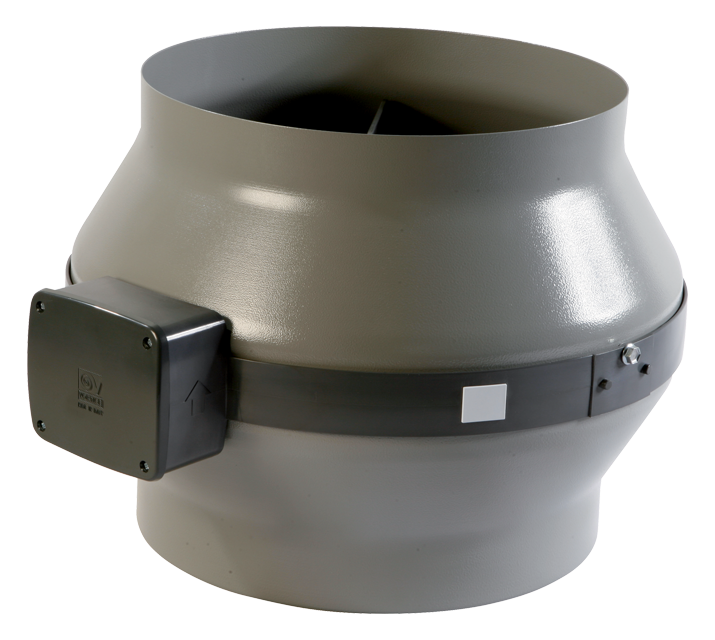

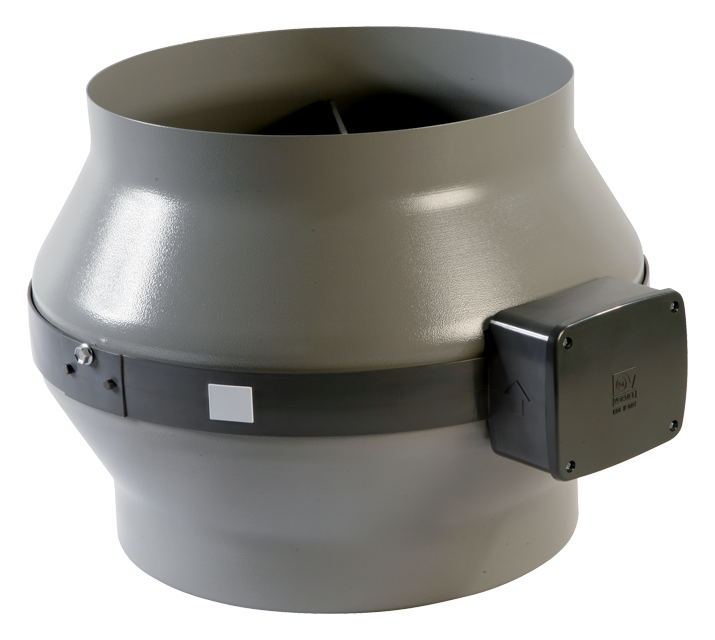

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 250 mm.
• 3 speed fan through TRIO-CA optional control (cod. 12869), consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,

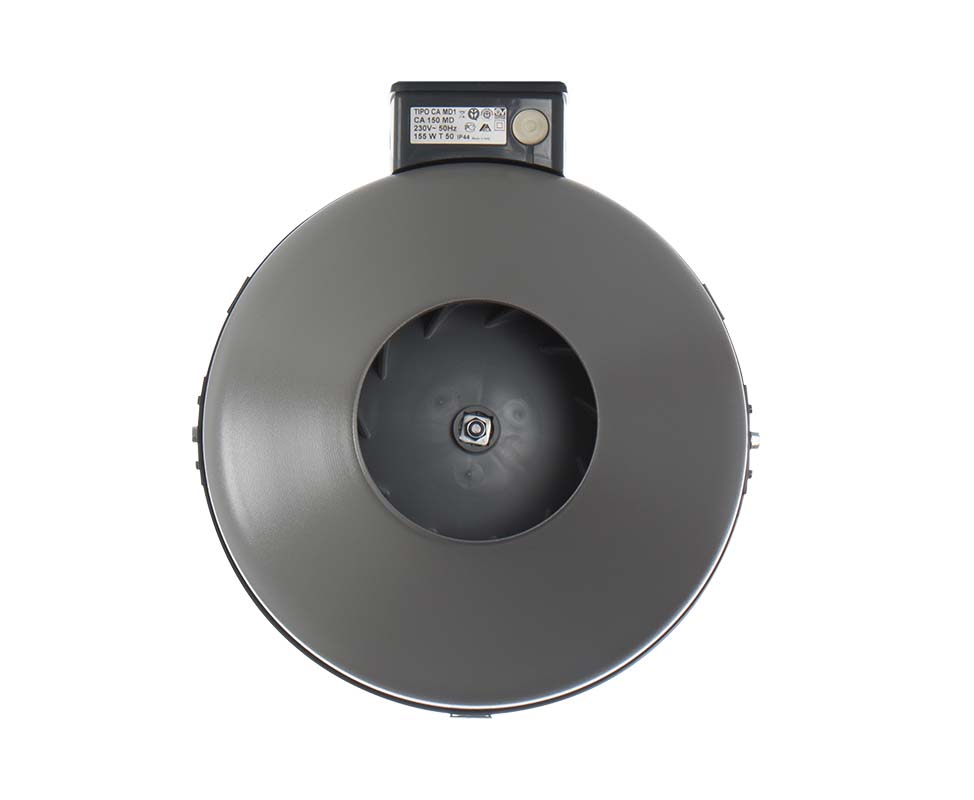

• backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed power 1st speed (W)
    58
  • Frequency (Hz)
    50-60
  • Insulation Class
    II°
  • IP
    44
  • Max absorbed Power at 60Hz (W)
    175
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,53
  • Max. absorbed Current at min. speed (A)
    0,51
  • Max. absorbed power at max speed (W)
    120
  • Nominal Diameter (mm)
    250
  • Voltage (V)
    220-240
  • Weight (Kg)
    7,6
  • Delivery 1st speed (l/s)
    167
  • Delivery 1st speed (m³/h)
    600
  • Max delivery at max speed (l/s)
    278
  • Max delivery at max speed (m³/h)
    1000
  • Pressure - 1st speed (mmH20)
    42
  • Pressure - 1st speed (Pa)
    412
  • Pressure max - max speed (mmH20)
    53
  • Pressure max - max speed (Pa)
    520
  • RPM max
    1615
  • RPM min
    2660
  • Sound pressure level Lp [dB (A)] 3m - max speed
    52,7
  • Sound pressure level Lp [dB (A)] 3m - min speed
    38,3
  • Type of heat recovery system HRS:
    nessuno
  • Type of drive:
    a velocità multiple: VM
  • Declared typology:
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint [W/m3/s]
    397,50
  • Efficienza termica del recupero di calore [%]
    NA
  • Portata nominale [m3/s]
    0,2747
  • Potenza elettrica assorbita effettiva [KW]
    0,127
  • Face velocity at design flow rate [m/s]:
    5,5966
  • Pressione esterna nominale (?ps, ext) [Pa]
    21
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    126
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    0
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    31,8
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    2,3
  • Energy performance energy or classification of the filters:
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level (LWA) [dB(A)]:
    73

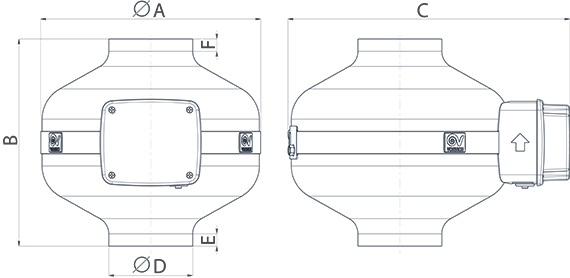

  • Size A (mm)
    347
  • Size B (mm)
    275
  • Size C (mm)
    424
  • Size D (mm)
    247
  • Size E (mm)
    38
  • Size F (mm)
    35
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

SCNRB SCAT.COM.NON REV.INCASSO
SCNRB SCAT.COM.NON REV.INCASSO
• Non-reversible electronic speed controller. • Built-in.
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
CA-MU  (STAFFE DI SOSTEGNO)
CA-MU (STAFFE DI SOSTEGNO)
• Galvanized sheet-metal brackets for wall or ceiling mounting. Complete in packs of 2.
CA-G 250 (GRIGLIA DI PROTEZIONE)
CA-G 250 (GRIGLIA DI PROTEZIONE)
Protection grille for use in the intake port when unit is mounted within reach.
C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
TRIO-CA
TRIO-CA
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
