Code 16151

CA 125 MD

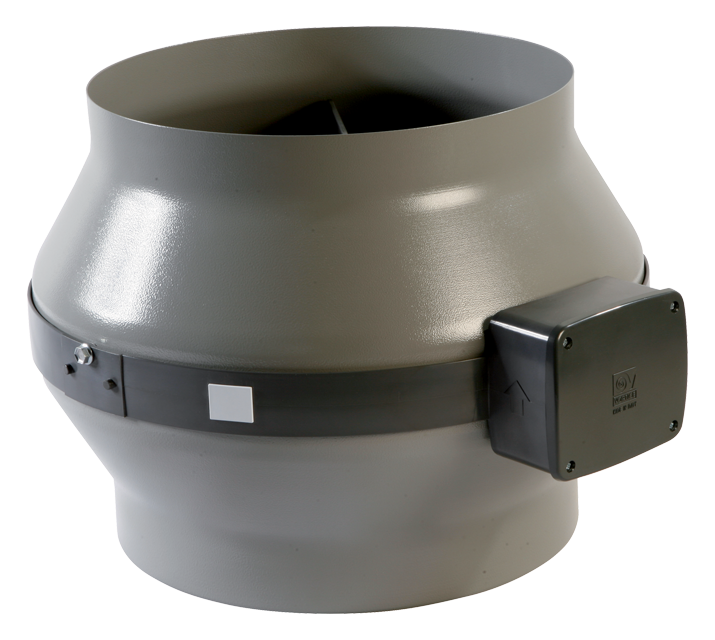

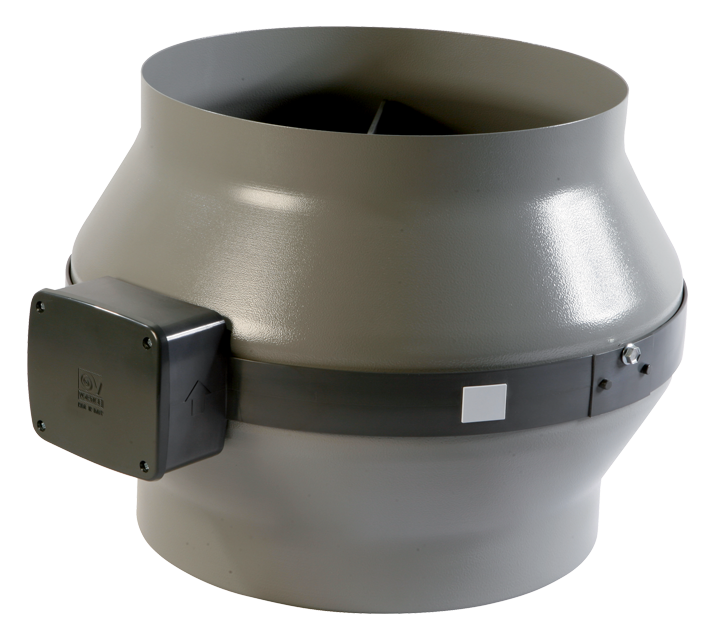

In-line centrifugal fans in metal

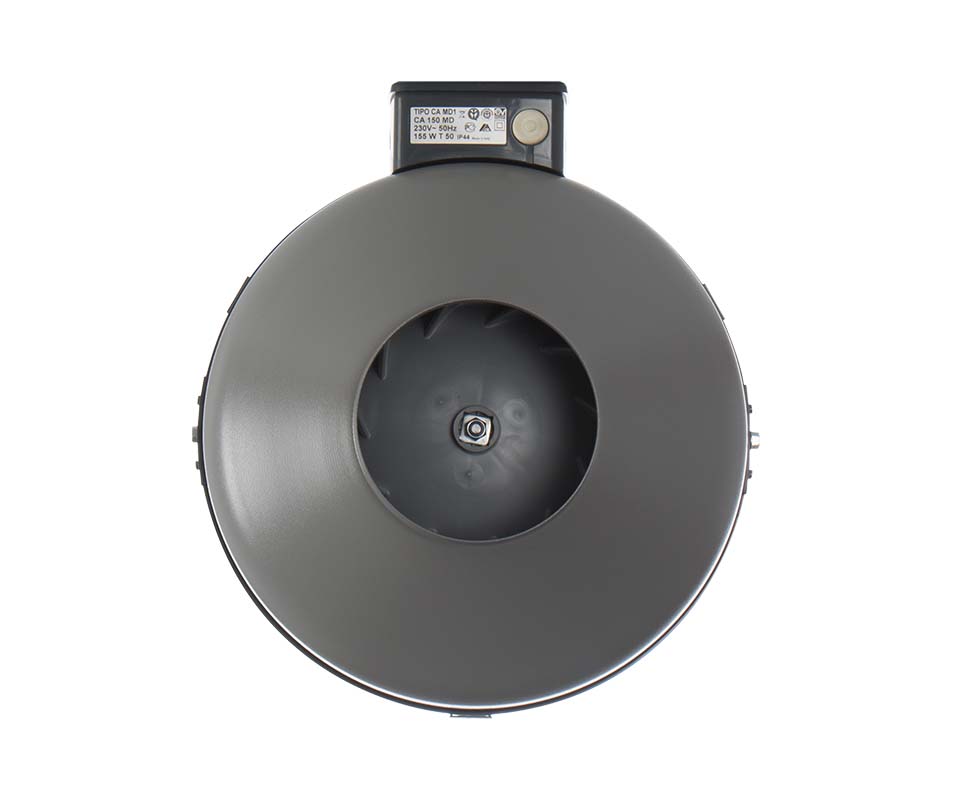

ca_md_01

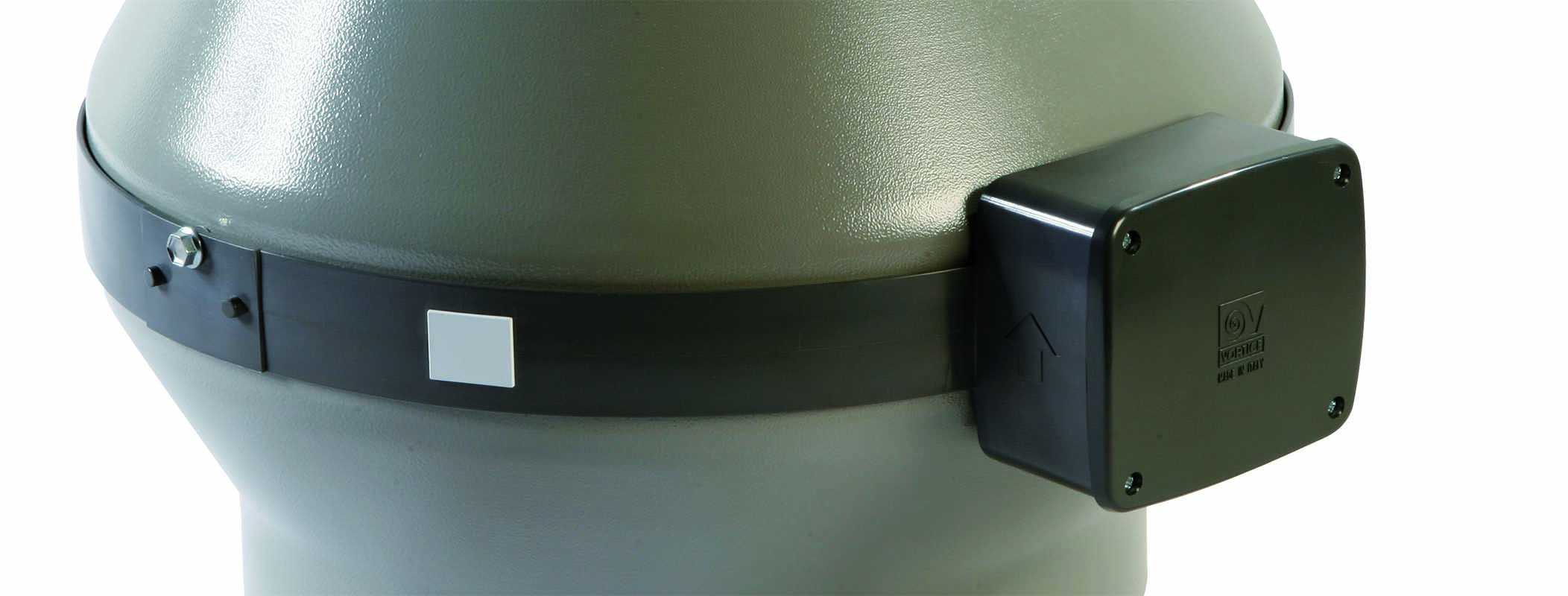

ca_md_02

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 125 mm.
• 3 speed fan consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

ca_md_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,17
  • Max absorbed current at Max speed (A)
    0,22
  • Max absorbed current at Max speed at 60 Hz (A)
    0,26
  • Max absorbed current at Mid speed (A)
    0,20
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,25
  • Max absorbed current at Min speed (A)
    0,15
  • Max absorbed power at Max speed (W)
    43
  • Max absorbed power at Max speed at 60 Hz (W)
    45
  • Max absorbed power at Mid speed (W)
    30
  • Max absorbed power at Mid speed at 60 Hz (W)
    35
  • Max absorbed power at Min speed at 60 Hz (W)
    17
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    125
  • Power absorbed at 1st speed (W)
    13
  • Voltage (V)
    220-240
  • Weight (Kg)
    3
  • Airflow at 1st speed (l/s)
    36
  • Airflow at 1st speed (m³/h)
    130
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    54,3
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    49
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    38
  • Breakout sound power LWA at Max speed [dB (A)]
    56,5
  • Breakout sound power LWA at Mid speed [dB (A)]
    50
  • Breakout sound power LWA at Min speed [dB (A)]
    36,9
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    33,8
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    35,9
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    28,5
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    29,4
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    17,5
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    16,3
  • Max airflow at Max speed (l/s)
    90
  • Max airflow at Max speed (m³/h)
    325
  • Max airflow at Max speed at 60 Hz (l/s)
    83
  • Max airflow at Max speed at 60 Hz (m³/h)
    300
  • Max airflow at Mid speed (m³/h)
    265
  • Max airflow at Mid speed at 60 Hz (l/s)
    69
  • Max airflow at Mid speed at 60 Hz (m³/h)
    250
  • Max airflow at Min speed (l/s)
    74
  • Max airflow at Min speed at 60 Hz (l/s)
    40
  • Max airflow at Min speed at 60 Hz (m³/h)
    145
  • Max pressure at 60 Hz (mmH2O)
    35,7
  • Max pressure at Max speed (mmH20)
    35,4
  • Max pressure at Max speed (Pa)
    347
  • Max pressure at Max speed at 60Hz (Pa)
    350
  • Max pressure at Mid speed (mmH2O)
    32,7
  • Max pressure at Mid speed (Pa)
    321
  • Max pressure at Mid speed at 60Hz (mmH2O)
    31,6
  • Max pressure at Mid speed at 60Hz (Pa)
    310
  • Max pressure at Min speed at 60Hz (mmH2O)
    9,6
  • Max pressure at Min speed at 60Hz (Pa)
    94
  • Max RPM
    2090
  • Max speed at 60 Hz (Rpm)
    1960
  • Mid speed at 60 Hz (Rpm)
    1645
  • Min RPM
    860
  • Min speed at 60 Hz (Rpm)
    970
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    54,3
  • Pressure at 1st speed (mmH20)
    8
  • Pressure at 1st speed (Pa)
    78
  • RPM at Mid speed
    1710
  • Sound power at extract side at Max speed LWA [dB (A)]
    83,2
  • Sound power at extract side at Mid speed LWA [dB (A)]
    76,3
  • Sound power at extract side at Min speed LWA [dB (A)]
    57,7
  • Sound power at supply side at Max speed LWA [dB (A)]
    79,3
  • Sound power at supply side at Mid speed LWA [dB (A)]
    72,7
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    81
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    75,4
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    61,1
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    77,1
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    71,5
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    57,9
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    63,5
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    65,6
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    54
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    58,8
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    43,6
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    40,2
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    61,8
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    55,2
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    36,7
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    59,6
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    57,9
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    40,4


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • AEC annual electric energy consuption (kWh of primary energy/y)
    572,78
  • SFPint (W/m3/s)
    412,29
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • Heat recovery nominal efficiency (%)
    NA
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,09639
  • ([m3/s)
    313
  • Real absorbed electric power (KW)
    0,038
  • Effective electic power input [kW]
    0,046
  • Face velocity at nominal airflow (m/s)
    11,07011
  • Face velocity at nominal flowrate (m/s)
    12,27262
  • Nominal external pressure (Pa)
    10
  • Nominal external pressure (Pa)
    10
  • Inner pressure drop of ventilation components (Pa)
    170
  • Internal pressure drop of ventilation components (Pa)
    123
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    41,2
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    27,9
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    2,14
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    51
  • Casing sound power level (LWA) [dB(A)]
    57

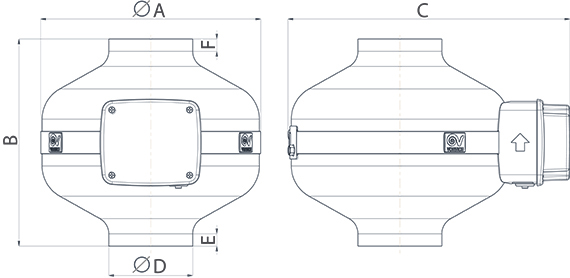

  • Size A (mm)
    255
  • Size B (mm)
    239
  • Size C (mm)
    330
  • Size D (mm)
    122
  • Size E (mm)
    23
  • Size F (mm)
    23
quota

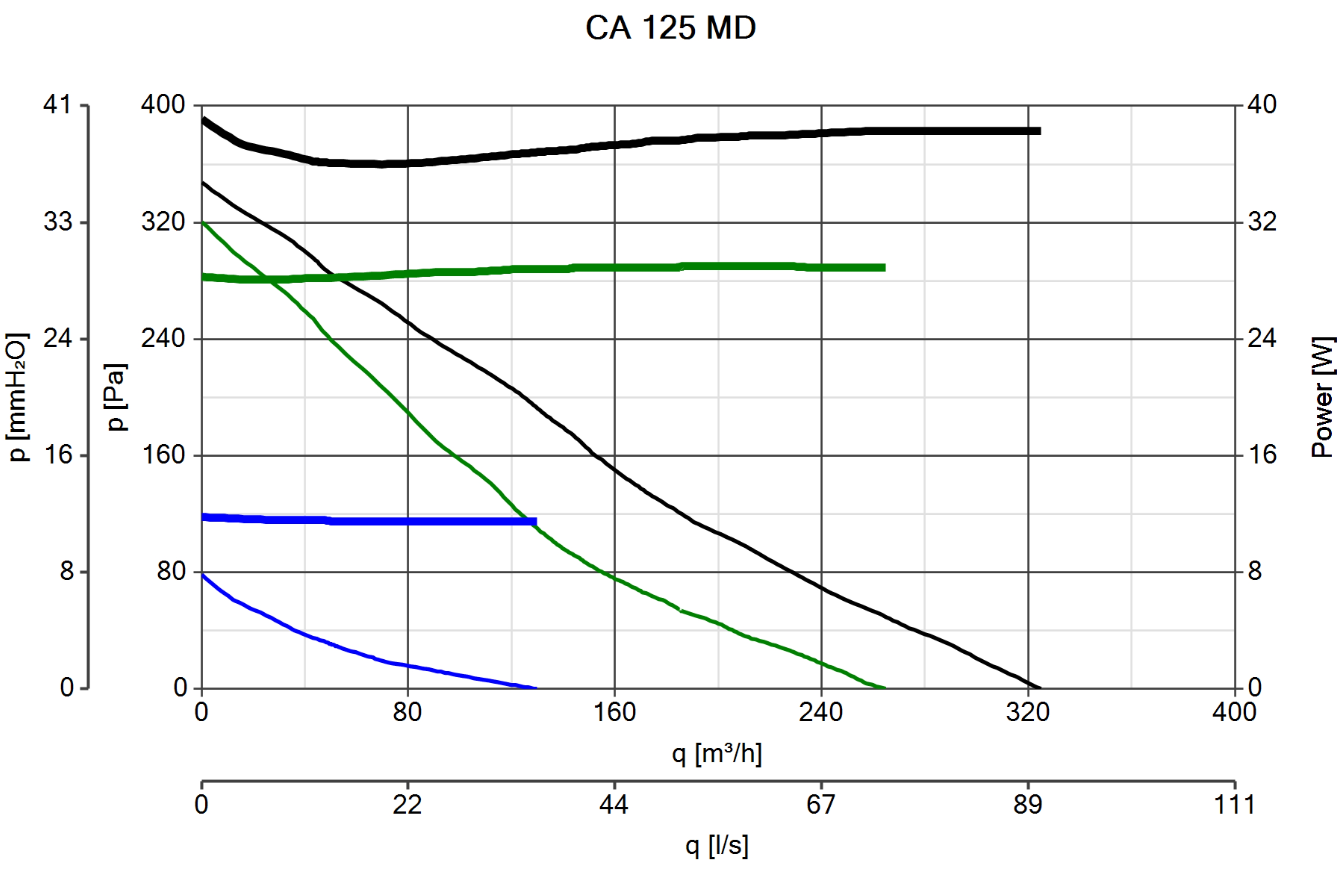

Curva_JPG_16151-Curve_per_Catalogo
