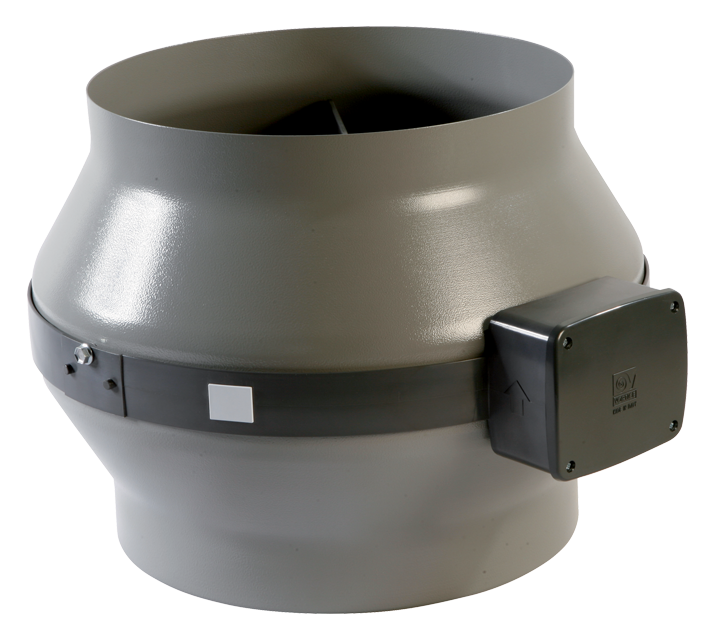

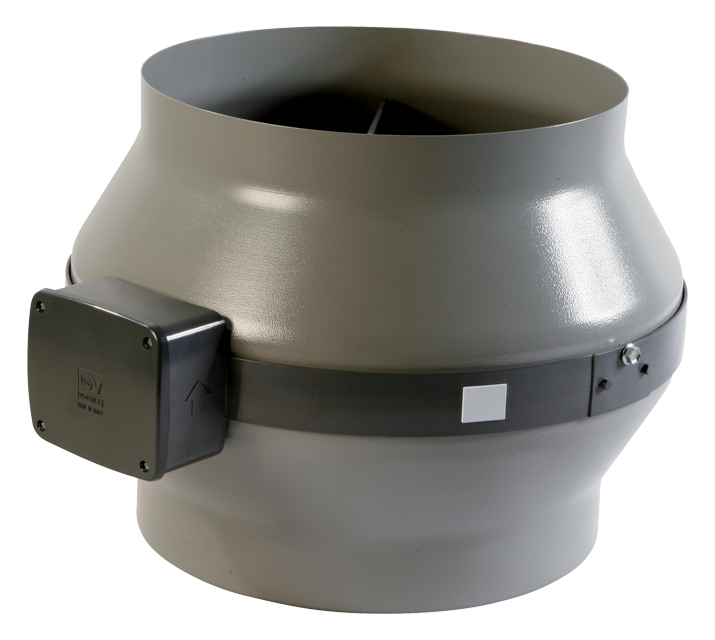

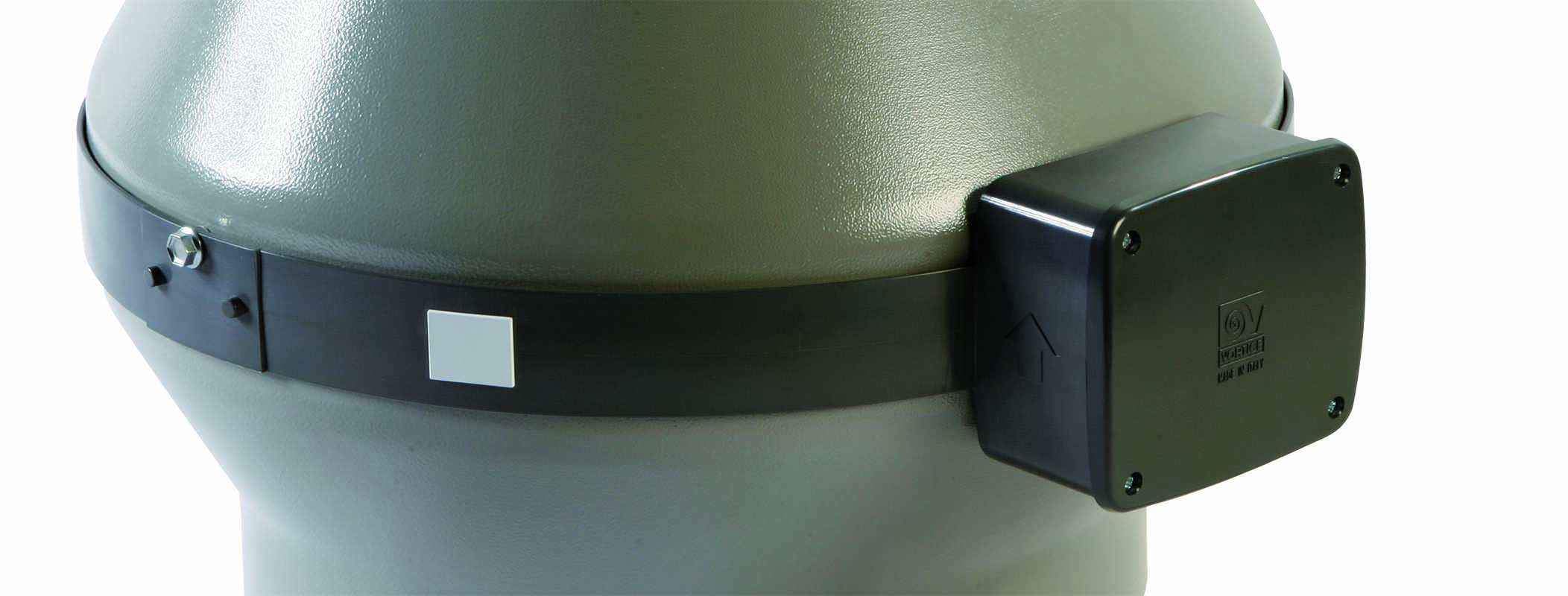

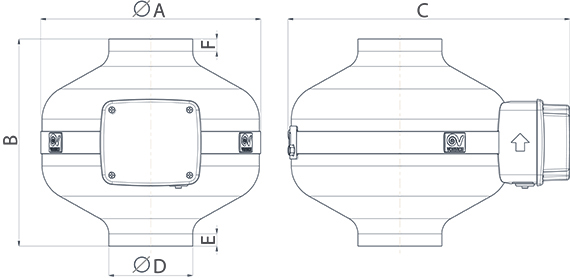

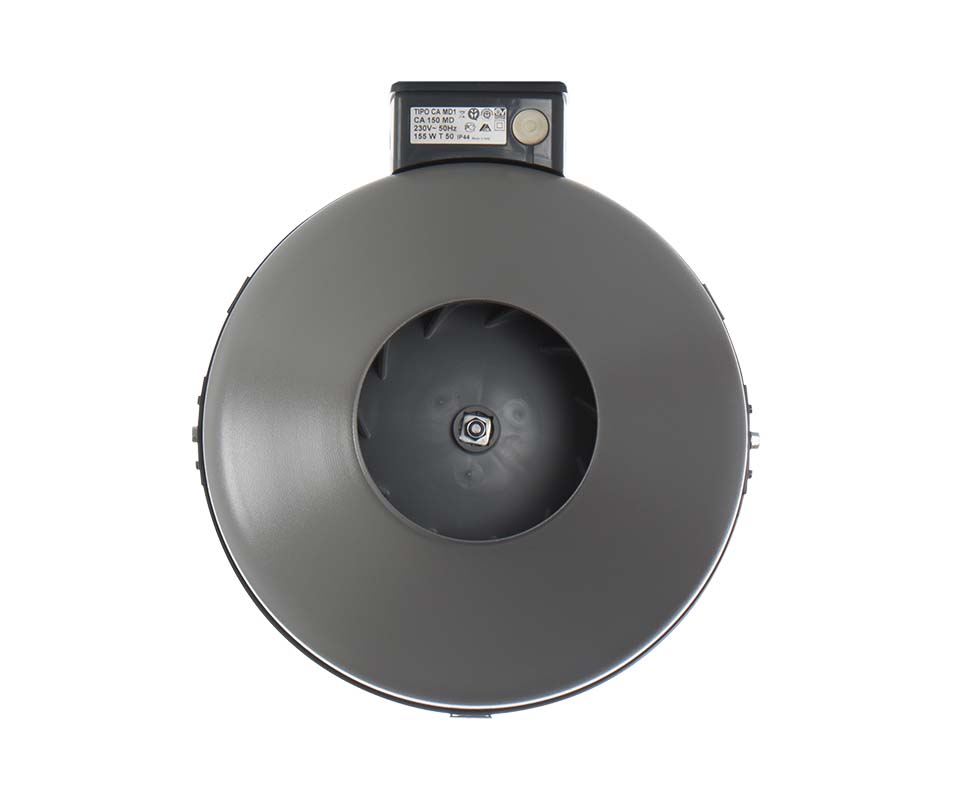

CA 100 MD

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 100 mm.
• 3 speed fan consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.

Read full descriptionClose description

Certifications

CE
Download
EAC
UKCA
CB TEST CERTIFICATE

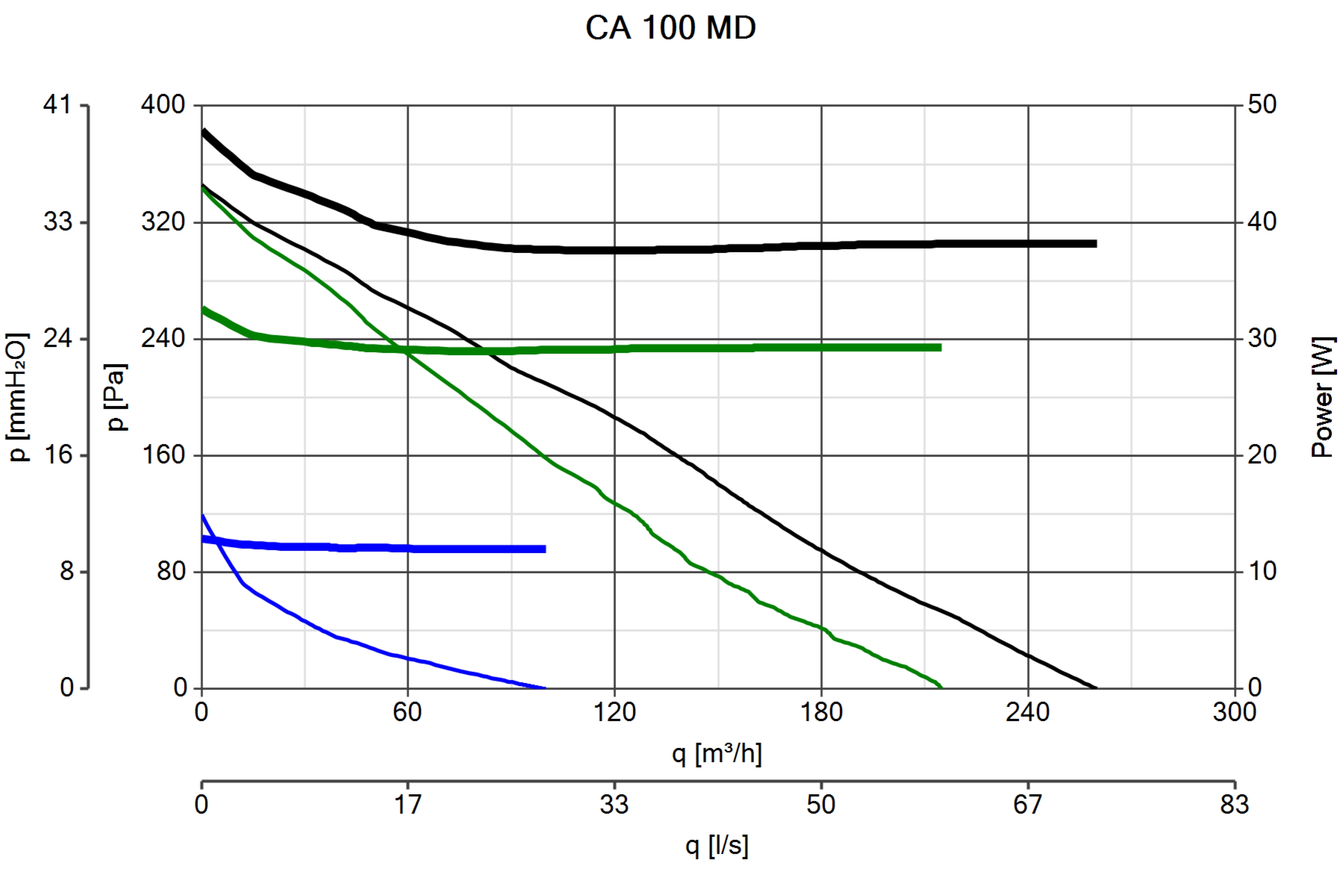

Technical Data Sheet

Frequency (Hz)

50-60
Insulation class

II°
IP

44
Max absorbed current at maMinx speed at 60 Hz (A)

0,17
Max absorbed current at Max speed (A)

0,22
Max absorbed current at Max speed at 60 Hz (A)

0,26
Max absorbed current at Mid speed (A)

0,20
Max absorbed current at Mid speed at 60 Hz (A)

0,25
Max absorbed current at Min speed (A)

0,15
Max absorbed power at Max speed (W)

43
Max absorbed power at Max speed at 60 Hz (W)

45
Max absorbed power at Mid speed (W)

30
Max absorbed power at Mid speed at 60 Hz (W)

35
Max absorbed power at Min speed at 60 Hz (W)

17
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

100
Power absorbed at 1st speed (W)

13
Voltage (V)

220-240
Weight (Kg)

2,97
Airflow at 1st speed (l/s)

28
Airflow at 1st speed (m³/h)

100
Breakout sound power at Max speed at 60 Hz LWA [dB (A)]

53,2
Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]

48,1
Breakout sound power at Min speed at 60 Hz LWA [dB (A)]

40,2
Breakout sound power LWA at Max speed [dB (A)]

56,4
Breakout sound power LWA at Mid speed [dB (A)]

49,2
Breakout sound power LWA at Min speed [dB (A)]

38,6
breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]

32,7
Breakout sound pressure at 3m at Max speed Lp [dB (A)]

35,9
breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]

27,6
Breakout sound pressure at 3m at Mid speed Lp [dB (A)]

28,7
breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]

19,6
Breakout sound pressure at 3m at Min speed Lp [dB (A)]

18
Max airflow at Max speed (l/s)

72
Max airflow at Max speed (m³/h)

260
Max airflow at Max speed at 60 Hz (l/s)

67
Max airflow at Max speed at 60 Hz (m³/h)

240
Max airflow at Mid speed (m³/h)

215
Max airflow at Mid speed at 60 Hz (l/s)

58
Max airflow at Mid speed at 60 Hz (m³/h)

210
Max airflow at Min speed (l/s)

60
Max airflow at Min speed at 60 Hz (l/s)

32
Max airflow at Min speed at 60 Hz (m³/h)

115

Max pressure at 60 Hz (mmH2O)

40,6
Max pressure at Max speed (mmH20)

35,3
Max pressure at Max speed (Pa)

346
Max pressure at Max speed at 60Hz (Pa)

398
Max pressure at Mid speed (mmH2O)

35,1
Max pressure at Mid speed (Pa)

344
Max pressure at Mid speed at 60Hz (mmH2O)

36,2
Max pressure at Mid speed at 60Hz (Pa)

355
Max pressure at Min speed at 60Hz (mmH2O)

13,6
Max pressure at Min speed at 60Hz (Pa)

133
Max RPM

2135
Max speed at 60 Hz (Rpm)

2000
Mid speed at 60 Hz (Rpm)

1720
Min RPM

880
Min speed at 60 Hz (Rpm)

995
Potenza sonora at supply side at Min speed LWA [dB (A)]

57,3
Pressure at 1st speed (mmH20)

12,2
Pressure at 1st speed (Pa)

120
RPM at Mid speed

1800
Sound power at extract side at Max speed LWA [dB (A)]

84,5
Sound power at extract side at Mid speed LWA [dB (A)]

76,9
Sound power at extract side at Min speed LWA [dB (A)]

60,4
Sound power at supply side at Max speed LWA [dB (A)]

81,4
Sound power at supply side at Mid speed LWA [dB (A)]

73,7
Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]

80,4
Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]

75,6
Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]

62,3
Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]

77,6
Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]

72,5
Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]

60
Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]

62,8
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]

67
Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]

55
Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]

59,4
Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]

44,8
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]

42,9
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]

64,2
Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]

56,2
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]

39,8
Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]

60,1
Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]

58,1
Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]

42,4

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
