Code 16090

CA 315 V0 SE

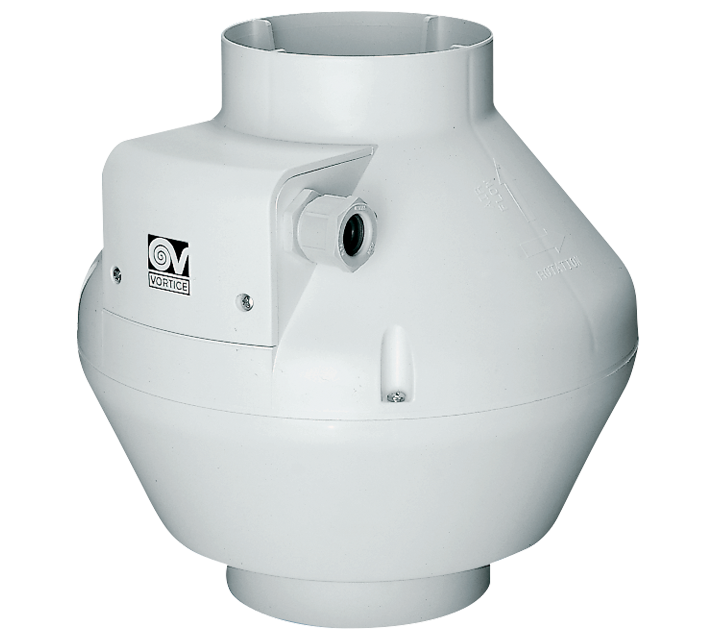

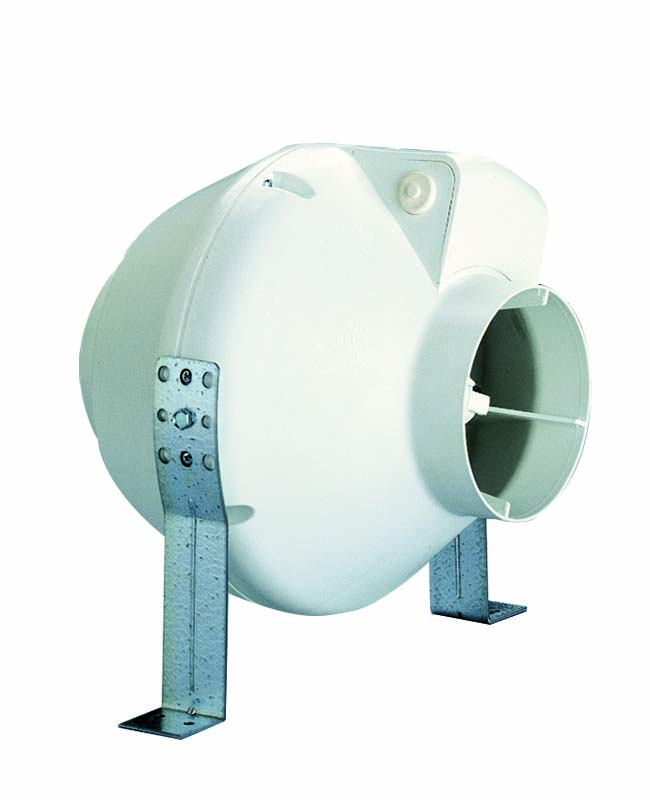

In-line centrifugal fans in self-extinguishing plastic

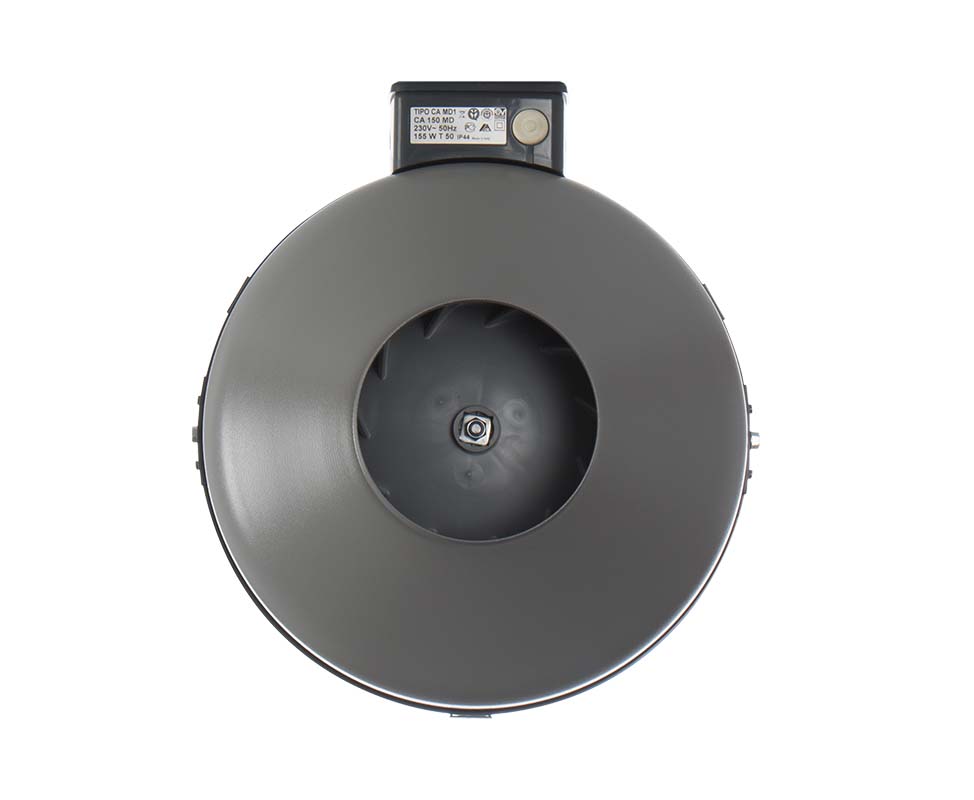

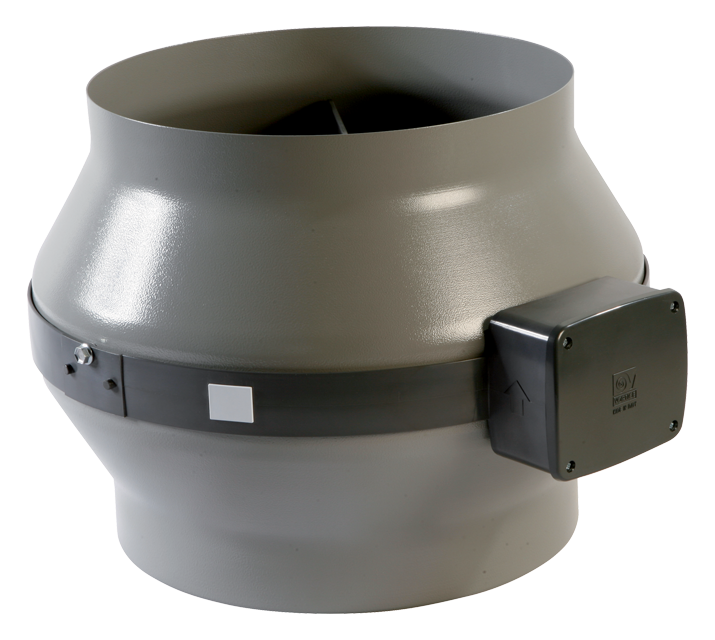

ca_md_e_01

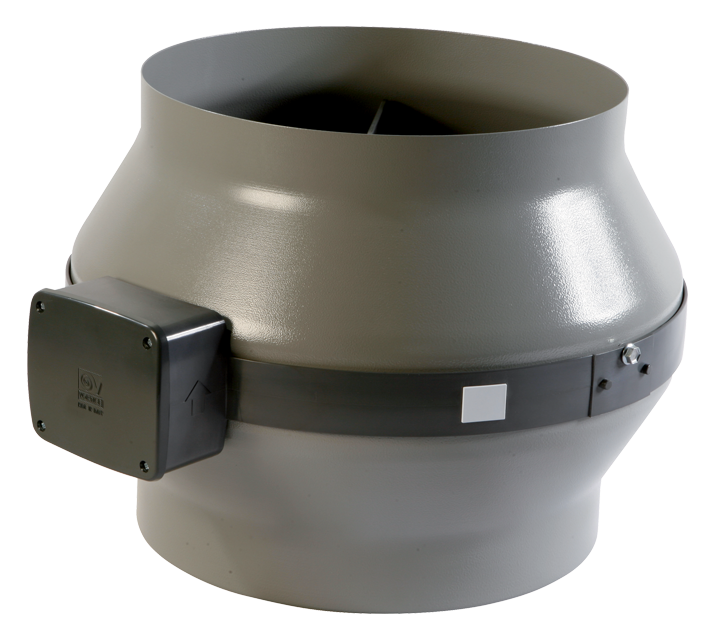

ca_md_e_02

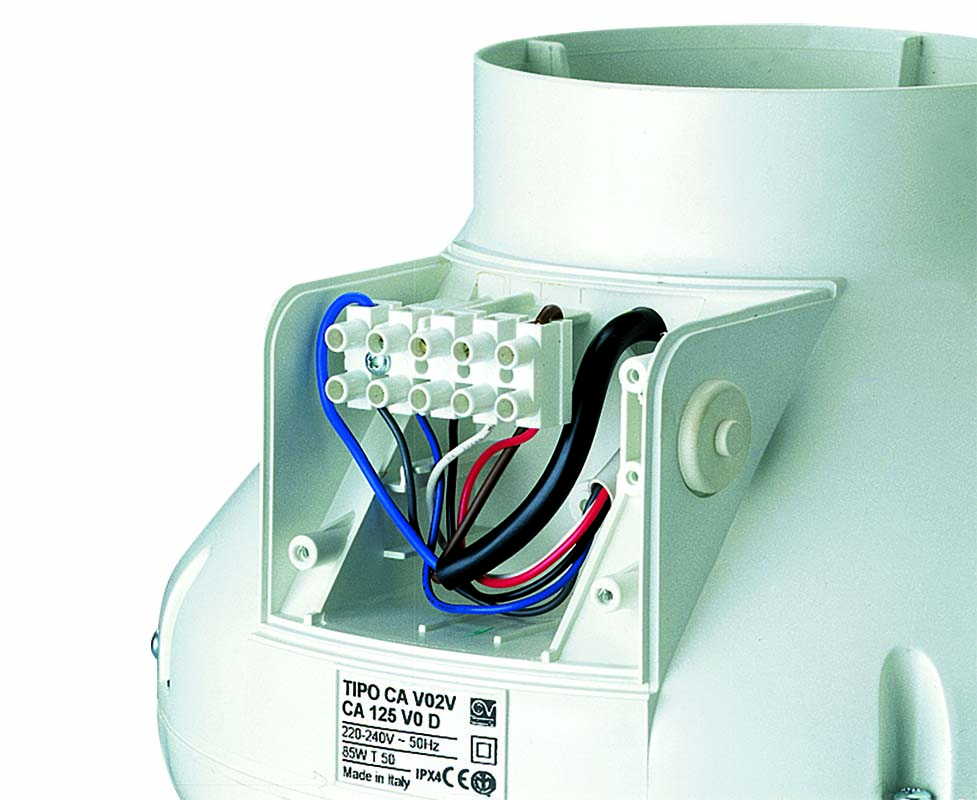

ca_V0_e_01

Description

• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 315 mm.
• Motor-fan, speed adjustable through IRM5 2B optional control (cod. 12861), consisting of:

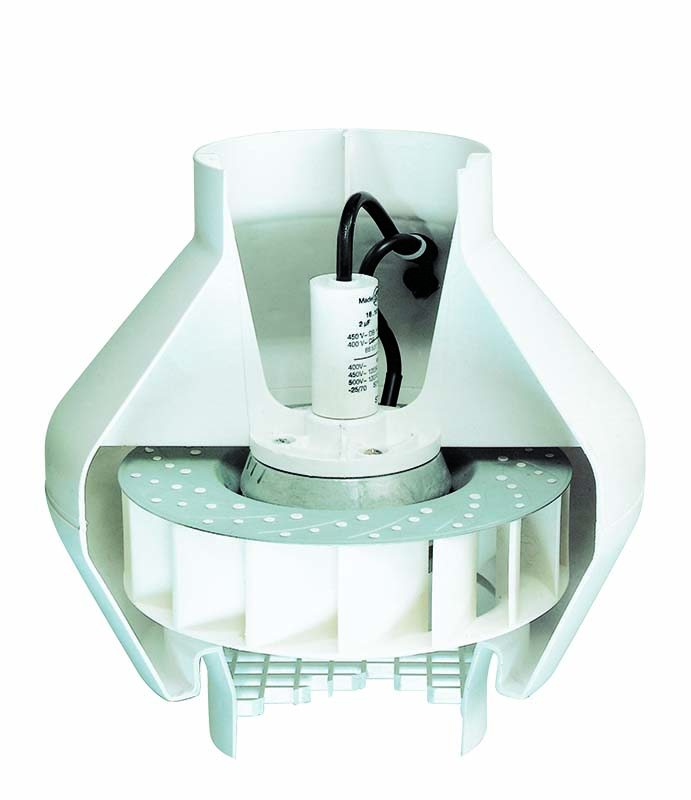

o AC motor with thermal overload cutout and shaft turning in ball bearings,
o backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description
ca_md_e_ambiente01
ca_V0_e_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current (A)
    0,85
  • Max absorbed power (W)
    195
  • Max absorbed Power at 60 Hz (W)
    283
  • Max ambient temperature for continuous operation (°C)
    45
  • Nominal diameter (mm)
    315
  • Voltage (V)
    220-240
  • Weight (Kg)
    6,6
  • Max airflow at Max speed (l/s)
    433
  • Max airflow at Max speed (m³/h)
    1560
  • Max pressure at Max speed (mmH20)
    66
  • Max pressure at Max speed (Pa)
    649
  • Max RPM
    2790
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    64


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint (W/m3/s)
    247,6
  • Heat recovery nominal efficiency (%)
    NA
  • ([m3/s)
    0,375
  • Real absorbed electric power (KW)
    0,219
  • Face velocity at nominal airflow (m/s)
    4,811
  • Nominal external pressure (Pa)
    126
  • Inner pressure drop of ventilation components (Pa)
    92
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    37,3
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    0,5
  • Filter energy performance or classification
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    82

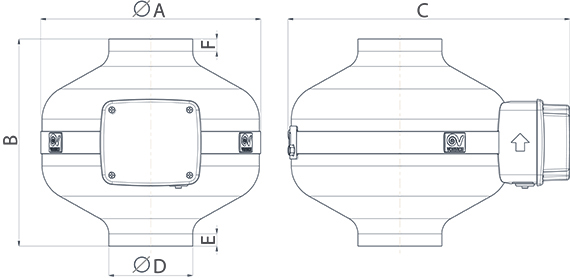

  • Size A (mm)
    ø 400
  • Size B (mm)
    340
  • Size C (mm)
    ø 400
  • Size D (mm)
    ø 312
  • Size E (mm)
    75
  • Size F (mm)
    40
  • Size G (mm)
    438
  • Size H (mm)
    103
