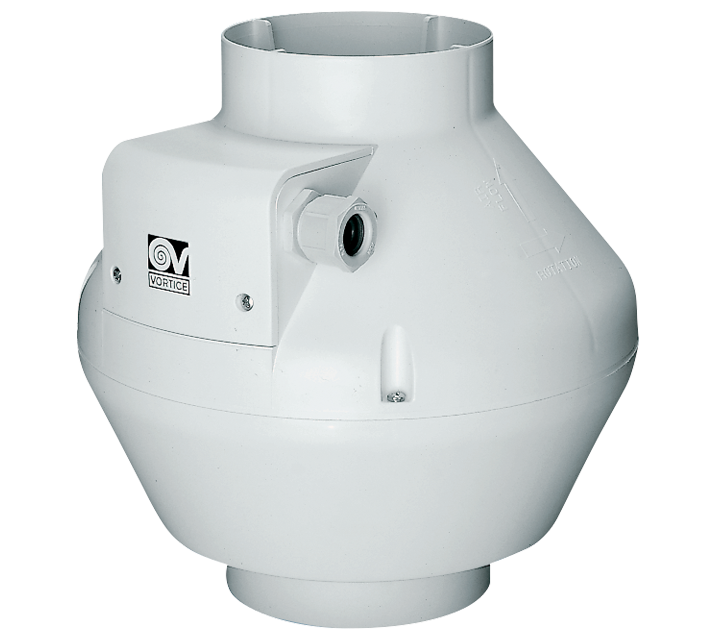

In-line centrifugal fans in self-extinguishing plastic

ca_V0_e_01

Description

• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 200 mm.

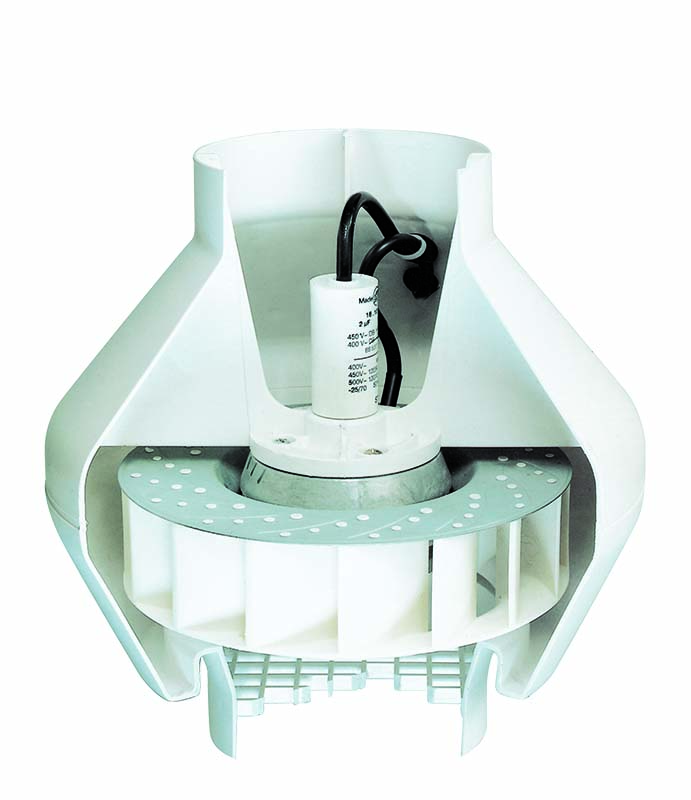

• 3 speed fan consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.

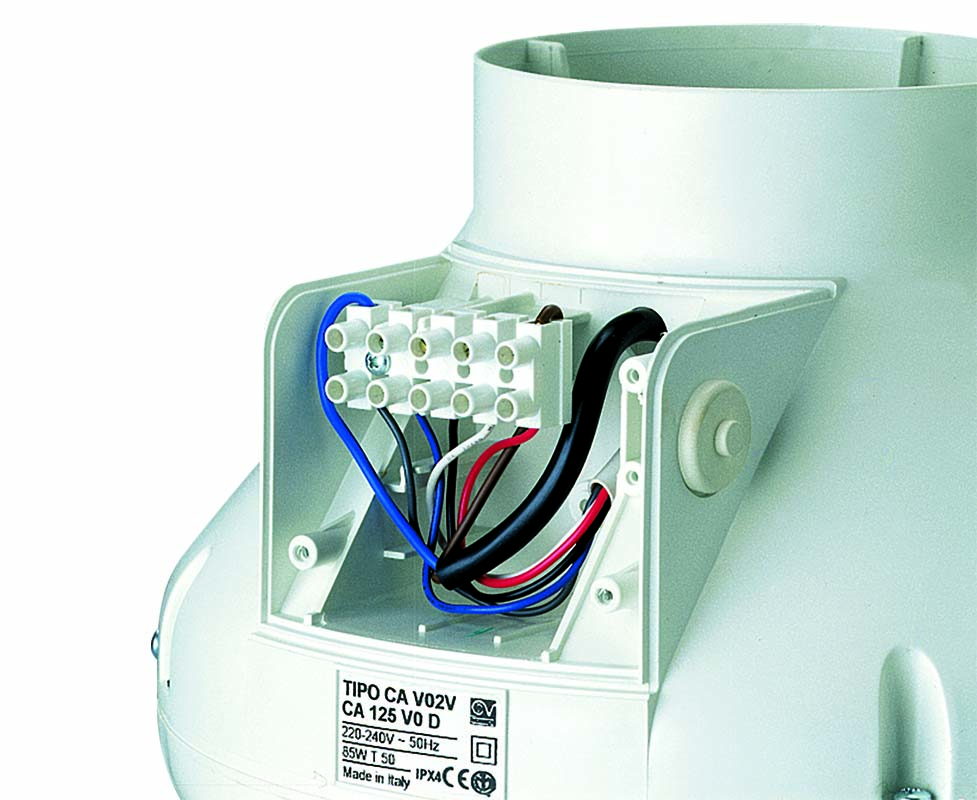

• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.

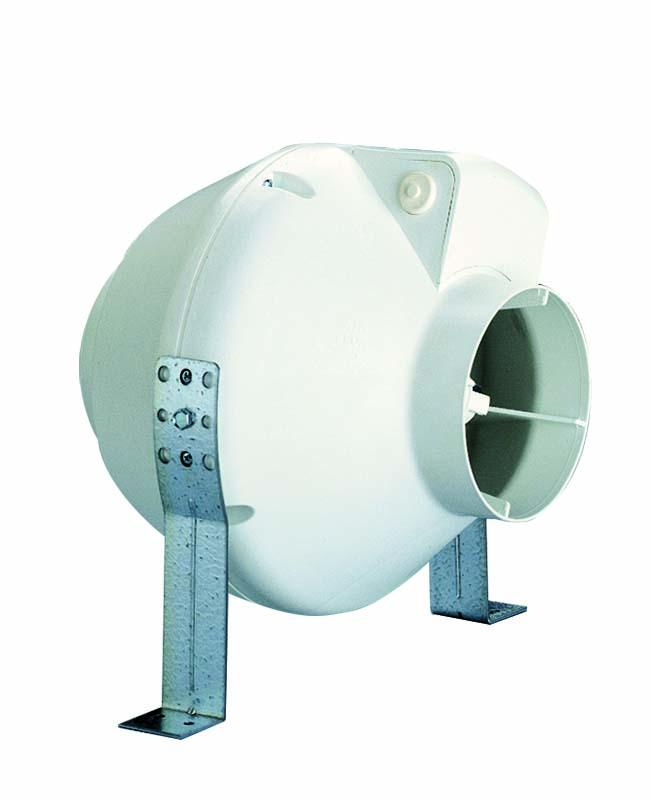

• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

ca_V0_e_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,39
  • Max absorbed current at Max speed (A)
    0,45
  • Max absorbed current at Max speed at 60 Hz (A)
    0,56
  • Max absorbed current at Mid speed (A)
    0,41
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,47
  • Max absorbed current at Min speed (A)
    0,35
  • Max absorbed power at Max speed (W)
    90
  • Max absorbed power at Max speed at 60 Hz (W)
    120
  • Max absorbed power at Mid speed (W)
    58
  • Max absorbed power at Mid speed at 60 Hz (W)
    70
  • Max absorbed power at Min speed at 60 Hz (W)
    50
  • Max ambient temperature for continuous operation (°C)
    45
  • Nominal diameter (mm)
    200
  • Ø Discharge hole (mm)
    195
  • Power absorbed at 1st speed (W)
    37
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,5
  • Airflow at 1st speed (l/s)
    102,8
  • Airflow at 1st speed (m³/h)
    370
  • Breakout sound power LWA at Max speed [dB (A)]
    59,8
  • Breakout sound power LWA at Mid speed [dB (A)]
    51,1
  • Breakout sound power LWA at Min speed [dB (A)]
    44,3
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    39,3
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    30,6
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    23,8
  • Max airflow at Max speed (l/s)
    226,4
  • Max airflow at Max speed (m³/h)
    815
  • Max airflow at Max speed at 60 Hz (l/s)
    244,4
  • Max airflow at Max speed at 60 Hz (m³/h)
    880
  • Max airflow at Mid speed (m³/h)
    560
  • Max airflow at Mid speed at 60 Hz (l/s)
    155,5
  • Max airflow at Mid speed at 60 Hz (m³/h)
    540
  • Max airflow at Min speed (l/s)
    154,2
  • Max airflow at Min speed at 60 Hz (l/s)
    113,9
  • Max airflow at Min speed at 60 Hz (m³/h)
    410
  • Max pressure at 60 Hz (mmH2O)
    58,4
  • Max pressure at Max speed (mmH20)
    45
  • Max pressure at Max speed (Pa)
    441,3
  • Max pressure at Max speed at 60Hz (Pa)
    572,7
  • Max pressure at Mid speed (mmH2O)
    40,9
  • Max pressure at Mid speed (Pa)
    401,1
  • Max pressure at Mid speed at 60Hz (mmH2O)
    33,2
  • Max pressure at Mid speed at 60Hz (Pa)
    325,6
  • Max pressure at Min speed at 60Hz (mmH2O)
    19,2
  • Max pressure at Min speed at 60Hz (Pa)
    188,3
  • Max RPM
    2480
  • Max speed at 60 Hz (Rpm)
    2660
  • Mid speed at 60 Hz (Rpm)
    1550
  • Min RPM
    1220
  • Min speed at 60 Hz (Rpm)
    1320
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    47,4
  • Pressure at 1st speed (mmH20)
    19,7
  • Pressure at 1st speed (Pa)
    193,2
  • RPM at Mid speed
    1720
  • Sound power at extract side at Max speed LWA [dB (A)]
    65,3
  • Sound power at extract side at Mid speed LWA [dB (A)]
    55,6
  • Sound power at extract side at Min speed LWA [dB (A)]
    48,1
  • Sound power at supply side at Max speed LWA [dB (A)]
    66
  • Sound power at supply side at Mid speed LWA [dB (A)]
    56,1
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    47,8
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    38,1
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    30,6
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    48,5
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    38,6
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    29,9


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Supplier's name or trade mark
    Vortice
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • AEC annual electric energy consuption (kWh of primary energy/y)
    273,94
  • SFPint (W/m3/s)
    382,78
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • Heat recovery nominal efficiency (%)
    NA
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,17028
  • ([m3/s)
    0,21389
  • Real absorbed electric power (KW)
    0,089
  • Effective electic power input [kW]
    0,112
  • Face velocity at nominal airflow (m/s)
    6,8083
  • Face velocity at nominal flowrate (m/s)
    5,4201
  • Nominal external pressure (Pa)
    135
  • Nominal external pressure (Pa)
    12
  • Inner pressure drop of ventilation components (Pa)
    135
  • Internal pressure drop of ventilation components (Pa)
    97
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    35,3
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    35,3
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    0,5
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    0,5
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    75
  • Casing sound power level (LWA) [dB(A)]
    60
  • Size A (mm)
    340
  • Size B (mm)
    280
  • Size C (mm)
    340
  • Size D (mm)
    197
  • Size E (mm)
    40
  • Size F (mm)
    30
  • Size G (mm)
    390

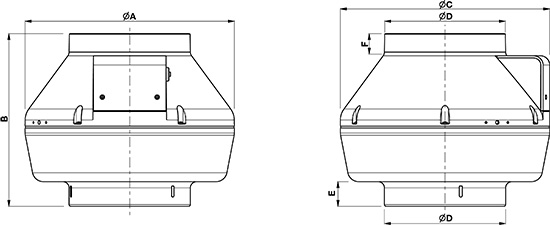

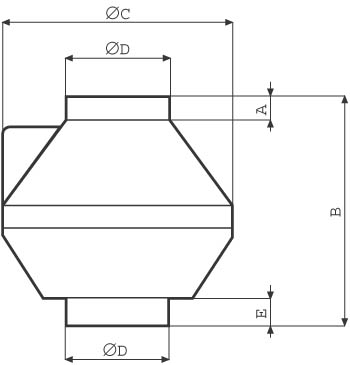

quota

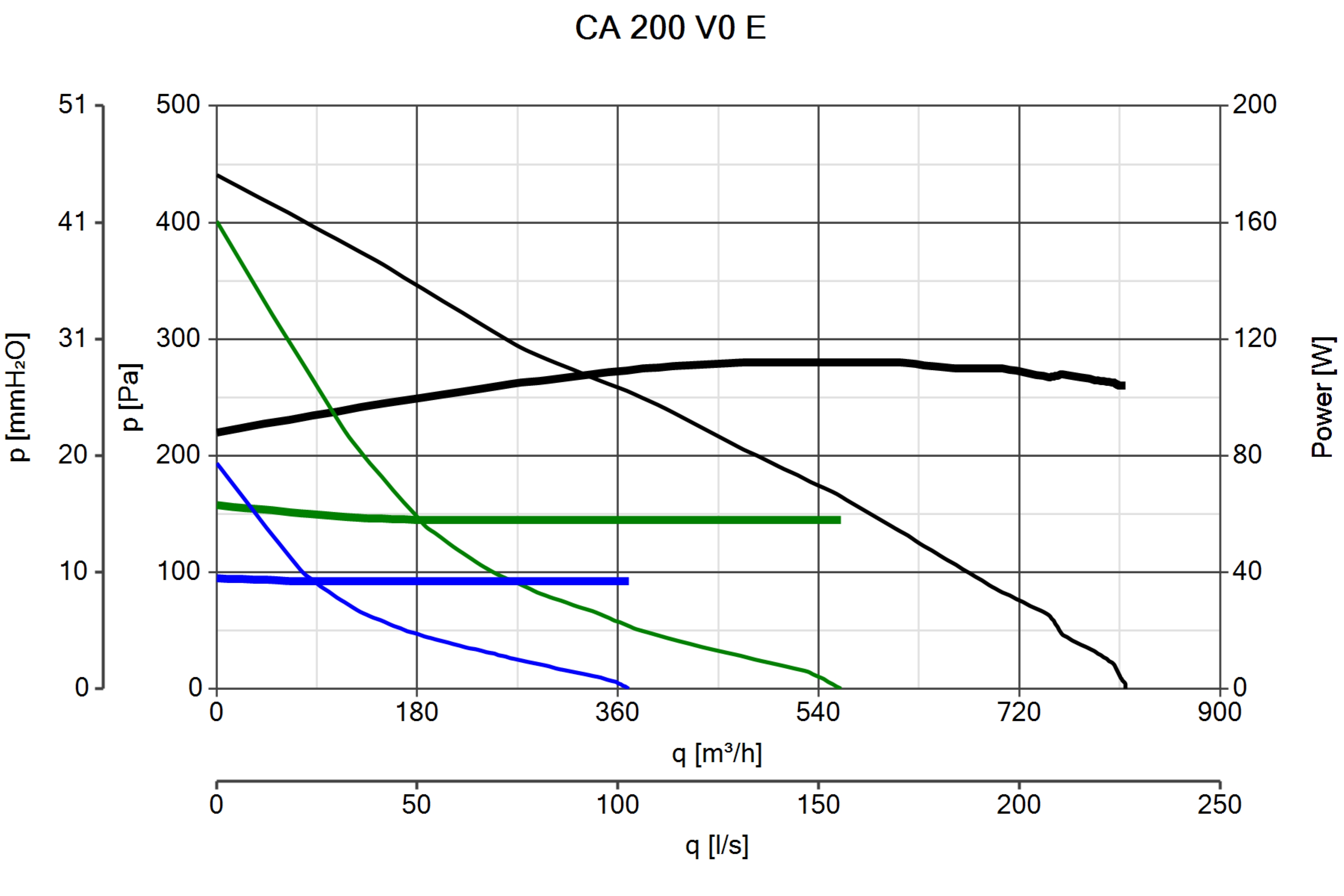

Curva_JPG_16038-Curve_per_Catalogo
