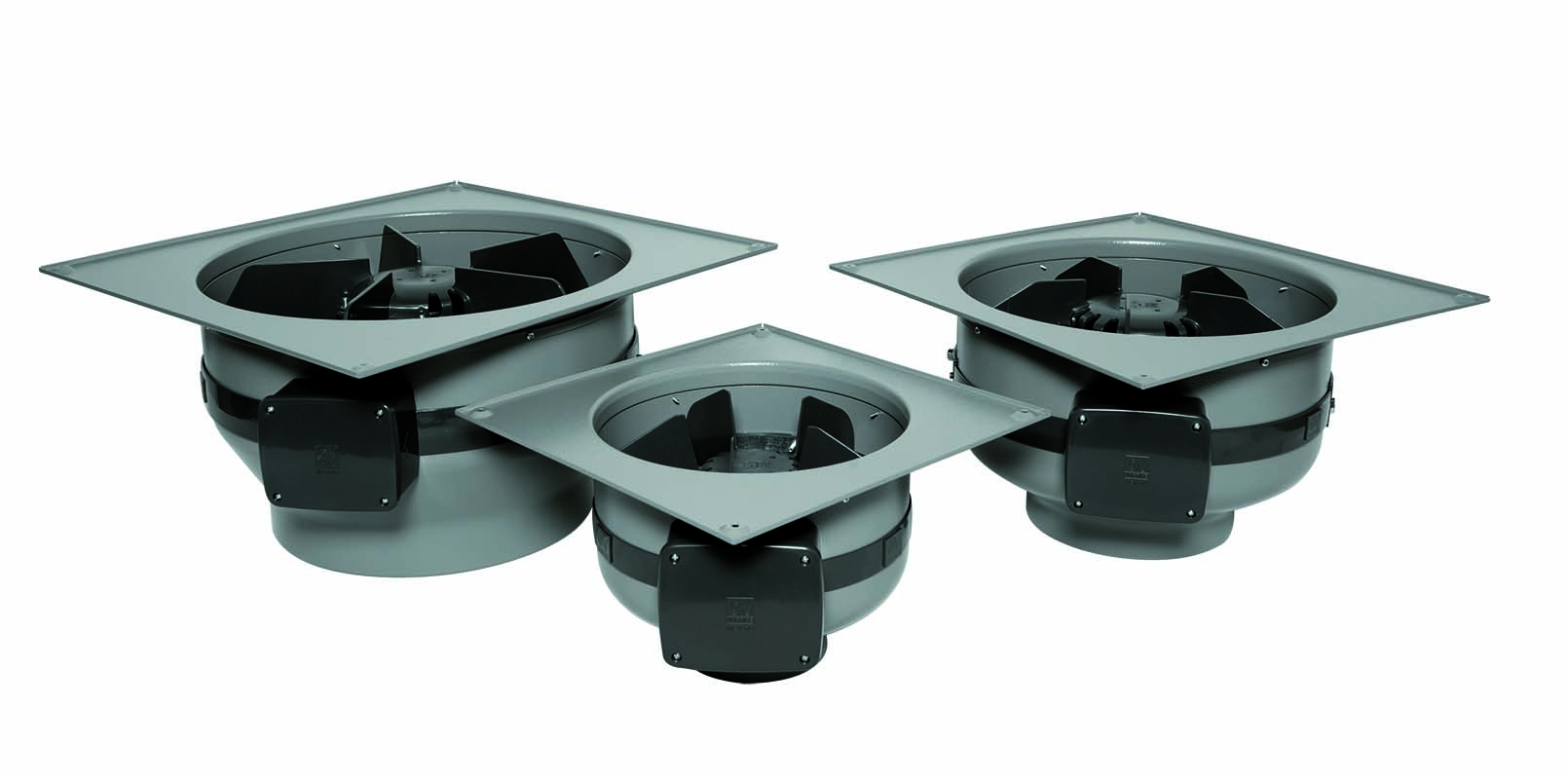

CA 315 MD SE W

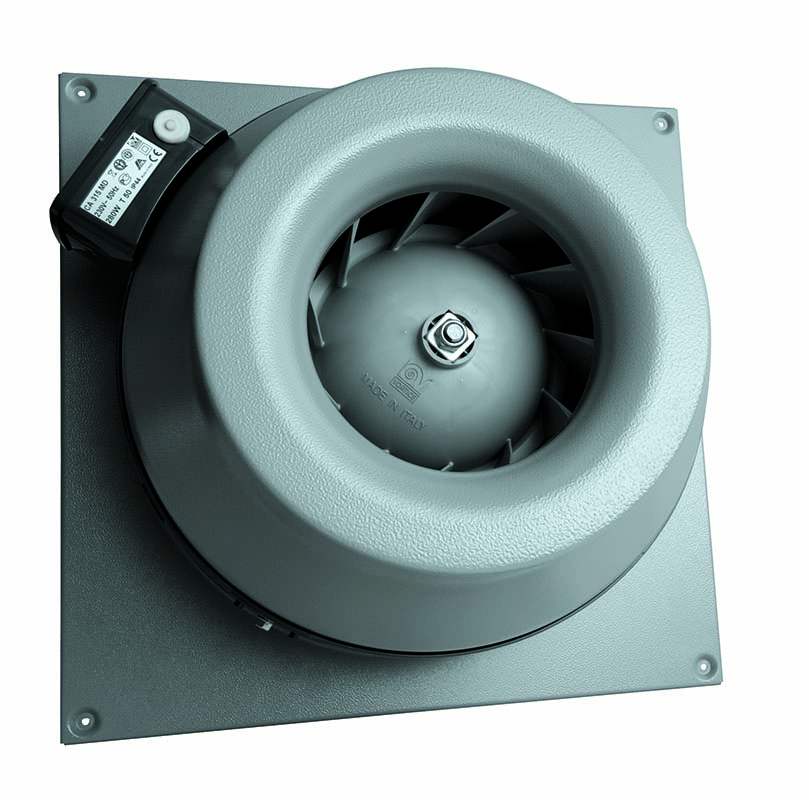

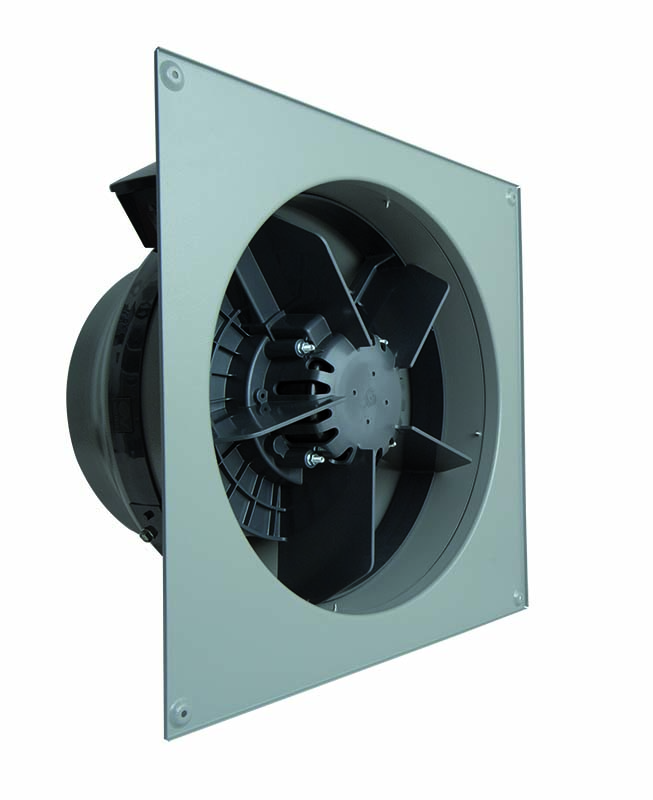

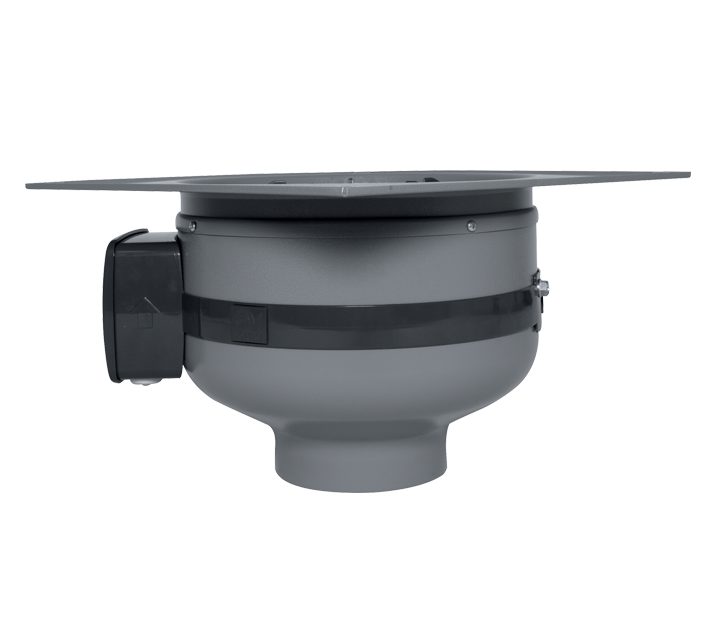

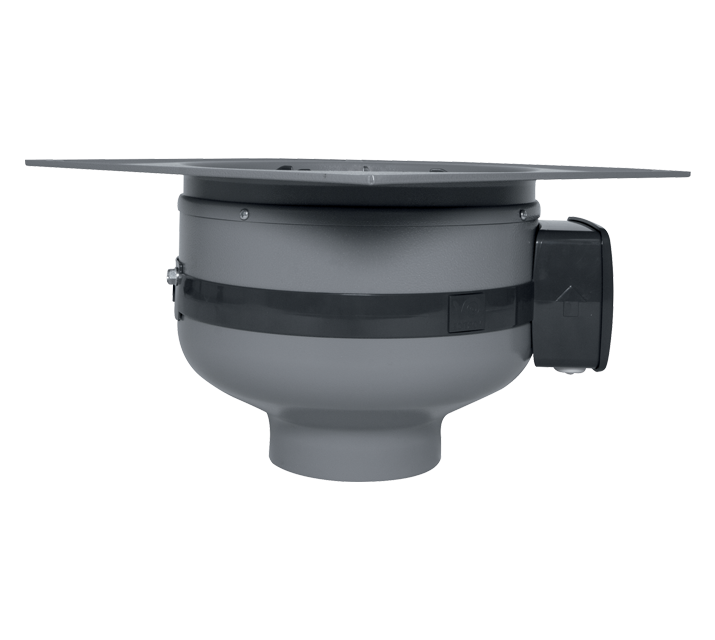

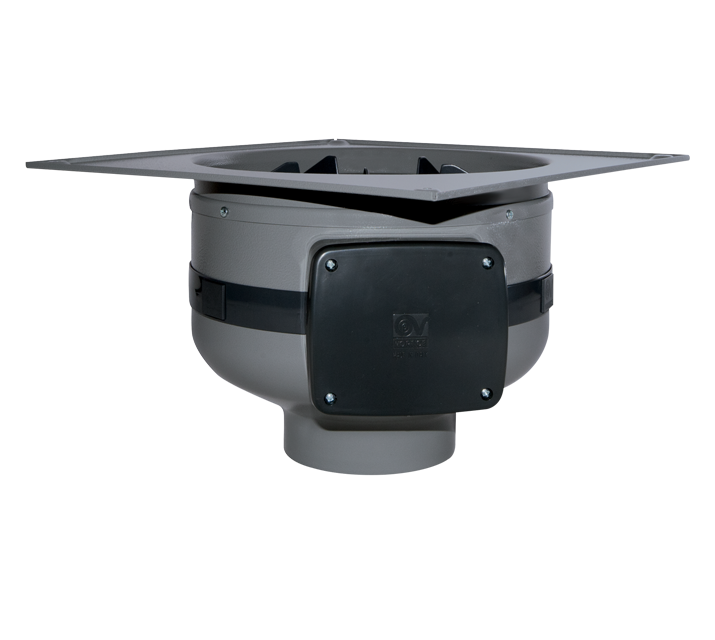

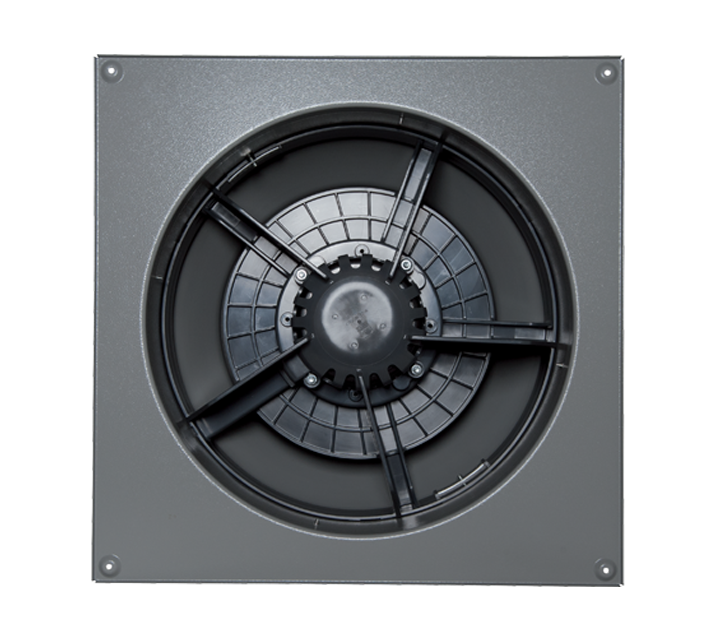

Description

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 315 mm.
• Motor-fan, speed adjustable through IRM5 2B optional control (cod. 12861), consisting of:
o AC motor with thermal overload cutout and shaft turning in ball bearings,
o backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• IMQ SAFETY and IMQ PERFORMANCE certifications.

Read full descriptionClose description

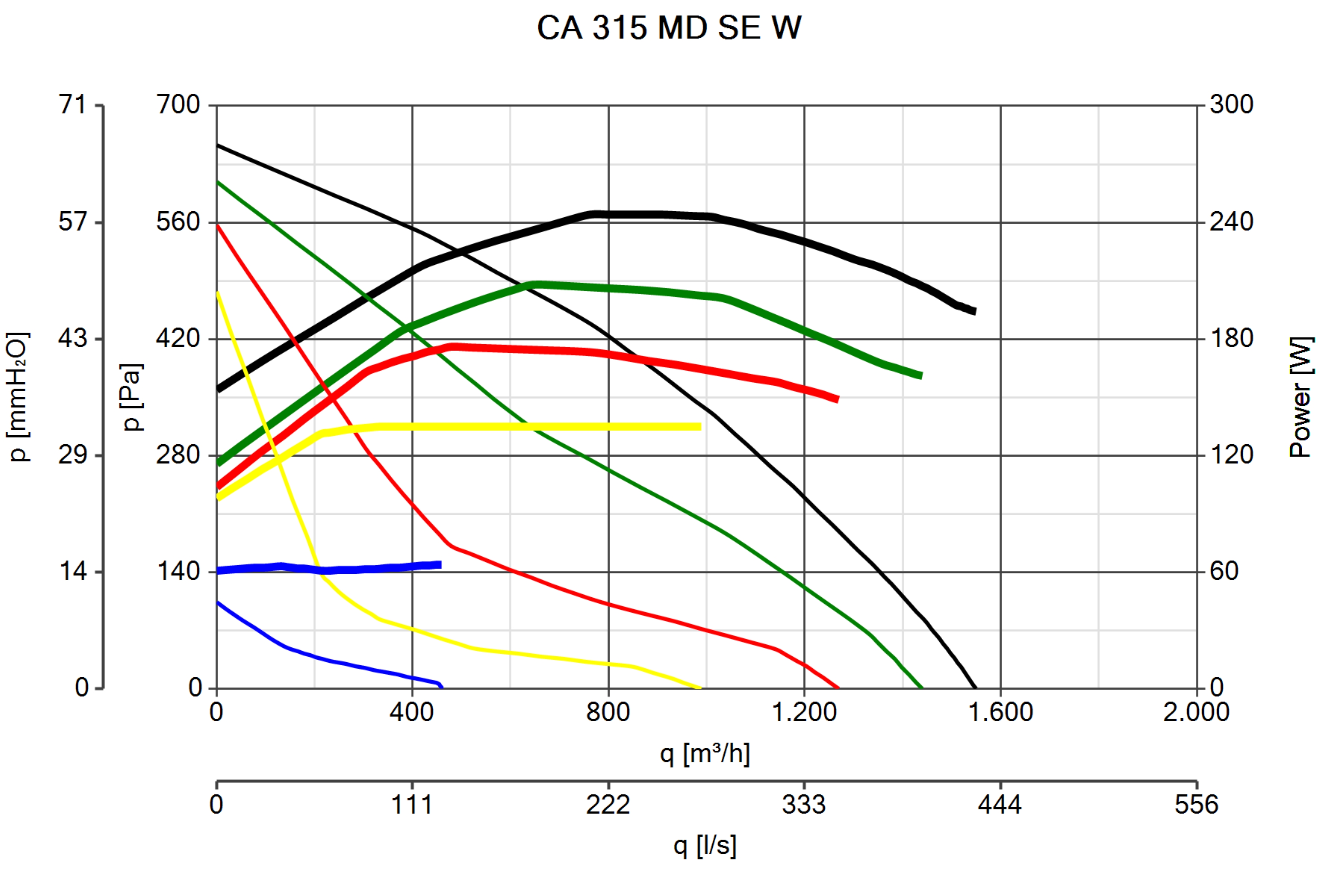

Technical Data Sheet

Frequency (Hz)

50-60
Insulation class

II°
IP

44
Max absorbed current (A)

0,84
Max absorbed power (W)

190
Max absorbed Power at 60 Hz (W)

285
Max ambient temperature for continuous operation (°C)

45
Nominal diameter (mm)

315

Voltage (V)

220-240
Weight (Kg)

6,6
Max airflow at Max speed (l/s)

430
Max airflow at Max speed (m³/h)

1550
Max pressure at Max speed (mmH20)

67
Max pressure at Max speed (Pa)

653
Max RPM

2800
Sound pressure at 3m at Max speed Lp [dB (A)]

54

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

Type of heat recovery system HRS

nessuno
Drive type

a velocità multiple: VM
Declared type

UVNR-U
Supplier's name or trade mark:

Vortice
SFPint (W/m3/s)

206,48
Heat recovery nominal efficiency (%)

NA
([m3/s)

0,379
Real absorbed electric power (KW)

0,216
Face velocity at nominal airflow (m/s)

4,8582
Nominal external pressure (Pa)

135
Inner pressure drop of ventilation components (Pa)

75
Inner pressure drop of components not related to ventilation (Pa)

0
Fan static efficiency according to 327/2011/UE regulation (%)

37
Declared maximum internal leakage rate of the ventilation unit casing (%)

NA
Declared maximum external leakage rate of the ventilation unit casing (%)

0,5
Filter energy performance or classification

NA
Description of visual filter warning:

NA
Casing sound power level LWA [dB(A)]

71

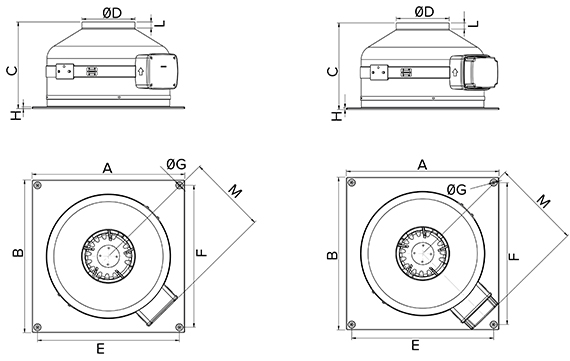

Size A (mm)

489
Size B (mm)

489
Size C (mm)

268
Size D (mm)

ø 312
Size E (mm)

459
Size F (mm)

459
Size G (mm)

ø 5
Size H (mm)

5
Size L (mm)

42
Size M (mm)

252
