Description

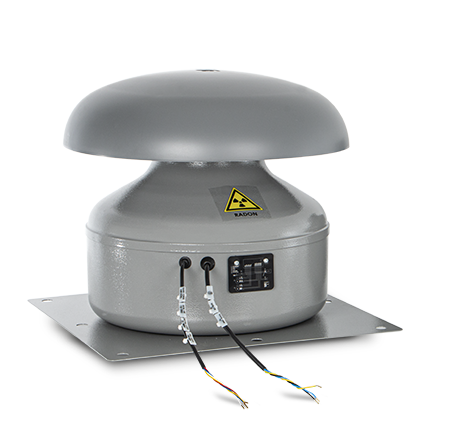

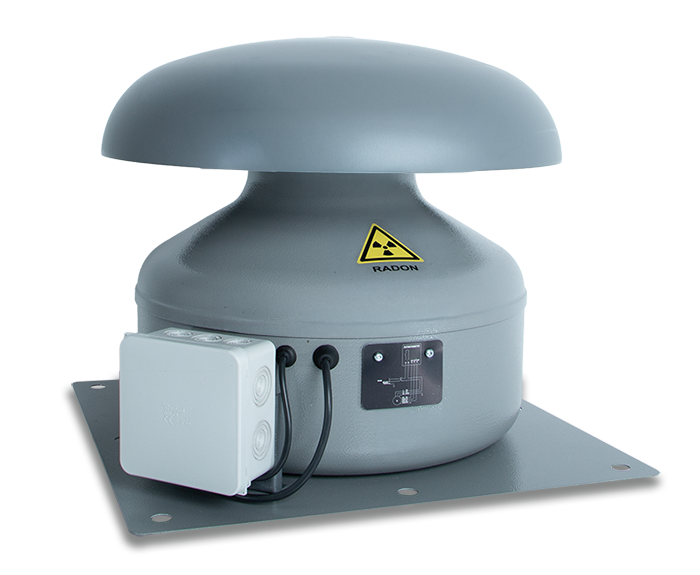

CA-RM 200 RF ES is a centrifugal extractor fan specifically designed for the mitigation of RADON gas.
Product is designed for roof installation and boasts a very high (IPX5) degree of protection against water, which makes it particularly suitable for installation at the end of vertical ventilation ducts.

• Enclosures made of epoxy powder coated sheet steel, glued using water and light resistant epoxy resins, to guarantee perfect sealing over time.
• Motor support made of galvanized sheet steel integrating the flow rectifiers, with optimized geometry to maximize fan performance, reducing pressure drops and noise emissions caused by turbulence.
• Centrifugal fan consisting of a centrifugal impeller with backward blades, designed to ensure high pressure with low consumption for the continuous operation, 7/24, of the product. Electronically controlled motor (EC brushless), the same technology adopted by the most modern electric cars, speed adjustable through 0-10 V signal and virtually maintenance-free.
• Remote control panel (available as optional) for wall installation, with wired connection, LCD display and access door with lock, to prevent inappropriate alterations on system settings. The device allows:
• the independent setting of the performance provided by up to 2 fans,
• the control of its correct power supply,
• the monitoring of regular fans operation,
• the control of the regular flow of extracted air (if the flow switch , available as optional, is installed),
• to program, on an hourly basis and weekly scale, the fans operation,
• to notify, by means of an acoustic signal and showing error codes on the display, of any system malfunctions. The device is also set up for connecting external alarm sirens.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
  • IP
    45
  • Max absorbed current at 10V (A)
    1,20
  • Max absorbed current at 4V (A)
    0,22
  • Max absorbed current at 6V (A)
    0,55
  • Max absorbed current at 8V (A)
    1
  • Max absorbed power at 10V (W)
    160
  • Max absorbed power at 4V (W)
    24
  • Max absorbed power at 6V (W)
    65
  • Max absorbed power at 8V (W)
    140
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    200
  • Voltage (V)
    220-240
  • Weight (Kg)
    7,9
  • Breakout sound power at 10V Lw [dB (A)]
    73,5
  • Breakout sound power at 4V Lw [dB (A)]
    57,4
  • Breakout sound power at 6V Lw [dB (A)]
    66,8
  • Breakout sound power at 8V Lw [dB (A)]
    72,4
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    53
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    36,8
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    46,3
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    51,8
  • Max airflow at 10V (l/s)
    274
  • Max airflow at 10V (m³/h)
    985
  • Max airflow at 4V (l/s)
    136
  • Max airflow at 4V (m³/h)
    490
  • Max airflow at 6V (l/s)
    200
  • Max airflow at 6V (m³/h)
    720
  • Max airflow at 8V (l/s)
    263
  • Max airflow at 8V (m³/h)
    945
  • Max pressure at 10V (Pa)
    1040
  • Max pressure at 4V (Pa)
    186
  • Max pressure at 6V (Pa)
    392
  • Max pressure at 10V (mmH2O)
    106
  • Max pressure at 4V (mmH2O)
    19
  • Max pressure at 6V (mmH2O)
    40
  • Max pressure at 8V (mmH2O)
    71
  • Max pressure at 8V (Pa)
    696
  • RPM at 10V
    3250
  • RPM at 4V
    1615
  • RPM at 6V
    2350
  • RPM at 8V
    3075
  • Sound power at extract side at 10V speed LWA [dB (A)]
    76,1
  • Sound power at extract side at 4V speed LWA [dB (A)]
    60,3
  • Sound power at extract side at 6V speed LWA [dB (A)]
    67,7
  • Sound power at extract side at 8V speed LWA [dB (A)]
    75,7
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    58,6
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    42,7
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    50,2
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    58,2


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    con variatore di velocità: VSD
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint (W/m3/s)
    356,05
  • Heat recovery nominal efficiency (%)
    NA
  • ([m3/s)
    0,273
  • Real absorbed electric power (KW)
    0,159
  • Face velocity at nominal airflow (m/s)
    8,691
  • Nominal external pressure (Pa)
    99
  • Inner pressure drop of ventilation components (Pa)
    156
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    43,8
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    NA

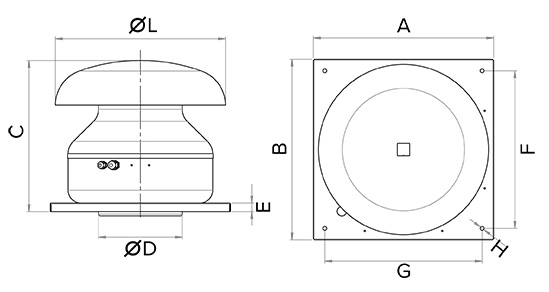

  • Size A (mm)
    420
  • Size B (mm)
    420
  • Size C (mm)
    336
  • Size D (mm)
    Ø 197
  • Size E (mm)
    29
  • Size F (mm)
    370
  • Size G (mm)
    370
  • Size H (mm)
    15,5
  • Size L (mm)
    Ø 400
quota

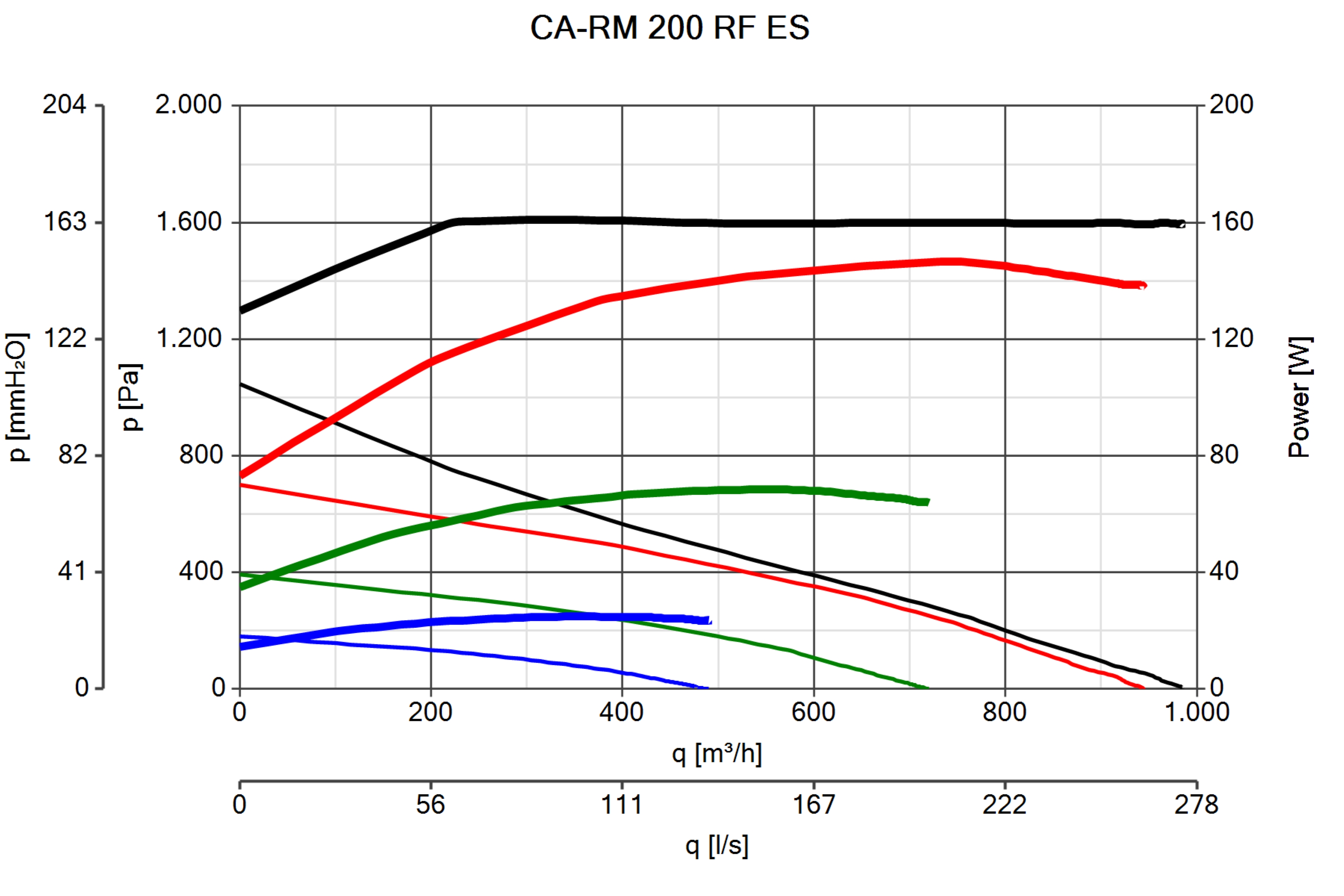

Curva_JPG_16259-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.

Accessories

Discover accessories related to the product

VORT SICURBOX
VORT SICURBOX

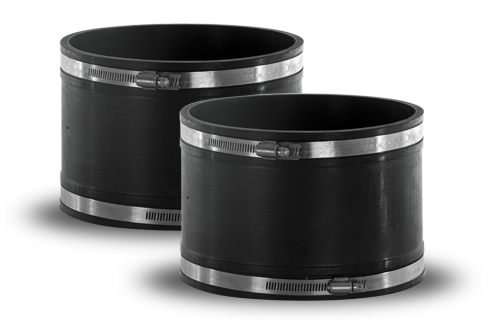

KIT FSG 200
KIT FSG 200

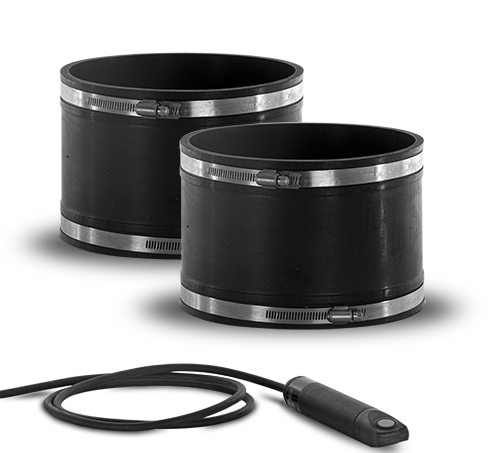

KIT FSG-FLS 200
