Code 16185

CA 200 MD E RF

Centrifugal duct fans for roof mounting

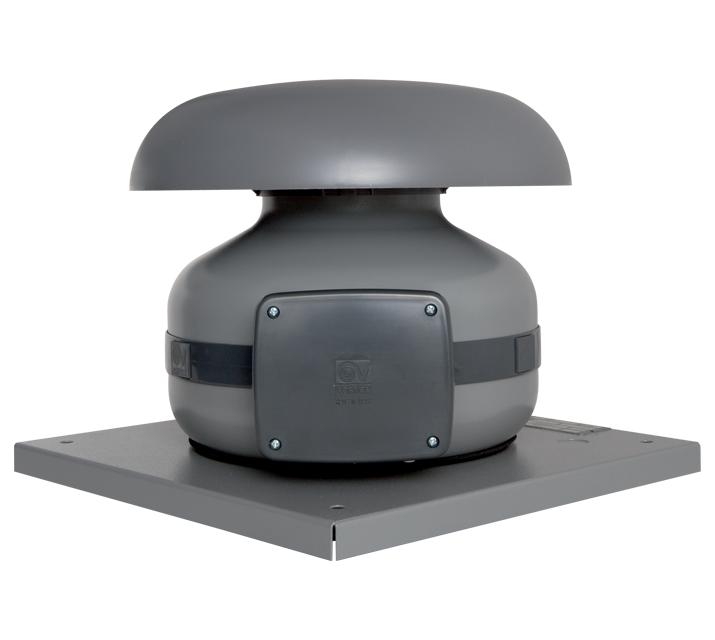

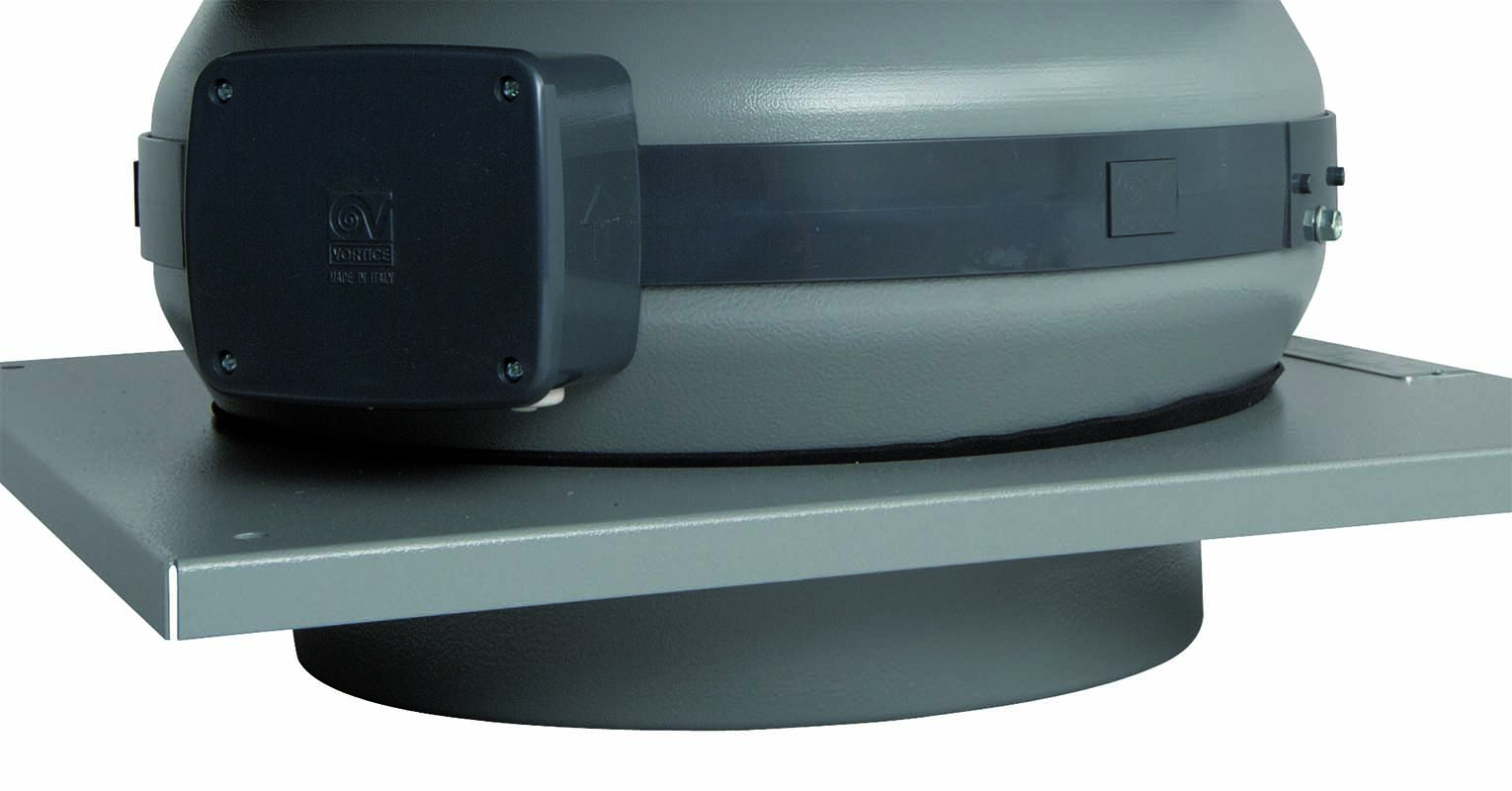

ca_md_e_rf_01

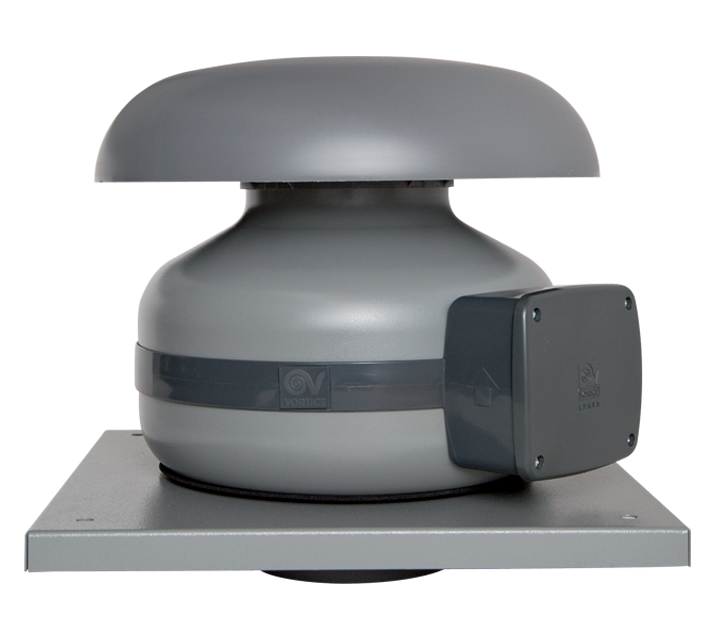

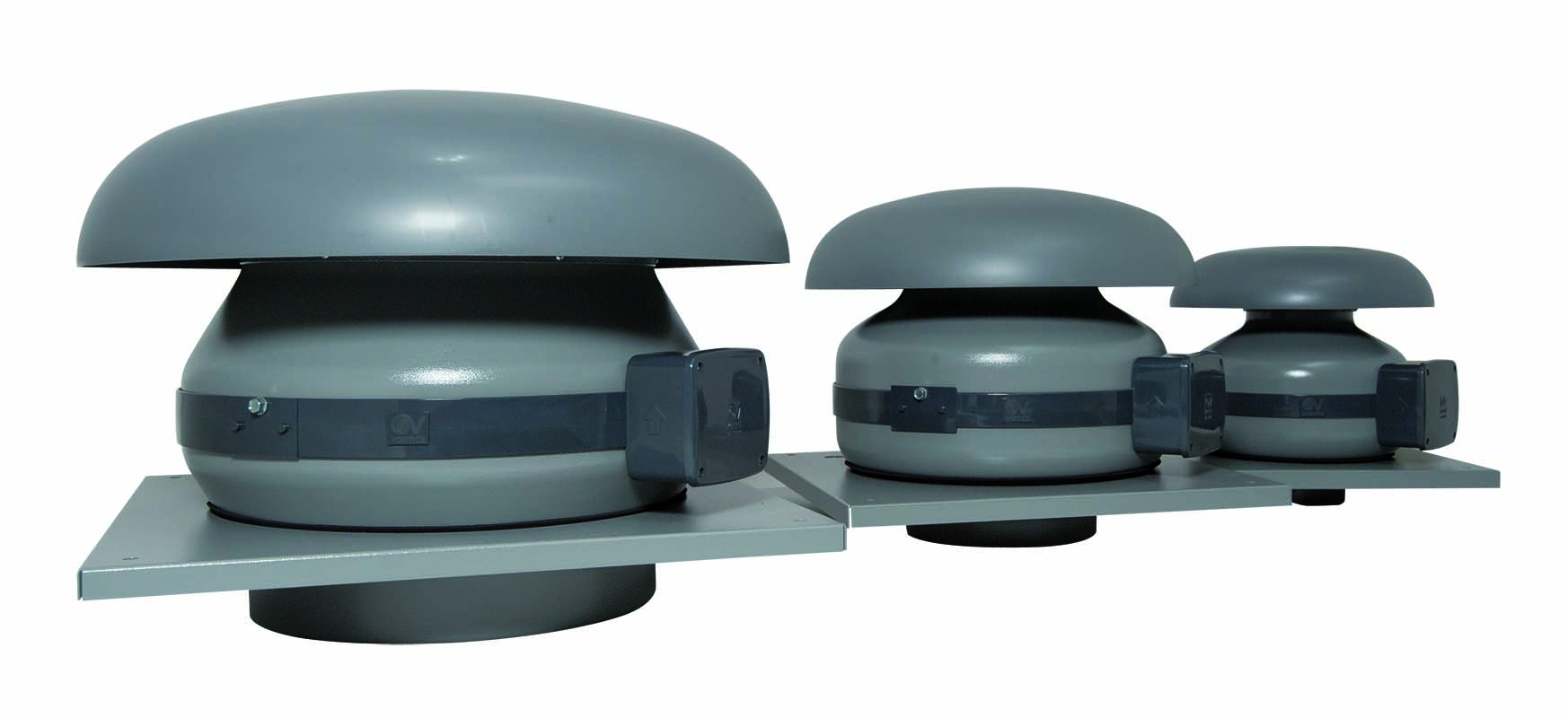

ca_md_e_rf_02

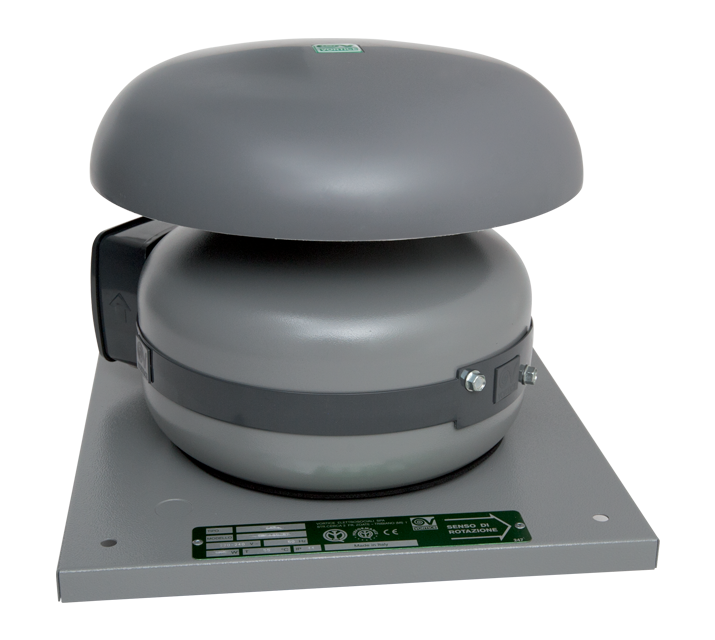

ca_md_e_rf_03

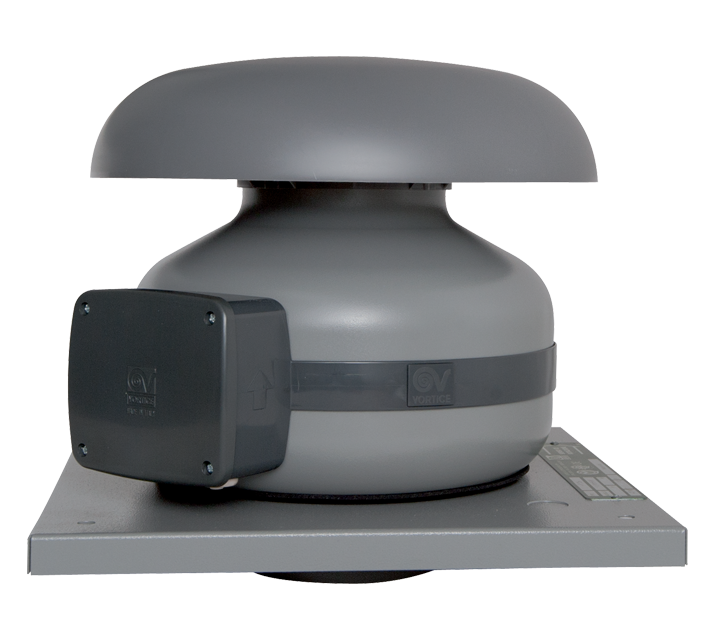

ca_md_e_rf_04

Description

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 200 mm.
• 3 speed fan through TRIO-CA optional control (cod. 12869), consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel fixing brackets.
Read full descriptionClose description

Certifications

ca_md_e_rf_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,39
  • Max absorbed current at Max speed (A)
    0,42
  • Max absorbed current at Max speed at 60 Hz (A)
    0,51
  • Max absorbed current at Mid speed (A)
    0,40
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,45
  • Max absorbed current at Min speed (A)
    0,34
  • Max absorbed power at Max speed (W)
    69
  • Max absorbed power at Max speed at 60 Hz (W)
    82
  • Max absorbed power at Mid speed (W)
    53
  • Max absorbed power at Mid speed at 60 Hz (W)
    64
  • Max absorbed power at Min speed at 60 Hz (W)
    45
  • Max ambient temperature for continuous operation (°C)
    55
  • Nominal diameter (mm)
    200
  • Power absorbed at 1st speed (W)
    35
  • Voltage (V)
    220-240
  • Weight (Kg)
    9,6
  • Airflow at 1st speed (l/s)
    97
  • Airflow at 1st speed (m³/h)
    350
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    62,7
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    59,6
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    53,9
  • Breakout sound power LWA at Max speed [dB (A)]
    64,5
  • Breakout sound power LWA at Mid speed [dB (A)]
    60,4
  • Breakout sound power LWA at Min speed [dB (A)]
    52,4
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    42,1
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    44
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    39,1
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    39,8
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    33,3
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    31,9
  • Max airflow at Max speed (l/s)
    161
  • Max airflow at Max speed (m³/h)
    580
  • Max airflow at Max speed at 60 Hz (l/s)
    147
  • Max airflow at Max speed at 60 Hz (m³/h)
    530
  • Max airflow at Mid speed (m³/h)
    485
  • Max airflow at Mid speed at 60 Hz (l/s)
    131
  • Max airflow at Mid speed at 60 Hz (m³/h)
    470
  • Max airflow at Min speed (l/s)
    135
  • Max airflow at Min speed at 60 Hz (l/s)
    103
  • Max airflow at Min speed at 60 Hz (m³/h)
    370
  • Max pressure at 60 Hz (mmH2O)
    32.8
  • Max pressure at Max speed (mmH20)
    42,5
  • Max pressure at Max speed (Pa)
    417
  • Max pressure at Max speed at 60Hz (Pa)
    322
  • Max pressure at Mid speed (mmH2O)
    38.8
  • Max pressure at Mid speed (Pa)
    381
  • Max pressure at Mid speed at 60Hz (mmH2O)
    28,7
  • Max pressure at Mid speed at 60Hz (Pa)
    282
  • Max pressure at Min speed at 60Hz (mmH2O)
    25,2
  • Max pressure at Min speed at 60Hz (Pa)
    247
  • Max RPM
    2225
  • Max speed at 60 Hz (Rpm)
    2030
  • Mid speed at 60 Hz (Rpm)
    1800
  • Min RPM
    1360
  • Min speed at 60 Hz (Rpm)
    1425
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    52,4
  • Pressure at 1st speed (mmH20)
    28.2
  • Pressure at 1st speed (Pa)
    277
  • RPM at Mid speed
    1885
  • Sound power at extract side at Max speed LWA [dB (A)]
    84,2
  • Sound power at extract side at Mid speed LWA [dB (A)]
    80,3
  • Sound power at extract side at Min speed LWA [dB (A)]
    72
  • Sound power at supply side at Max speed LWA [dB (A)]
    64,5
  • Sound power at supply side at Mid speed LWA [dB (A)]
    60,4
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    82,2
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    79,1
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    73,4
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    62,7
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    59,6
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    53,9
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    64,6
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    66,7
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    39,1
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    62,7
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    55,9
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    54,4
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    44
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    39,8
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    31,9
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    42,1
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    61,6
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    33,3


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • AEC annual electric energy consuption (kWh of primary energy/y)
    389,74
  • SFPint (W/m3/s)
    389,69
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,15133
  • ([m3/s)
    0,14475
  • Real absorbed electric power (KW)
    0,066
  • Effective electic power input [kW]
    0,070
  • Face velocity at nominal airflow (m/s)
    8,19118
  • Face velocity at nominal flowrate (m/s)
    19,26836
  • Nominal external pressure (Pa)
    26
  • Nominal external pressure (Pa)
    39
  • Inner pressure drop of ventilation components (Pa)
    231
  • Internal pressure drop of ventilation components (Pa)
    141
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    59,2
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    36,1
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    1,29
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    64,5
  • Casing sound power level (LWA) [dB(A)]
    64,3

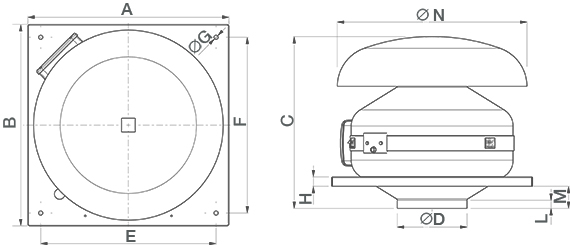

  • Size A (mm)
    424
  • Size B (mm)
    424
  • Size C (mm)
    365
  • Size D (mm)
    ø 197
  • Size E (mm)
    370
  • Size F (mm)
    370
  • Size G (mm)
    ø 9
  • Size H (mm)
    20
  • Size L (mm)
    20
  • Size M (mm)
    49
  • Size N (mm)
    ø 400
  • Size O (mm)
    280
quota

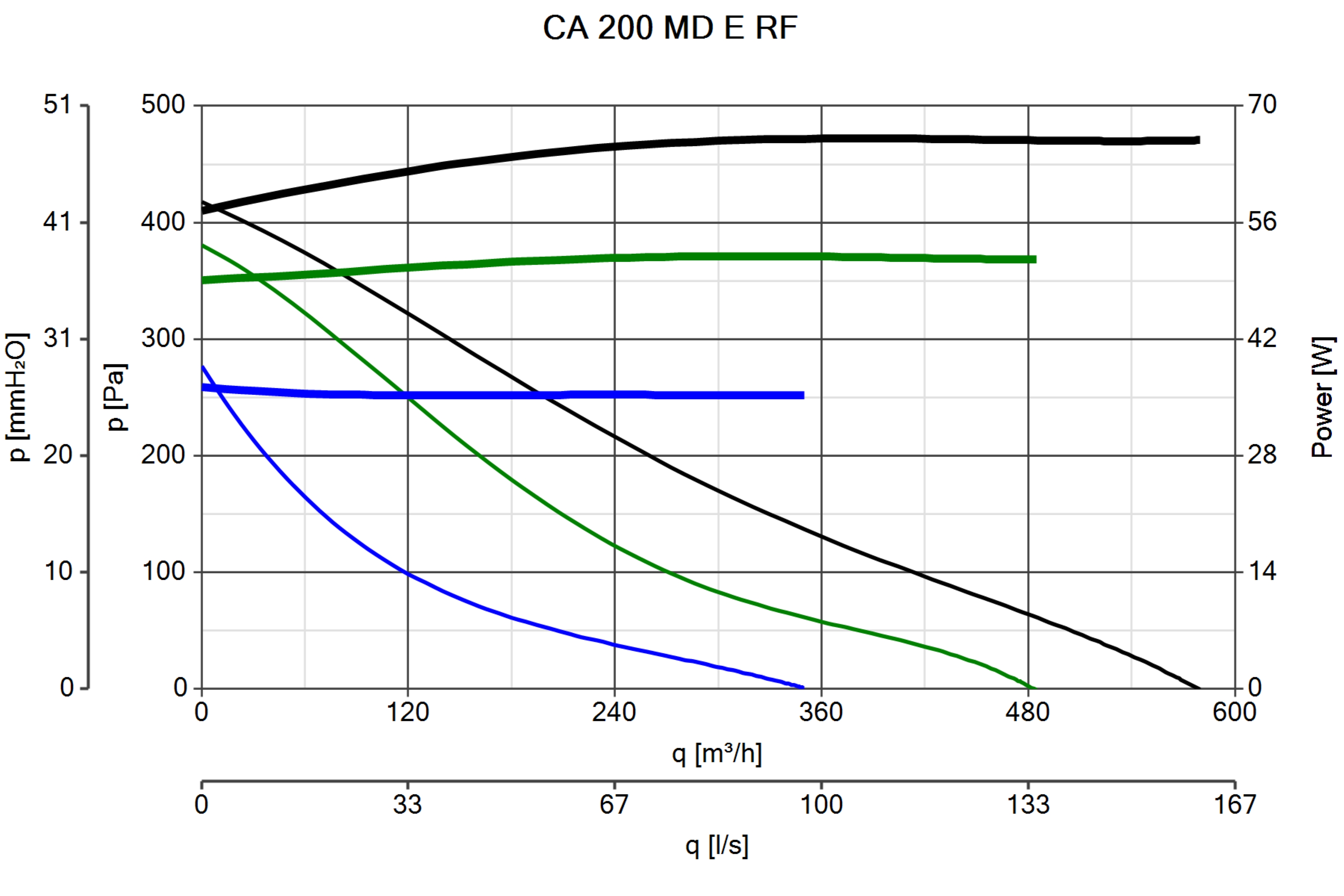

Curva_JPG_16185-Curve_per_Catalogo
